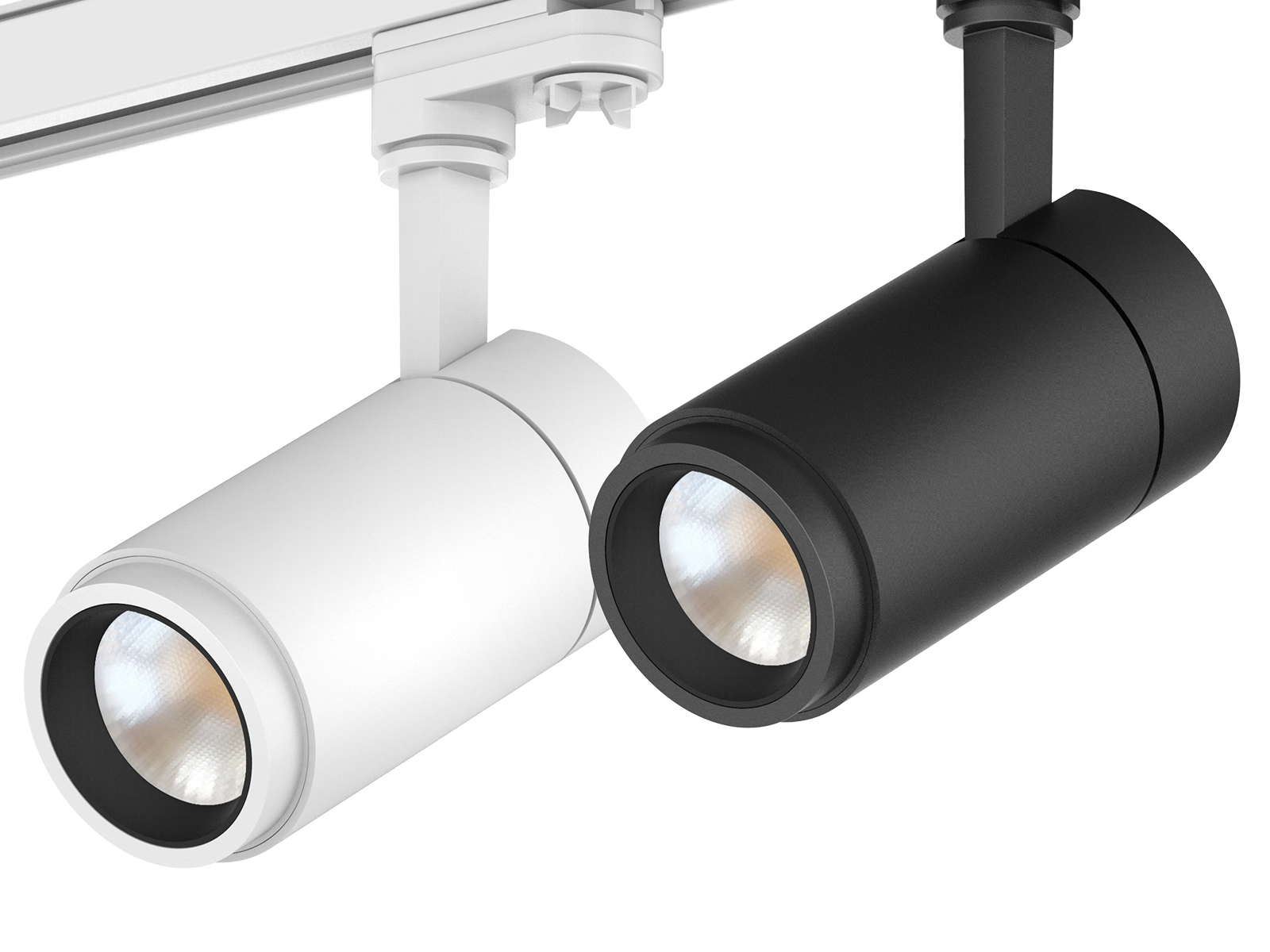

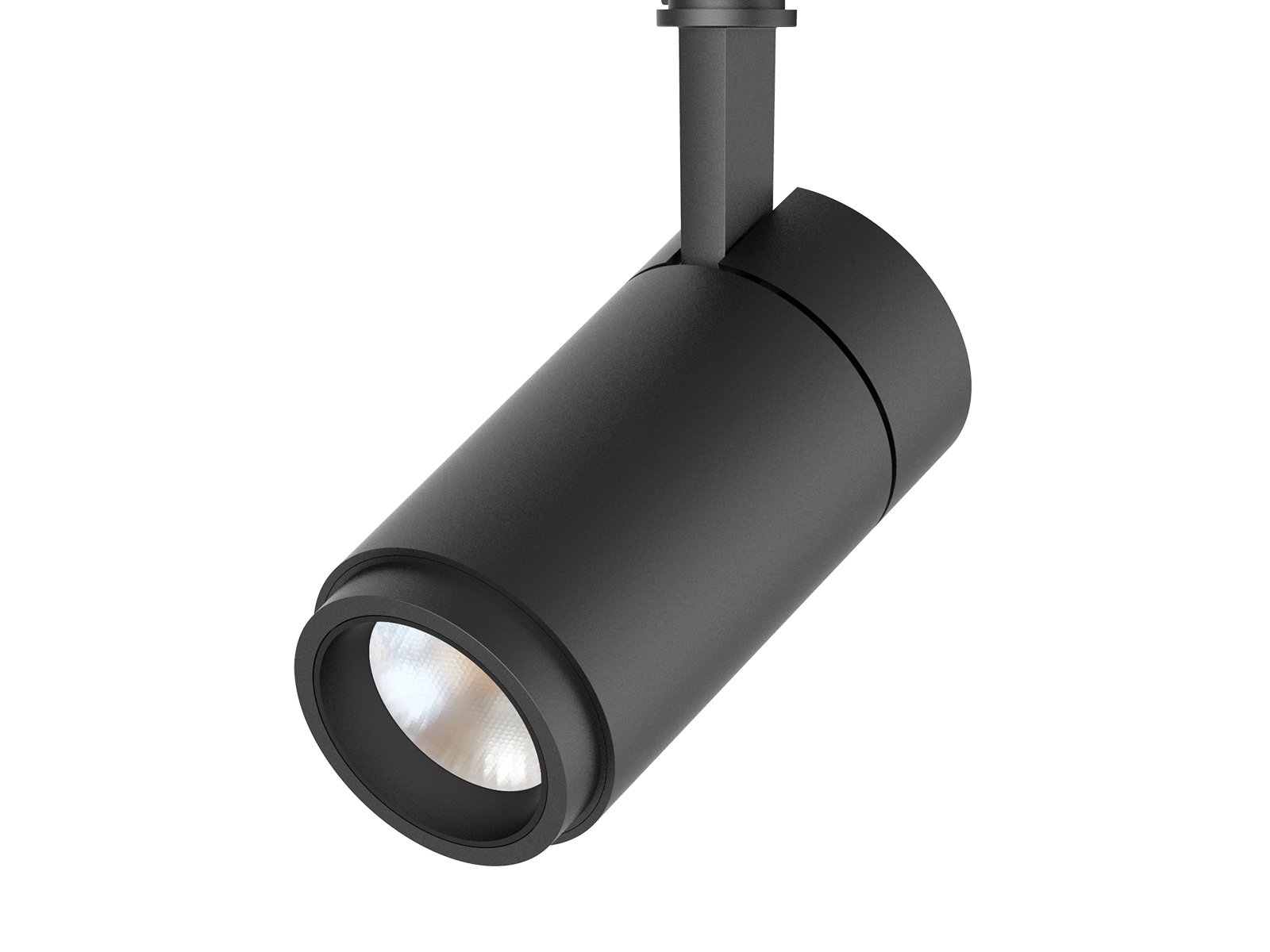

The LED track light with simple and elegant design, One track light with adjustable beam angle varies from 15°to 60°, creating a diversified and dramatic atmosphere. Lens optical design with even light output. Changeable lighting orientation with 350° in horizontal direction and 90° in vertical direction. Aluminum heat sink provides excellent heat dissipation.
Suspendant track lighting features:

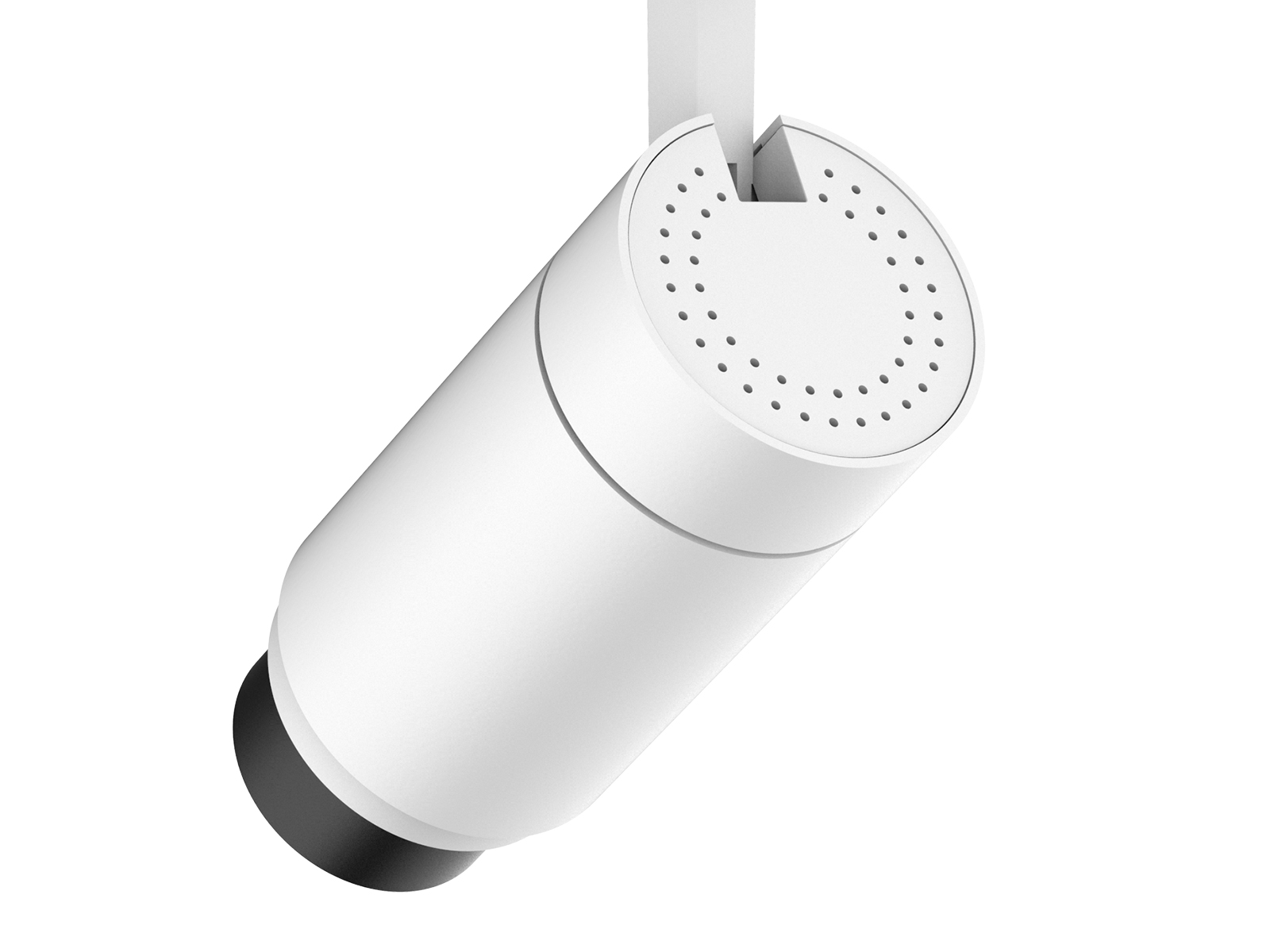

• Supreme Aluminum heat sink with great heat dissipation.
• Citizen brand LED, CRI80/90/97 optional.
• Adjustable beam angle from 15° to 60° .
• 1-circuit and 3-circuit adapters for options.
• Adjustable lighting orientation with 350° in horizontal direction and 90° in vertical direction.
| Model No. | TL56-10W-D | TL56-25W-D | TL56- 30W-D | TL56-15W | TL56-25W | TL56-30W | ||
| Dimension(mm) | Ø65*234 | Ø80*260 | Ø100*265 | Ø65*234 | Ø80*260 | Ø100*265 | ||
| Cutout (mm) | - | |||||||
| Watt(W) | 10W | 25W | 30W | 15W | 25W | 30W | ||
| Rated Input Voltage(V) | AC230V | |||||||
| Input Voltage(V) | AC220-240V | |||||||
| LED Module Input | - | |||||||
| Light Source | COB | |||||||
| SDCM | - | |||||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | |||||||
| CCT Selection DIP Switch | No | |||||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | - | 500~1500 | 750~2500 | 1000~3000 | ||
| DIM | 330-960 | 700-2500 | 950-2800 | - | ||||
| Non-DIM | 3-CCT | - | ||||||
| DIM | - | |||||||
| CRI | Ra>80 (Ra>90 Ra>97optional ) | |||||||
| Beam Angle (°) | 15° ~ 60° | |||||||
| UGR | - | |||||||
| LED Driver | Built-in | |||||||
| Dimming Option | Triac | |||||||
| Sensor | - | |||||||
| Emergency Kits | - | |||||||
| Electrical Class | Class Ⅰ | |||||||
| Ingress Protection (IP Rating) | IP20 | |||||||
| Impact Resistance (IK Rating) | - | |||||||
| Product Finishing(Base) | White RAL 9016 / Black RAL9005 | |||||||
| Materials of Optics | PC | |||||||
| Materials of Housing | Aluminum | |||||||
| Lifetime (hr) | 50,000h | |||||||
| Glow wire test (℃) | 850℃ | |||||||
| Operating Temp. (℃) | -20℃~45℃ | |||||||
| Storage Temp. (℃) | -20℃~65℃ | |||||||
| Installation | Track | |||||||
