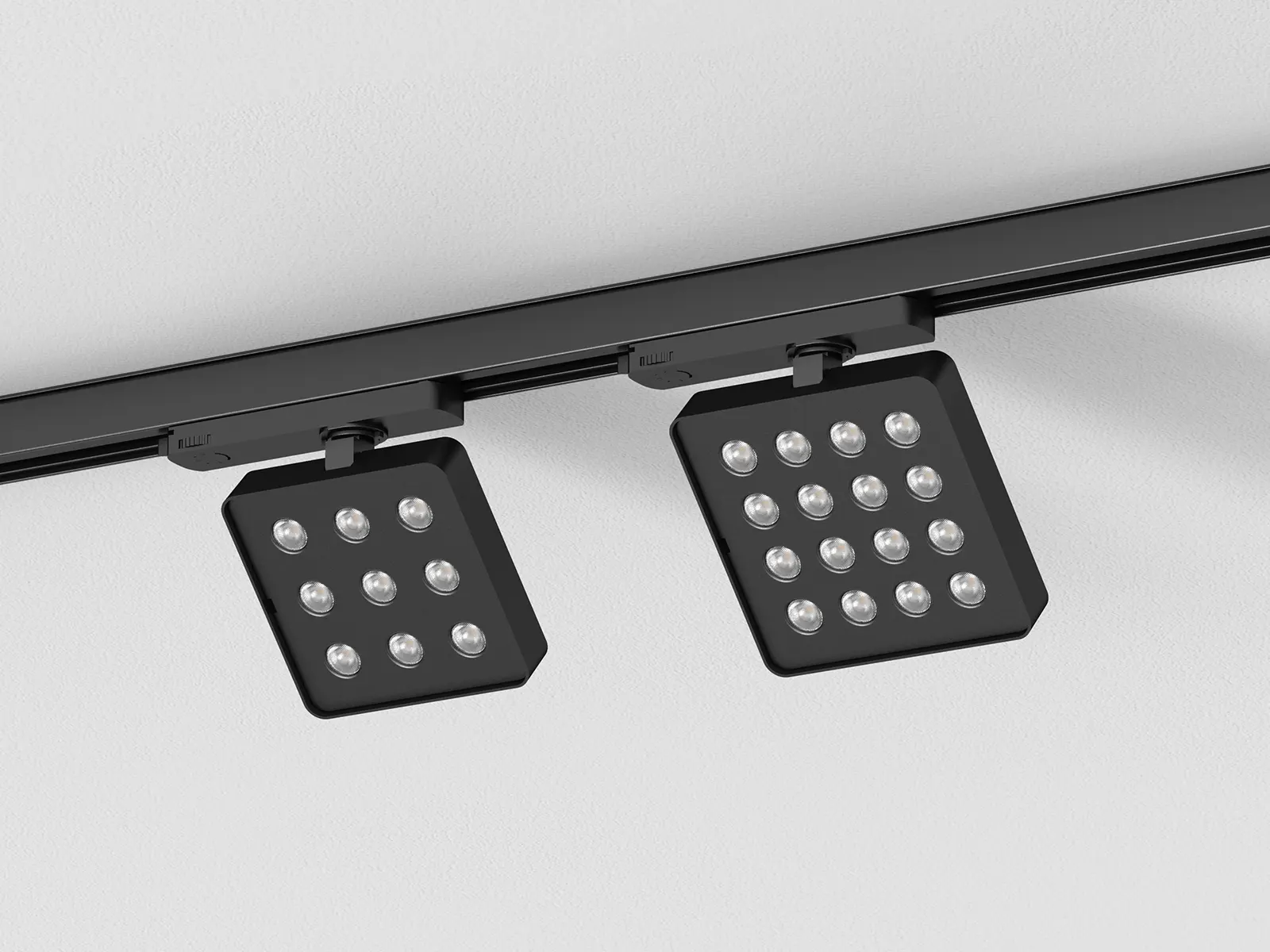

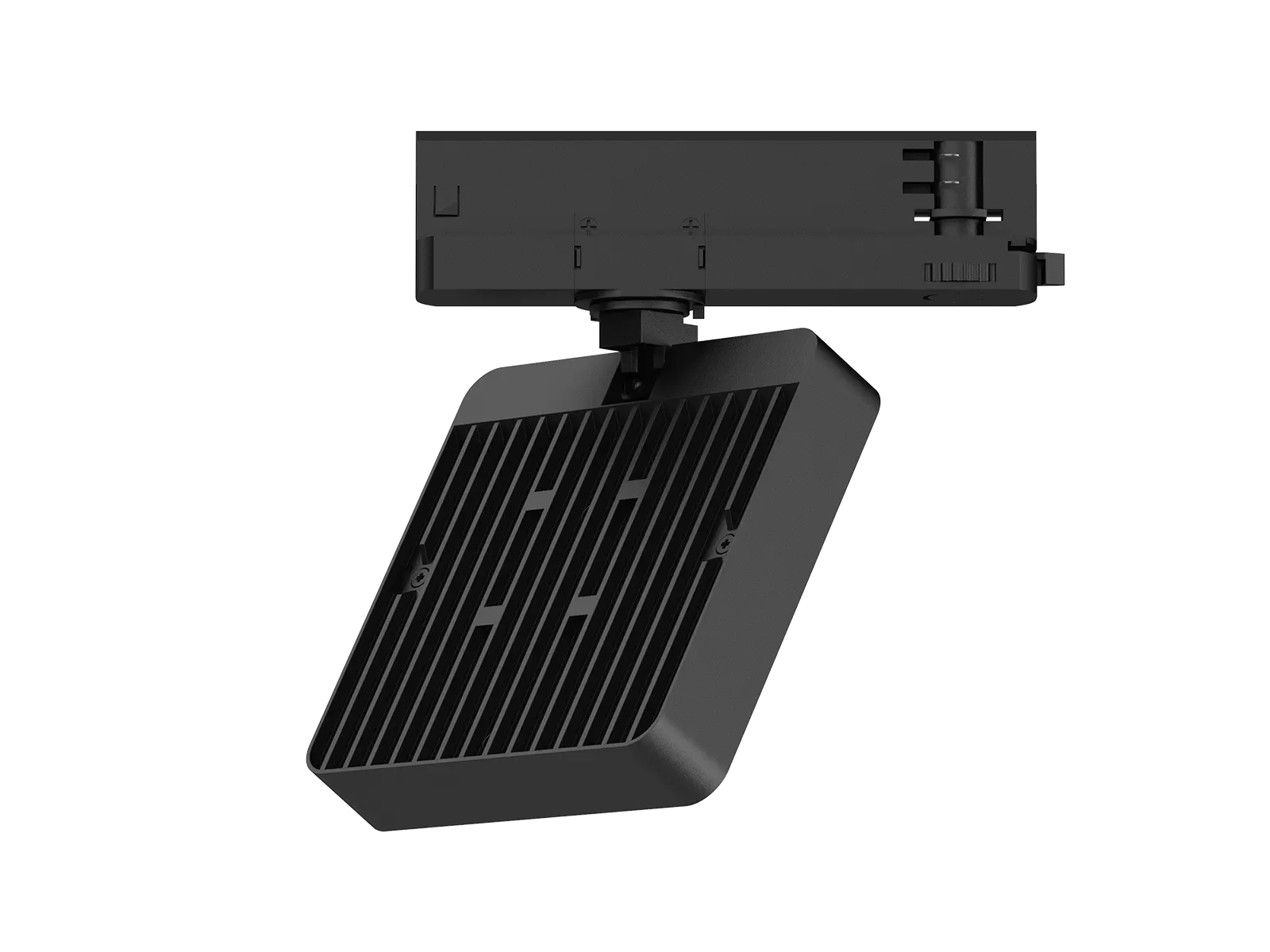

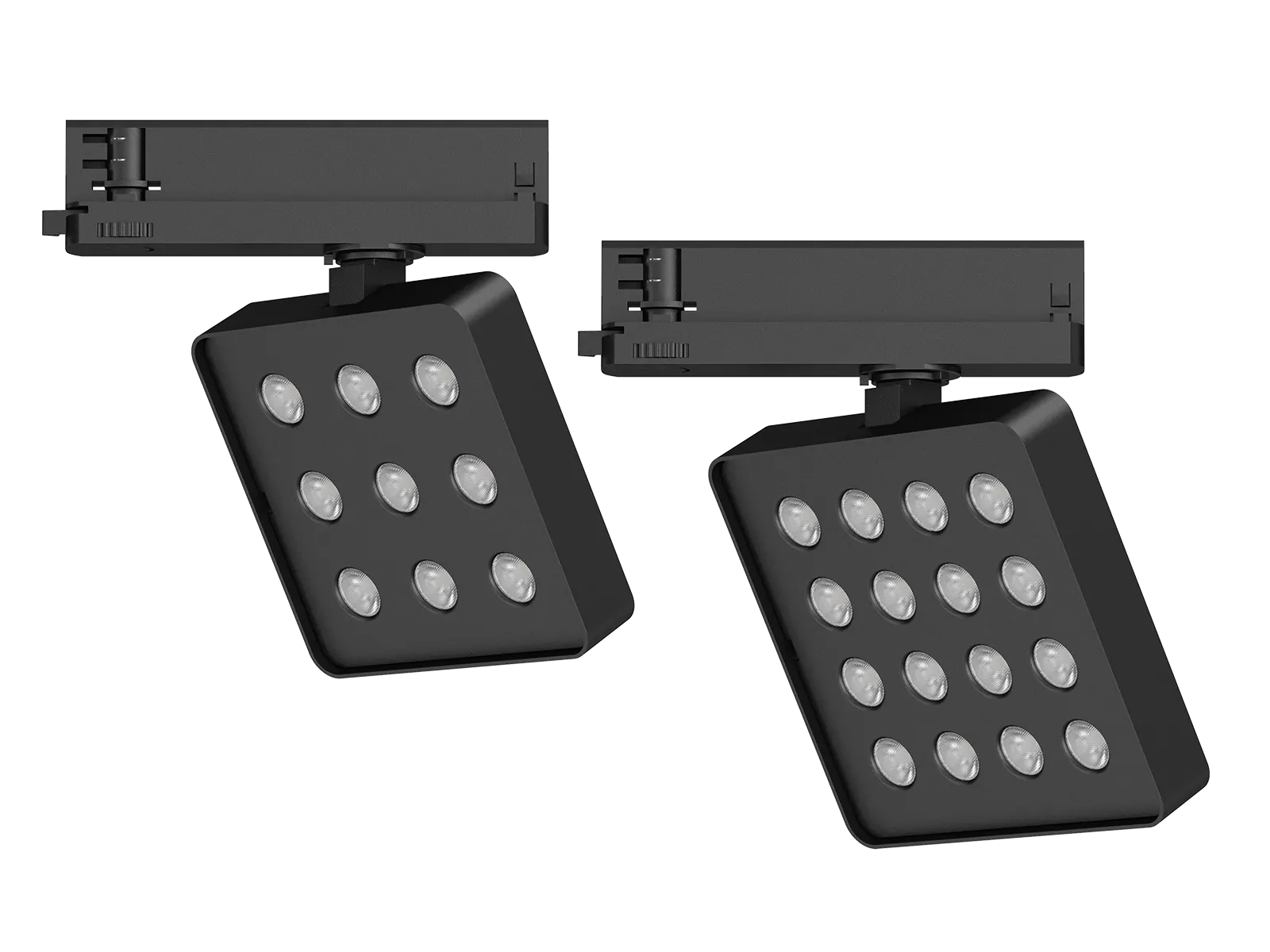

This series luminaires is made for interior with 2 forms - a 9-grid and a 16-grid. It adopts branded light source and LED driver, with 15°, 24°, 40°, and 60° beam angle options, and honeycomb louver and polarizing film optical accessories available as options. The lamp head can rotate 350° horizontally and adjust 90° vertically for light distribution. The system enables the fixture mounting to adapt to the specific requirements of the project, with recessed, track, surface and wall mounting options.It is widely applicable for various commercial lighting scenarios.
Applications: It is widely applicable for indoor lighting in areas such as supermarkets, hotels, offices, and other commercial spaces.
| Code | TL438-127- 15W | TL438-127- 20W | TL438-127- 15W-DA | TL438-127- 20W-DA | TL438-145- 25W | TL438-145- 28W | TL438-145- 25W-DA | TL438-145- 28W-DA | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 166*185*26 | 280*183*26 | 166*203*26 | 280*201*26 | ||||||
| Watt(W) | 15W | 20W | 15W | 20W | 25W | 28W | 25W | 28W | ||
| Rated Input Voltage | AC220-240V | |||||||||
| Input Voltage | AC198-264V | |||||||||
| Light Source | SMD | |||||||||
| SDCM | SDCM<5 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K | |||||||||
| CCT Selection DIP Switch | NO | |||||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 1440-1620 | 1980-2190 | - | - | 2380-2680 | 2670-3050 | - | - |
| DIM | - | - | 1370-1560 | 1730-2000 | - | - | 2340-2730 | 2600-2970 | ||
| CRI | 90 | |||||||||
| Beam Angle (°) | 15°/ 24°/ 40°/ 60° | |||||||||
| UGR | <19, UGR<22(60°) | |||||||||
| LED Driver | Built-in, Flicker Free | |||||||||
| Dimming Option | NO | DALI | NO | DALI | ||||||
| Sensor | NO | |||||||||
| Emergency Kits | NO | |||||||||
| Electrical Class | Class II | |||||||||
| Ingress Protection(IP Rating) | IP20 | |||||||||
| Impact Resistance(IK Rating) | IK03 | |||||||||
| Product Finishing | Black RAL9005 | |||||||||
| Optics Material | Lens/PMMA | |||||||||
| Housing Material | Die-Casting Aluminium | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 650°C | |||||||||
| Operating Temp(°C) | -20°C-35°C | |||||||||
| Storage Temp(°C) | -20°C-65°C | |||||||||
| Installation | Track | |||||||||
