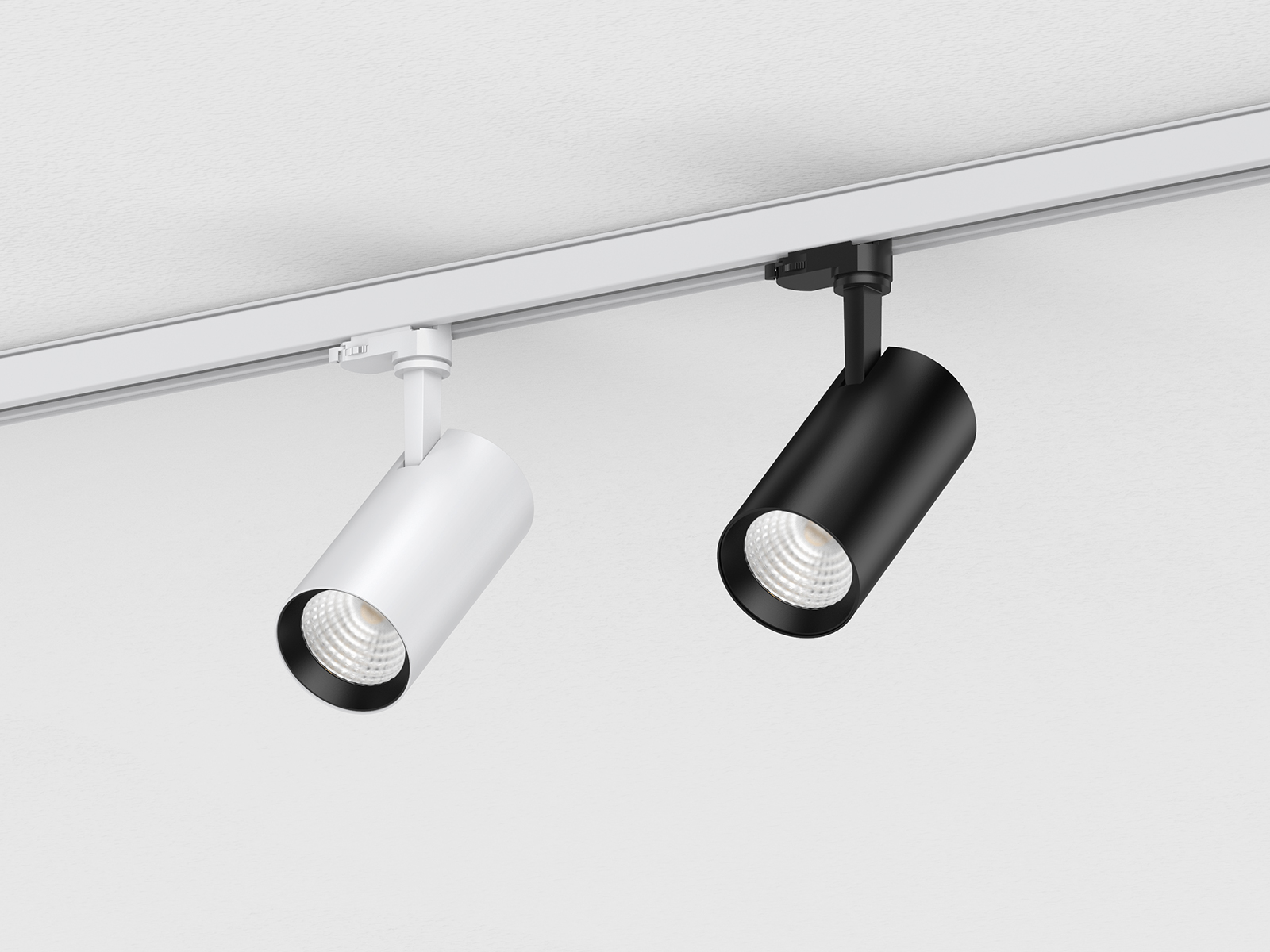

This is a new design track light that adopts a high-lumen COB chip and faceted reflector to create a diversified and dramatic atmosphere. The lens and reflector design effectively prevent glare, providing a comfortable and pleasant lighting effect. AL6063 aluminum housing offers great thermal management to ensure a long lifespan. Adjustable lighting orientation with 350° in the horizontal direction and 90° in the vertical direction will bring a flexible exposure.
Application Areas: It is suitable for supermarkets, specialty stores, show windows, exhibition halls, focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.

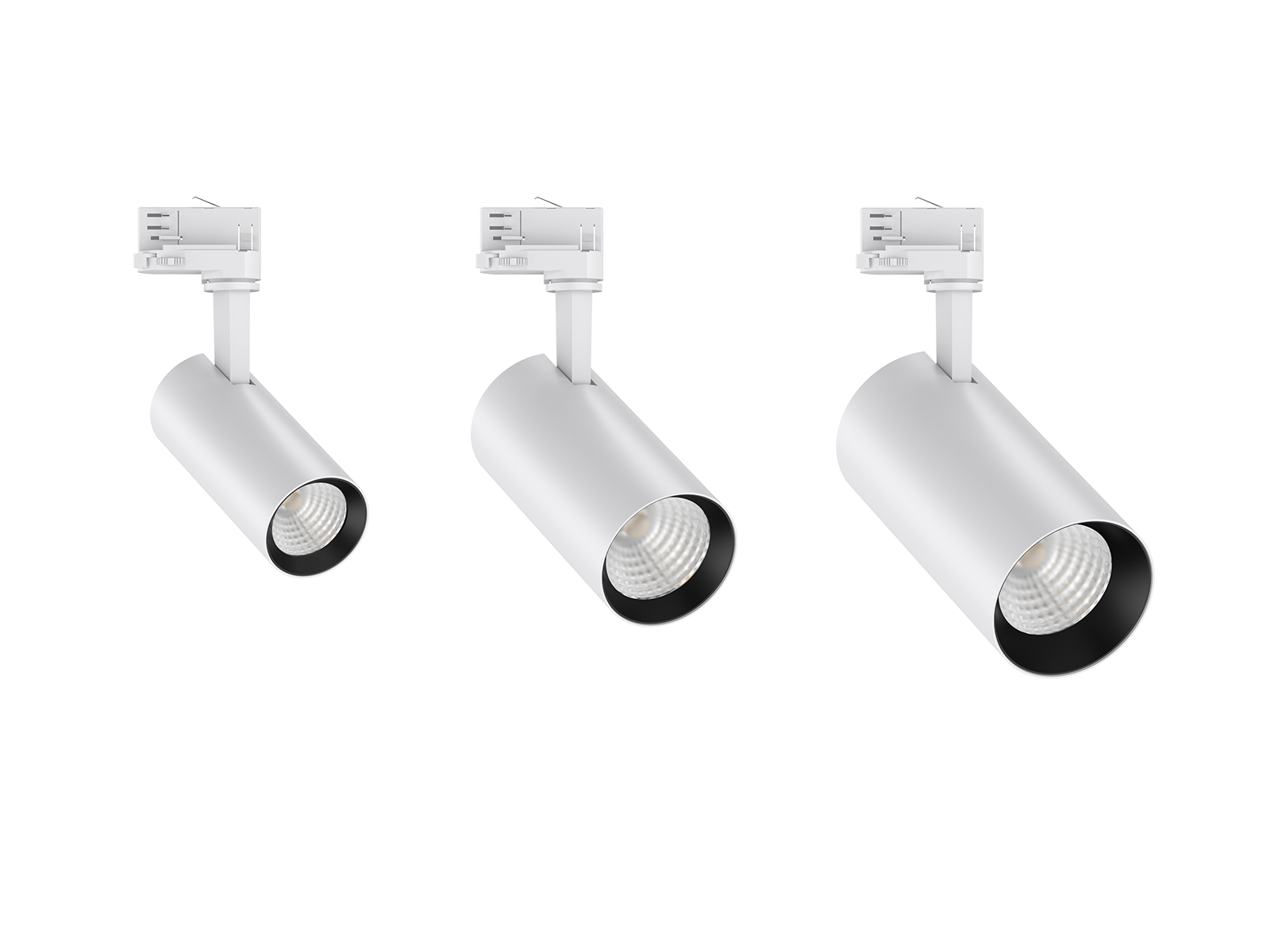

| Code | TL29-12W | TL29-20W | TL29-25W | TL29-30W | TL29-35W | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø65*208 | Ø85*228 | Ø85*228 | Ø100*261 | Ø100*261 | ||
| Watt(W) | 12W | 20W | 25W | 30W | 35W | ||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198-264V | ||||||
| LED Module Input | - | ||||||
| Light Source | COB | ||||||
| SDCM | <5 | ||||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K||2-CCT:3000+4000K | 1-CCT: 2700K/3000K/4000K/5000K | |||||
| CCT Selection DIP Switch | - | ||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 1050-1200 | 1700-1900 | 2050-2200 | 2450-2600 | 2900-3100 |
| DIM | 950-1100 | 1600-1800 | 2000-2150 | 2300-2500 | 2800-3000 | ||
| 2-CCT | Non-DIM | 900-1050 | 1700-1850 | 2050-2150 | 2450-2600 | - | |
| DIM | 900-950 | 1600-1750 | 2000-2100 | 2300-2500 | - | ||
| CRI | CRI90 | ||||||
| Beam Angle(°) | 24°/45° | 15°/24°/36° | |||||
| UGR | - | ||||||
| LED Driver | Driver built-out | ||||||
| Dimming Option | Triac | ||||||
| Sensor | - | ||||||
| Emergency Kits | - | ||||||
| Electrical Class | Class I | ||||||
| Ingress Protection(IP Rating) | IP20 | ||||||
| Impact Resistance(IK Rating) | IK03 | ||||||
| Product Finishing | White RAL 9016/Black RAL9005 | ||||||
| Optics Material | PC | ||||||
| Housing Material | Aluminium | ||||||
| Lifetime(hr) | 50,000h | ||||||
| Glow wire test(°C) | 750°C | ||||||
| Operating Temp.(°C) | -20°C~40°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||
| Installation | Track | ||||||
TL29(G4.0)
| Code | TL29-12W | TL29-20W | TL29-25W | TL29-30W | TL29-35W | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø65*228 | Ø85*247 | Ø85*247 | Ø100*280 | Ø100*280 | ||
| Watt(W) | 12W | 20W | 25W | 30W | 35W | ||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198-264V | ||||||
| Light Source | COB | ||||||
| SDCM | <5 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K||3-CCT:2700K+3500+5000K | ||||||
| CCT Selection DIP Switch | Yes | No | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 1390-1420 | 2160-2280 | 2570-2700 | 3170-3260 | 3480-3660 |
| DIM | 1300-1330 | 2080-2210 | 2510-2640 | 3060-3180 | 3440-3610 | ||
| 3-CCT | Non-DIM | 1130-1250 | 1950-2140 | 2290-2540 | - | - | |
| DIM | 1090-1210 | 1900-2050 | 2250-2400 | - | - | ||
| CRI | 90 | ||||||
| Beam Angle (°) | 24° / 45° | 15° / 24° / 36° | |||||
| LED Driver | Driver built-in | ||||||
| Dimming Option | Triac | ||||||
| Electrical Class | Class I | ||||||
| Ingress Protection(IP Rating) | IP20 | ||||||
| Product Finishing | White RAL 9016 / Black RAL9005 | ||||||
| Optics Material | PC | ||||||
| Housing Material | Aluminium | ||||||
| Lifetime (hr) | 50,000h | ||||||
| Glow wire test (°C) | 750°C | ||||||
| Operating Temp.(°C) | -20°C~40°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||
| Installation | Track | ||||||
