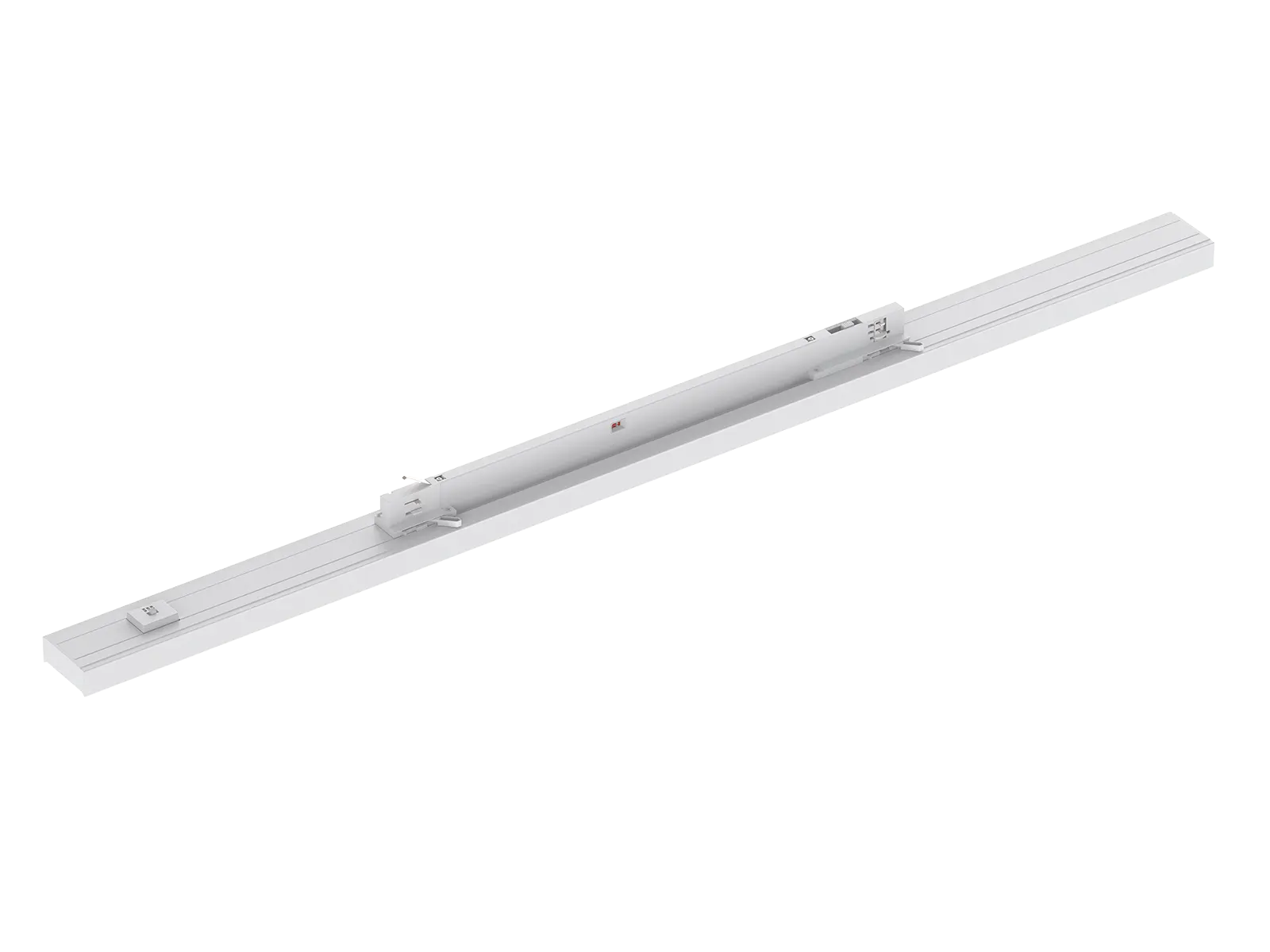

This series is a new high-quality, high-efficiency track linear light. It features a sleek design and is installed using a fully enclosed track system, making installation simple and convenient. With a comprehensive range of optical options, it meets the needs of various application scenarios. It is equipped with an 70° anti-glare grid, which deeply conceals the LED beads, ensuring light is visible without glare. The series boasts an efficiency of up to 160 lm/w. The entire series supports 4 wires with 3 circuits on/off and 6 wires with 3 circuits DALI versions, both are wattage changeable. It is compatible with multiple track brands, such as Global, Eutrac, Unipro, Powergear and Stucchi.
Applications: It's widely applied in shopping mall, supermarket, workshop, warehouse, and other similar commercial, industrial applications.

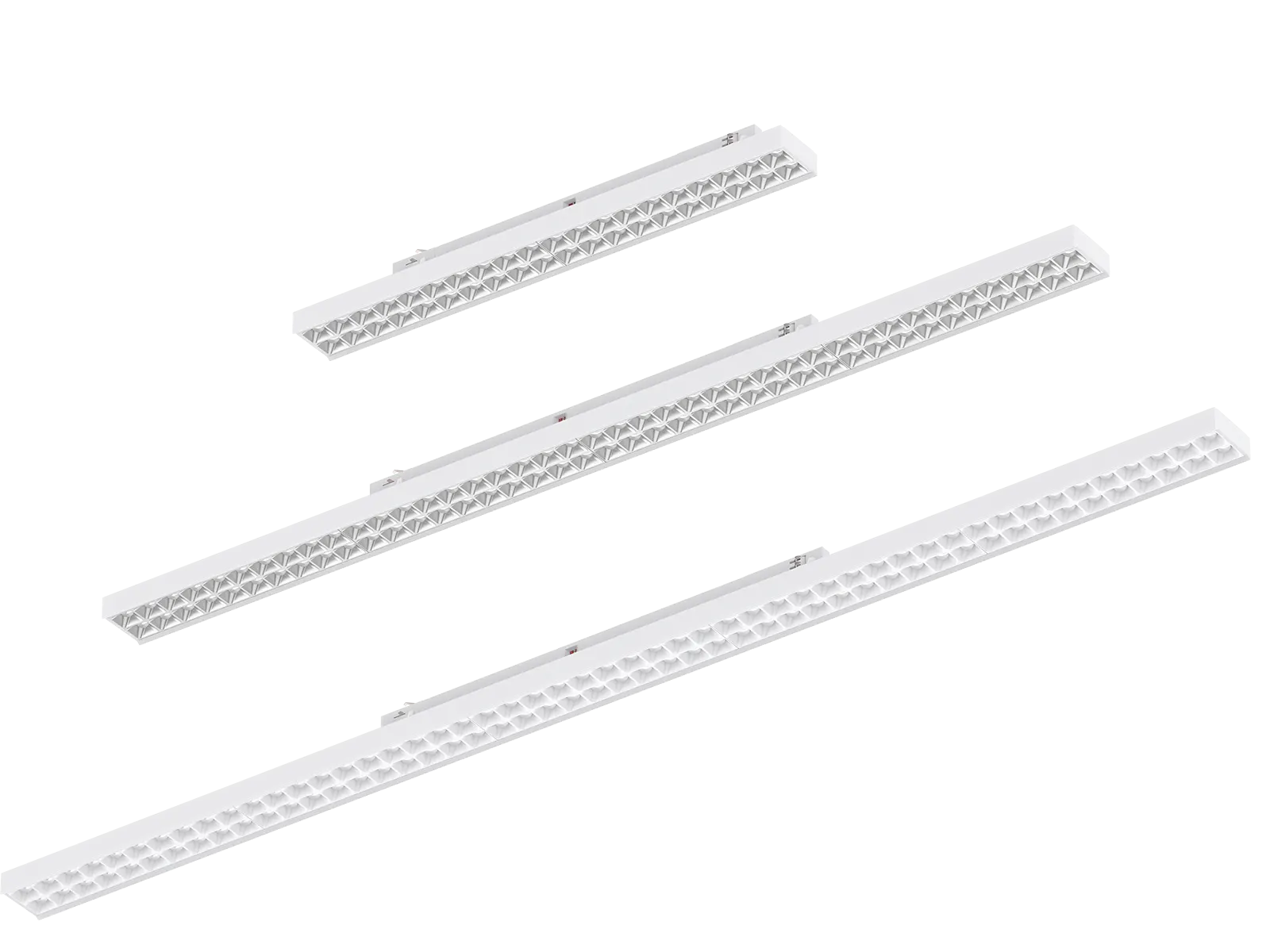

| Code | TL161C-600-30W | TL161C-1200-60W | TL161C-1500-75W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L604*W65.9*H72.2 | L1200.8*W65.9*H72.2 | L1499*W65.9*H72.2 | ||
| Cutout(mm) | - | ||||
| Watt(W) | 30W MAX | 60W MAX | 75W MAX | ||
| (26W/22W/20W optional) | (53W/46W/39W optional) | (67W/59W/51W optional) | |||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K / 4000K | | 2-CCT: 3000K+4000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Non-DIM | 30W: 4290-4640 | 60W: 9110-9460 | 75W: 11400-12140 | ||
| (White & silver | 26W: 3890-4190 | 53W: 8530-8850 | 67W: 10600-11300 | ||
| 1-CCT | reflector) | 22W: 3310-3560 | 46W: 7390-7710 | 59W: 9150-9950 | |
| 20W: 2950-3190 | 39W: 6485-6785 | 51W: 7810-8360 | |||
| Luminous Flux (lm) ±5% | Non-DIM | 30W: 3200-3500 | 60W: 7100-7400 | 75W: 9680-10335 | |
| CRI80 | (Black reflector) | 26W: 2900-3100 | 53W: 6400-6700 | 67W: 9050-9640 | |
| 22W: 2500-2700 | 46W: 5500-5800 | 59W: 7960-8510 | |||
| 20W: 2200-2400 | 39W: 4900-5100 | 51W: 6680-7130 | |||
| Non-DIM | 30W: 4090-4350 | 60W: 8310-8770 | 75W: 10420-11040 | ||
| (White & silver | 26W: 3590-3850 | 53W: 7630-8050 | 67W: 9580-10100 | ||
| 2-CCT | reflector) | 22W: 3020-3280 | 46W: 6750-7050 | 59W: 8440-8890 | |
| 20W: 2900-3056 | 39W: 6090-6415 | 51W: 7370-7830 | |||
| Non-DIM | 30W: 3100-3400 | 60W: 7000-7300 | 75W: 8800-9400 | ||
| (Black reflector) | 26W: 2800-3000 | 53W: 6300-6600 | 67W: 7900-8400 | ||
| 22W: 2500-2700 | 46W: 5500-5800 | 59W: 6900-7400 | |||
| 20W: 2200-2400 | 39W: 4900-5100 | 51W: 6100-6400 | |||
| CRI | 80 | ||||
| Beam Angle(°) | 70° | ||||
| UGR | - | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | DALI | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||

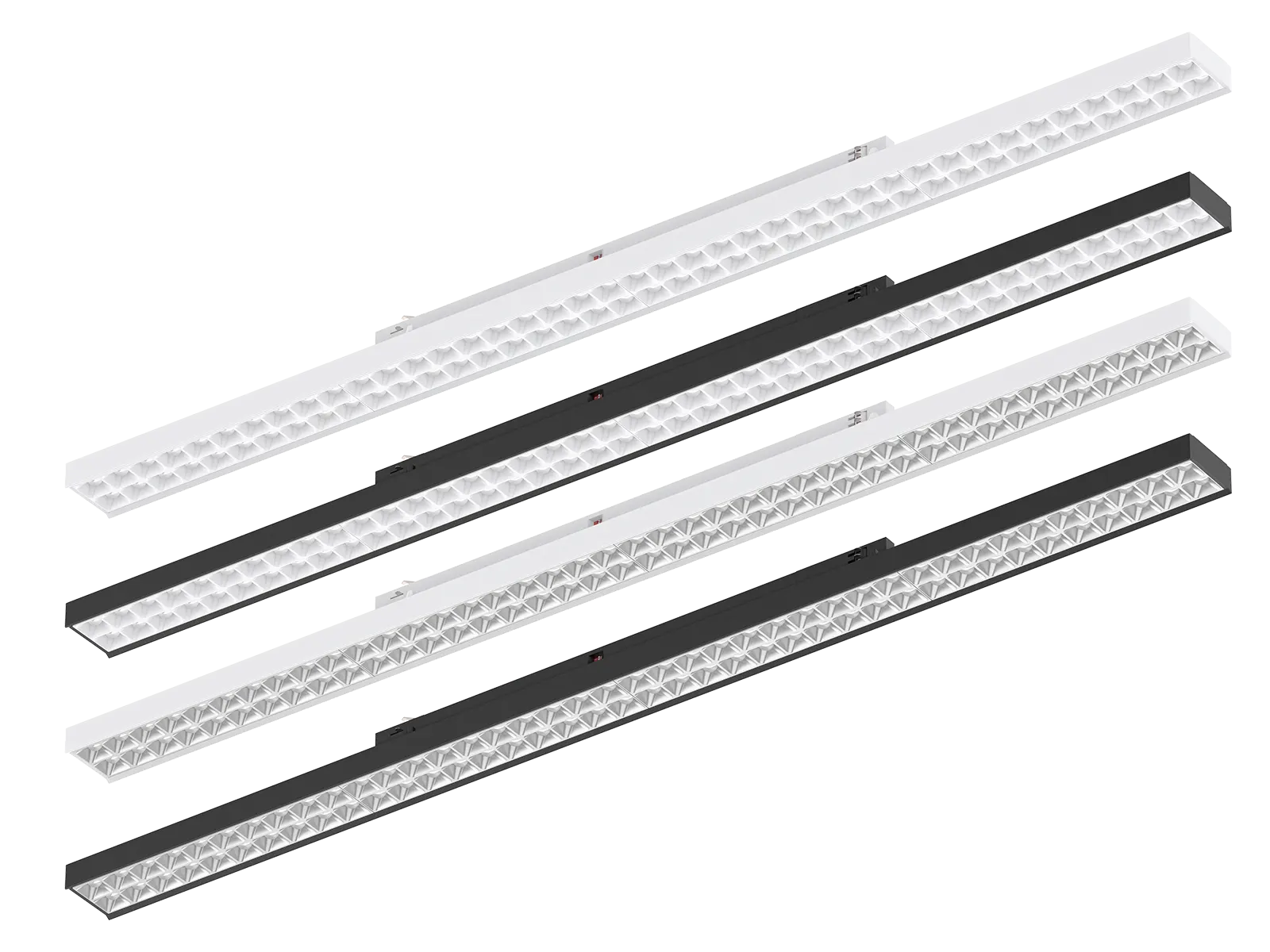

| Product Finishing | White RAL9016, Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 60,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp(°C) | -20°C~45°C | ||||
| Storage Temp(°C) | -20°C~65°C | ||||
| Installation | Track | ||||
