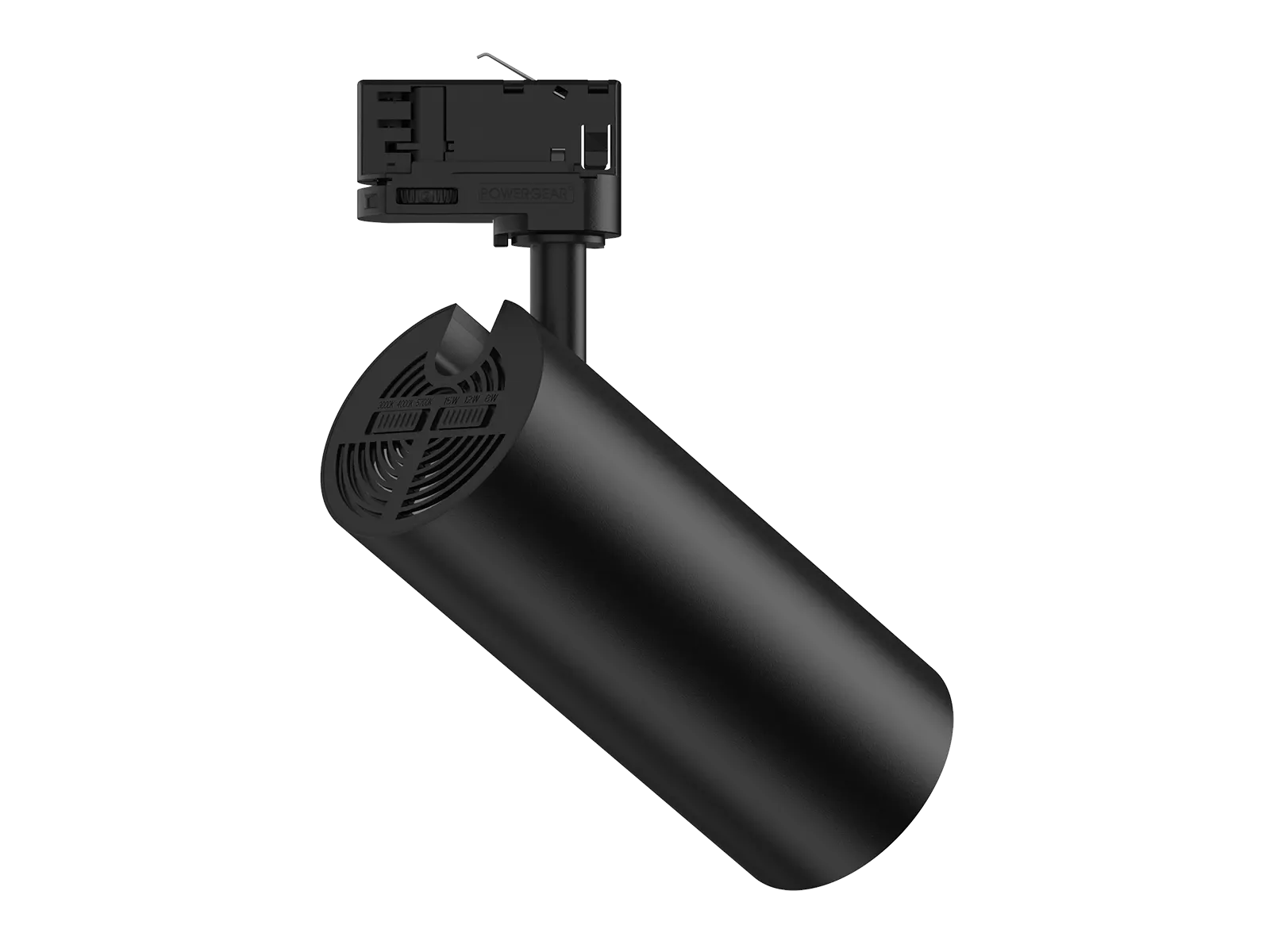

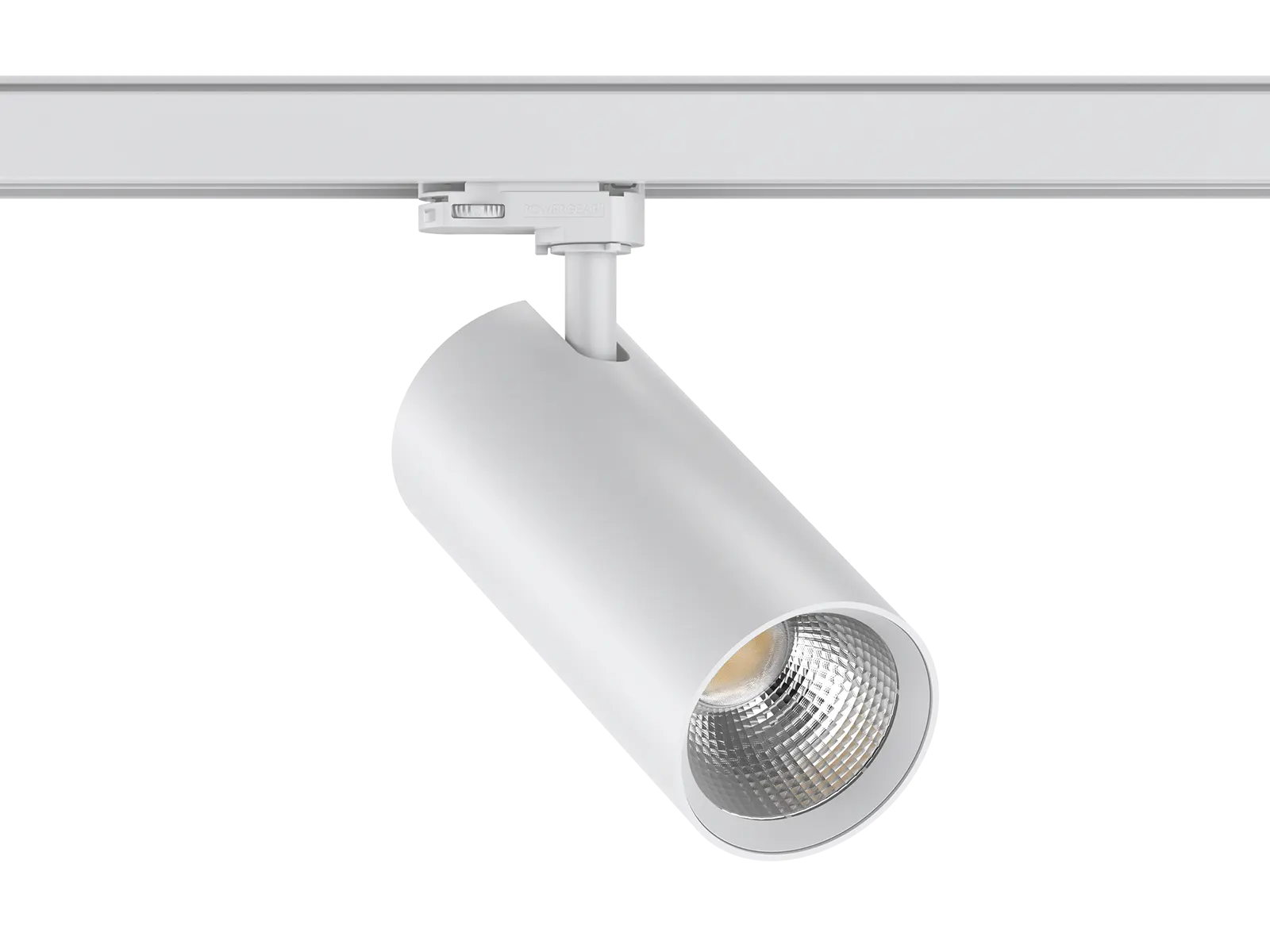

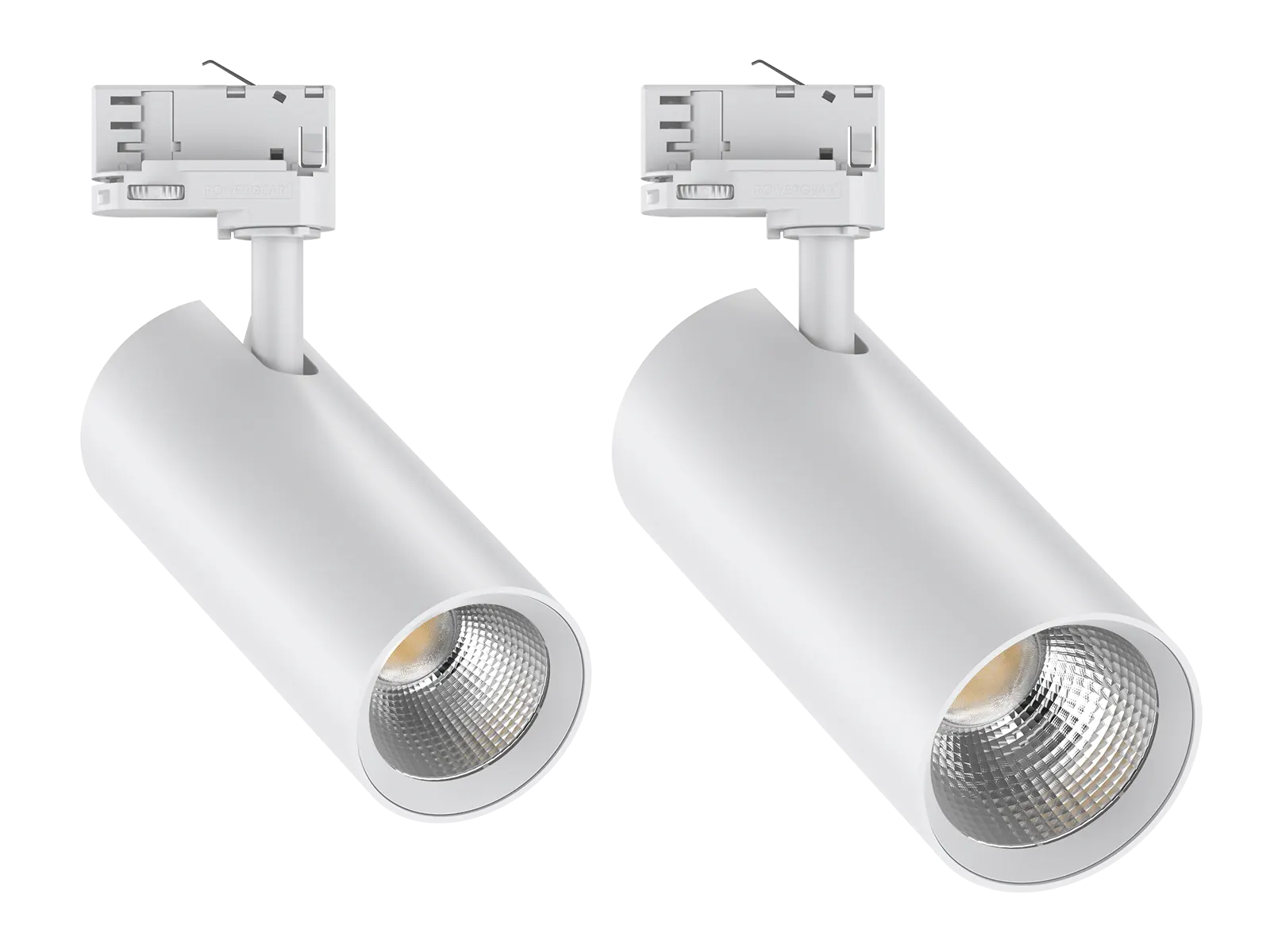

The track light is design with faceted reflector plus spherical lens and plastic coated aluminum. With mini track adaptor and its surface without screws and wires which looks neat. Whole series wattage adjustable as standard and CCT interchangeable for option. Reflector modular design is replaceable with 45° and 60° .
Applications: It is widely used in exclusive store, shopping mall, supermarket, restaurant, bar, and other reception area.
| Code | TL160-75-15W | TL160-88-25W | ||
|---|---|---|---|---|
| Dimension(mm) | Ø75*231.6 | Ø88*254 | ||
| Watt(W) | 15W Max.(12W/8W optional) | 25W Max.(20W/15W optional) | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5700K || 3-CCT:3000K+ 4000K+5700K | |||
| CCT Selection | YES | |||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 15W: 1370-1450lm 12W: 1080-1150lm 8W: 770-800lm | 25W: 2200-2400lm 20W: 1800-2000lm 15W: 1430-1520lm |
| 3-CCT | Non-DIM | 15W: 1370-1450lm 12W: 1080-1150lm 8W: 770-800lm | 25W: 2400-2550lm 20W: 1980-2080lm 15W: 1500-1580lm | |
| CRI | CRI90 | |||
| Beam Angle(°) | 45°/60° | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | NO | |||
| Sensor | NO | |||
| Emergency Kits | NO | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | IP20 | |||
| Impact Resistance(IK Rating) | IK06 | |||
| Product Finishing | White RAL9016 / Black RAL9005 | |||
| Optics Material | Aluminium | |||
| Housing Material | Plastic coated Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C~35°C | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Track | |||
