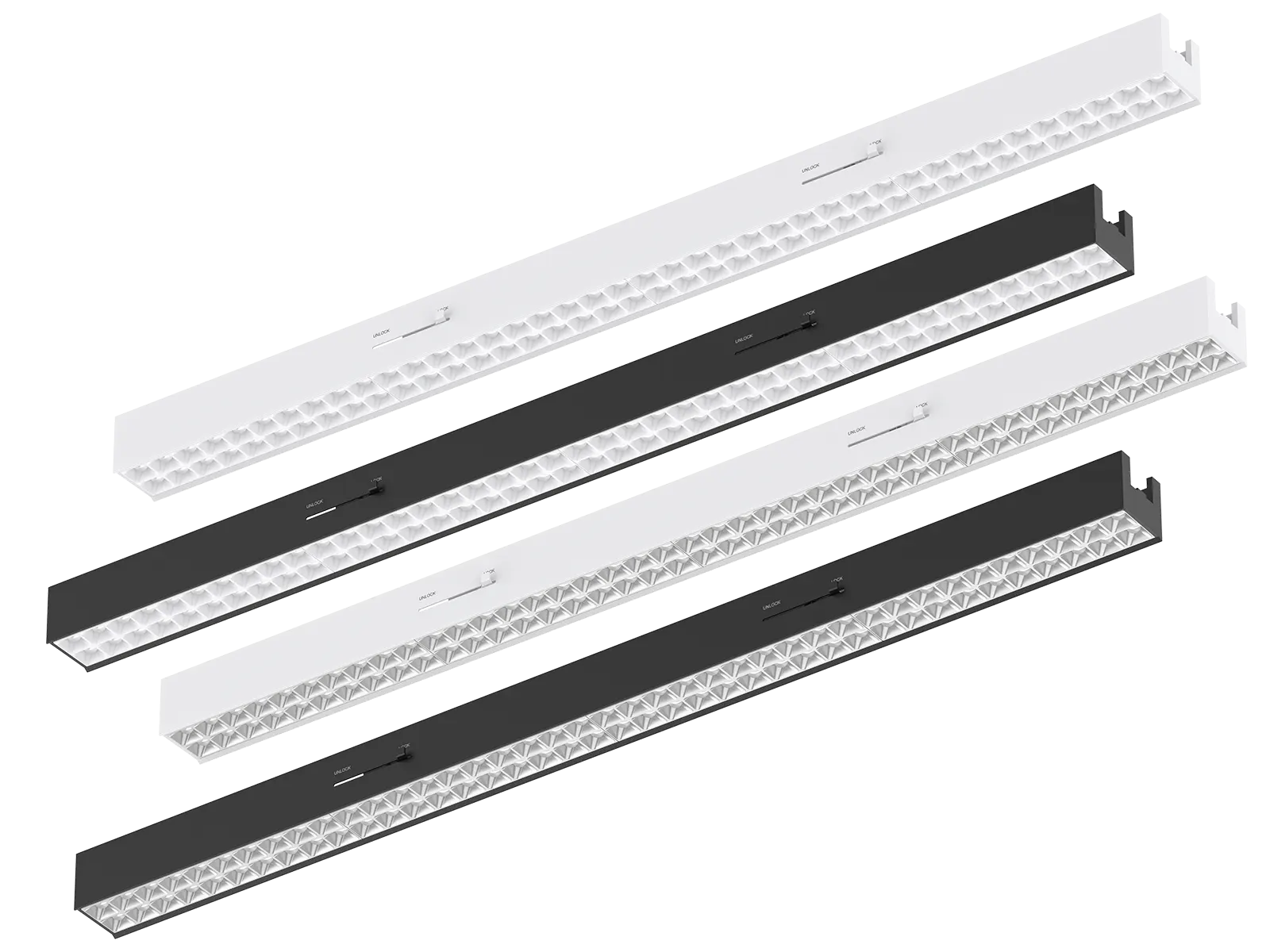

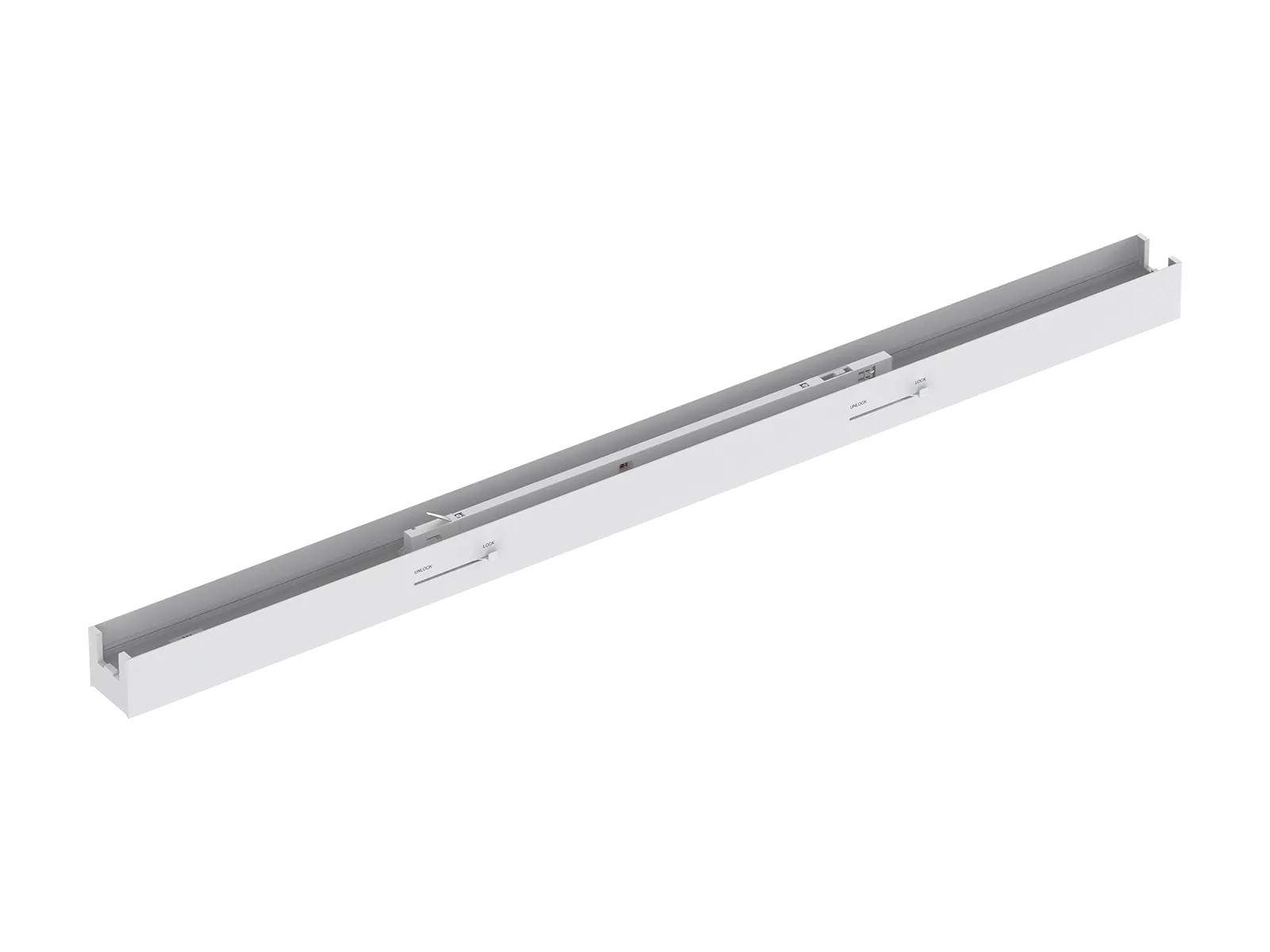

This series is a new high-quality, high-efficiency track linear light. It features a sleek design and is installed using a fully enclosed track system, making installation simple and convenient. With a comprehensive range of optical options, it meets the needs of various application scenarios. It is equipped with an 70° anti-glare grid, which deeply conceals the LED beads, ensuring light is visible without glare. The series boasts an efficiency of up to 160 lm/w. The entire series supports 4 wires with 3 circuits on/off and 6 wires with 3 circuits DALI versions, both are wattage changeable. It is compatible with multiple track brands, such as Global, Eutrac, Unipro, Powergear and Stucchi.
Applications: It's widely applied in shopping mall, supermarket, workshop, warehouse, and other similar commercial, industrial applications.
| Code | TL151C-600-30W | TL151C-1200-60W | TL151C-1500-75W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L604*W72.9*H72.3 | L1200.8*W72.9*H72.3 | L1499*W72.9*H72.3 | ||
| Cutout(mm) | - | ||||
| Watt(W) | 30W MAX | 60W MAX | 75W MAX | ||
| (26W/22W/20W optional) | (53W/46W/39W optional) | (67W/59W/51W optional) | |||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K / 4000K | | 2-CCT: 3000K+4000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Non-DIM | 30W:4000-4300 | 60W:8500-9060 | 75W:11375-11925 | ||
| (White & silver | 26W:3600-3900 | 53W:8020-8450 | 67W:10550-11105 | ||
| 1-CCT | reflector) | 22W:3100-3400 | 46W:7090-7550 | 59W:9150-9800 | |
| 20W:2700-3045 | 39W:6050-6580 | 51W:7740-8190 | |||
| Luminous Flux (lm) ±5% | Non-DIM | 30W:3200-3500 | 60W:7100-7400 | 75W:9950-10500 | |
| CRI80 | (Black reflector) | 26W:2900-3100 | 53W:6400-6700 | 67W:9260-9810 | |
| 22W:2500-2700 | 46W:5500-5800 | 59W:8100-8660 | |||
| 20W:2200-2400 | 39W:4900-5100 | 51W:6660-7210 | |||
| Non-DIM | 30W:4000-4515 | 60W:8370-8820 | 75W:10300-11385 | ||
| (White & silver | 26W:3260-3580 | 53W:7580-8000 | 67W:9830-10380 | ||
| 2-CCT | reflector) | 22W:2950-3190 | 46W:6660-7020 | 59W:8700-9240 | |
| 20W:2830-3045 | 39W:6110-6410 | 51W:7500-7950 | |||
| Non-DIM | 30W:3530-3735 | 60W:7000-7300 | 75W:8800-9400 | ||
| (Black reflector) | 26W:3050-3230 | 53W:6300-6600 | 67W:7900-8400 | ||
| 22W:2680-2880 | 46W:5500-5800 | 59W:6900-7400 | |||
| 20W:2500-2625 | 39W:4900-5100 | 51W:6100-6400 | |||
| CRI | 80 | ||||
| Beam Angle(°) | 70° | ||||
| UGR | - | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | DALI | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 60,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp(°C) | -20°C~45°C | ||||
| Storage Temp(°C) | -20°C~65°C | ||||
| Installation | Track | ||||
