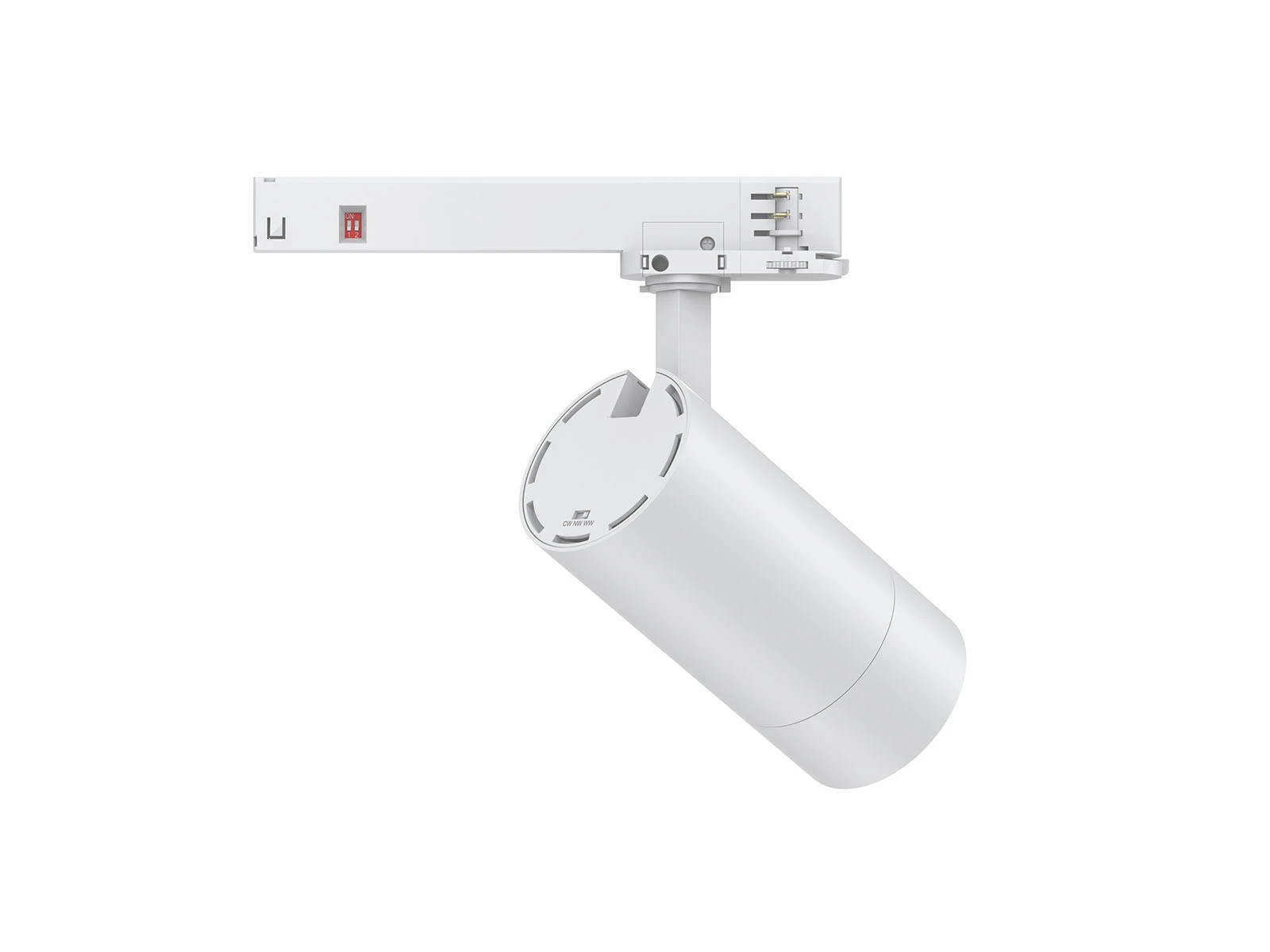

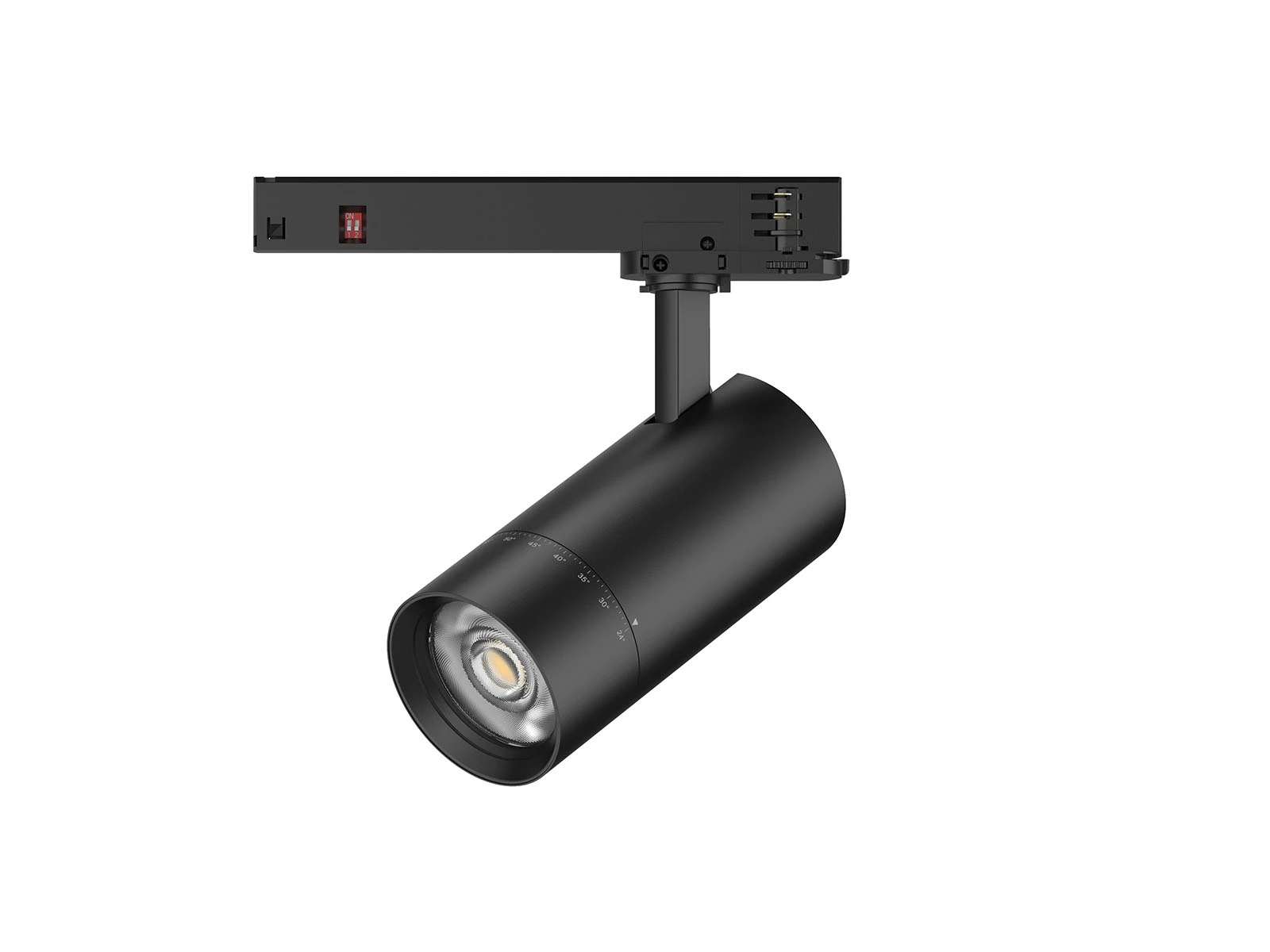

The COB led track light is designed with ADC12 housing and compact in-track led flicker driver, which is beam angle and CCT changeable. It is able to adjust 90° in vertical direction and 355° in horizontal direction provide different lighting direction. Wattage changeable and beam angle adjustable as standard for whole series and CCT interchangeable for option. Version A without honeycomb while ver sion B with honeycomb which decrease glare. Performance well on heat dissipation by ADC12 lamp body. Its dimming version is compatible well with branded dimmer.

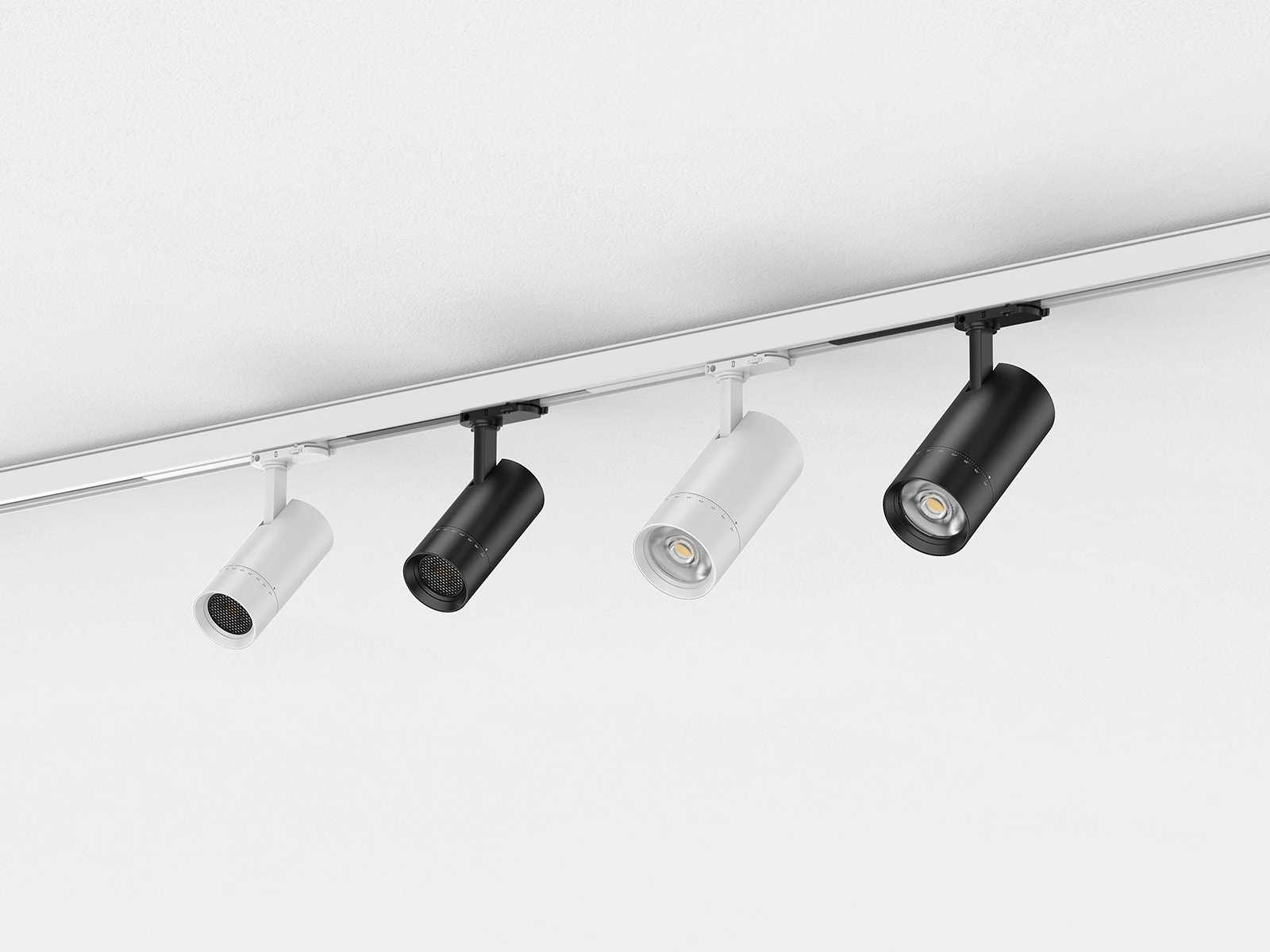

Application Areas: It is suitable for key lighting occasions such as shopping malls, clothing stores, supermarket, specialty store and so on.
| Code | TL149A-65-20W | TL149A-80-35W | TL149B-65-20W | TL149B-80-30W | |||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | 221*212*65 | 221*238*80 | 221*212*65 | 221*238*80 | |||
| Watt(W) | 20W Max. (15W/10W optional) | 35W Max. (30W/25W/20W optional) | 20W Max. (15W/10W optional) | 30W Max. (25W/20W/15W optional) | |||
| Rated Input Voltage | AC220-240V | ||||||
| Input Voltage | AC198-264V | ||||||
| LED Module Input | DC33-38V | ||||||
| Light Source | COB | ||||||
| SDCM | ≤5 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K || 3-CCT: 3000K+4000K+5000K | ||||||
| CCT Selection DIP Switch | YES | ||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 24° | 10W: 1000-1100 15W: 1600-1750 20W: 2000-2150 | 20W: 2150-2350 25W: 2550-2950 30W: 3050-3400 35W: 3350-3750 | 10W: 600-700 15W: 1050-1150 20W: 1300-1400 | 15W: 950-1100 20W: 1300-1400 25W: 1600-1800 30W: 1900-2150 |
| 60° | 10W: 1000-1150 15W: 1550-1750 20W: 2000-2250 | 20W: 2250-2450 25W: 2700-3000 30W: 3250-3600 35W: 3600-3850 | 10W: 550-650 15W: 900-1000 20W: 1100-1200 | 15W: 900-1050 20W: 1200-1400 25W: 1550-1650 30W: 1850-2000 | |||
| DIM | 24° | 10W: 940-1050 15W: 1500-1650 20W: 1850-2150 | 20W: 1950-2250 25W: 23502850 30W: 2800-3250 35W: 3100-3650 | 10W: 520-700 15W: 900-1130 20W: 1200-1380 | 15W: 880-1080 20W: 1200-1380 25W: 1500-1750 30W: 1700-2050 | ||
| 60° | 10W: 940-1100 15W: 1400-1700 20W: 1850-2000 | 20W: 2050-2350 25W: 2500-2950 30W: 3000-3450 35W: 3300-3800 | 10W: 500-650 15W: 800-1000 20W: 980-1180 | 15W: 820-1050 20W: 1100-1380 25W: 1400-1600 30W: 1700-1900 | |||
| 3-CCT | Non-DIM | 24° | 10W: 900-1000 15W: 1200-1550 20W: 1550-1850 | 20W: 1700-1850 25W: 2250-2800 30W: 2500-3050 35W: 2800-3580 | 10W: 480-580 15W: 800-1000 20W: 1100-1300 | 15W: 850-960 20W: 1000-1150 25W: 1400-1700 30W: 1550-1800 | |
| 60° | 10W: 890-1000 15W: 1300-1550 20W: 1750-2050 | 20W: 1800-2000 25W: 2450-2950 30W: 2700-3300 35W: 3100-3850 | 10W: 460-560 15W: 650-850 20W: 900-1100 | 15W: 850-930 20W: 1000-1100 25W: 1400-1650 30W: 1450-1750 | |||
| DIM | 24° | 10W: 820-1000 15W: 1100-1400 20W: 1550-1900 | 20W: 1600-1800 25W: 2100-2650 30W: 2350-2900 35W: 2950-3250 | 10W: 450-580 15W: 750-980 20W: 1000-1280 | 15W: 850-960 20W: 1000-1150 25W: 1400-1700 30W: 1650-1850 | ||
| 60° | 10W: 820-1000 15W: 1100-1500 20W: 1600-1950 | 20W: 1700-1900 25W: 2300-2800 30W: 2500-3150 35W: 2950-3250 | 10W: 430-560 15W: 600-820 20W: 850-1050 | 15W: 850-930 20W: 1000-1100 25W: 1400-1650 30W: 1600-1800 | |||
| CRI | 90 | ||||||
| Beam Angle(°) | 24°~60° | ||||||
| UGR | UGR<22@24° | UGR<22@24° | UGR<19@24° | UGR<19@24° | |||
| LED Driver | Driver built-out | ||||||
| Dimming Option | Triac | ||||||
| Sensor | NO | ||||||
| Emergency Kits | NO | ||||||
| Electrical Class | Class II | ||||||
| Ingress Protection(IP Rating) | IP20 | ||||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||||
| Optics Material | PC | ||||||
| Housing Material | Aluminium | ||||||
| Lifetime(hr) | 50,000h | ||||||
| Glow wire test(°C) | 750°C | ||||||
| Operating Temp(°C) | -20~35°C | ||||||
| Storage Temp(°C) | -20~65°C | ||||||
| Installation | Track | ||||||
| Code | TL149A-65-10W | TL149A-65-15W | TL149A-65-22W | TL149A-80-20W | TL149A-80-25W | TL149A-80-30W | TL149A-80-35W | ||
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 160*214*65 | 160*240*80 | |||||||
| Watt(W) | 10W | 15W | 22W | 20W | 25W | 30W | 35W | ||
| Rated Input Voltage | AC220-240V | ||||||||
| Input Voltage | AC198-264V | ||||||||
| LED Module Input | DC33-38V | ||||||||
| Light Source | COB | ||||||||
| SDCM | ≤5 | ||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K || 3-CCT: 3000K+4000K+5000K | ||||||||
| CCT Selection | By DIP Switch | ||||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | 24° | 1005-1080 | 1100-1800 | 2018-2310 | 2175-2305 | 2595-2900 | 3080-3390 | 3380-3890 |
| 60° | 1030-1100 | 1700-1815 | 2095-2355 | 2280-2415 | 2745-2975 | 3260-3540 | 3620-4025 | ||
| 3-CCT | 24° | 900-980 | 1410-1780 | 1735-2080 | 1755-1850 | 2290-2525 | 2530-2815 | 3015-3335 | |
| 60° | 910-995 | 1440-1810 | 1775-2185 | 1820-1945 | 2480-2710 | 2705-3030 | 3055-3500 | ||
| CRI | CRI90 | ||||||||
| Beam Angle(°) | 24°~60° | ||||||||
| UGR | UGR<19@24° | UGR<22@24° | |||||||
| LED Driver | Built-out, Flicker Free | ||||||||
| Dimming Option | NO | ||||||||
| Emergency Kits | NO | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection(IP Rating) | IP20 | ||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||||||
| Optics Material | PC | ||||||||
| Housing Material | Aluminium | ||||||||
| Lifetime(hr) | 50,000h | ||||||||
| Glow wire test(°C) | 750°C | ||||||||
| Operating Temp.(°C) | -20°C~30°C | ||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||
| Installation | Track | ||||||||
| Code | TL149B-65-10W | TL149B-65-15W | TL149B-65-22W | TL149B-80-15W | TL149B-80-20W | TL149B-80-25W | TL149B-80-30W | ||
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 160*214*65 | 160*240*80 | |||||||
| Watt(W) | 10W | 15W | 22W | 15W | 20W | 25W | 30W | ||
| Rated Input Voltage | AC220-240V | ||||||||
| Input Voltage | AC198-264V | ||||||||
| LED Module Input | DC33-38V | ||||||||
| Light Source | COB | ||||||||
| SDCM | ≤5 | ||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K || 3-CCT: 3000K+4000K+5000K | ||||||||
| CCT Selection | By DIP Switch | ||||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | 24° | 615-680 | 1080-1135 | 1320-1535 | 974-1095 | 1305-1400 | 1625-1795 | 1930-2240 |
| 60° | 565-600 | 920-960 | 1165-1305 | 950-1060 | 1265-1365 | 1585-1640 | 1860-2150 | ||
| 3-CCT | 24° | 545-585 | 820-905 | 1170-1355 | 890-1000 | 1040-1105 | 1410-1560 | 1670-1895 | |
| 60° | 480-515 | 675-750 | 940-1180 | 835-1005 | 1000-1075 | 1405-1510 | 1595-1815 | ||
| CRI | CRI90 | ||||||||
| Beam Angle(°) | 24°~60° | ||||||||
| UGR | UGR<14@24° UGR<22@60° | UGR<19@24° | UGR<14@24° UGR<19@60° | UGR<14@24° UGR<22@60° | UGR<16@24° | ||||
| LED Driver | Built-out, Flicker Free | ||||||||
| Dimming Option | NO | ||||||||
| Emergency Kits | NO | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection(IP Rating) | IP20 | ||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||||||
| Optics Material | PC | ||||||||
| Housing Material | Aluminium | ||||||||
| Lifetime(hr) | 50,000h | ||||||||
| Glow wire test(°C) | 750°C | ||||||||
| Operating Temp.(°C) | -20°C~30°C | ||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||
| Installation | Track | ||||||||
