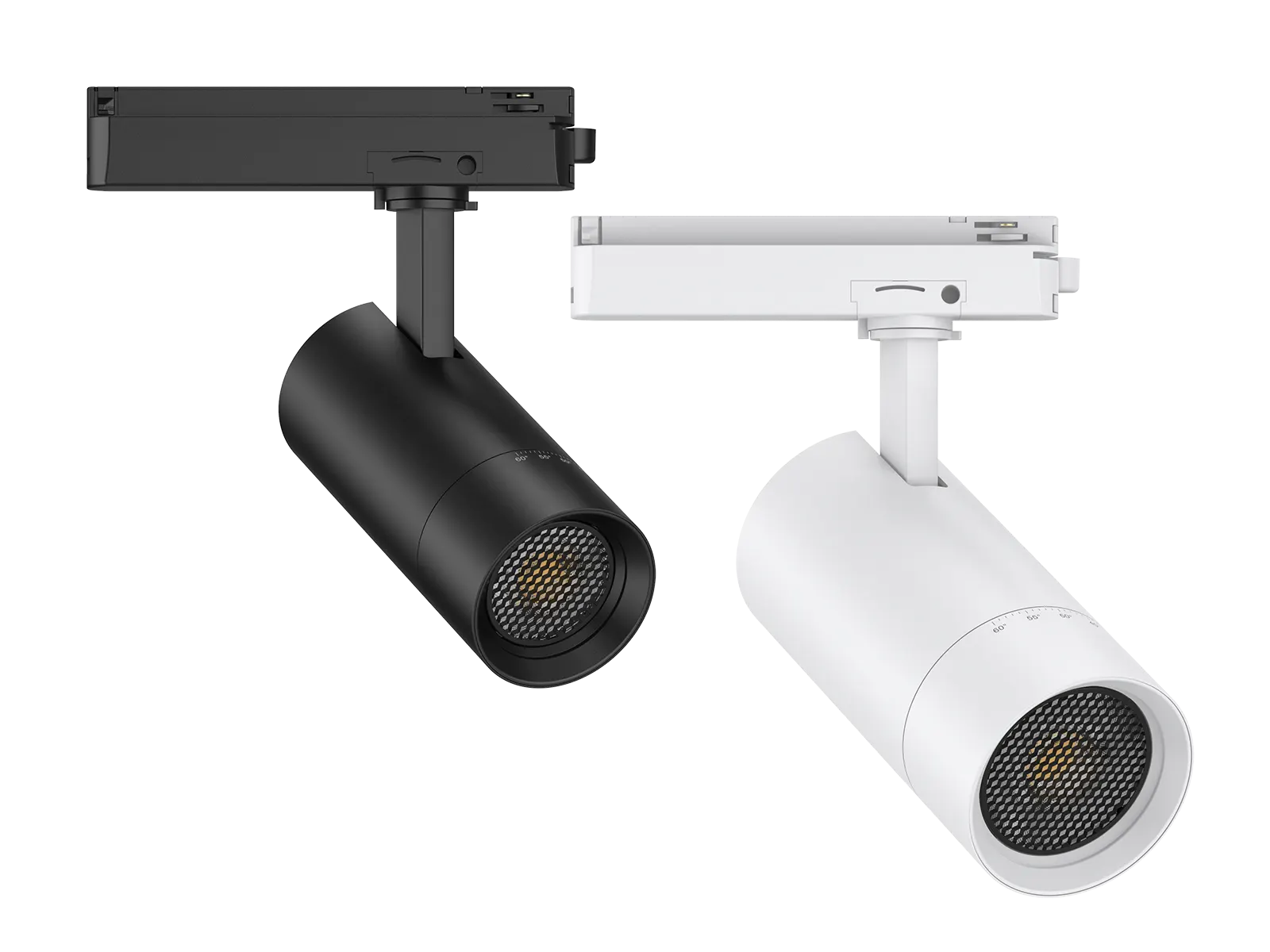

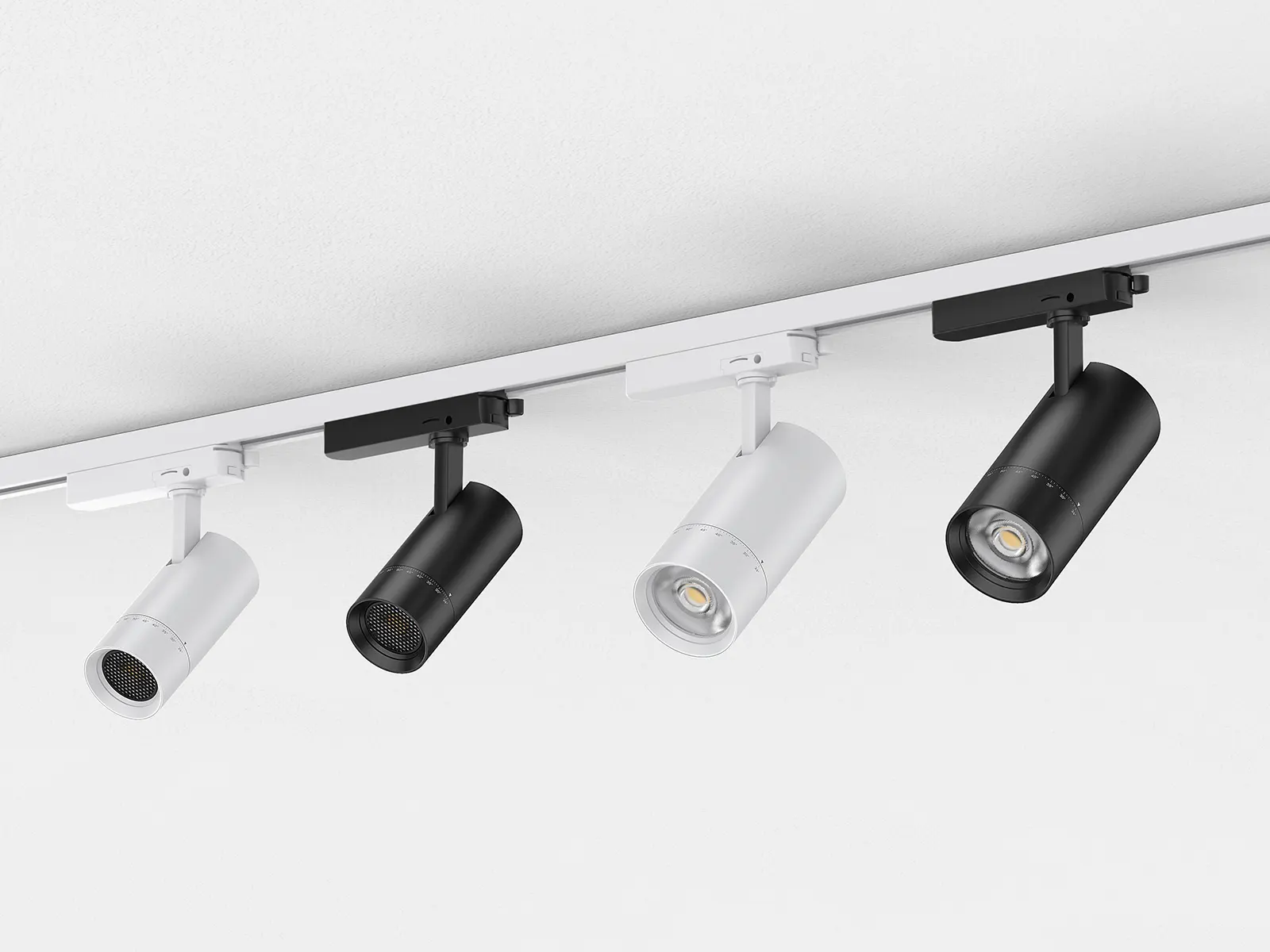

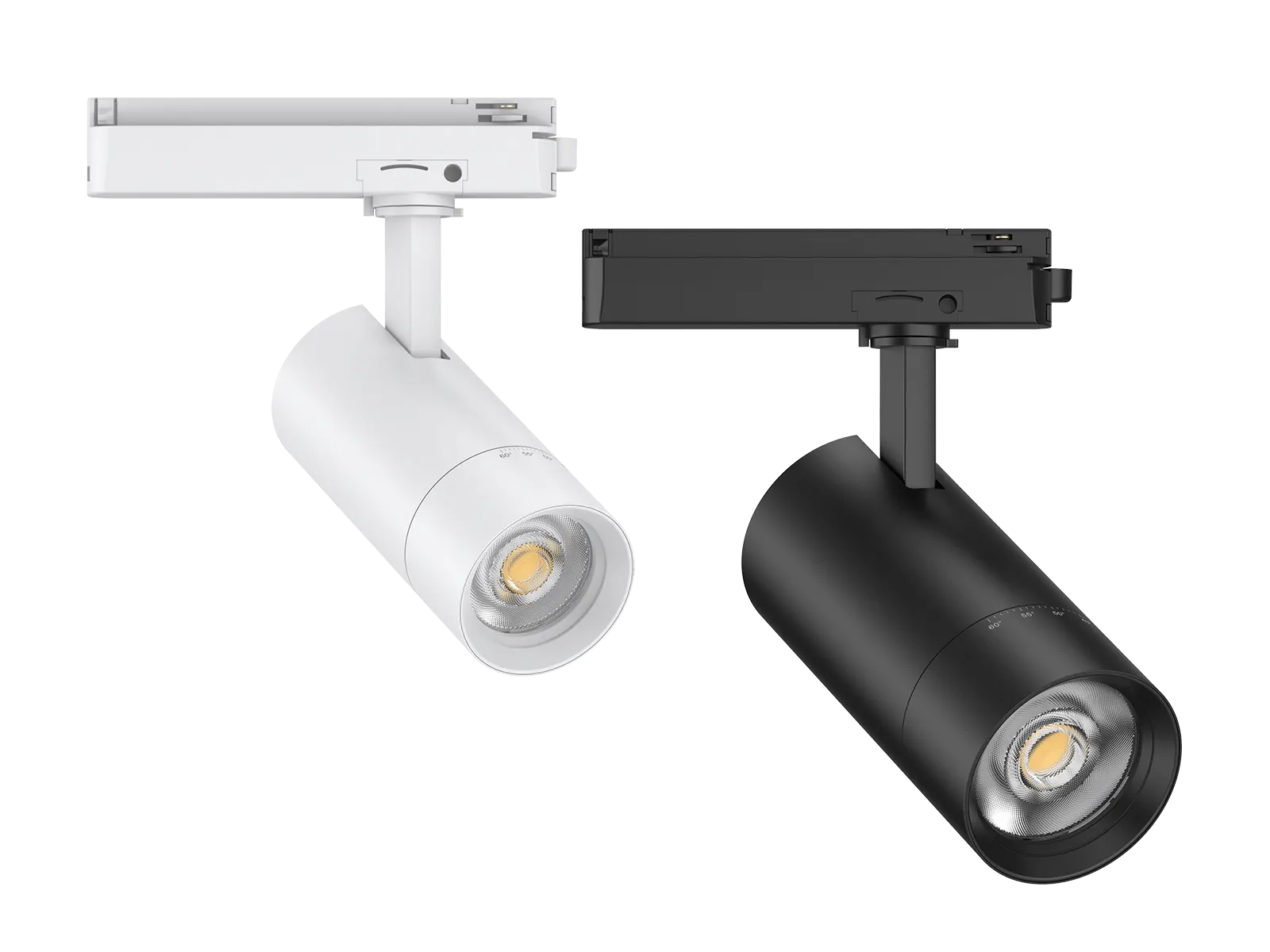

The COB led track light is designed with ADC12 housing and compact in-track led flicker driver, which is beam angle and CCT changeable. It is able to adjust 90° in vertical direction and 355° in horizontal direction provide different lighting direction. Version A without honeycomb while ver sion B with honeycomb which decrease glare.
Applications: It is suitable for key lighting occasions such as hotel, residential places, hall, school, corridor, supermarket and so on.
| Code | TL149A-65-10W | TL149A-65-15W | TL149A-65-22W | TL149A-80-20W | TL149A-80-25W | TL149A-80-30W | TL149A-80-35W | ||
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 160*214*65 | 160*240*80 | |||||||
| Watt(W) | 10W | 15W | 22W | 20W | 25W | 30W | 35W | ||
| Rated Input Voltage | AC100-277V | ||||||||
| Input Voltage | AC100-305V | ||||||||
| LED Module Input | DC33-38V | ||||||||
| Light Source | COB | ||||||||
| SDCM | ≤5 | ||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K || 3-CCT: 3000K+4000K+5000K | ||||||||
| CCT Selection | By DIP Switch | ||||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | 24° | 1005-1080 | 1100-1800 | 2018-2310 | 2175-2305 | 2595-2900 | 3080-3390 | 3380-3890 |
| 60° | 1030-1100 | 1700-1815 | 2095-2355 | 2280-2415 | 2745-2975 | 3260-3540 | 3620-4025 | ||
| 3-CCT | 24° | 900-980 | 1410-1780 | 1735-2080 | 1755-1850 | 2290-2525 | 2530-2815 | 3015-3335 | |
| 60° | 910-995 | 1440-1810 | 1775-2185 | 1820-1945 | 2480-2710 | 2705-3030 | 3055-3500 | ||
| CRI | CRI90 | ||||||||
| Beam Angle(°) | 24°~60° | ||||||||
| UGR | UGR<19@24° | UGR<22@24° | |||||||
| LED Driver | Built-out, Flicker Free | ||||||||
| Dimming Option | NO | ||||||||
| Emergency Kits | NO | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection(IP Rating) | IP20 | ||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||||||
| Optics Material | PC | ||||||||
| Housing Material | Aluminium | ||||||||
| Lifetime(hr) | 50,000h | ||||||||
| Glow wire test(°C) | 750°C | ||||||||
| Operating Temp.(°C) | -20°C~30°C | ||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||
| Installation | Track | ||||||||
| Code | TL149B-65-10W | TL149B-65-15W | TL149B-65-22W | TL149B-80-15W | TL149B-80-20W | TL149B-80-25W | TL149B-80-30W | ||
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 160*214*65 | 160*240*80 | |||||||
| Watt(W) | 10W | 15W | 22W | 15W | 20W | 25W | 30W | ||
| Rated Input Voltage | AC100-277V | ||||||||
| Input Voltage | AC100-305V | ||||||||
| LED Module Input | DC33-38V | ||||||||
| Light Source | COB | ||||||||
| SDCM | ≤5 | ||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K || 3-CCT: 3000K+4000K+5000K | ||||||||
| CCT Selection | By DIP Switch | ||||||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | 24° | 615-680 | 1080-1135 | 1320-1535 | 974-1095 | 1305-1400 | 1625-1795 | 1930-2240 |
| 60° | 565-600 | 920-960 | 1165-1305 | 950-1060 | 1265-1365 | 1585-1640 | 1860-2150 | ||
| 3-CCT | 24° | 545-585 | 820-905 | 1170-1355 | 890-1000 | 1040-1105 | 1410-1560 | 1670-1895 | |
| 60° | 480-515 | 675-750 | 940-1180 | 835-1005 | 1000-1075 | 1405-1510 | 1595-1815 | ||
| CRI | CRI90 | ||||||||
| Beam Angle(°) | 24°~60° | ||||||||
| UGR | UGR<14@24° UGR<22@60° | UGR<19@24° | UGR<14@24° UGR<19@60° | UGR<14@24° UGR<22@60° | UGR<16@24° | ||||
| LED Driver | Built-out, Flicker Free | ||||||||
| Dimming Option | NO | ||||||||
| Emergency Kits | NO | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection(IP Rating) | IP20 | ||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||||||
| Optics Material | PC | ||||||||
| Housing Material | Aluminium | ||||||||
| Lifetime(hr) | 50,000h | ||||||||
| Glow wire test(°C) | 750°C | ||||||||
| Operating Temp.(°C) | -20°C~30°C | ||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||
| Installation | Track | ||||||||
