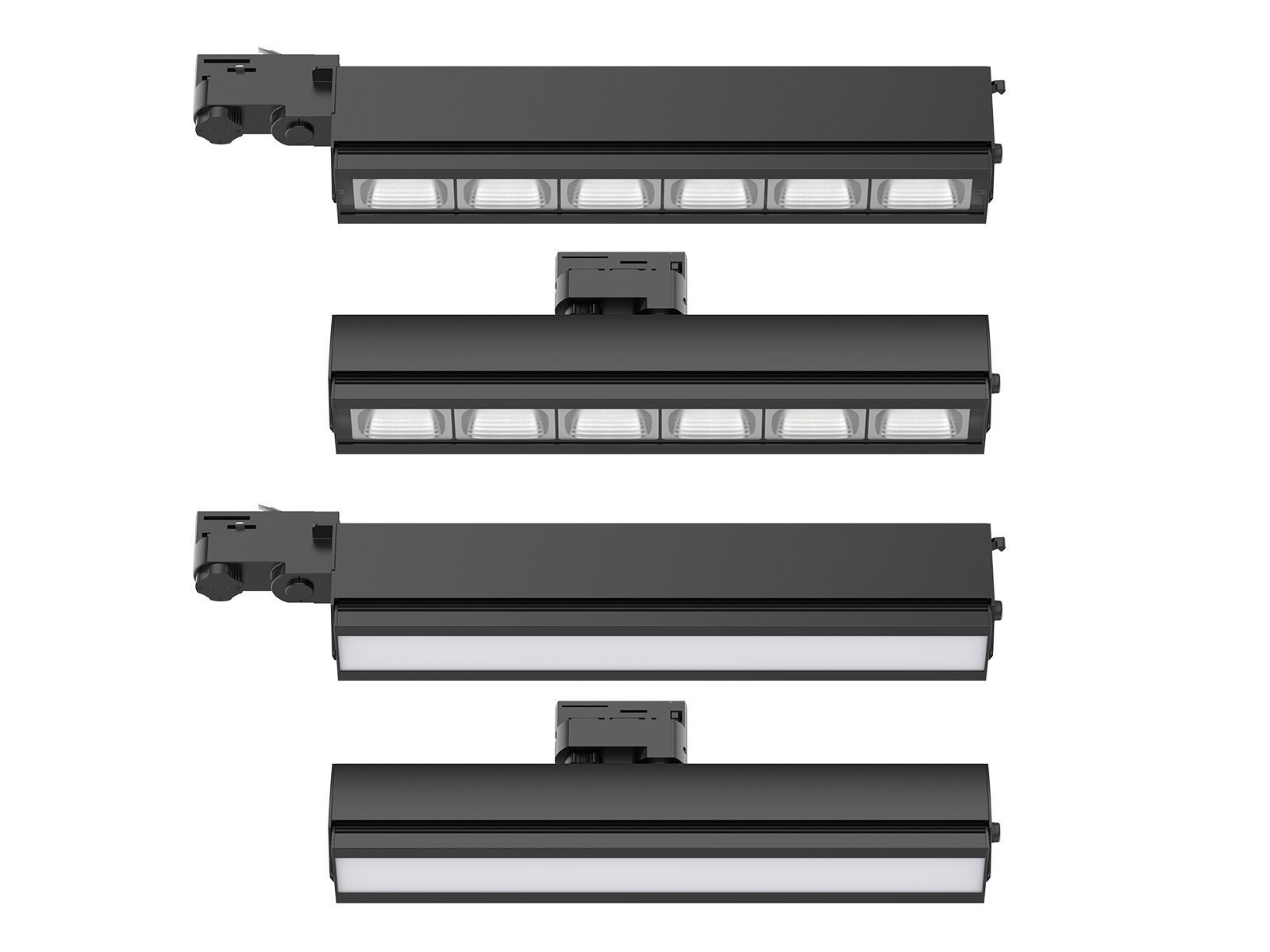

This track light is a new series for retail lighting. Compared to traditional linear trunking system, it adopts universal track adaptor, which has a great compatibility with European standard 3-circuit track and convenient for group control. There have four types, TL116A/C are integrated design for adapter and lamp body while TL116 B/D are separated for adapter and lamp body. All four types can do 120degree adjustable for lamp body, which has a great ability to meet the complex requirements of different environments with various of light distribution design.
Application Areas: It is suitable for supermarket, retails store, shelves, corridors etc.
| Code No. | TL116A-35W | TL116A-52W | TL116B-35W | TL116B-52W | TL116C-35W | TL116C-52W | TL116D-35W | TL116D-52W |
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 375*105*60 | 505*105*60 | 286*135*60 | 416*135*60 | 375*105*60 | 505*105*60 | 286*135*60 | 416*135*60 |
| Watt(W) | 35W | 52W | 35W | 52W | 35W | 52W | 35W | 52W |
| Rated Input Voltage(V) | AC 230V | |||||||
| Input Voltage(V) | AC 220-240V | |||||||
| Light Source | SMD 2835 | |||||||
| SDCM | < 6 | |||||||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K | |||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 4300-4700 | 6100-6700 | 4300-4700 | 6100-6700 | 3500-3800 | 4900-5400 | 3500-3800 | 4900-5400 |
| CRI | Ra 80 | |||||||
| Beam Angle (°) | 30°*60° / 60°*90° | 90° | ||||||
| LED Driver | Built-in | |||||||
| Electrical Class | Class I | |||||||
| Ingress Protection (IP Rating) | IP20 | |||||||
| Product Finishing(Base) | Black RAL9005 | |||||||
| Materials of Optics | PC | |||||||
| Materials of Housing | Aluminium | |||||||
| Lifetime (hr) | 50,000H | |||||||
| Glow wire test (C ) | 750°C | |||||||
| Operating Temp. (C ) | -20°C~45°C | |||||||
| Storage Temp. (C ) | -20°C~65°C | |||||||
| Inst allation | Track | |||||||
