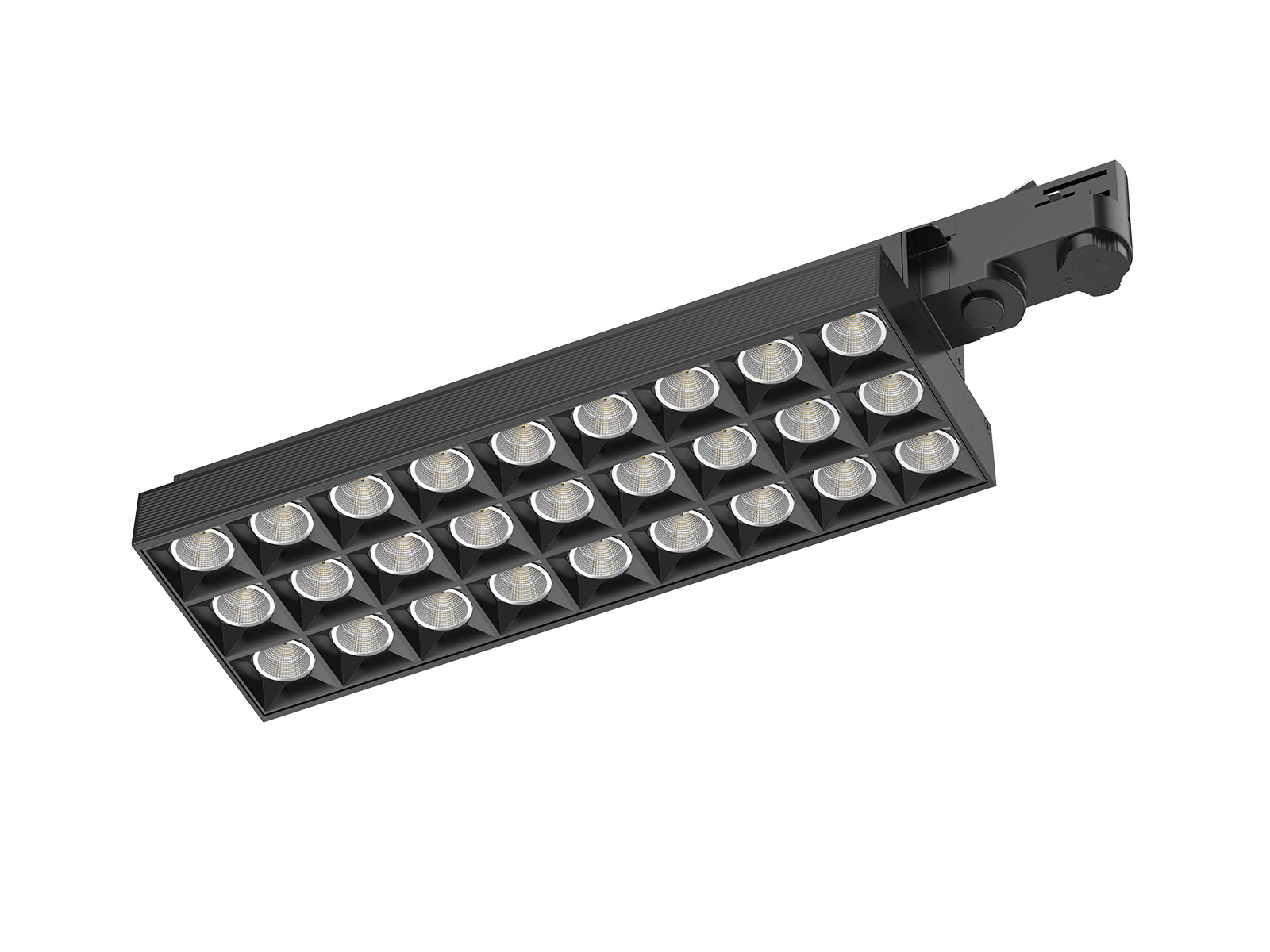

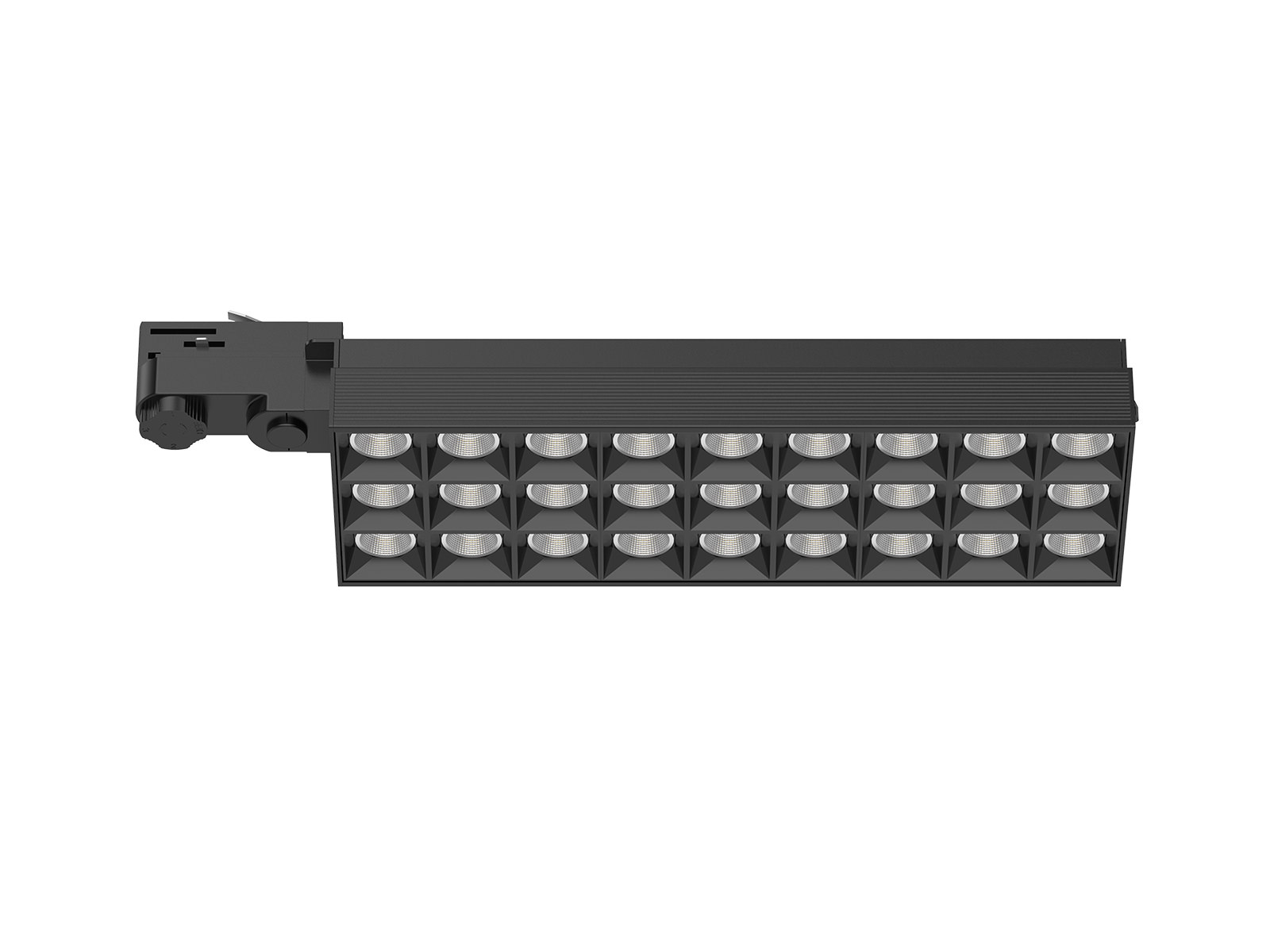

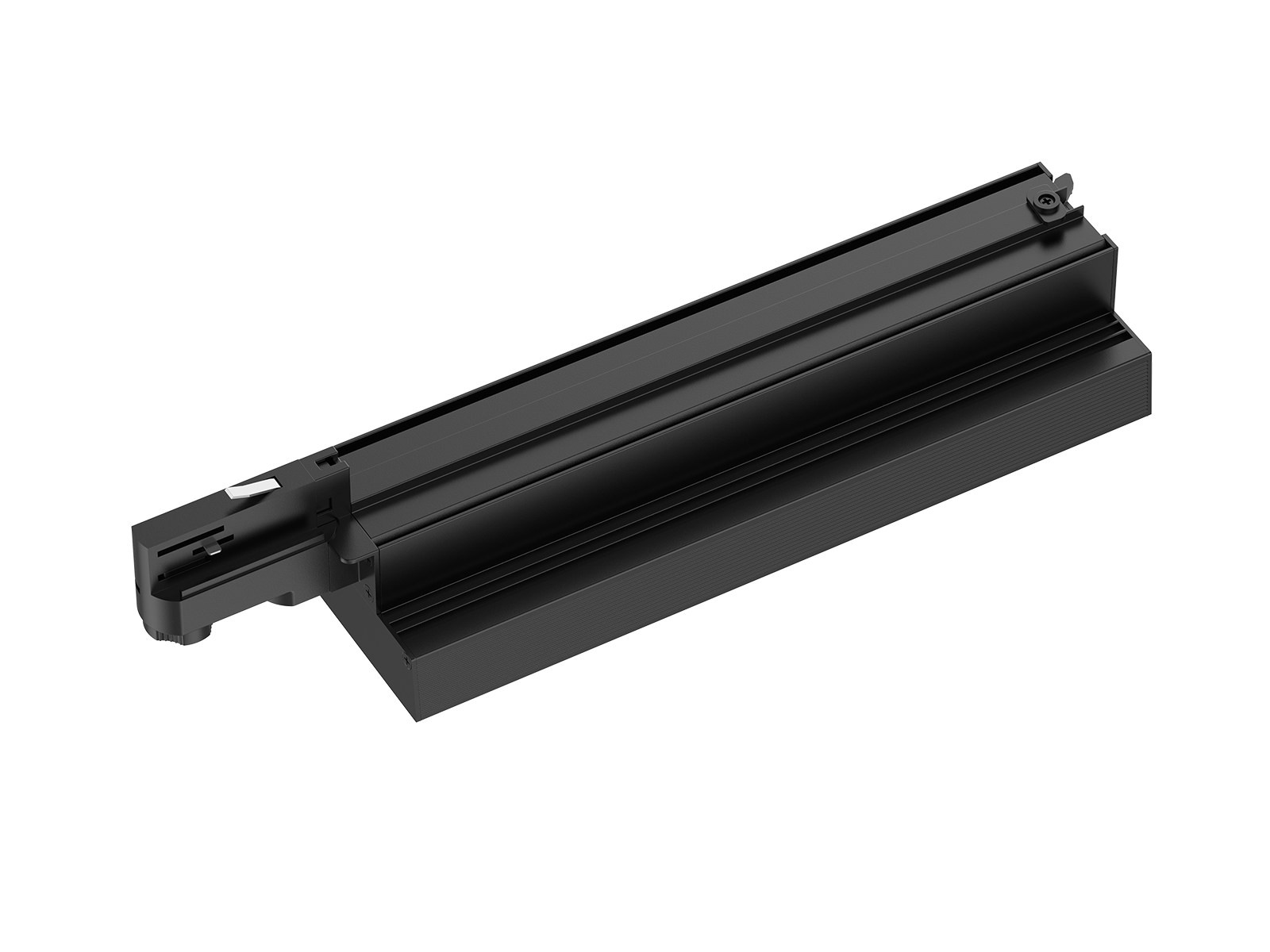

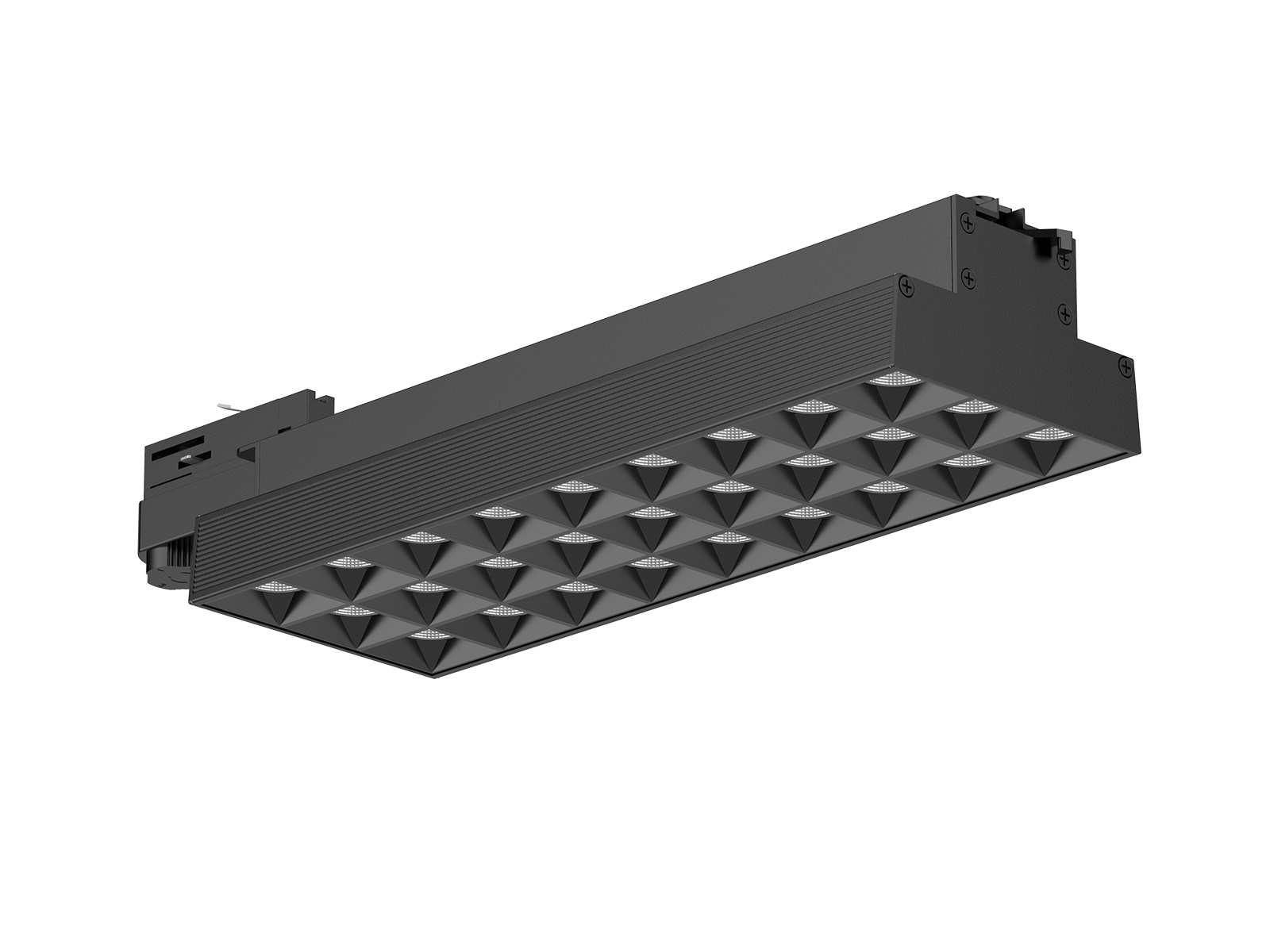

This is a newly design track light with both high lumen efficiency and low UGR. It adopts super high lumen SMD light source, combine with honeycomb optic reflector to reach a low UGR<19. Besides, it has a good compatibility with standard European 3 circuits track, multiple beam angles with different lighting distribution, this track light can meet complex requirements of different environments.
Application Areas：It is suitable for supermarket, retails store, shelves, corridors etc.
| Code No. | TL109-52W | |
|---|---|---|
| Dimension(mm) | 435*123*96 | |
| Watt(W) | 52W | |
| Rated Input Voltage(V) | AC 230V | |
| Input Voltage(V) | AC 220-240V | |
| Light Source | SMD 5050 | |
| SDCM | < 6 | |
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K | |
| CCT Selection DIP Switch | NO | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 6000-7000 | 5000-5500 |
| CRI | Ra 80 | |
| Beam Angle (°) | 15°/ 24°/ 36°/ 45° | 35*70° |
| UGR | < 19 | |
| LED Driver | Built-in | |
| Electrical Class | Class I | |
| Ingress Protection (IP Rating) | IP20 | |
| Product Finishing(Base) | Black RAL9005 | |
| Materials of Optics | PC | |
| Materials of Housing | Aluminium | |
| Lifetime (hr) | 50,000H | |
| Glow wire test (C ) | 750°C | |
| Operating Temp. (C ) | -20°C~45°C | |
| Storage Temp. (C ) | -20°C~65°C | |
| Inst allation | Track | |
