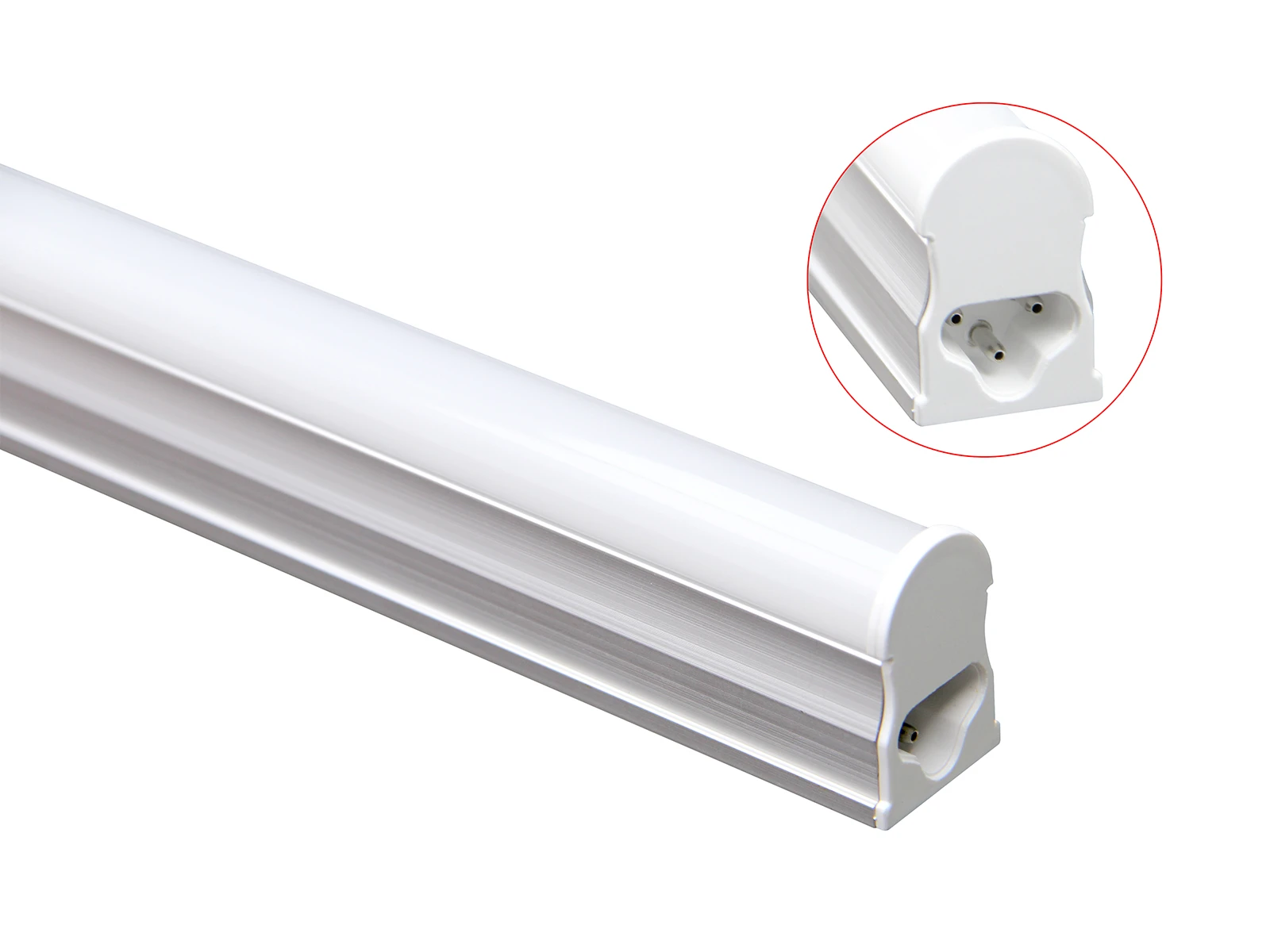

Up-shine LED tube T5 is designed with integrated structure, using 2835SMD LED as light source, CRI>80. V0 fire-rated full PC cover ensures high light transmittance and safe installation. With Built-in driver in light fixture, our T5 tubes achieve
high lighting performance and good heat dissipation.
Application Areas: Suitable for commercial and residential applications like offices, supermarkets, shops, schools, hotels, restaurants, workshop, warehouse, homes etc.
| Code No | UP T58W600 D | UP T512W900 D | UP T518W1200 D | UP T525W1500 D | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | 570*22.4*34 | 878*22.4*34 | 1178*22.4*34 | 1478*22.4*34 | ||
| Watt(W) | 8W | 12W | 18W | 25W | ||
| Rated Input Voltage(V) | AC100-240V | |||||
| Input Voltage(V) | AC90-264V | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1CCT: 3000K / 4000K / 5000K / 5700K / 6500K | |||||
| CCT Selection DIP Switch | No | |||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 890-960 | 1370-1470 | 2040-2200 | 2730-3000 |
| DIM | – | |||||
| Non-DIM | 3-CCT | – | ||||
| DIM | – | |||||
| CRI | ≥80 | |||||
| Beam Angle (°) | 130° | |||||
| LED Driver | Built-in | |||||
| Dimming Option | No | |||||
| Electrical Class | ClassⅠ | |||||
| Ingress Protection (IP Rating) | IP20 | |||||
| Product Finishing(Base) | Silver | |||||
| Materials of Optics | PC | |||||
| Materials of Housing | Aluminium | |||||
| Lifetime (hr) | 4,0000h | |||||
| Glow wire test (℃ ) | 750℃ | |||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||||
| Installation | Surface mount | |||||
