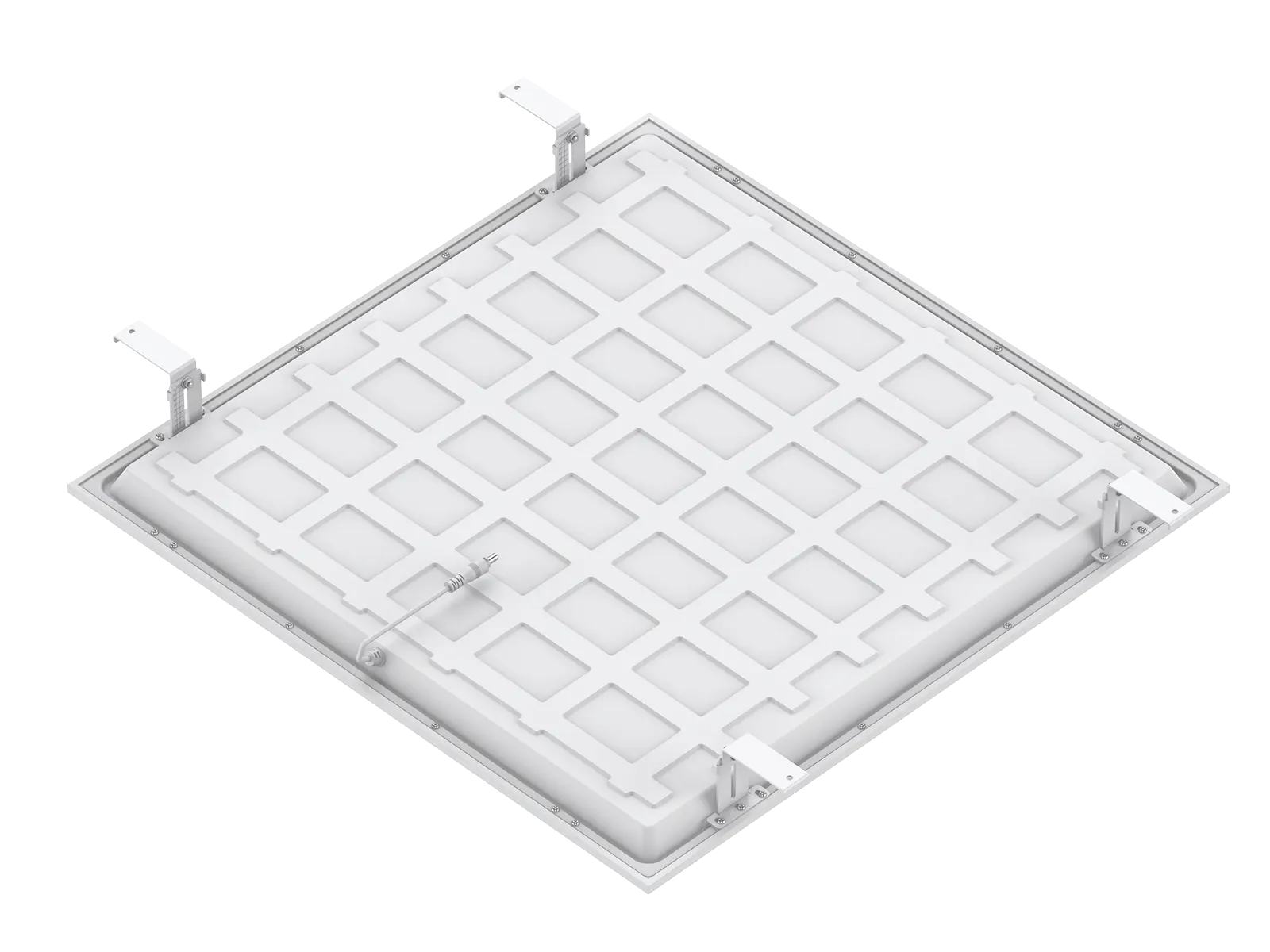

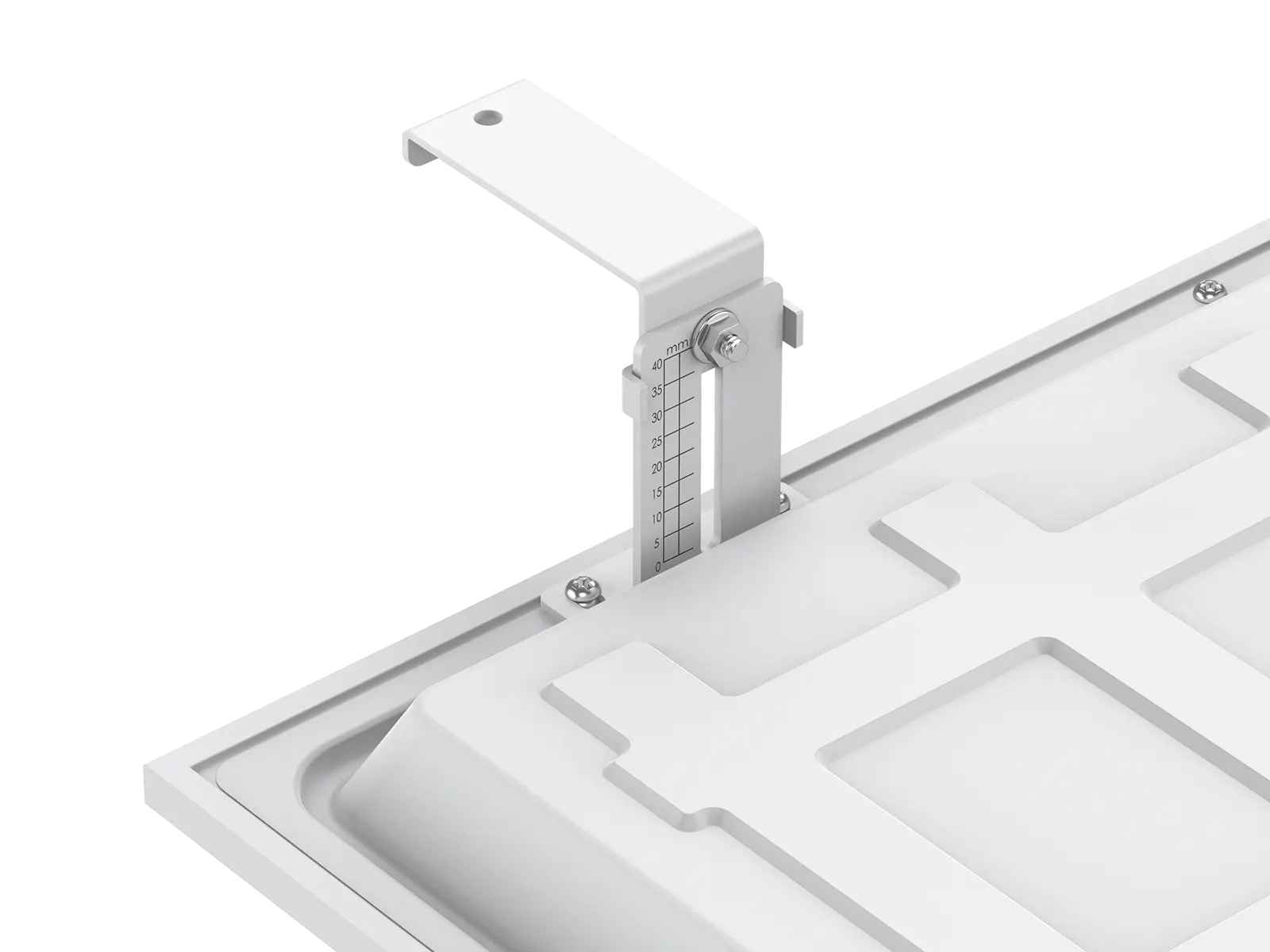

This panel light is a high-efficiency lighting series specifically designed for SAS ceiling systems. It offers various lighting options, making it widely applicable to meet different user needs. The product emits a uniform and soft light, and the hook accessories can be adjusted in height according to the thickness of the ceiling, allowing for easy installation and providing users with a pleasant and comfortable lighting experience. This product is suitable for SAS150, SAS330 ceiling systems.
Application Areas: Office and School Lighting: Offices, conference rooms, classrooms, etc. Commercial Lighting: Shopping malls, supermarkets, retail stores, etc. Other Settings: Hospitals, laboratories, etc.
| Code No | PL6060 25W CK5 | PL6060 30W CK5 | PL6060 33W CK5 | ||
|---|---|---|---|---|---|
| Dimension(mm) | 598*598*70 | ||||
| Cutout (mm) | 570*570 | ||||
| Watt(W) | 25W | 30W | 33W | ||
| Rated Input Voltage(V) | AC220-240V | ||||
| Input Voltage(V) | AC198-264V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | SMD2835 | ||||
| SDCM | <5(<3 optional) | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||
| Luminous Flux (lm) ±5% CRI80 | Non-DIM | 1-CCT | 3800-4200 | 3940-4140 | 3620-3940 |
| CRI | 80 | ||||
| Beam Angle (°) | 120° | ||||
| LED Driver | Driver built-out | ||||
| Electrical Class | Class Ⅱ | ||||
| Ingress Protection (IP Rating) | Non-waterproof: IP50 Waterproof: IP54(below ceiling) & IP20(inside ceiling) | ||||
| Impact Resistance (IK Rating) | IK02 | ||||
| Product Finishing(Base) | White RAL9016 | ||||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | ||||
| Materials of Housing | Aluminium/Metal | ||||
| Lifetime (hr) | 50000h | ||||
Glow wire test ( ) | 650℃ | ||||
Operating Temp. ( ) | -10℃~40℃ | ||||
Storage Temp. ( ) | -10℃~50℃ | ||||
| Installation | Recessed | ||||
