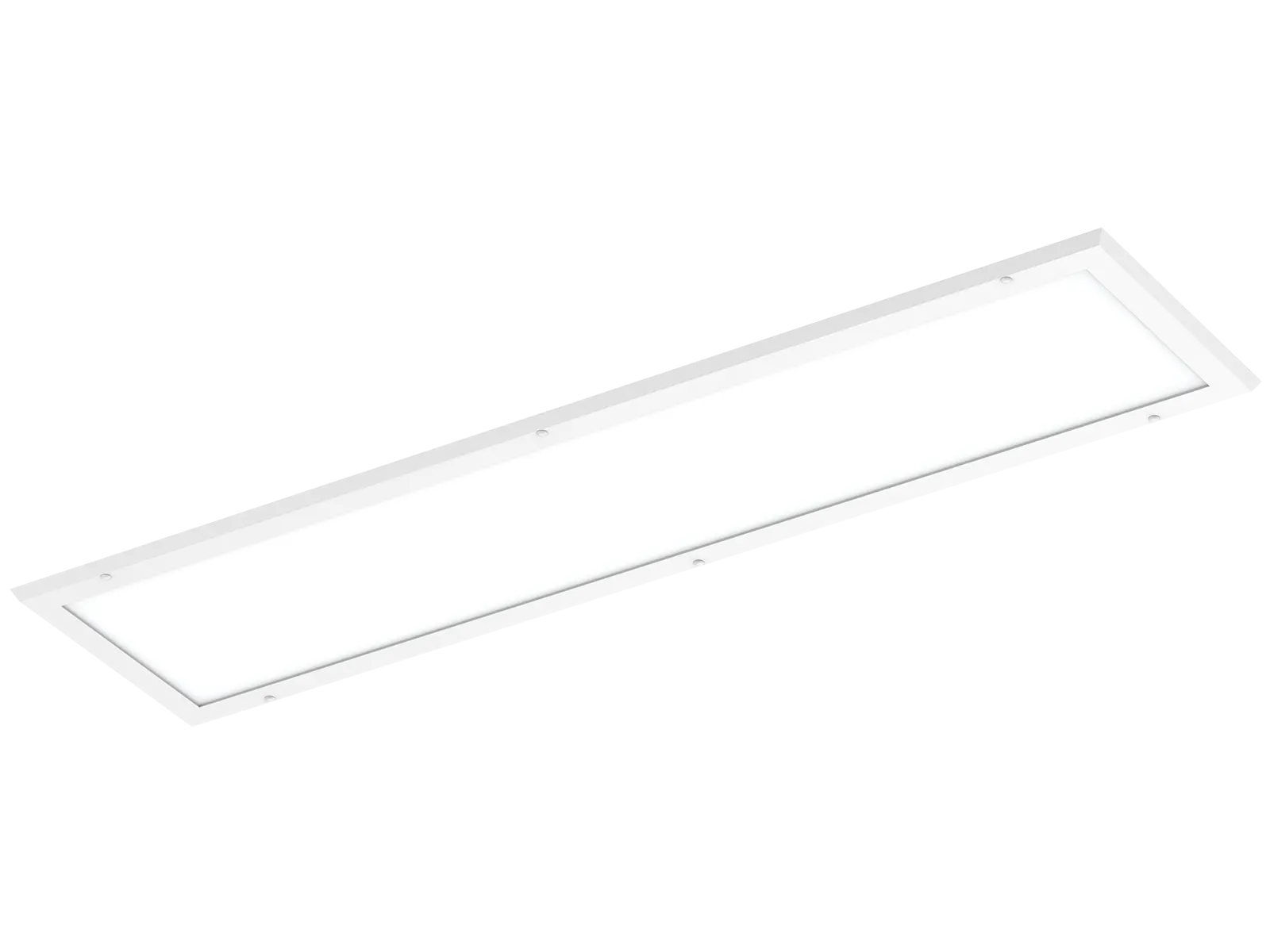

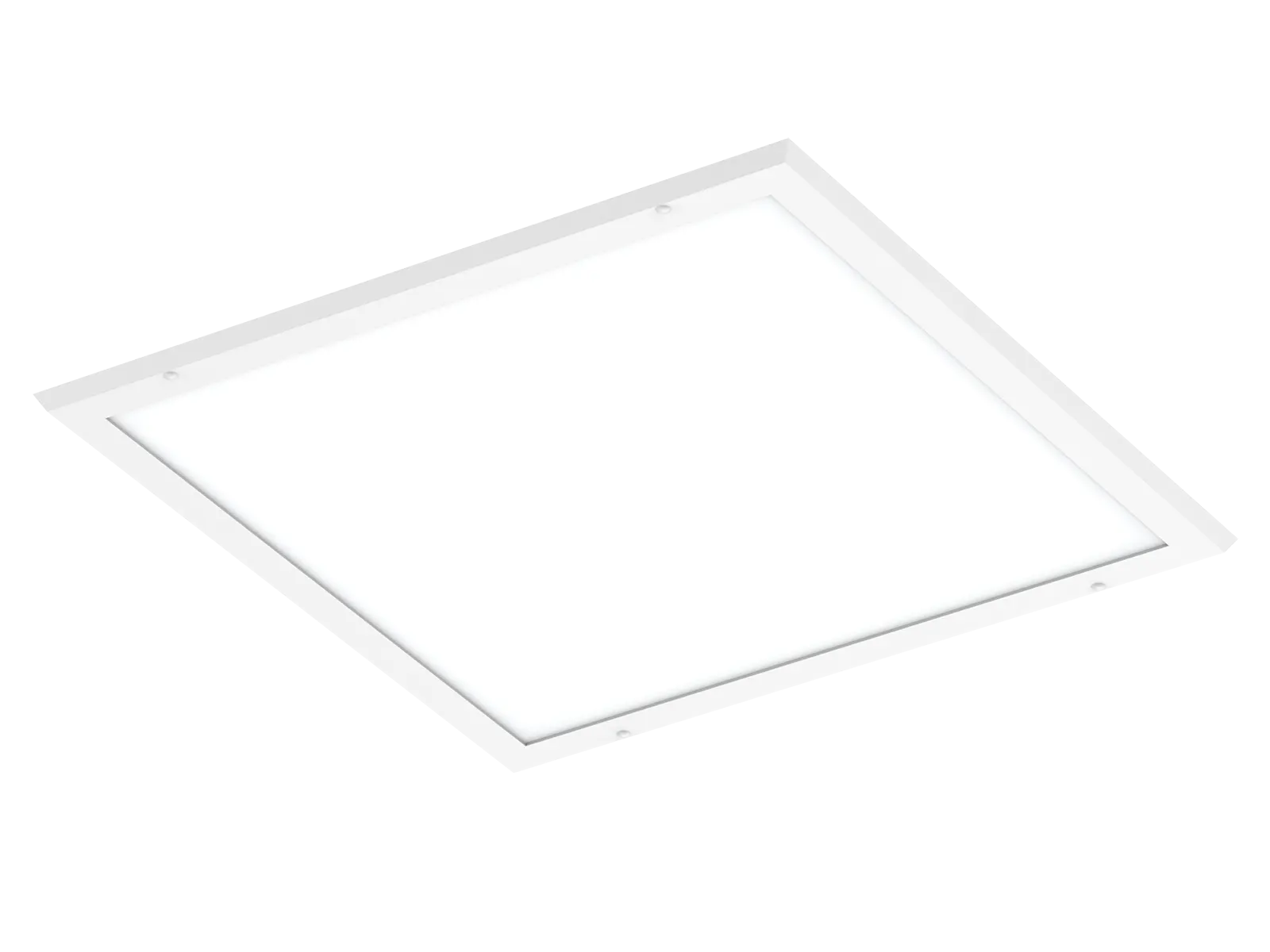

This is an easy clean panel light with special inclined plane for each side. The frame is made of aluminum for good thermal conductivity, while the back cover uses SECC galvanized steel. The lamp adopts PMMA light guide plate, which has the advantages of anti yellowing, high optical conversion efficiency, uniform luminous effect, and can effectively relieve eye fatigue. The light fixture is long-life span, eco-friendly, and energy-efficient.
Applications: Office & school lighting: office room, meeting room, class room etc. Commercial lighting: shopping mall, super market, retailer shops etc. Other situations: hospital, laboratory, dust-free workshop etc.
| Code No | PL34 6060 40W | PL34 30120 40W | ||
|---|---|---|---|---|
| Dimension(mm) | 606*606*13 | 306*1206*13 | ||
| Watt(W) | 40W | 40W | ||
| Rated Input Voltage(V) | AC220-240V | |||
| Input Voltage(V) | AC198-264V | |||
| LED Module Input | 33-38V | |||
| Light Source | SMD4014 | |||
| SDCM | < 6 | |||
| CCT(K) | 3000K/4000K/5000K/5700K | |||
| Luminous Flux (lm) ±5% CRI80 | Non-DIM | 1-CCT | 3800-4200LM | 3800-4200LM |
| DIM | - | |||
| Non-DIM | 3-CCT | - | ||
| DIM | - | |||
| CRI | ≥80 | |||
| Beam Angle (°) | 120° | |||
| LED Driver | Driver built-out | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP40 in front | |||
| Impact Resistance (IK Rating) | IK02 | |||
| Product Finishing(Base) | White RAL9016 | |||
| Materials of Optics | PMMA(LGP)+PS(Diffuser) | |||
| Materials of Housing | Aluminium | |||
| Lifetime (hr) | 50000h | |||
| Glow wire test (℃ ) | 650℃ | |||
| Operating Temp. (℃ ) | -10℃~40℃ | |||
Storage Temp. ( ) | -10℃~50℃ | |||
| Installation | Surface mount | |||
