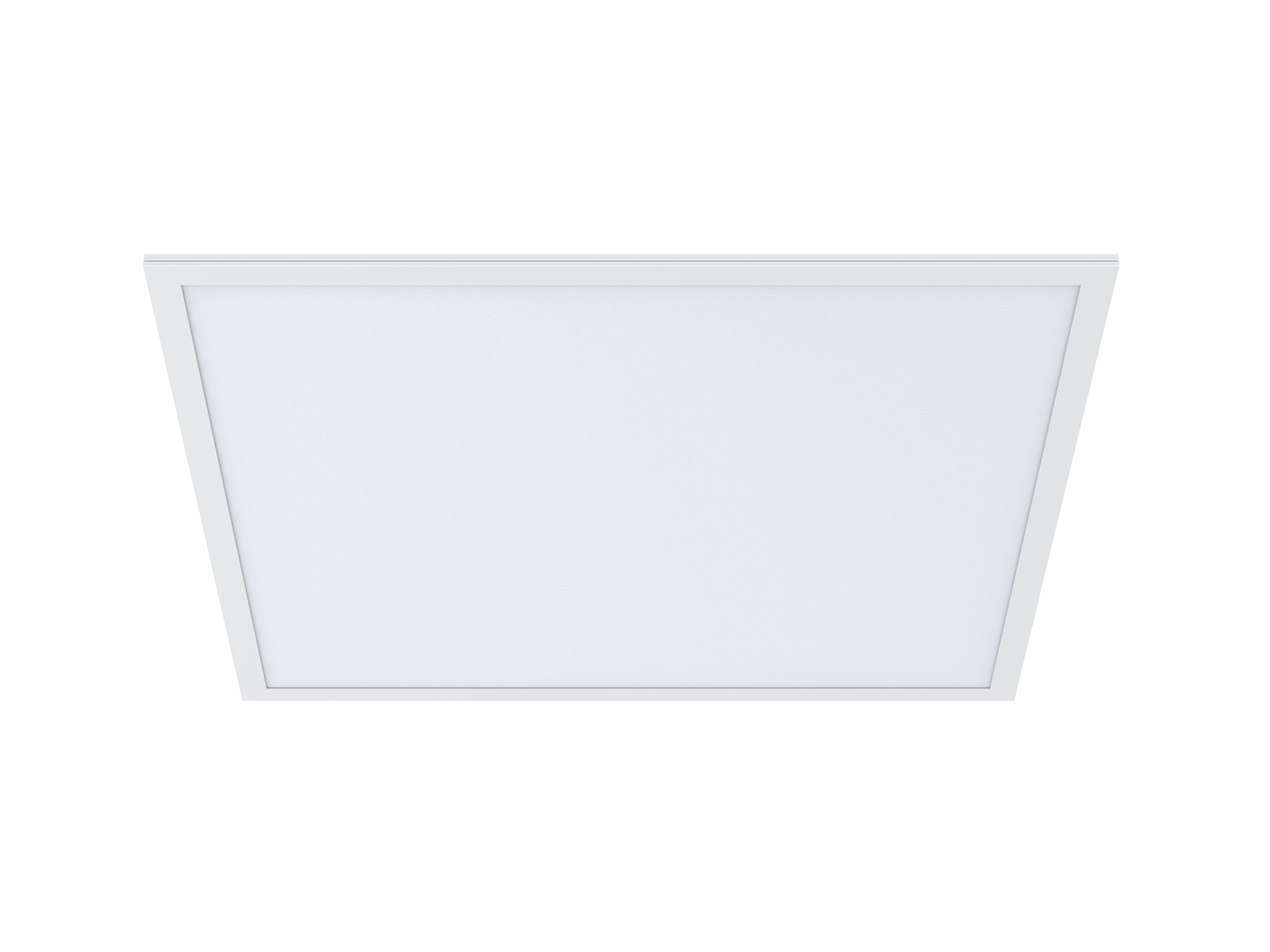

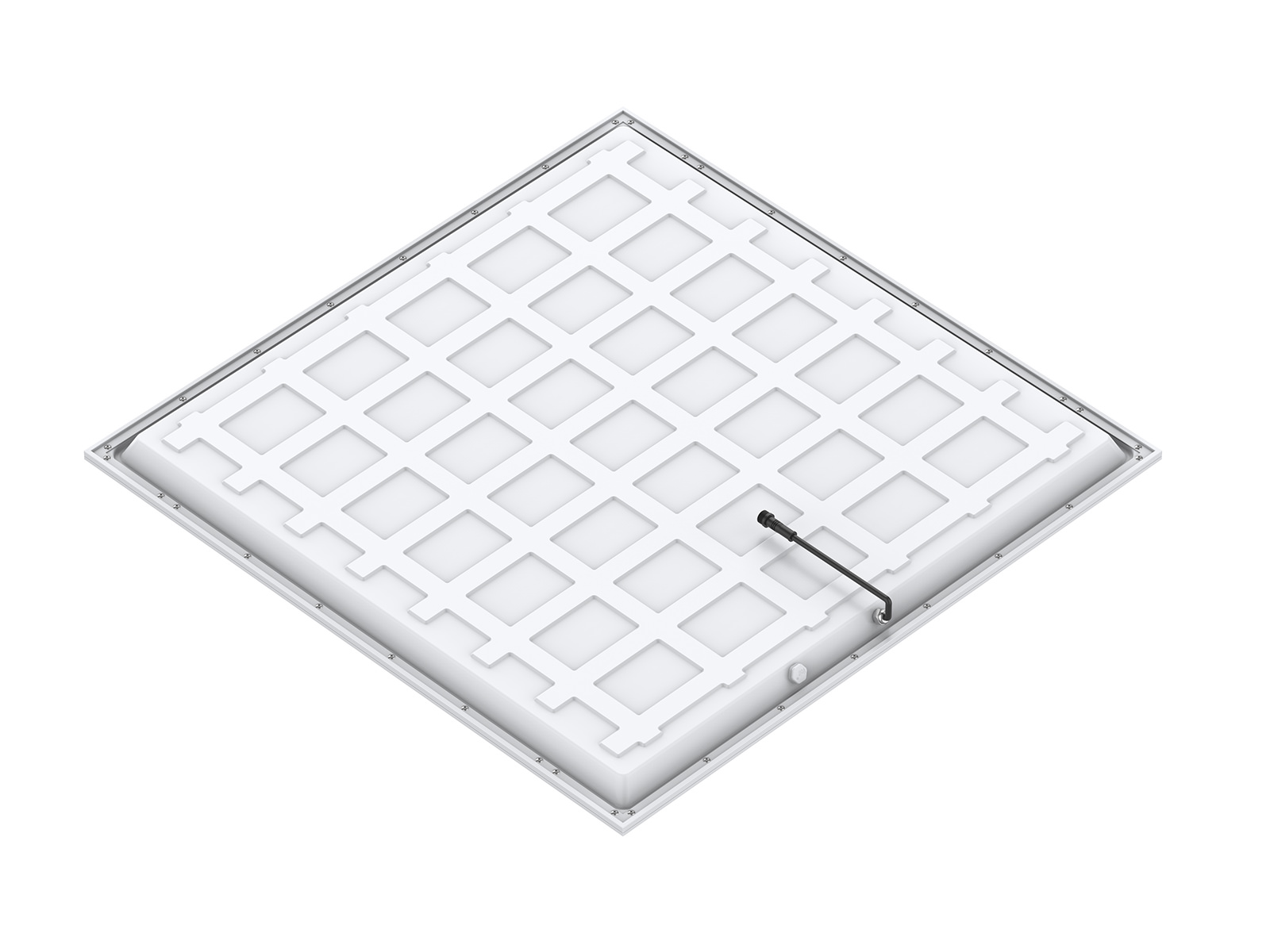

This backlit panel is an IP65 waterproof lamp, it adopts an upper and lower frame structure design, waterproof DC connector and driver to reach a whole lamp(including driver) IP65 effect, and the side of the lamp is equipped with a waterproof and breathable valve to balance the pressure inside and outside. For optic design, it has PMMA optical lens and high lumen SMD light source, which guides a uniform light output and avoidsyellow risky. Besides, the lamp can realize multiple installation: recessed/suspended/surface mounted.
Application Areas: It is widely used in metro station, factory, warehouse, workshop, bathroom and other lighting area with high humidity

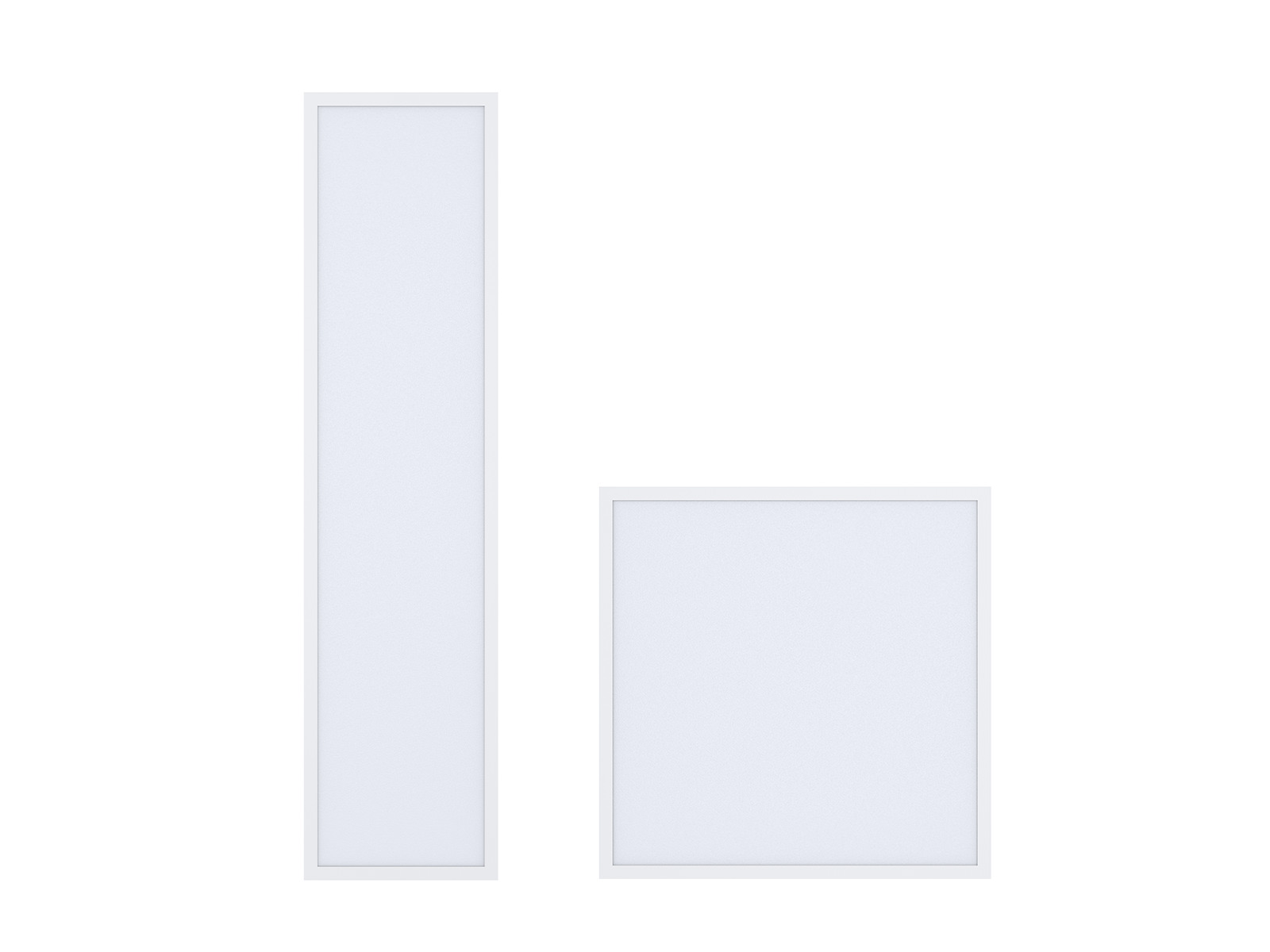

| Code No. | PL012-6060-36W | PL012-30120-36W |
|---|---|---|
| Dimension(mm) | 595*595*25 | 295*1195*25 |
| Cutout (mm) | ||
| Watt(W) | 36W | |
| Rated Input Voltage(V) | AC230V | |
| Input Voltage(V) | AC200-240V | |
| LED Module Input | DC 33-38V | |
| Light Source | SMD | |
| SDCM | ＜6 | |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 3240-3600 | |
| CRI | ≥80 | |
| Beam Angle (°) | 120° | |
| LED Driver | Driver built-out | |
| Electrical Class | Class Ⅱ | |
| Ingress Protection (IP Rating) | IP65 | |
| Product Finishing(Base) | White | |
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |
| Materials of Housing | Aluminum(frame)+SPCC(back plate) | |
| Lifetime (hr) | 50,000h | |
| Glow wire test (C ) | 650C | |
| Operating Temp. (C ) | -10 C~40C | |
| Storage Temp. (C ) | -20~65C | |
| Installation | Recessed/Pendant/Surface mount | |
