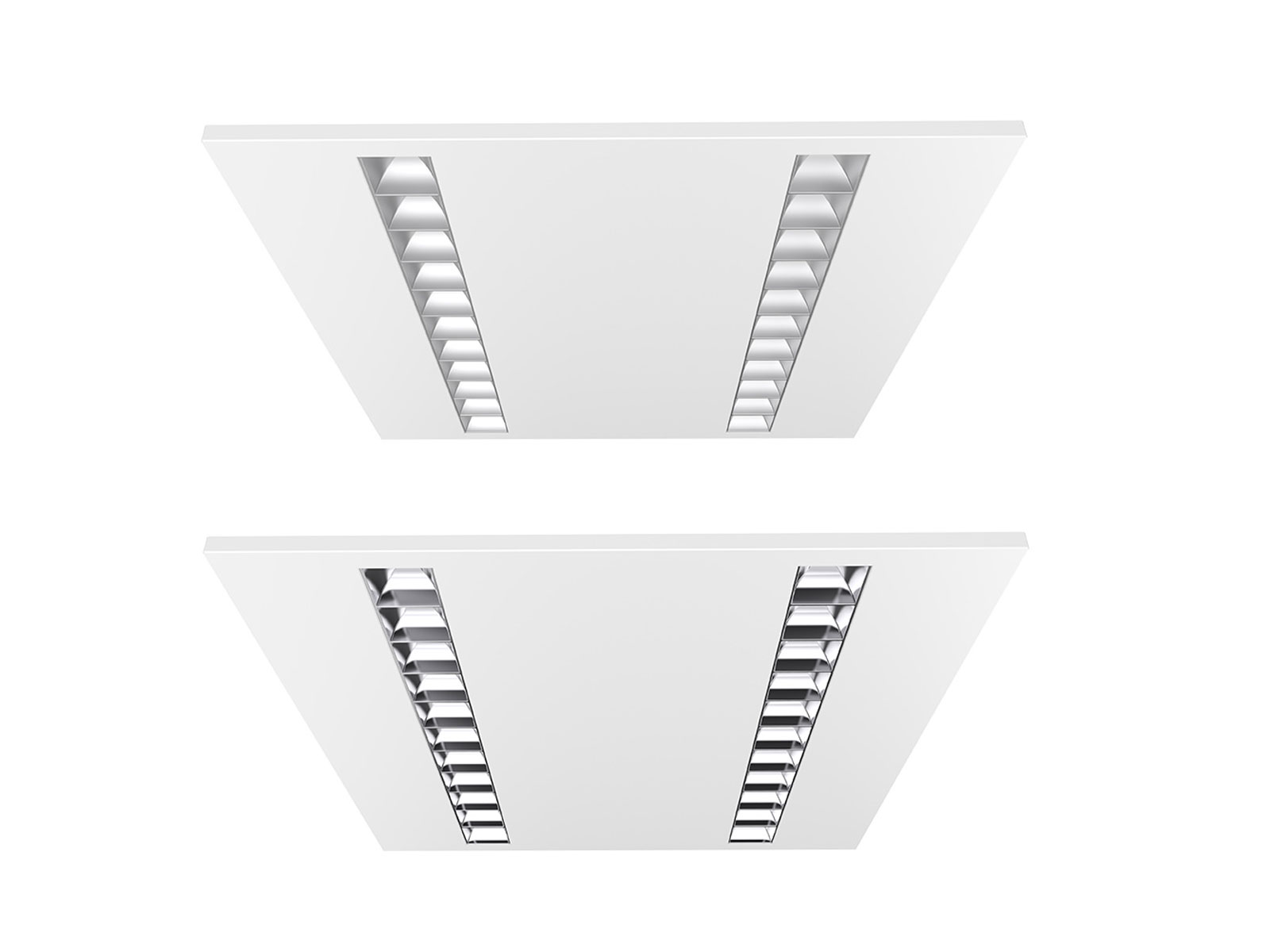

PL008 is a direct lighting panel light which offers the ideal combination of stylish design and optimum performance for both task and general lighting. It adopts louver reflectors to reflect lighting so that it can have a higher lighting transmittance ratio and reduce the glare, all users will have a comfortable visual experience. It can do suspended/surface mounted/recessed installation.
Application Areas: Office & school lighting: office room, meeting room, class room etc.
Commercial lighting: shopping mall, super market, retailer shops etc. Other situations: hospital, laboratory, dust-free workshop etc.
| Code No. | PL008-6060-30W | PL008-6262-30W | PL008-30120-30W | PL008-60120-55W | |
|---|---|---|---|---|---|
| Dimension(mm) | 295*595*31.5 | 595*595*31.5 | 620*620*31.5 | 295*1195*31.5 | 595*1195*31.5 |
| Cutout (mm) | 570*270 | 570*570 | 595*595 | 1170*270 | 1170*570 |
| Watt(W) | 15W | 30W | 55W | ||
| Rated Input Voltage(V) | AC230V | ||||
| Input Voltage(V) | AC220-240V | ||||
| LED Module Input | 33-38V DC 400mA CC | 33-38V DC 800mA CC | 33-38V DC 800mA CC | 33-38V DC 800mA CC | 33-38V DC 1500mA CC |
| Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | 3-CCT: 3000K+4000K+5700K | ||||
| CCT Selection DIP Switch | YES | ||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% Matt silver | 1515-1650 | 3030-3300 | 5650-6160 | ||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% Bright silver | 1650-1800 | 3300-3600 | 6150-6700 | ||
| DIM 1-CCT Luminous Flux (lm) ±5% Matt silver | 1470-1600 | 2930-3200 | - | ||
| DIM 1-CCT Luminous Flux (lm) ±5% Bright silver | 1600-1750 | 3200-3500 | - | ||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% Matt silver | 1515-1650 | 3030-3300 | 5650-6160 | ||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% Bright silver | 1650-1800 | 3300-3600 | 6150-6700 | ||
| DIM 3-CCT Luminous Flux (lm) ±5% Matt silver | 1470-1600 | 2930-3200 | - | ||
| DIM 3-CCT Luminous Flux (lm) ±5% Bright silver | 1600-1750 | 3200-3500 | - | ||
| CRI | >80 | ||||
| Beam Angle (°) | 75°(matt silver reflector vision)/ 65°(bright silver vision) | ||||
| UGR | UGR<19 | ||||
| LED Driver | Driver built-out | ||||
| Dimming Option | Yes | ||||
| Electrical Class | Class II | ||||
| Ingress Protection (IP Rating) | IP40 | ||||
| Impact Resistance (IK Rating) | IK06 | ||||
| Product Finishing(Base) | White | ||||
| Materials of Optics | PC | ||||
| Materials of Housing | SPCC | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (°C ) | 750C | ||||
| Operating Temp. (C ) | -10 C〜40C | ||||
| Storage Temp. (C ) | -10 C ~50C | ||||
| Installation | Surface mount/ Pendant/ Recessed | ||||
