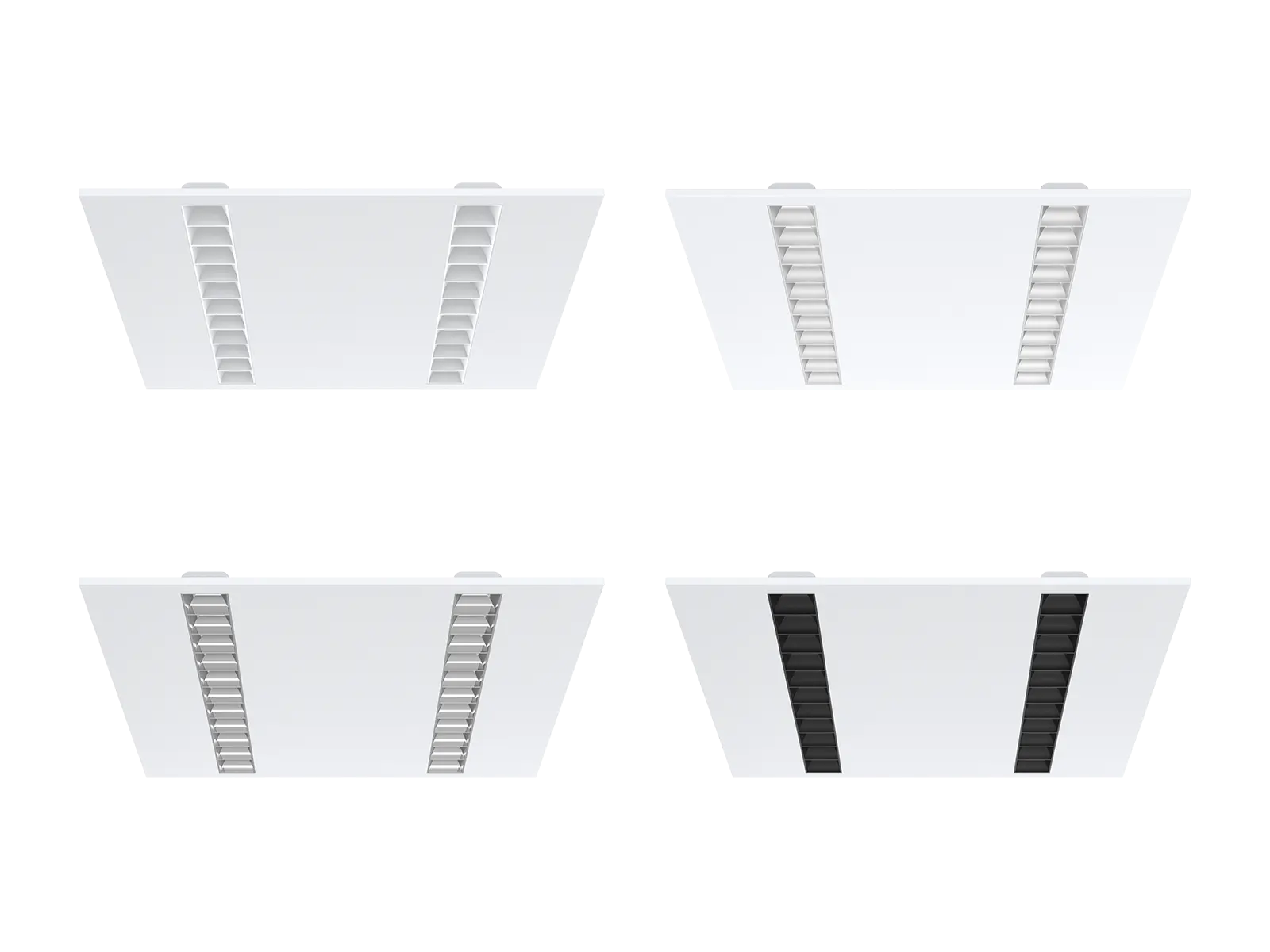

PL008 is a direct lighting panel light that offers the ideal combination of stylish design and optimum performance for both task and general lighting. It adopts louver reflectors to reflect lighting so that it can have a higher lighting transmittance ratio and reduce the glare, all users will have a comfortable visual experience. It can do suspended/ surface mounted/recessed installation.
Application Areas: Office & school lighting: office room, meeting room, classroom, etc. Commercial lighting: shopping malls, supermarkets, retail shops, etc. Other situations: hospital, laboratory, dust-free workshop, etc.
| Code No. | PL008-3060-12W | PL008-6060-25W | PL008-6262-25W | PL008-30120-25W | PL008-60120-40W | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | 295*595*31.5 | 595*595*31.5 | 620*620*31.5 | 295*1195*31.5 | 595*1195*31.5 | ||
| Cutout (mm) | 570*270 | 570*570 | 595*595 | 1170*270 | 1170*570 | ||
| Watt(W) | 12W | 25W | 40W | ||||
| Rated Input Voltage(V) | AC230V | ||||||
| Input Voltage(V) | AC220-240V | ||||||
| LED Module Input | 33-38V DC320mACC | 33-38V DC 700mACC | 33-38V DC 1100mACC | ||||
| Light Source | SMD2835 | ||||||
| SDCM | <6 | ||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | 3-CCT: 3000K+4000K+5700K | ||||||
| CCT Selection DIP Switch | YES | ||||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 1550-1680 | 3250-3500 | 5150-5600 | ||
| DIM | 1500-1630 | 3200-3450 | 5100-5500 | ||||
| 3-CCT | Non-DIM | 1550-1700 | 3250-3550 | 5150-5700 | |||
| DIM | 1500-1650 | 3200-3500 | 5100-5600 | ||||
| CRI | ≥80 | ||||||
| Beam Angle (°) | 80°(white) / 65°(bright silver) | ||||||

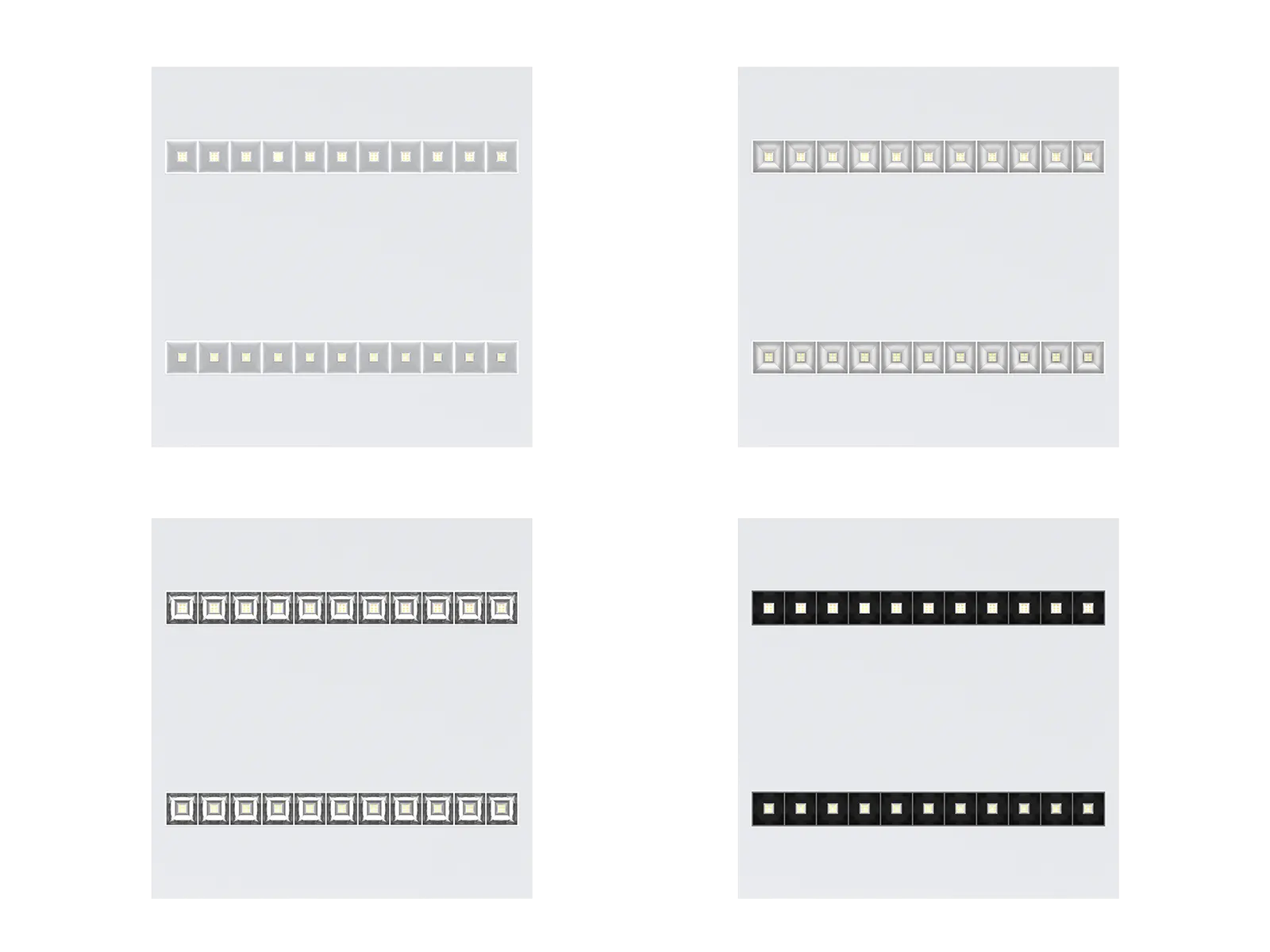

| UGR | No anti-glare(white) / UGR＜19(bright silver) | ||||||
| LED Driver | Driver built-out | ||||||
| Dimming Option | Triac/0-10V/Dali | ||||||
| Electrical Class | Class Ⅱ | ||||||
| Ingress Protection (IP Rating) | IP40 | ||||||
| Impact Resistance (IK Rating) | IK06 | ||||||
| Product Finishing(Base) | White | ||||||
| Materials of Optics | PC | ||||||
| Materials of Housing | SPCC | ||||||
| Lifetime (hr) | 50,000h | ||||||
| Glow wire test (℃) | 750℃ | ||||||
| Operating Temp. (℃) | -10 ℃~40℃ | ||||||
| Storage Temp. (℃) | -10 ℃ ~50℃ | ||||||
| Installation | Recessed/ Pendant/ Surface mount | ||||||
