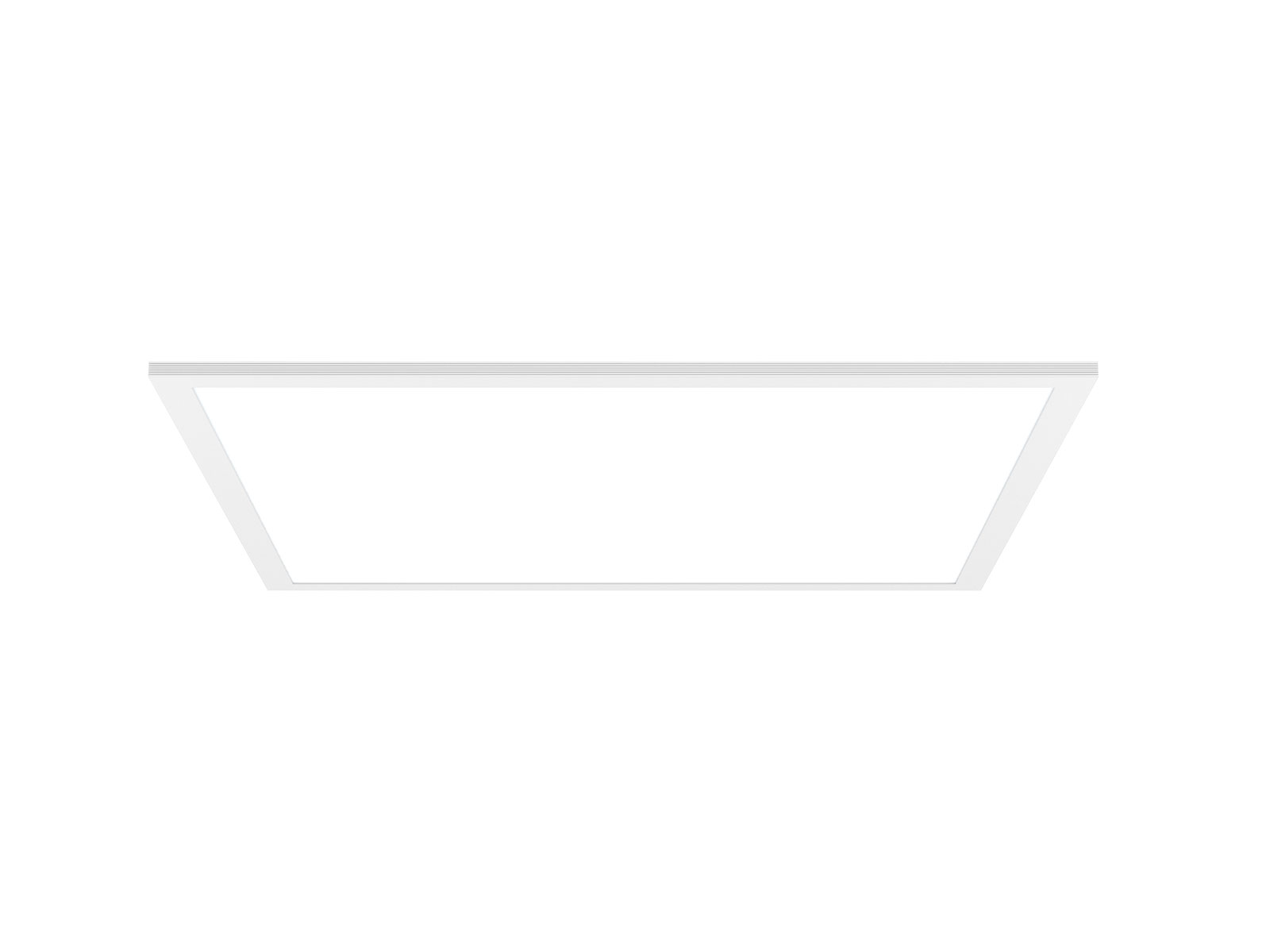

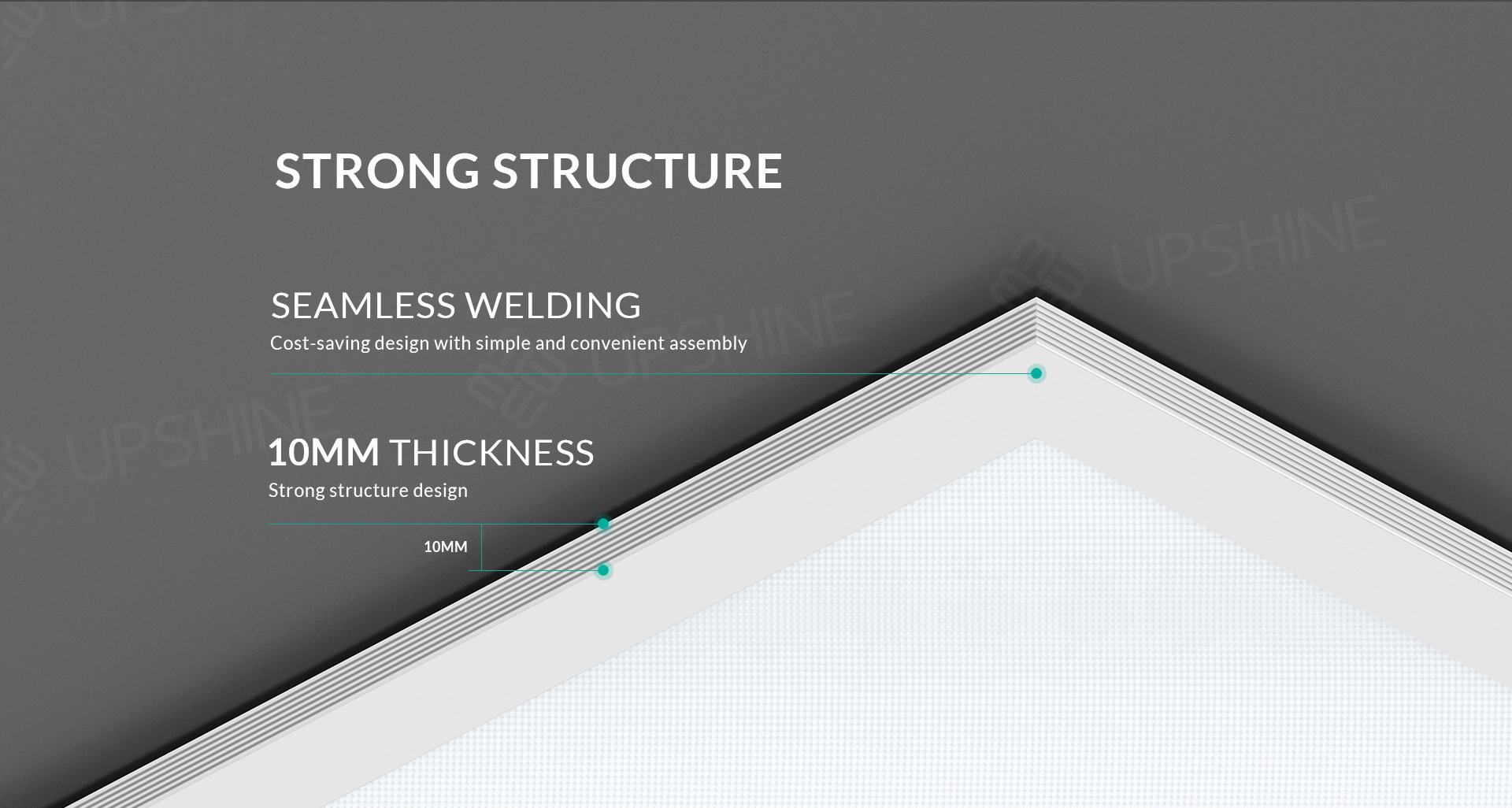

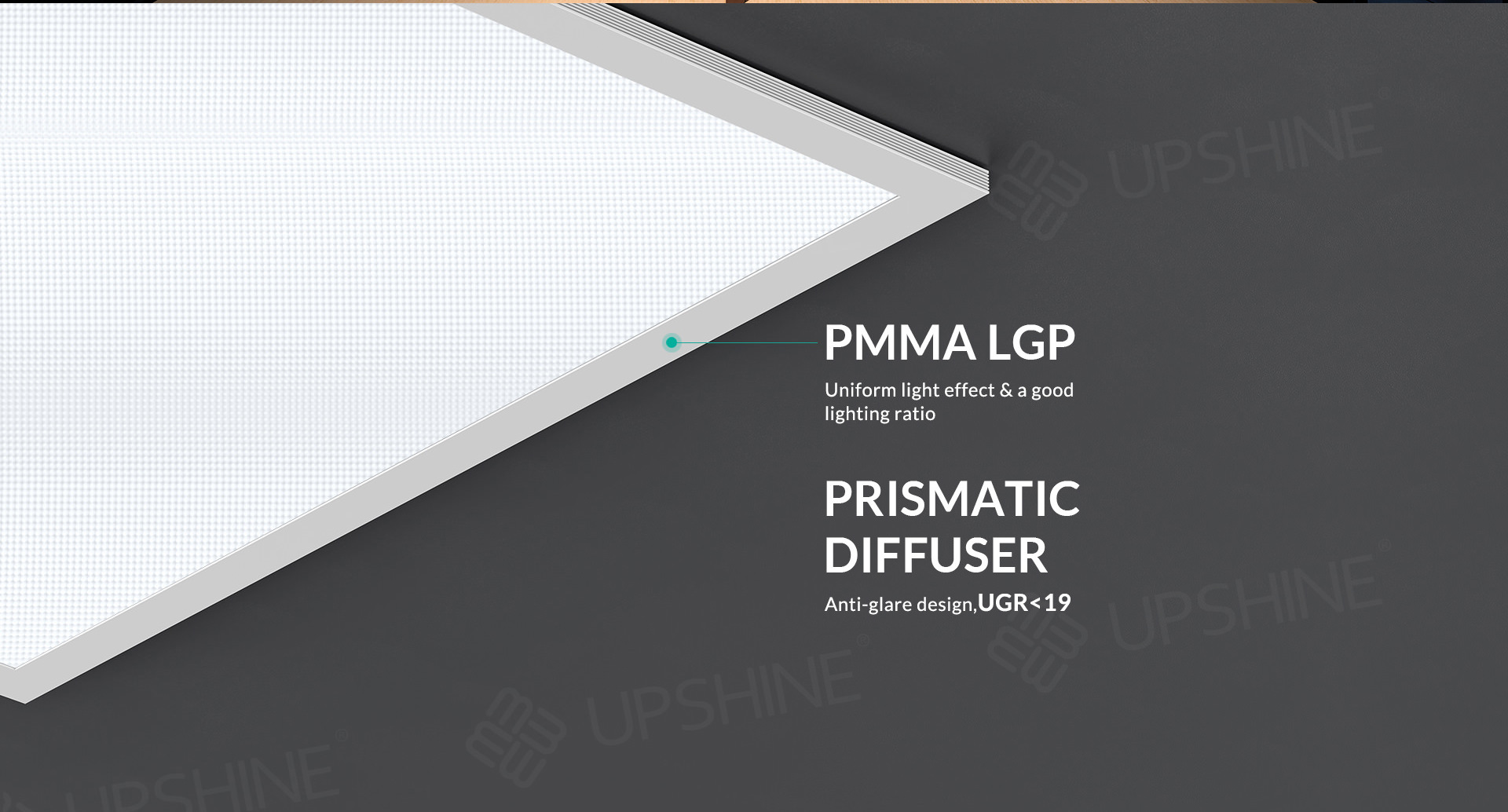

This panel light has an aluminum frame with good thermal conductivity. Adopt PMMA LGP, it has a uniform light effect and a good lighting ratio, no glare, no flicker, long life span, more environmental protection and energy saving. For structural design: the frame is seamless welding, the assembly process is more simple and more convenient, which is a cost-saving design.

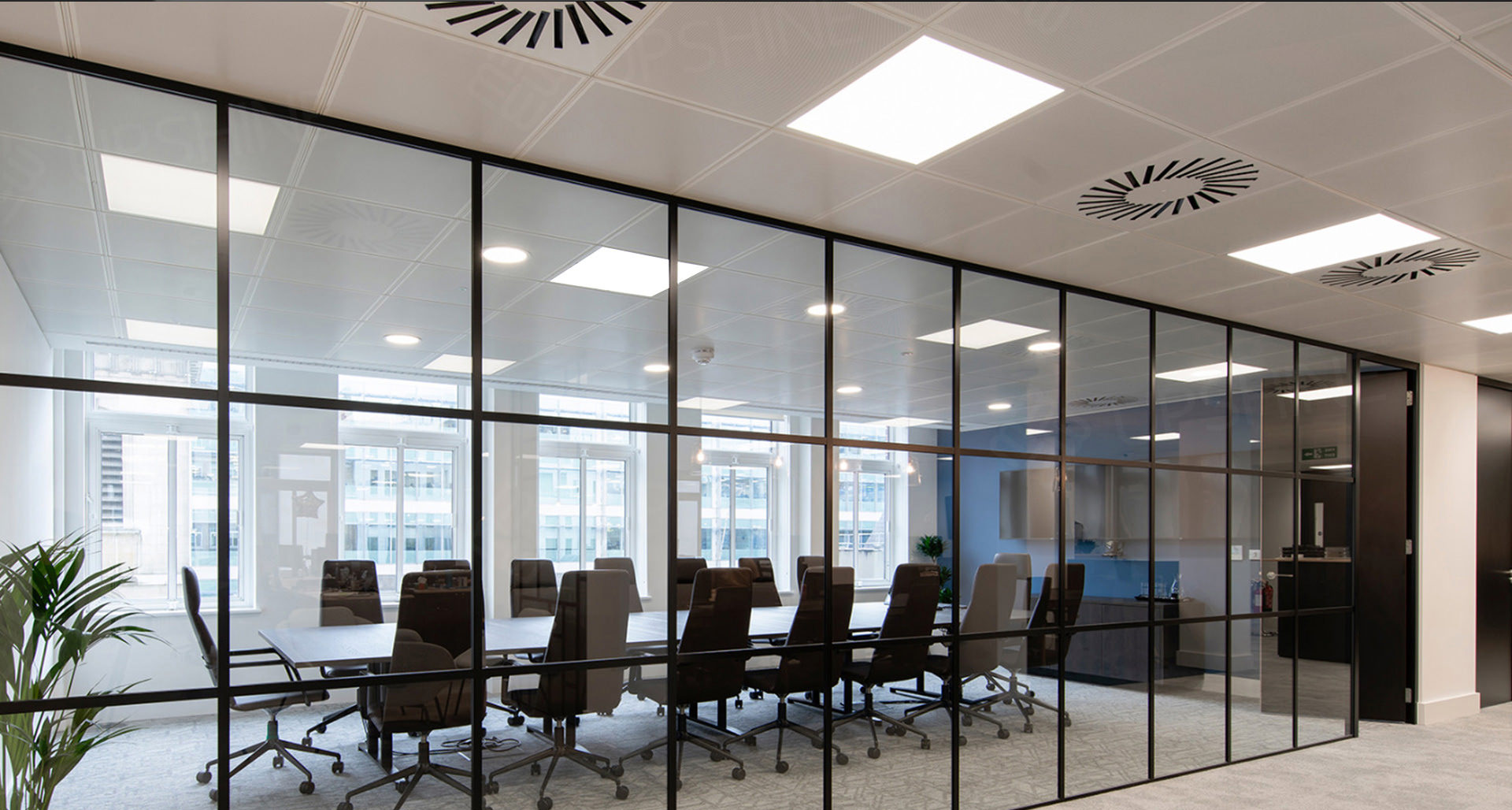

Applications: This lamp is designed for special indoor area, such as hospital corridor, lobby, nurse station, therapeutic room, dental, pharmacy, clinical process room, private clinic, waiting room, etc.
| Code No | PL3030 10W G6B | PL3060 20W G6B | PL6060 28W G6B | PL6060 33W G6B | PL6262 28W G6B | PL6262 33W G6B | PL30120 28W G6B | PL30120 33W G6B | PL60120 40W G6B | PL60120 50W G6B | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|

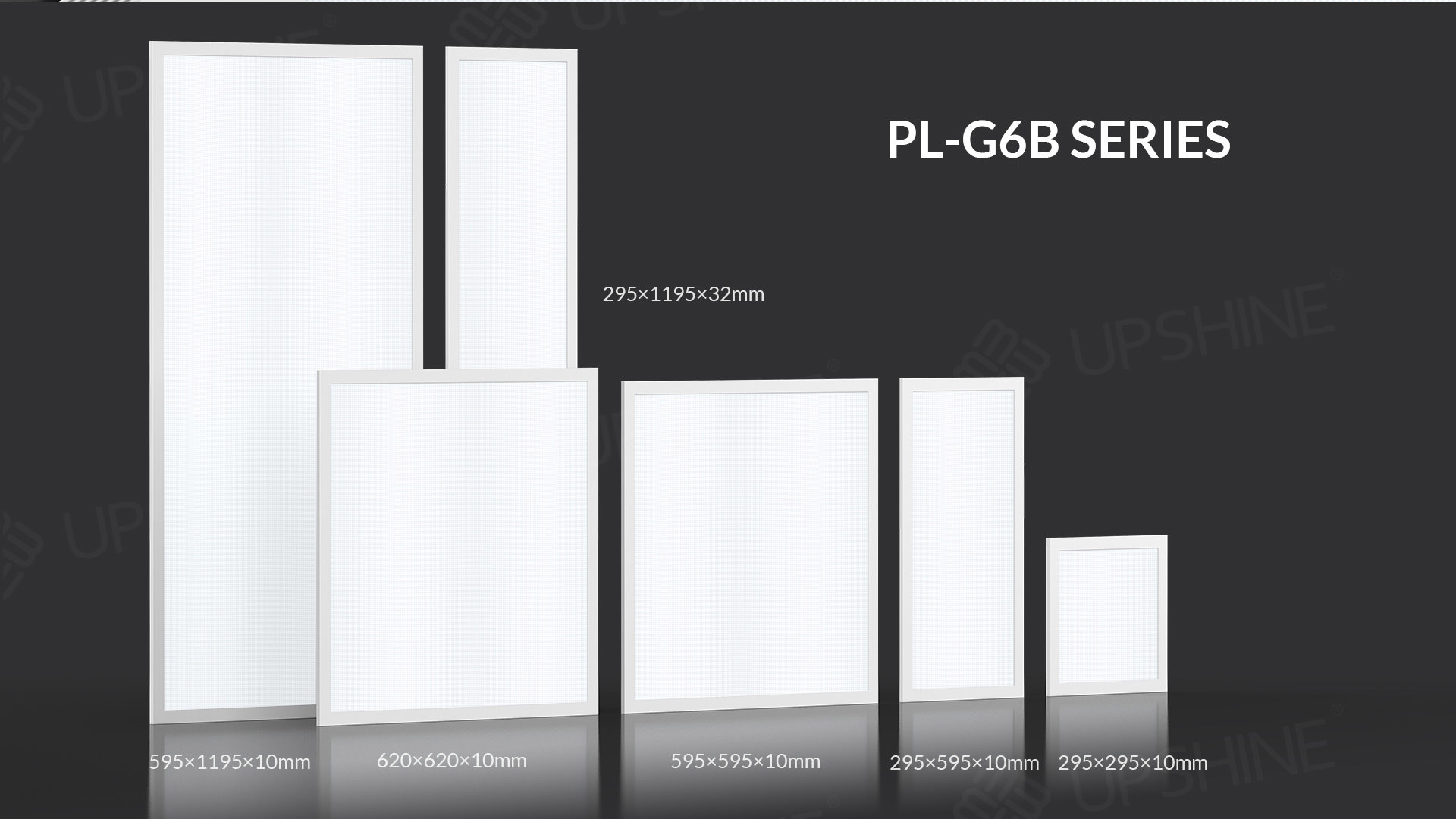

| Dimension(mm) | 295*295*10 | 295*595*10 | 595*595*10 | 595*595*10 | 620*620*10 | 620*620*10 | 295*1195*10 | 295*1195*10 | 595*1195*10 | 595*1195*10 | ||
| Cutout (mm) | 270*270 | 270*570 | 570*570 | 570*570 | 590*590 | 590*590 | 270*1170 | 270*1170 | 570*1170 | 570*1170 | ||
| Watt(W) | 10W | 20W | 28W | 33W | 28W | 33W | 28W | 33W | 40W | 50W | ||
| Rated Input Voltage(V) | AC220-240V | |||||||||||
| Input Voltage(V) | AC198-264V | |||||||||||
| LED Module Input | 33-38V DC | |||||||||||
| Light Source | SMD | |||||||||||
| SDCM | <6 | |||||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||||||||||
| CCT Selection DIP Switch | – | |||||||||||
| Non-DIM | 1-CCT | 1160-1260 | 2500-2680 | 3920-4120 | 4580-4800 | 3780-4020 | 4420-4650 | 3690-4000 | 4290-4600 | 5450-5850 | 6700-7000 | |
| Luminous Flux (lm) ±5% | DIM | – | ||||||||||
| Non-DIM | 3-CCT | – | ||||||||||
| DIM | – | |||||||||||
| CRI | > 80 | |||||||||||
| Beam Angle (°) | 90° | |||||||||||

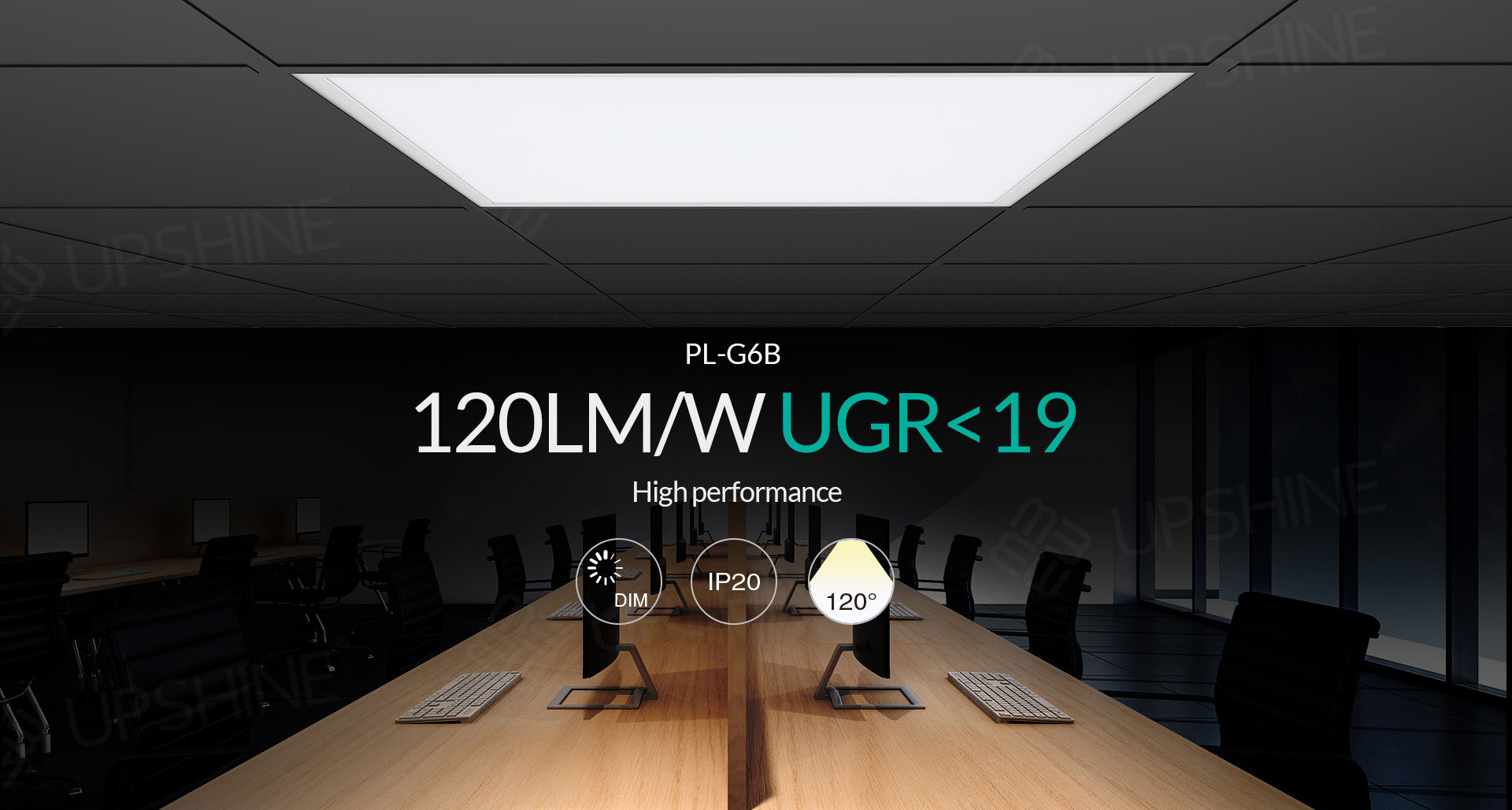

| UGR | < 19 | |||||||||||
| LED Driver | Driver built-out | |||||||||||
| Dimming Option | – | |||||||||||
| Sensor | – | |||||||||||
| Emergency Kits | – | |||||||||||
| Electrical Class | Class Ⅱ | |||||||||||
| Ingress Protection (IP Rating) | IP20 | |||||||||||
| Impact Resistance (IK Rating) | IK02 | |||||||||||
| Product Finishing(Base) | White RAL 9016 | |||||||||||
| Materials of Optics | PMMA(LGP)+PS(Diffuser) | |||||||||||
| Materials of Housing | Aluminum(Frame) | |||||||||||
| Lifetime (hr) | 50,000h | |||||||||||
| Glow wire test (℃ ) | 650℃ | |||||||||||
| Operating Temp. (℃ ) | -10 ℃~40℃ | |||||||||||
| Storage Temp. (℃ ) | -10 ℃~50℃ | |||||||||||
| Installation | Surface mount/ Pendant/ Recessed | |||||||||||
