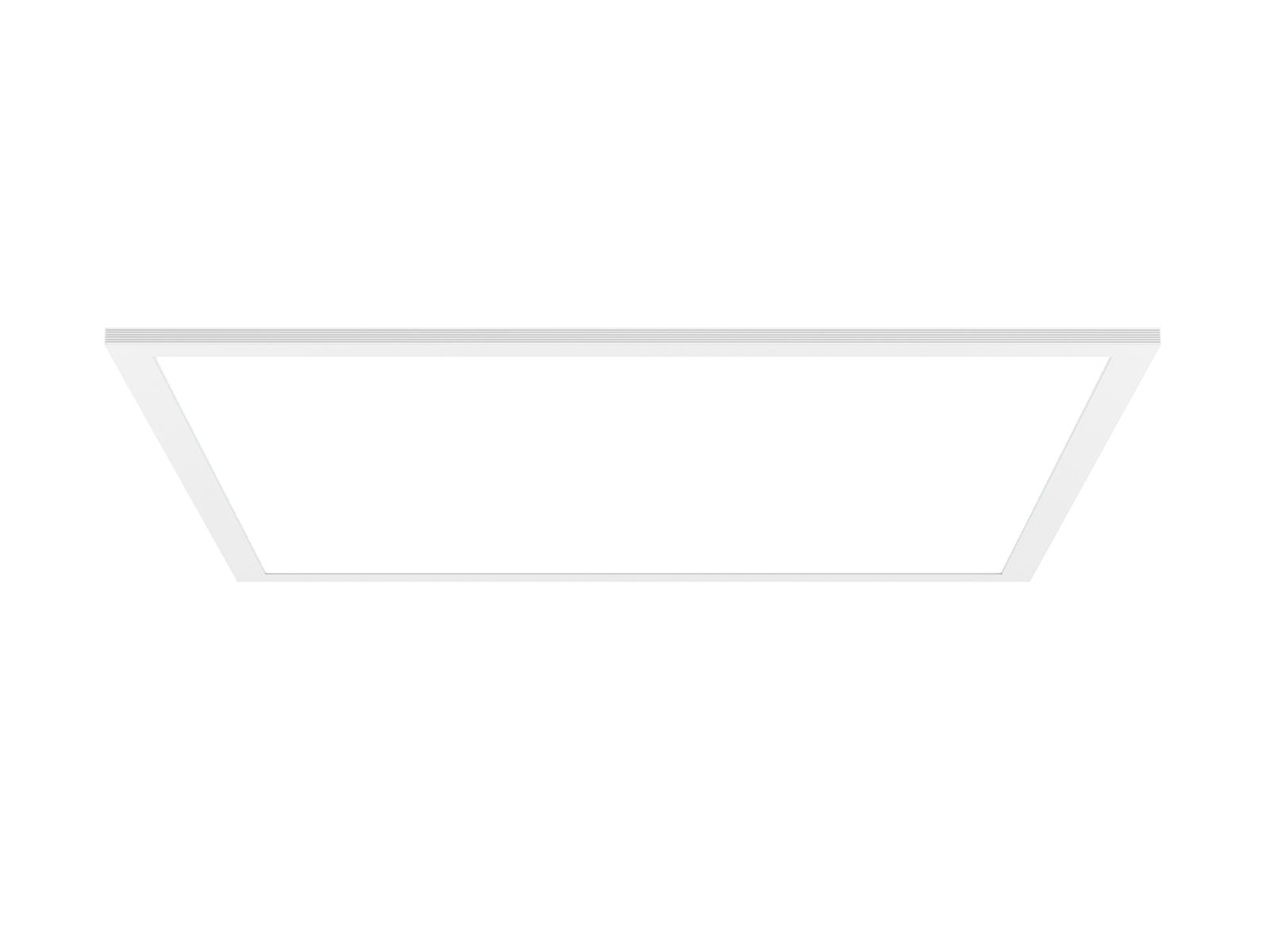

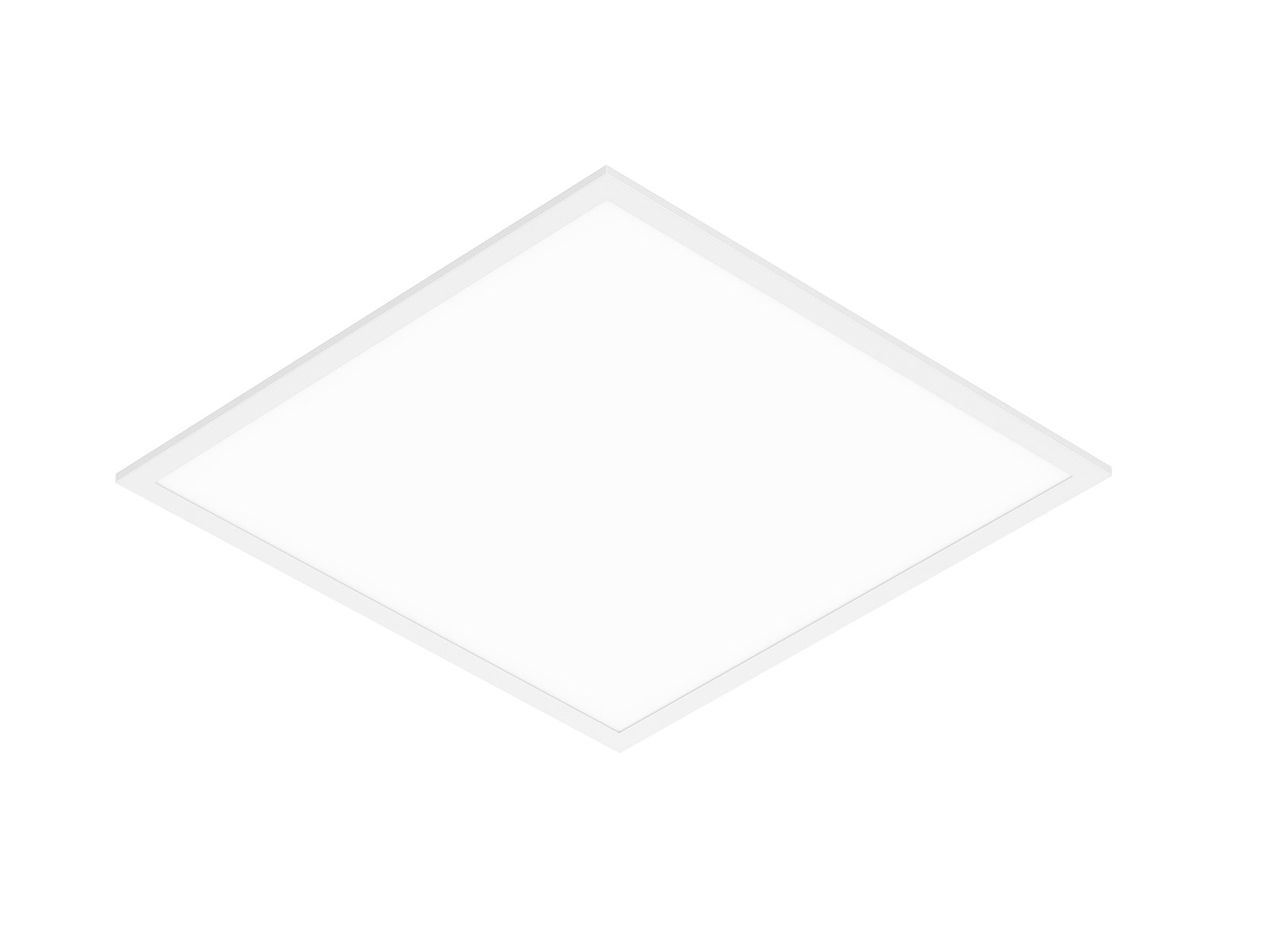

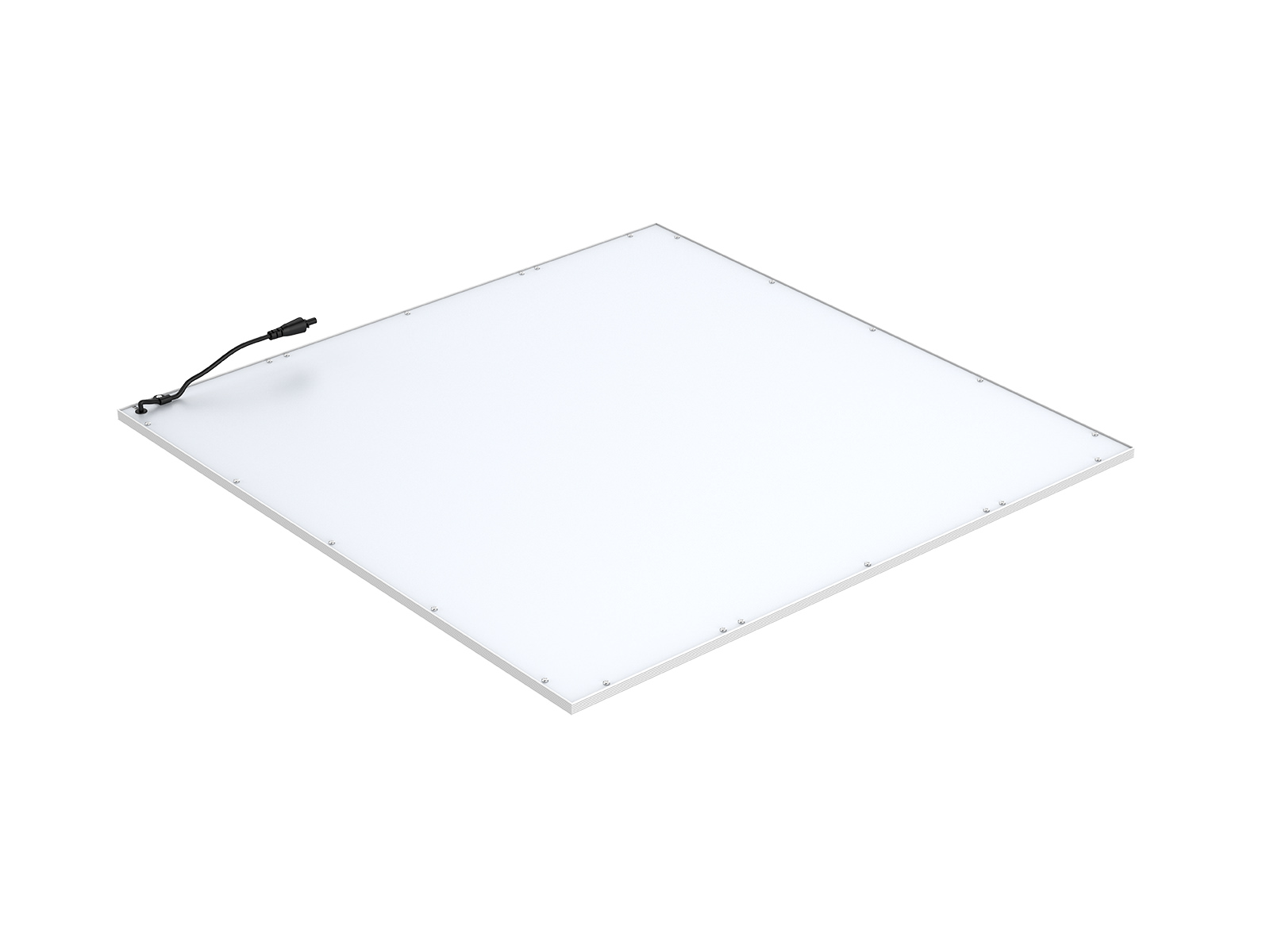

This panel light has an aluminum frame with good thermal conductivity. Adopt PMMA LGP, it has a uniform light effect and a good lighting ratio, no glare, no flicker, long life span, more environmental protection and energy saving. For structural design: the frame is seamless welding, the assembly process is more simple and more convenient, which is a cost-saving design.
Application Areas: This lamp is designed for special indoor area, such as hospital corridor, lobby, nurse station, therapeutic room, dental, pharmacy, clinical process room, private clinic, waiting room, etc.

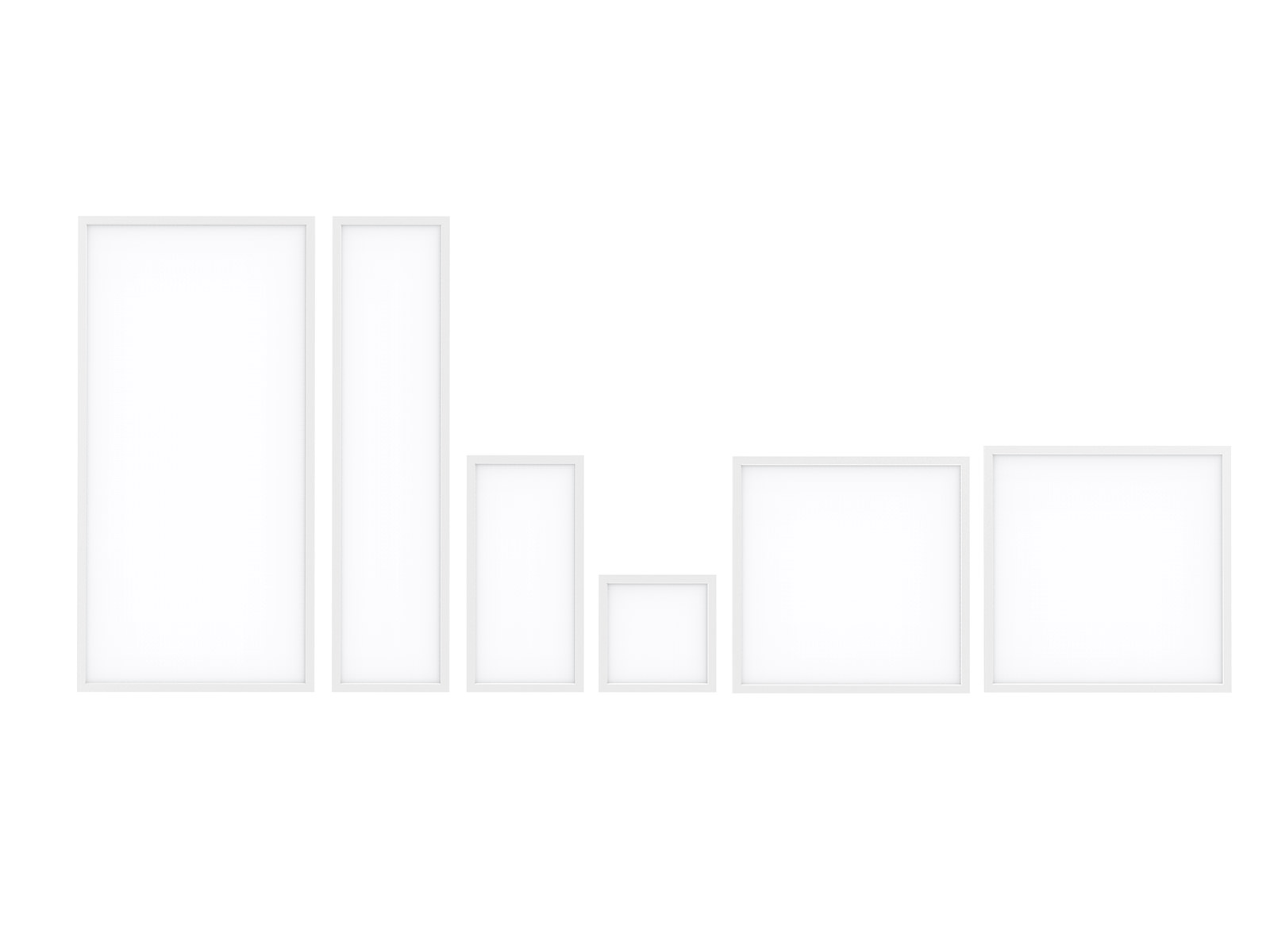

| Code No. | PL3030-10W -G5B | PL3060-20W -G5B | PL6060-28W -G5B | PL6060-33W -G5B | PL6262-28W -G5B | PL6262-33W -G5B | PL30120-28W -G5B | PL30120-33W -G5B | PL60120-50W -G5B |
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 295*295*10 | 295*595*10 | 595*595*10 | 595*595*10 | 620*620*10 | 620*620*10 | 295*1195*10 | 295*1195*10 | 595*1195*10 |
| Watt(W) | 10W | 20W | 28W | 33W | 28W | 33W | 28W | 33W | 50W |
| Rated Input Voltage(V) | AC230V | ||||||||
| Input Voltage(V) | AC200-240V | ||||||||
| LED Module Input | 33-38V DC 250mA CC | 33-38V DC 500mA CC | 33-38V DC 700mA CC | 33-38V DC 850mA CC | 33-38V DC 700mA CC | 33-38V DC 850mA CC | 33-38V DC 700mA CC | 33-38V DC 850mA CC | 33-38V DC 1050mA CC |
| Light Source | SMD | ||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||||||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 990-1210 | 2070-2530 | 3024-3696 | 3564-4356 | 3024-3696 | 3564-4356 | 3024-3696 | 3564-4356 | 5400-6600 |
| DIM 1-CCT Luminous Flux (lm) ±5% | 990-1210 | 2070-2530 | 3024-3696 | 3564-4356 | 3024-3696 | 3564-4356 | 3024-3696 | 3564-4356 | 5400-6600 |
| CRI | 80 | ||||||||
| Beam Angle (°) | 120° | ||||||||
| LED Driver | Built-out | ||||||||
| Dimming Option | Triac/ DALI/ 0-10V | ||||||||
| Electrical Class | Class Ⅱ | ||||||||
| Ingress Protection (IP Rating) | IP20 | ||||||||
| Product Finishing(Base) | White | ||||||||
| Materials of Optics | PMMA(LGP)+PS(Diffuser) | ||||||||
| Materials of Housing | Aluminum(Frame) | ||||||||
| Lifetime (hr) | 50,000h | ||||||||
| Glow wire test (℃ ) | 650℃ | ||||||||
| Operating Temp. (℃ ) | -10 ℃~40℃ | ||||||||
| Storage Temp. (℃ ) | -20 ℃~50℃ | ||||||||
| Installation | Surface mount/ Pendant/ Recessed | ||||||||
