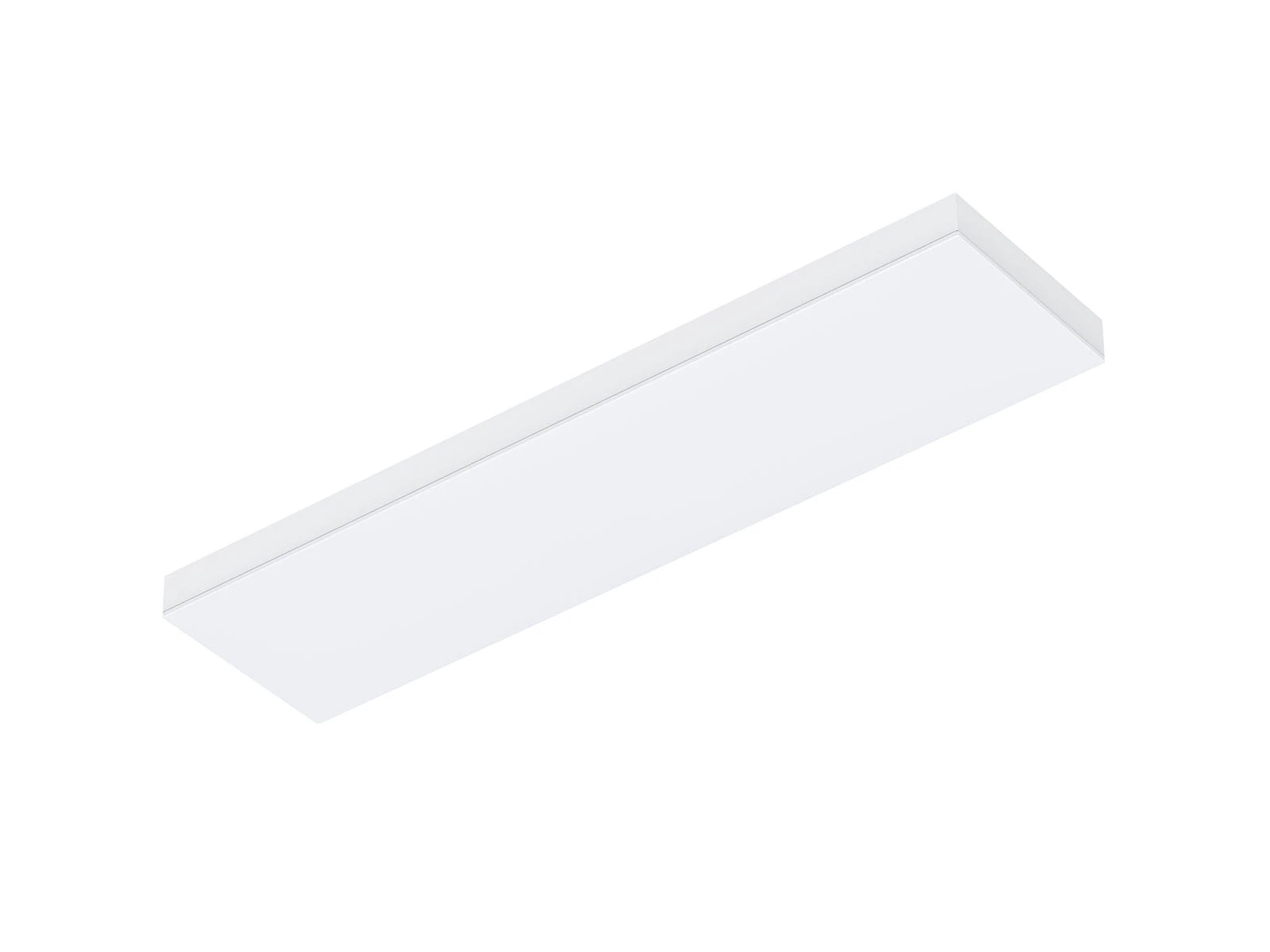

CK8(SM) is a back-lit panel light that supports ceiling installation. Its major advantage lies in its frameless design, which creates a larger illuminated surface. The rounded edges around the panel, with their smooth lines, high-quality texture, and simple design, provide users with an ultimate aesthetic experience. It adopts high-brightness SMD2835 led chip,
Application Areas: Office lighting: Offices, conference rooms, classrooms, libraries, etc. Commercial lighting: Shopping malls, supermarkets, hotels. Other fields: Hospitals, cafeterias, theaters, banks, subway stations, etc.
| Code No. | CK8-6060-36W（ SM） | CK8-30120-36W（ SM） | ||
|---|---|---|---|---|

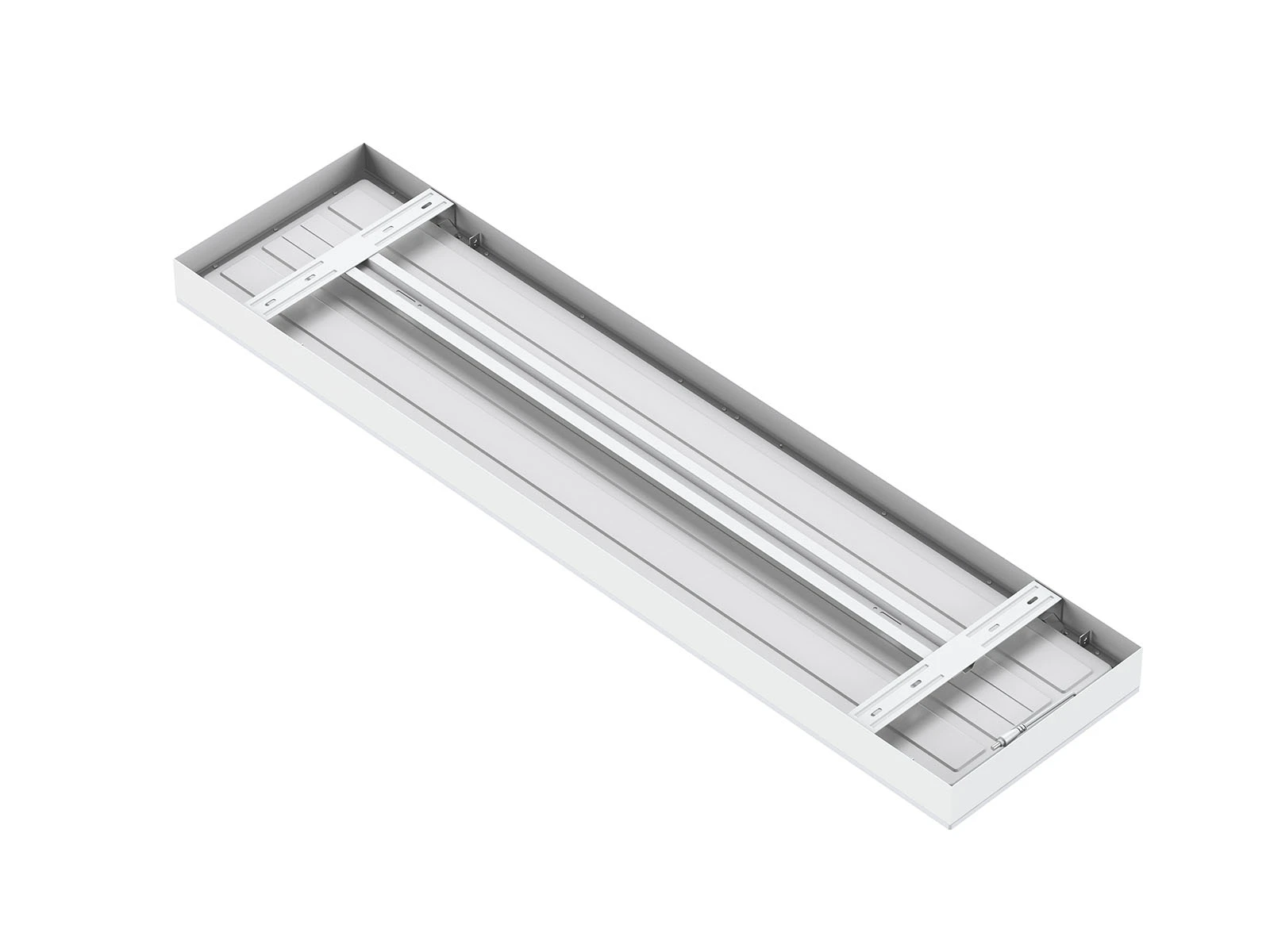

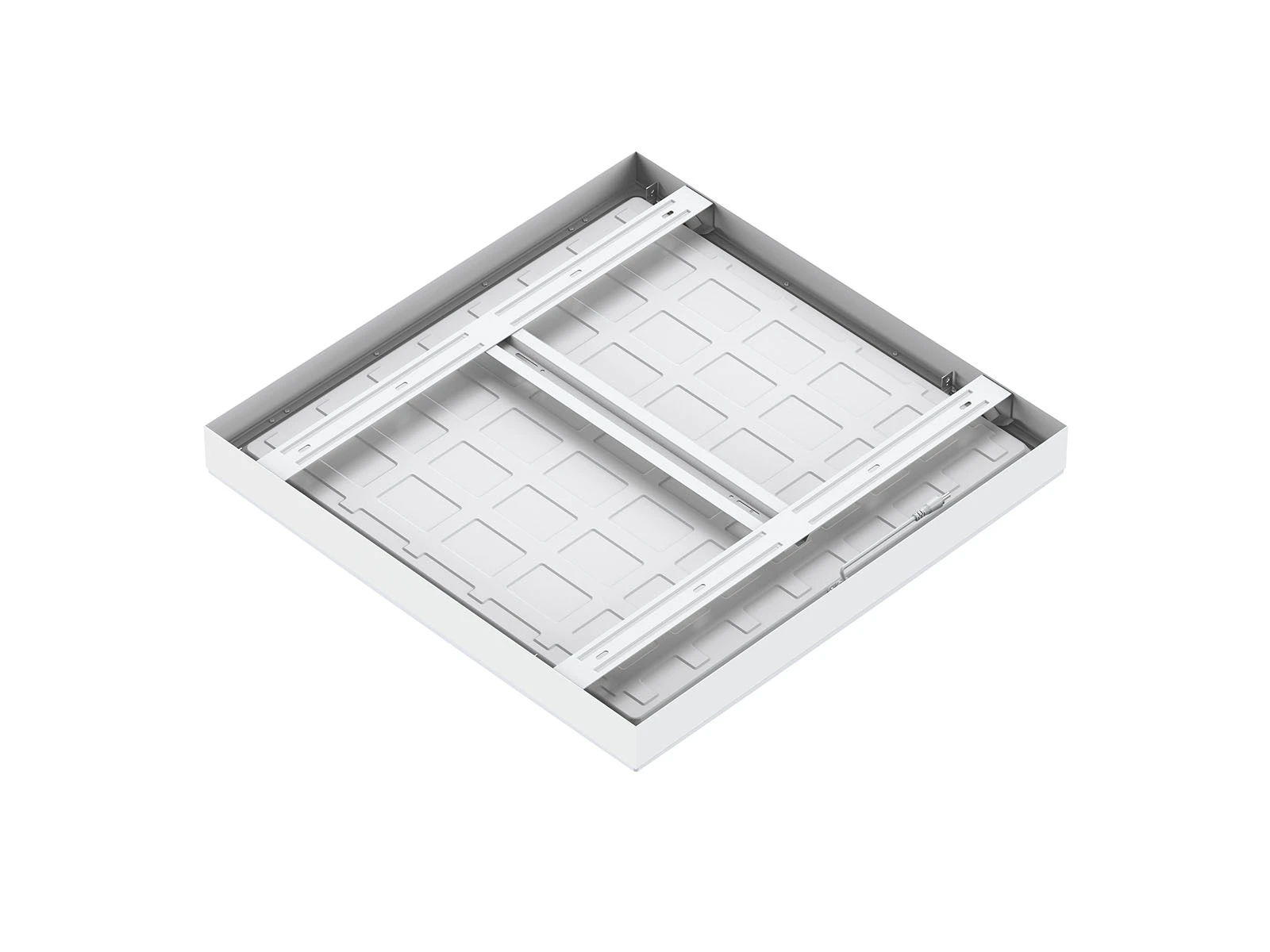

| Dimension(mm) | 595*595*63 | 295*1195*63 | ||
| Watt(W) | 36W | |||
| Rated Input Voltage(V) | AC220-240V | |||
| Input Voltage(V) | AC198-264V | |||
| LED Module Input | 33-38V DC 900mA CC | |||
| Light Source | SMD | |||
| SDCM | <5(<3 optional) | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | 3-CCT: 3000K + 4000K + 5700K | ||
| CCT Selection DIP Switch | Yes | |||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 4100-4400 | 4050-4300 |
| DIM | – | – | ||
| Non-DIM | 3-CCT | 3900-4500 | 3800-4300 | |
| DIM | – | – | ||
| CRI | ≥80 | |||
| Beam Angle (°) | 120° | |||
| LED Driver | Built-out | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP40 | |||
| Impact Resistance (IK Rating) | IK02 | |||
| Product Finishing(Base) | White | |||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||
| Materials of Housing | Aluminium(frame), SPCC(back plate) | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 650℃ | |||
| Operating Temp. (℃ ) | -10℃~40℃ | |||
| Storage Temp. (℃ ) | -20℃~50℃ | |||
| Installation | surface mounted | |||
