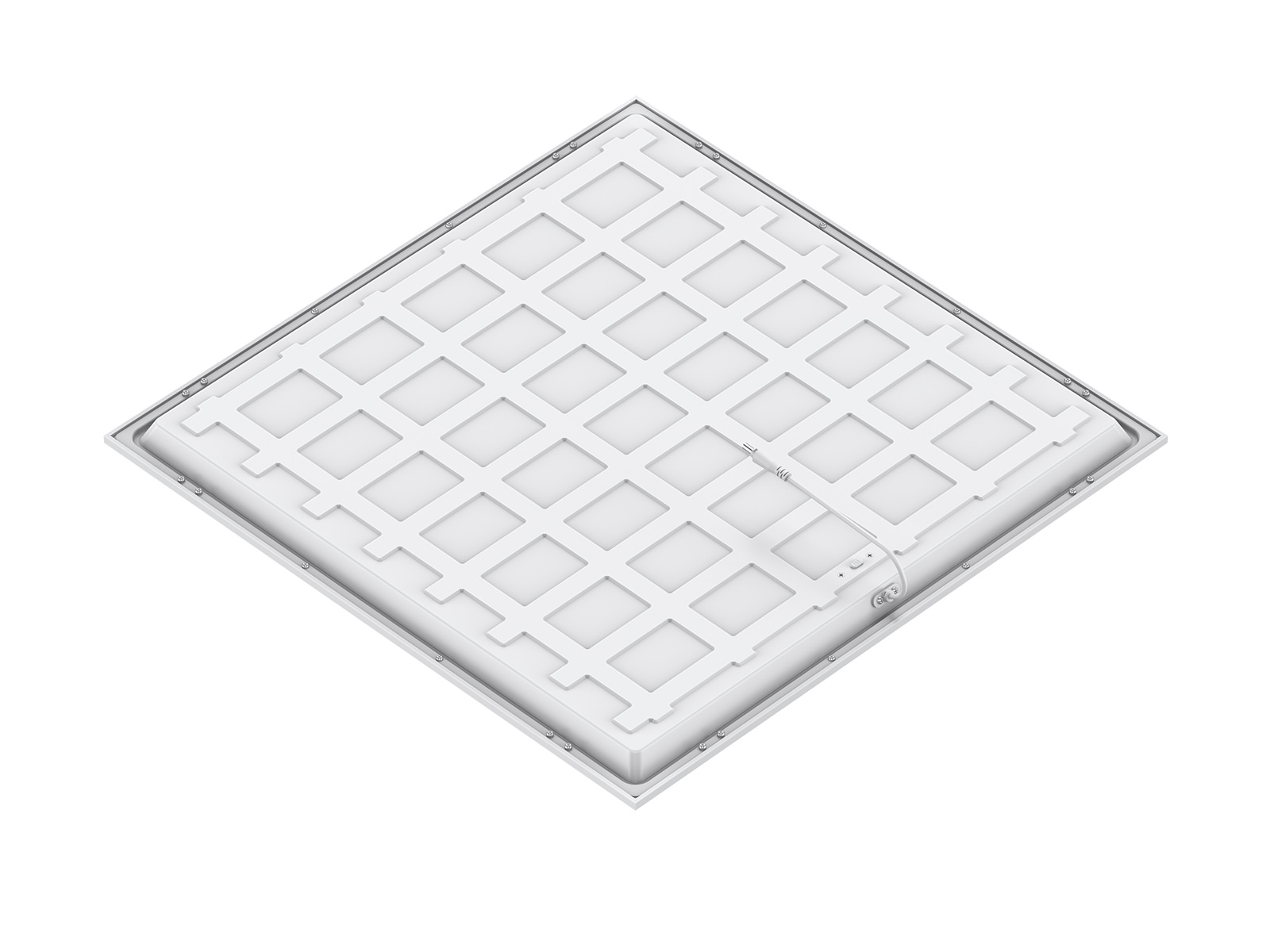

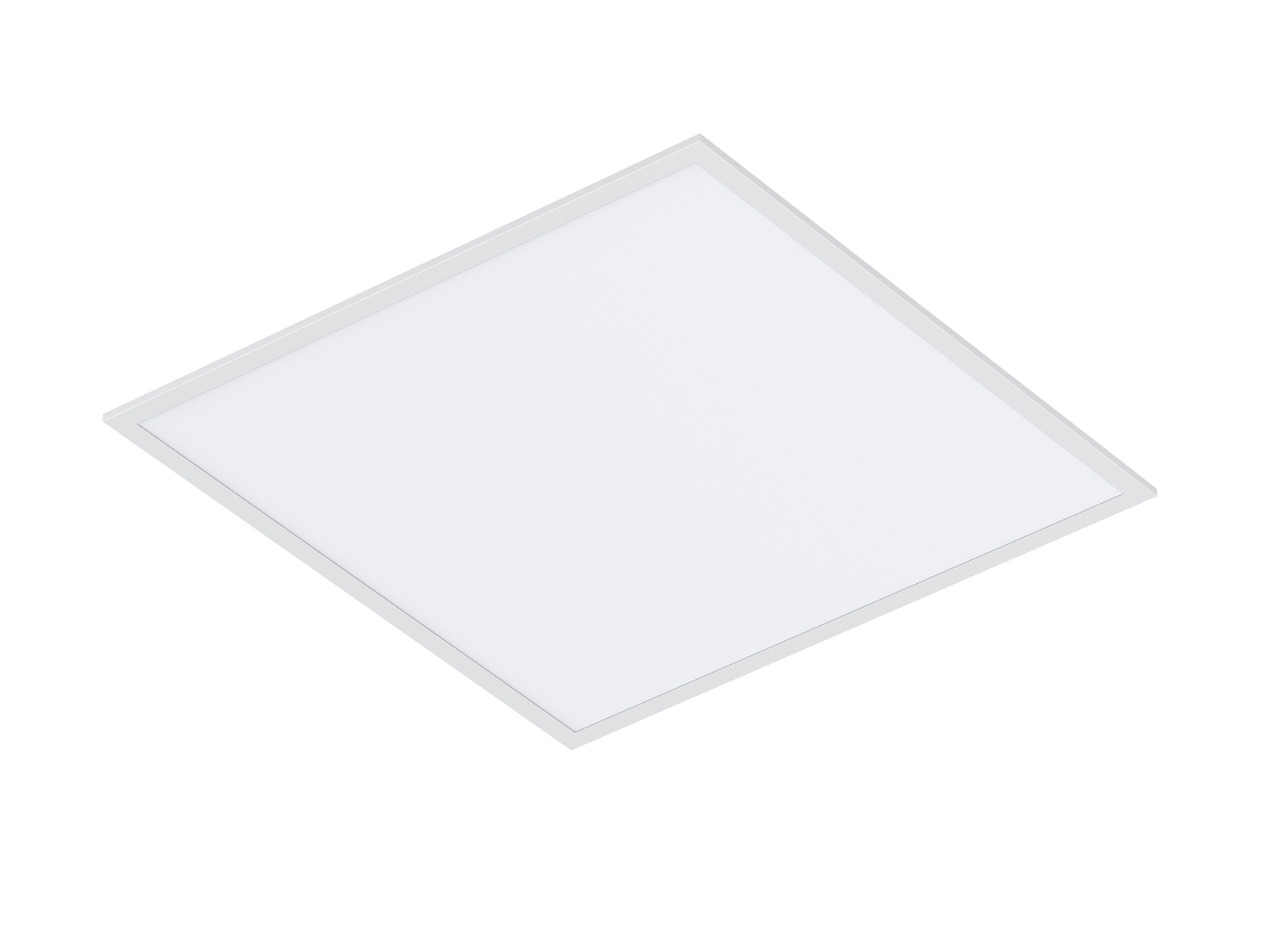

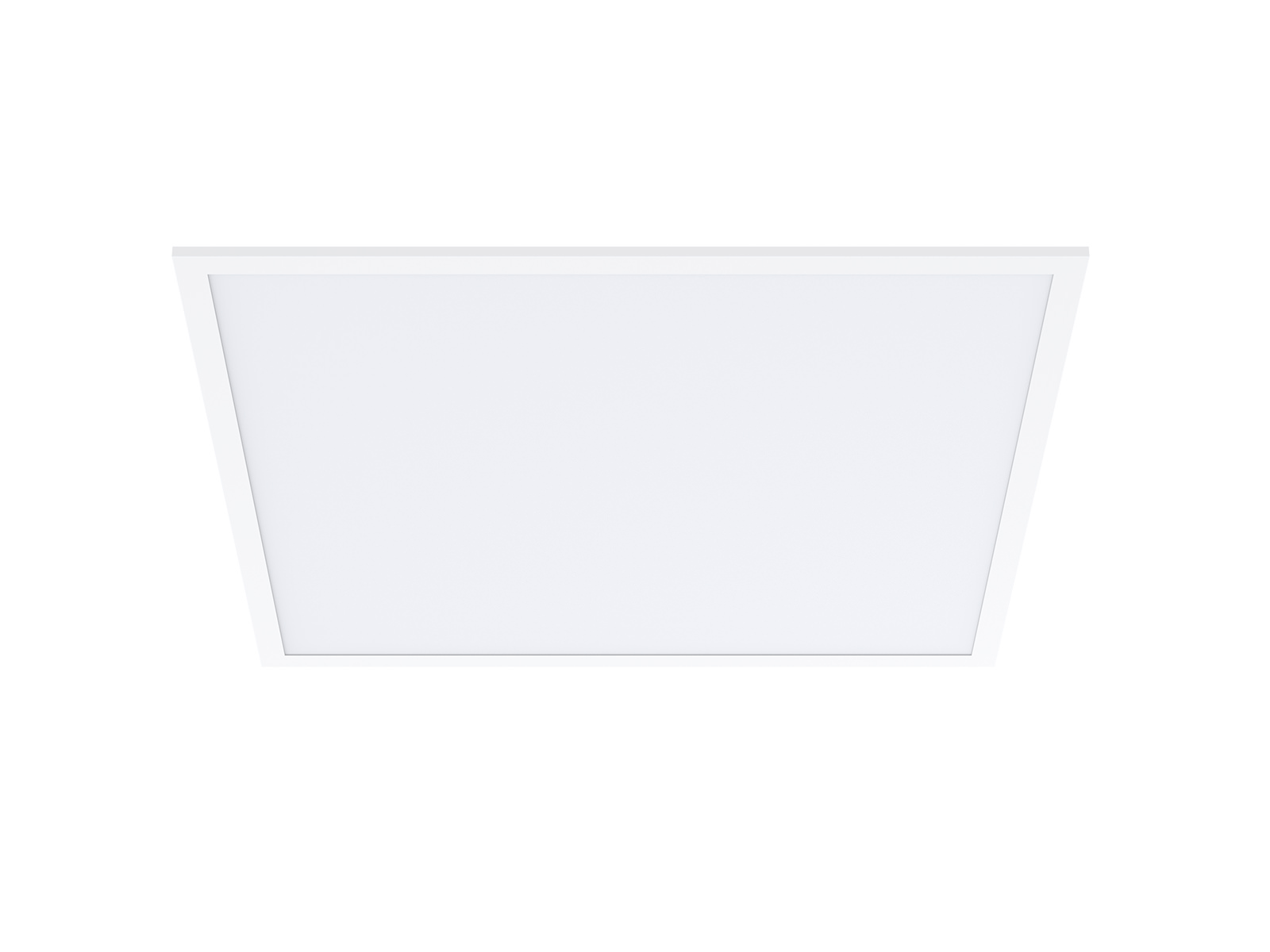

PL-CK5A LED panel is a direct lighting product with high lumen efficiency. It makes full use of all light and is more cost-effective compared with side lighting LED panel light. It adopted a high-lumen 2835 SMD light source, the optical lens provides a uniform light output. With an integrated iron plate, providing great thermal management.
Application: Office & school lighting: office room, meeting room, classroom, etc. Commercial lighting: shopping malls, supermarkets, retail shops, etc. Other situations: hospital, laboratory, dust-free workshop, etc.

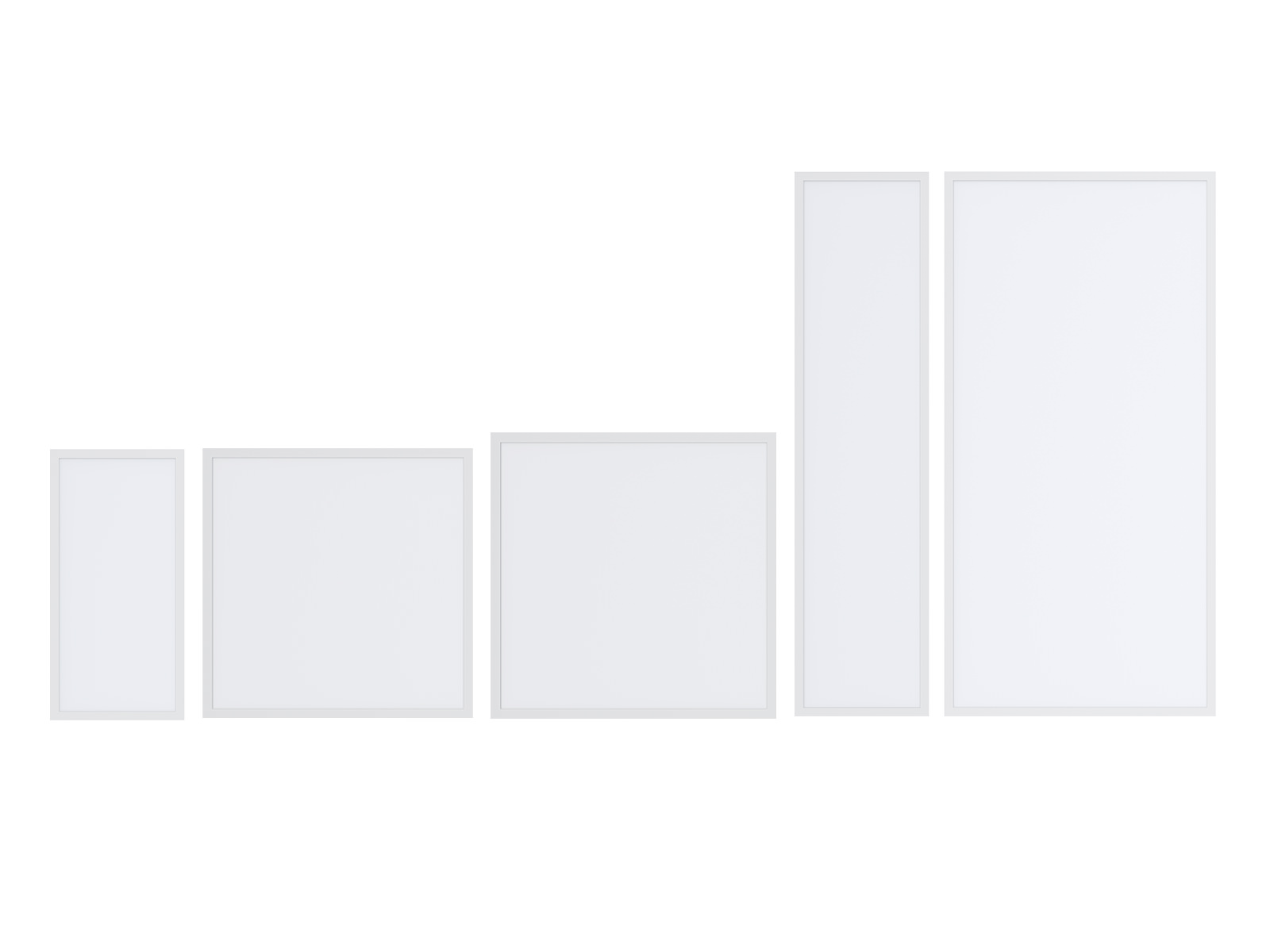

| Code No. | PL3060- 18W-CK5A | PL6060-36W-CK5A | PL6262-36W-CK5A | PL30120-36W-CK5A | PL60120-60W-CK5A |
|---|---|---|---|---|---|
| Dimension(mm) | 595*595*25 | 595*595*25 | 620*620*25 | 1195*295*25 | 1195*595*25 |
| Watt(W) | 18W | 36W | 60W | ||
| Rated Input Voltage(V) | AC220-240V | ||||
| Input Voltage(V) | AC198-264V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | SMD2835 | ||||
| SDCM | <5(<3 optional) | ||||
| CCT(K) | 3-CCT: 3000K+4000K+5700K | ||||
| CCT Selection DIP Switch | Yes | ||||
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 1650- 1800 | 3500-4060 | 3500-4060 | 3400-3960 | 6380-7500 |
| DIM 3-CCT Luminous Flux (lm) ±5% | 1570- 1710 | 3330-3860 | 3500-4060 | 3230-3760 | – |
| CRI | ≥80 | ||||
| Beam Angle (°) | 120° | ||||
| LED Driver | Driver built-out | ||||
| Dimming Option | Triac/0- 10V/DALI | ||||
| Electrical Class | Class Ⅱ | ||||
| Ingress Protection (IP Rating) | IP50(for lamp part) / IP54(Below Ceiling) | ||||
| Product Finishing(Base) | White | ||||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | ||||
| Materials of Housing | Aluminium, SPCC | ||||
| Lifetime (hr) | 50,000 | ||||
| Glow wire test (C ) | 650 | ||||
| Operating Temp. (C ) | - 10C~40C | ||||
| Storage Temp. (C ) | -20C~65C | ||||
| Installation | Surface mounted/ recessed/ Pendant | ||||
