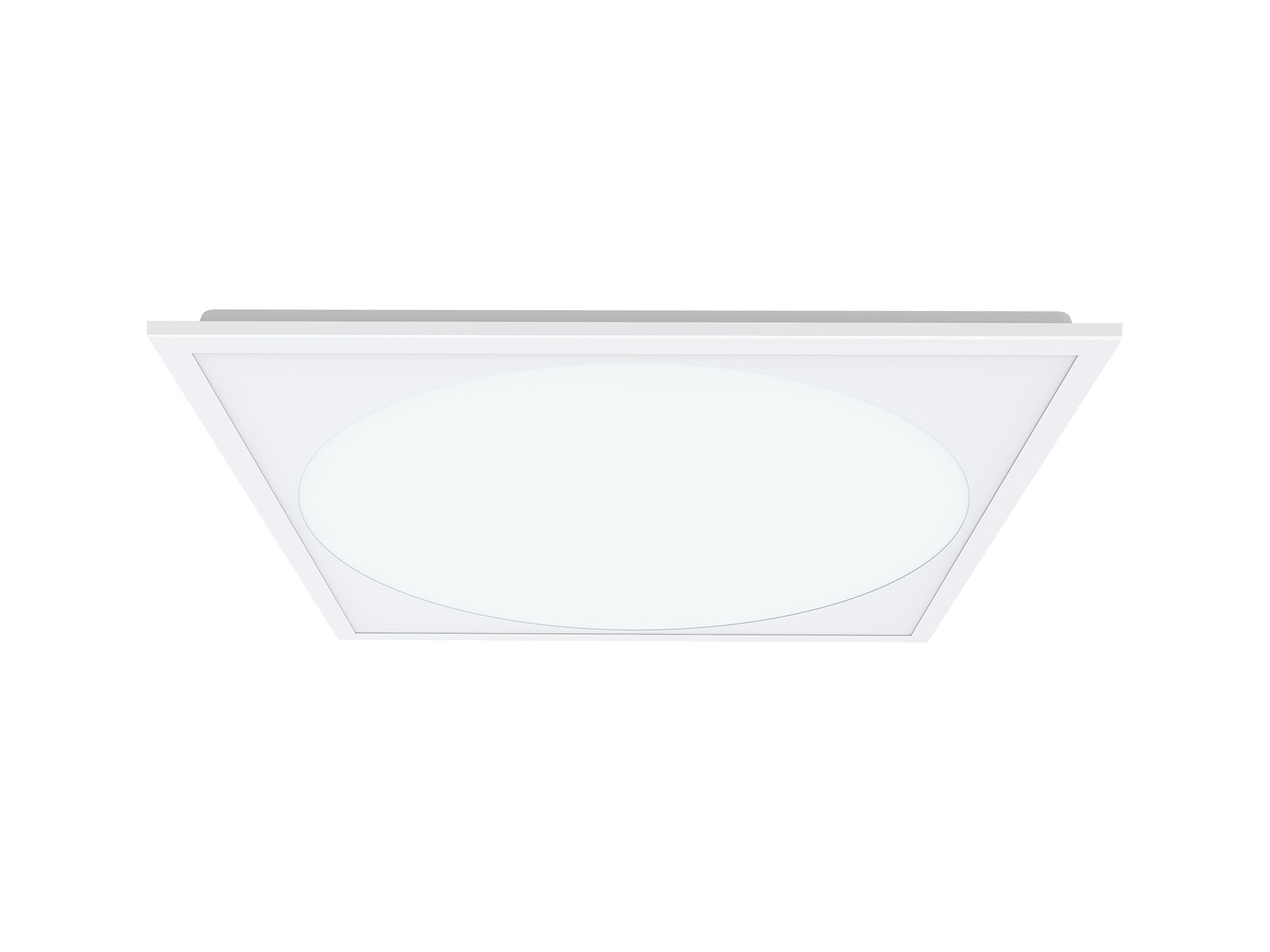

PL-CK4 LED panel is a direct lighting product, it has a special lighting design, square shape but with round-emitting surface, which provides a great decorative effect and visual effect. It makes full use of all light to reach a high lumen efficiency, and it’s also more cost effective compared with side lighting LED panel light. Adopt special optical lens to offer a uniform light effect, the integrated iron plate providing excellent thermal management.
LED ceiling panel light features:
| Code No. | PL6060-36W-CK4 | PL6262-36W-CK4 | PL6060-28W-CK4 | PL6262-28W-CK4 | PL6060-28W-CK4 | PL6262-28W-CK4 | PL6060-23W-CK4 | PL6262-23W-CK4 | ||
| Dimension(mm) | 595*595*32 | 620*620*32 | 595*595*32 | 620*620*32 | 595*595*32 | 620*620*32 | 595*595*32 | 620*620*32 | ||
| Cutout (mm) | – | |||||||||
| Watt(W) | 36W | 28W | 28W | 23W | ||||||
| Rated Input Voltage(V) | AC230V | |||||||||
| Input Voltage(V) | AC200-240V | |||||||||
| LED Module Input | 33-38V DC 950mA CC | 33-38V DC 750mA CC | 33-38V DC 750mA CC | 33-38V DC 600mA CC | ||||||
| Light Source | SMD | |||||||||
| SDCM | ＜6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||||||
| CCT Selection DIP Switch | Yes | |||||||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 3750-4200 | 3150-3550 | 2900-3250 | 2600-2900 | ||||
| DIM | 3550-4000 | 3000-3400 | 2750-3100 | 2500-2800 | ||||||
| Non-DIM | 3-CCT | 3550-4000 | 3000-3400 | 2750-3100 | 2500-2800 | |||||
| DIM | 3400-3800 | 2900-3250 | 2650-2950 | 2400-2700 | ||||||
| CRI | ≥80 | |||||||||
| Beam Angle (°) | 120° | 120° | 90° | 90° | ||||||
| UGR | – | – | ＜19 | ＜19 | ||||||
| LED Driver | Built-out | |||||||||
| Dimming Option | Triac / 0-10V / DALI | |||||||||
| Sensor | – | |||||||||
| Emergency Kits | – | |||||||||
| Electrical Class | Class Ⅱ | |||||||||
| Ingress Protection (IP Rating) | IP20 | |||||||||
| Impact Resistance (IK Rating) | – | |||||||||
| Product Finishing(Base) | White RAL 9016 | |||||||||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||||||||
| Materials of Housing | Aluminum(Frame) | |||||||||
| Lifetime (hr) | 50,000h | |||||||||
| Glow wire test (℃) | 650℃ | |||||||||
| Operating Temp. (℃) | -10℃~40℃ | |||||||||
| Storage Temp. (℃) | -20℃~65℃ | |||||||||
| Installation | Surface mount/ Pendant/ Recessed | |||||||||
