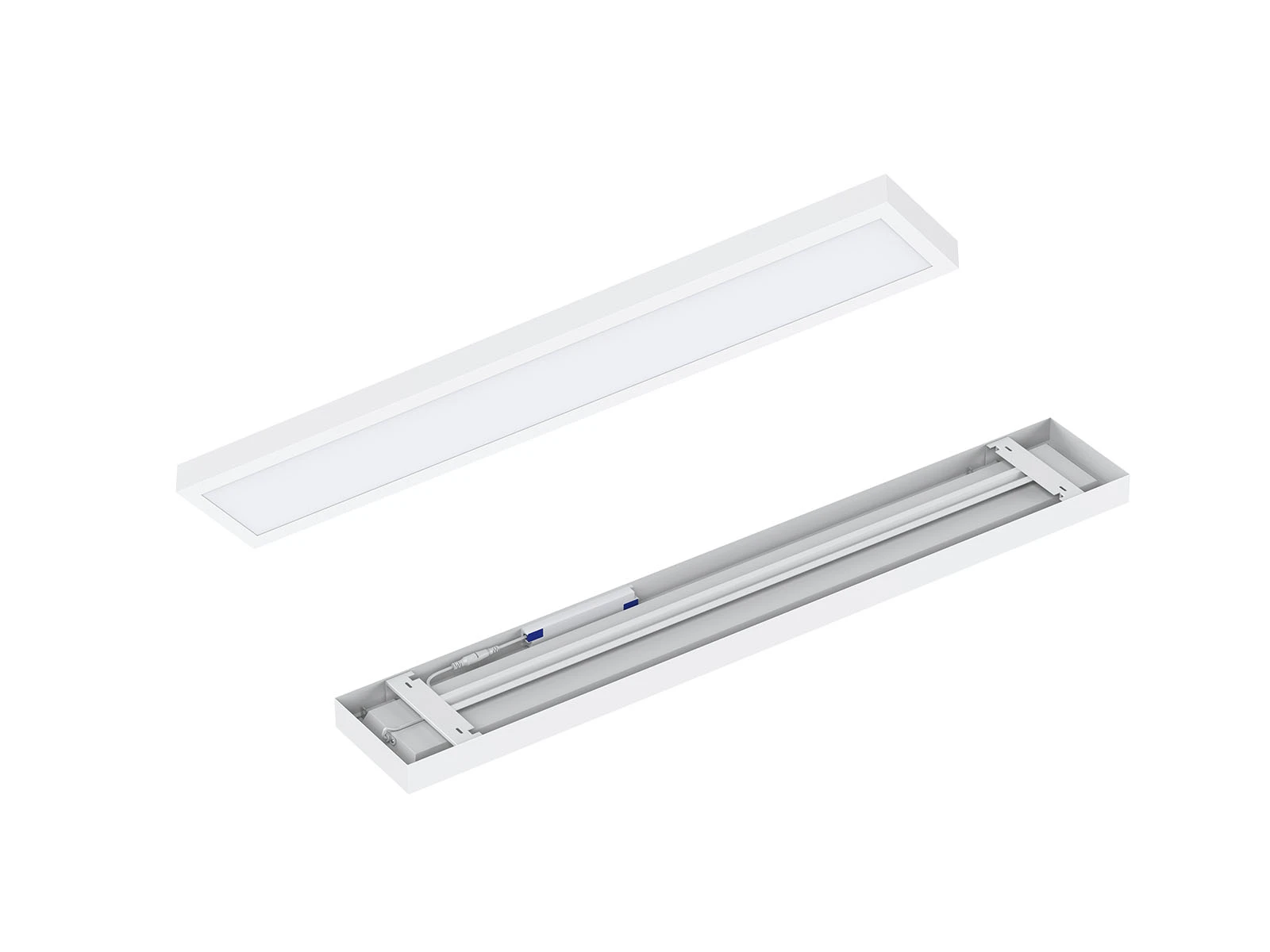

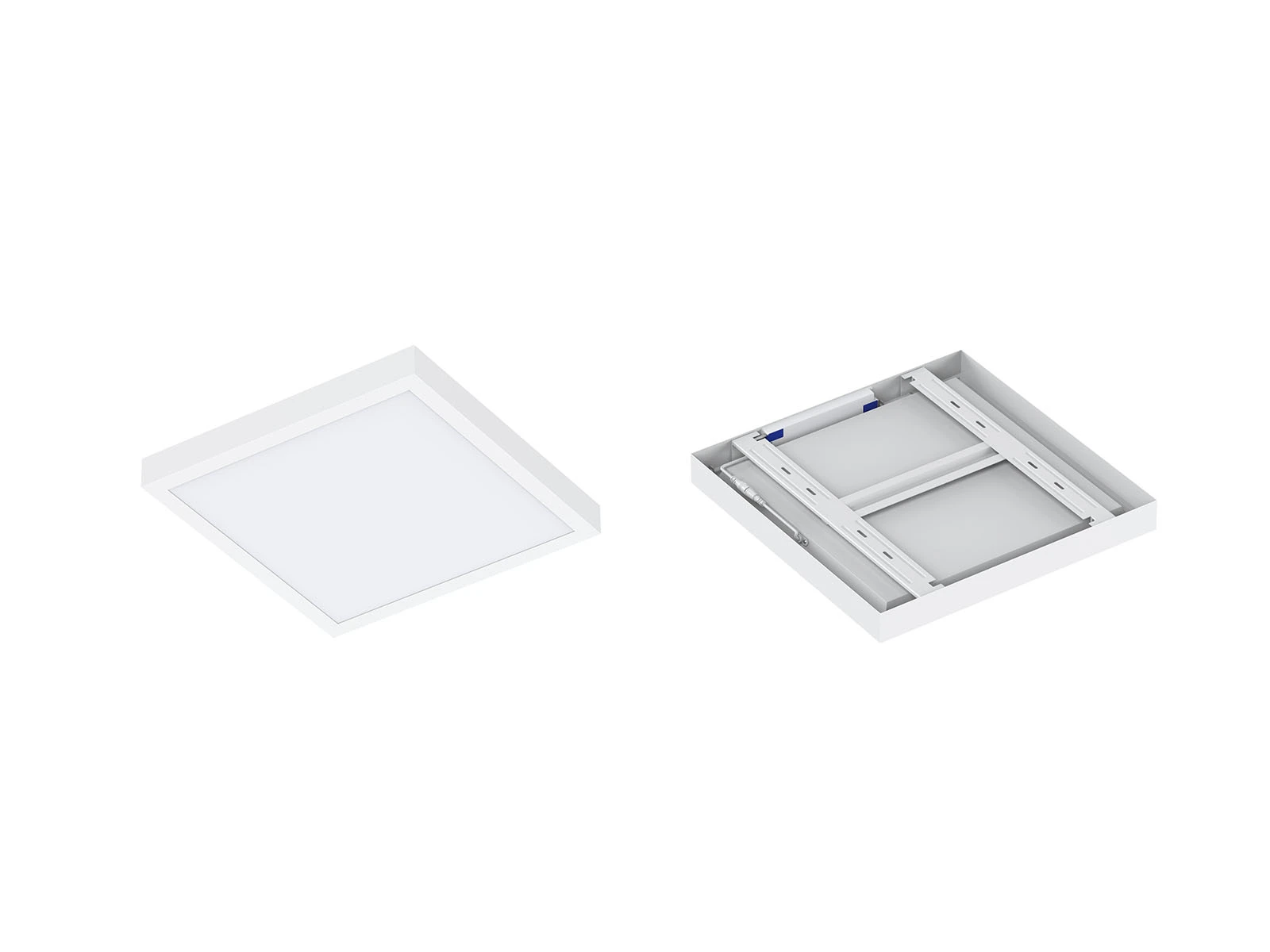

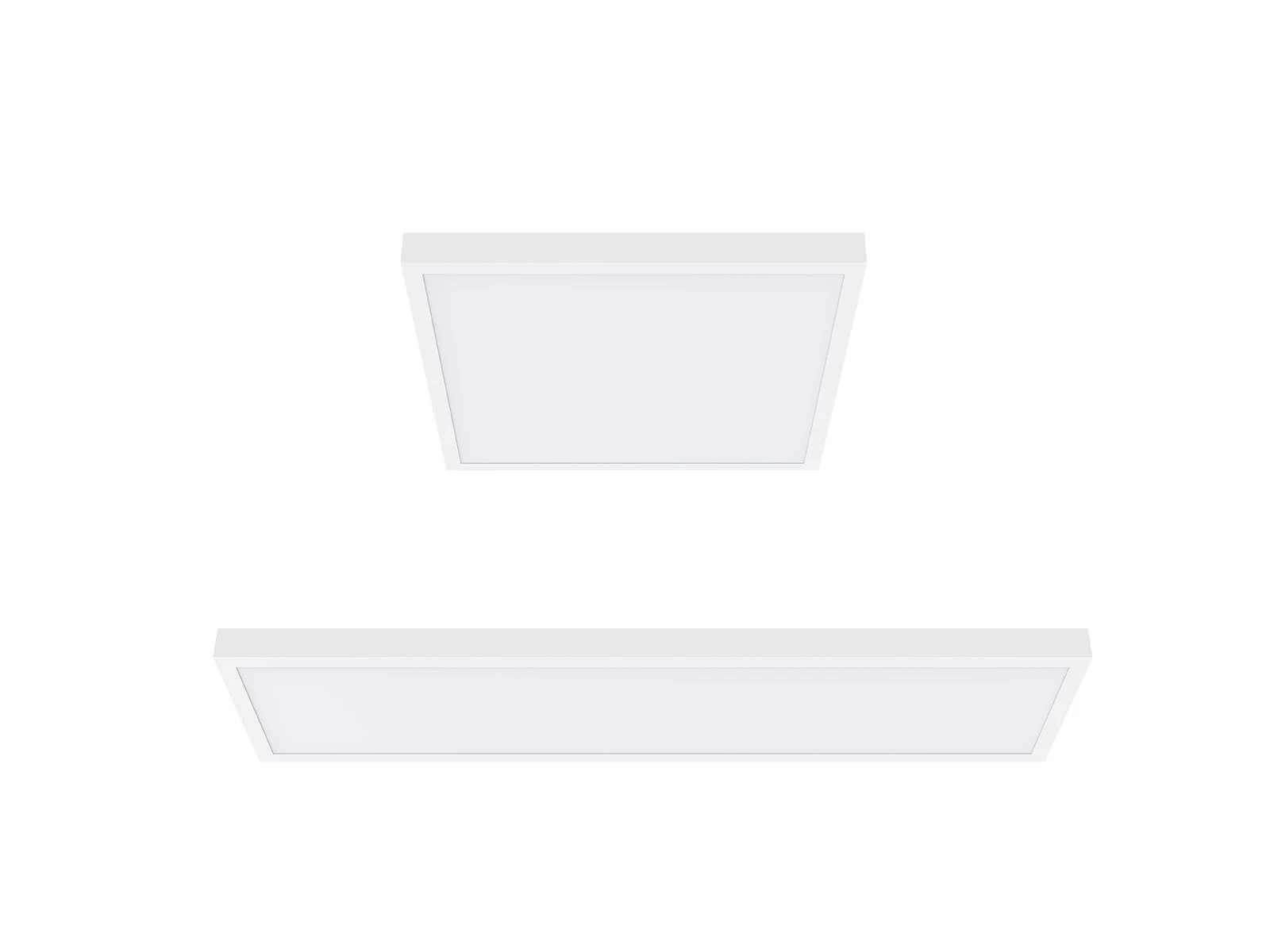

CK32 panel light is a back-lit panel light that supports ceiling mounted installation. Its ceiling-mounted clip-on design allows for convenient and quick installation for users. It adopts high-brightness SMD2835 led chip along with optical-grade lenses to ensure a uniform and full light output. The back-plate is crafted from stamped iron plate, enhancing its strength andimproving heat dissipation, effectively extending the lifespan of the light source and whole led panel light.
Application Areas: Office lighting: offices, meeting rooms, classrooms, libraries, etc. Commercial lighting: shopping malls, supermarkets, hotels. Other areas: hospitals, canteens, theaters, banks, subway stations, etc.
| Code No | CK32 6060 36W | CK32 6262 36W | CK32 30120 36W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 604*604*48 | 629*629*48 | 304*1204*48 | ||
| Watt(W) | 36W | ||||
| Rated Input Voltage(V) | AC220-240V | ||||
| Input Voltage(V) | AC198-264V | ||||
| LED Module Input | 33-38V DC 900mA CC | ||||
| Light Source | SMD | ||||
| SDCM | <5(<3 optional) | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||
| CCT Selection DIP Switch | Yes | ||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 4000-4370 | 3940-4300 | |
| Non-DIM | 3-CCT | 4200-4770 | 3920-4450 | ||
| CRI | ≥80 | ||||
| Beam Angle (°) | 120° | ||||
| LED Driver | Built-out | ||||
| Electrical Class | Class Ⅱ | ||||
| Ingress Protection (IP Rating) | IP40 | ||||
| Impact Resistance (IK Rating) | IK02 | ||||
| Product Finishing(Base) | White | ||||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | ||||
| Materials of Housing | Aluminium(frame), SPCC(back plate) | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (℃ ) | 650℃ | ||||
| Operating Temp. (℃ ) | -10℃~40℃ | ||||
| Storage Temp. (℃ ) | -20℃~50℃ | ||||
| Installation | Surface mount | ||||
| Code No | CK32 6060 36W | CK32 6262 36W | CK32 30120 36W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 604*604*48 | 629*629*48 | 304*1204*48 | ||
| Watt(W) | 36W | ||||
| Rated Input Voltage(V) | AC220-240V | ||||
| Input Voltage(V) | AC198-264V | ||||
| LED Module Input | 33-38V DC 900mA CC | ||||
| Light Source | SMD | ||||
| SDCM | <5(<3 optional) | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||
| CCT Selection DIP Switch | Yes | ||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 3700-4000 | 3650-3950 | |
| Non-DIM | 3-CCT | 3650-4150 | 3600-4100 | ||
| CRI | ≥80 | ||||
| Beam Angle (°) | 90° | ||||
| UGR | <19 | ||||
| LED Driver | Built-out | ||||
| Electrical Class | Class Ⅱ | ||||
| Ingress Protection (IP Rating) | IP40 | ||||
| Impact Resistance (IK Rating) | IK02 | ||||
| Product Finishing(Base) | White | ||||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | ||||
| Materials of Housing | Aluminium(frame), SPCC(back plate) | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (℃ ) | 650℃ | ||||
| Operating Temp. (℃ ) | -10℃~40℃ | ||||
| Storage Temp. (℃ ) | -20℃~50℃ | ||||
| Installation | Surface mount | ||||
