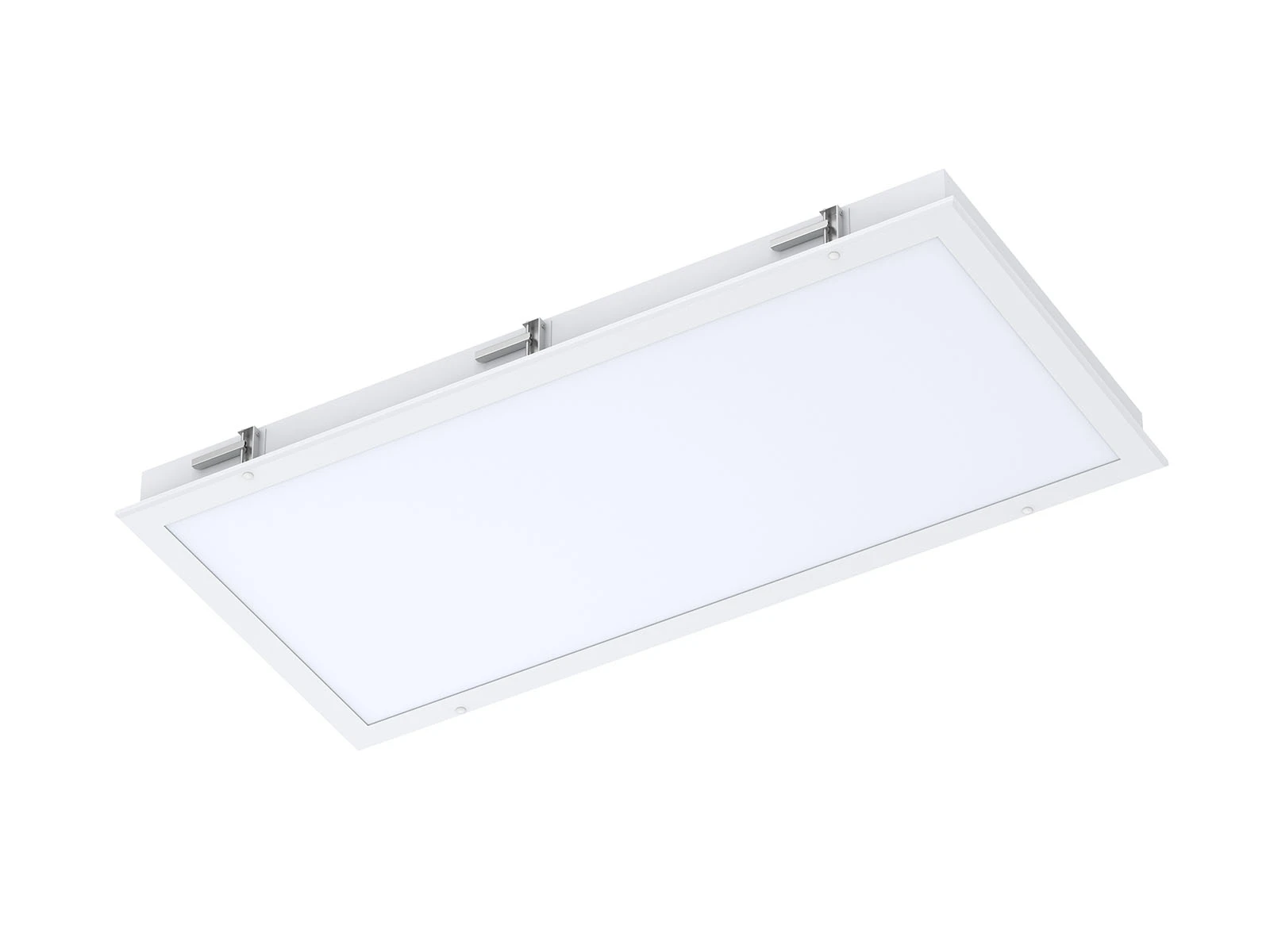

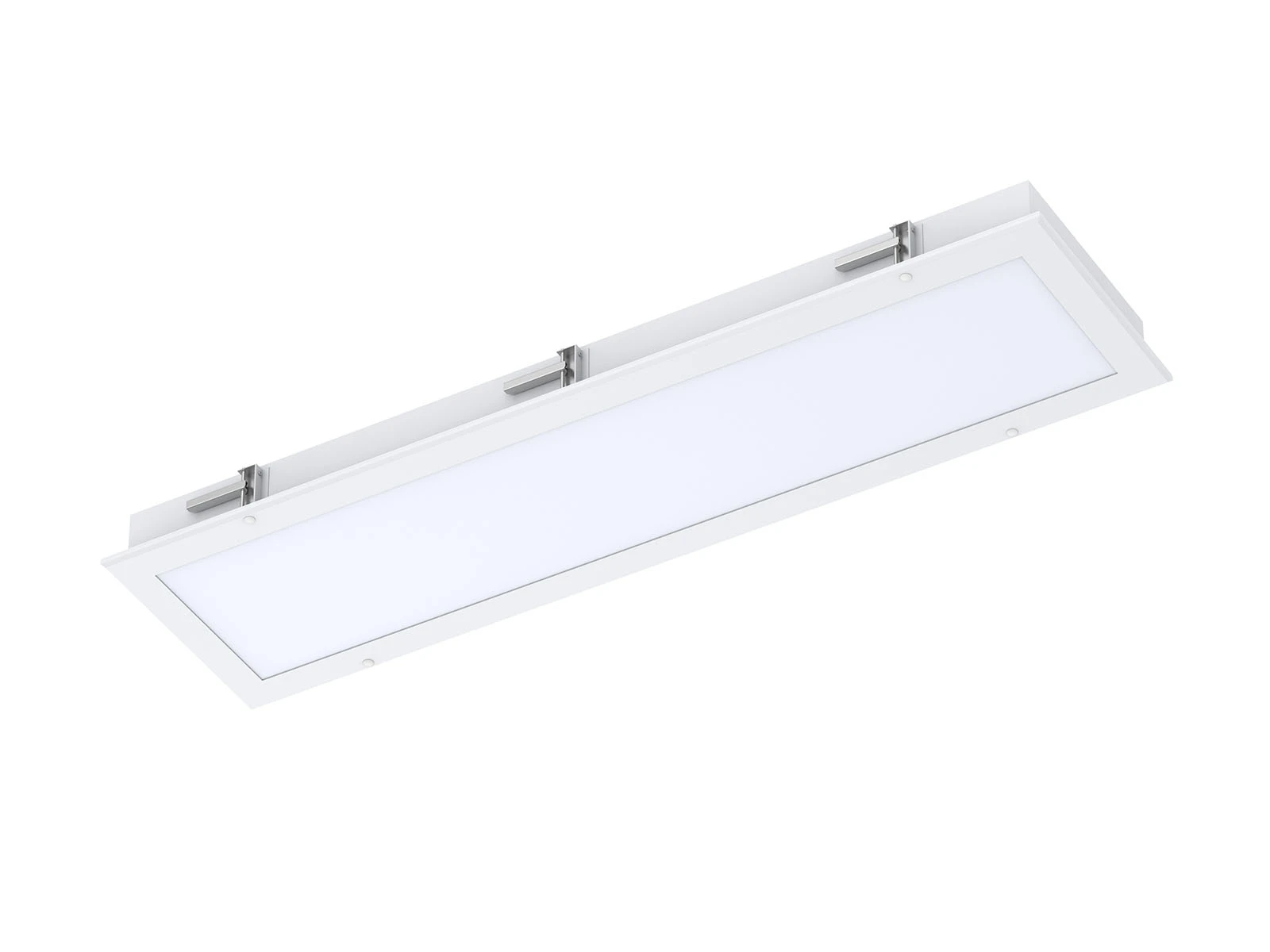

PL-CK22B Series Cleanroom LED Panel Light

CK22B is a front opening cleanroom LED Panel light, repairable and maintainable. To achieve IK10 rating and anti-glare UGR<22 lighting effect, it adopts three-layer diffuser plate design, they are optical-grade tempered glass diffuser plate outside and anti-glare PS material prismatic diffuser plate and high quality PS material diffuser plate inside. The SPCC back plate provides a large area for heat dissipation. The aluminum welded and integrated frame is equipped with stainless steel buckles, by adjusting the mounting rod, the height of the installation buckle can be adjusted to match with different height of ceiling. There is no gaps or protrusions on the front of lamp, making it easy to clean and maintain. The back of the light is sealed with a strip where it connects to the ceiling, preventing bacteria from hiding and effectively controlling dust falling. The light  is mainly used in hospitals, operating rooms, clean rooms, food and drug processing plants, central kitchens and other special locations.

• Recessed installation with adjustable spring to fit 10mm-50mm thickness ceiling.
• High light efficacy: 120lm/W.
• Anti glare UGR<22 .
• Adjustable power function available.
• Built-in flicker free driver.
• Big cable gland, suitable for 1.5-2.5mm cable input.
• Dimming way: On/off with osram brand driver,DALI dim with Boke brand driver

Application Areas: Industrial cleanroom, laboratory, hospital, food factory, medical factory, commercial kitchen etc.
