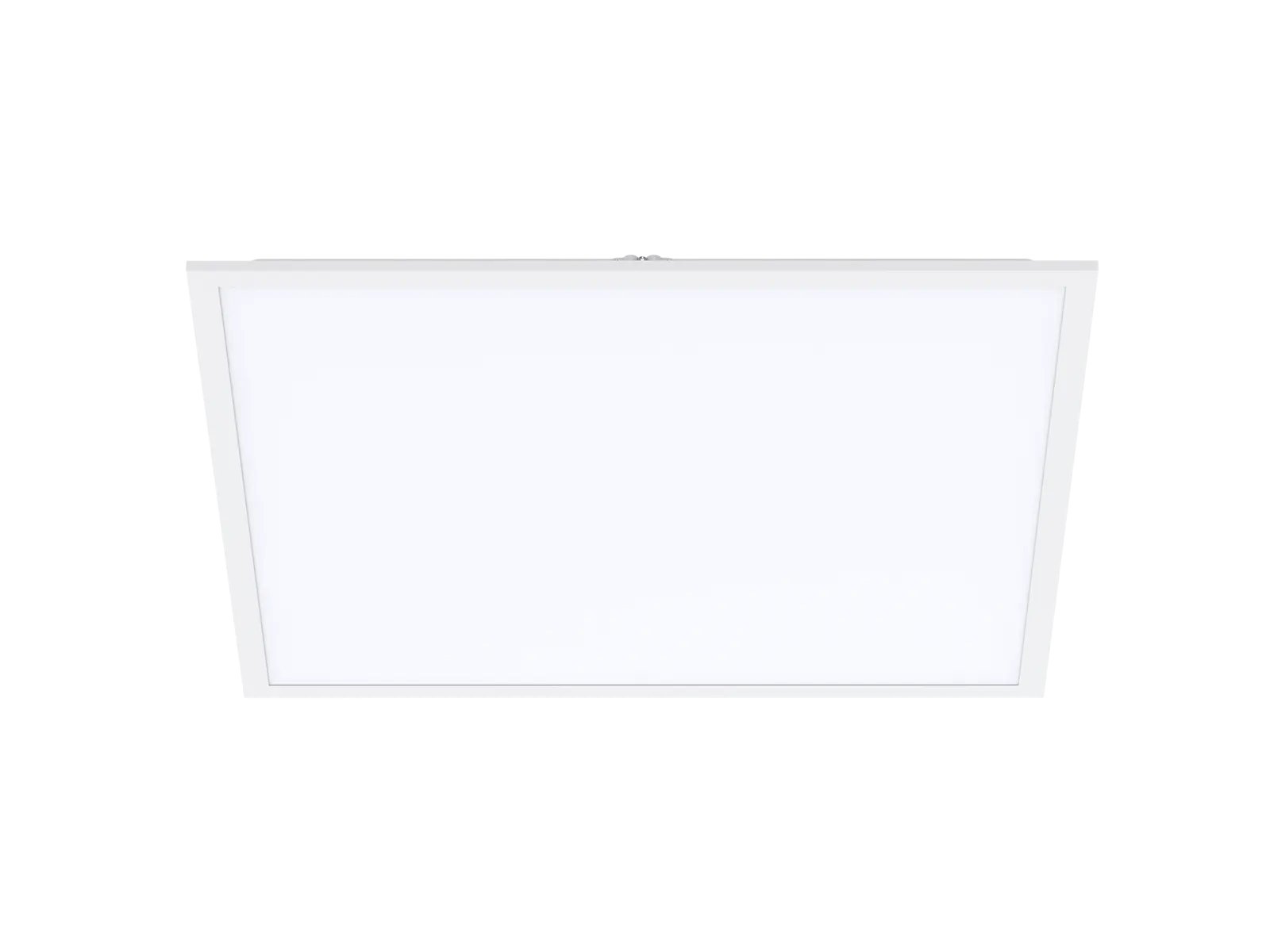

This panel is a direct lighting product with high lumen efficiency. It makes full use of all light and is more cost effective compared with side lighting LED panel light. It is adopted high lumen 2835 SMD light source, the optical lens provides a uniform light output. With integrated iron plate, providing great thermal management.
Applications: It is widely used in office, shopping mall, home, hotel etc.
| Code No | PL6060 30W CK SI04 | ||
|---|---|---|---|
| Dimension(mm) | 595*595*70 | ||
| Watt(W) | 30W | ||
| Rated Input Voltage(V) | AC220-240V | ||
| Input Voltage(V) | AC200-264V | ||
| Light Source | SMD | ||
| SDCM | <5(<3 optional) | ||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||
| CCT Selection DIP Switch | Yes | ||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | – |
| DIM | 3800-4200lm | ||
| CRI | CRI80/CRI90 | ||
| Beam Angle (°) | 120° | ||
| UGR | <22 | ||
| LED Driver | Built-out / Flicker Free | ||
| Dimming Option | Control via the Koolmesh App | ||
| Sensor | Microwave sensor | ||
| Electrical Class | Class Ⅱ | ||
| Ingress Protection (IP Rating) | IP20 | ||
| Impact Resistance (IK Rating) | IK02 | ||
| Product Finishing(Base) | RAL9016 | ||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | ||
| Materials of Housing | Aluminium(frame), SPCC(back plate) | ||
| Lifetime (hr) | 50,000h | ||
| Glow wire test (℃ ) | 650℃ | ||
| Operating Temp. (℃ ) | -10℃~40℃ | ||
| Storage Temp. (℃ ) | -20℃~50℃ | ||
| Installation | Surface mount / Pendant / Recessed | ||
