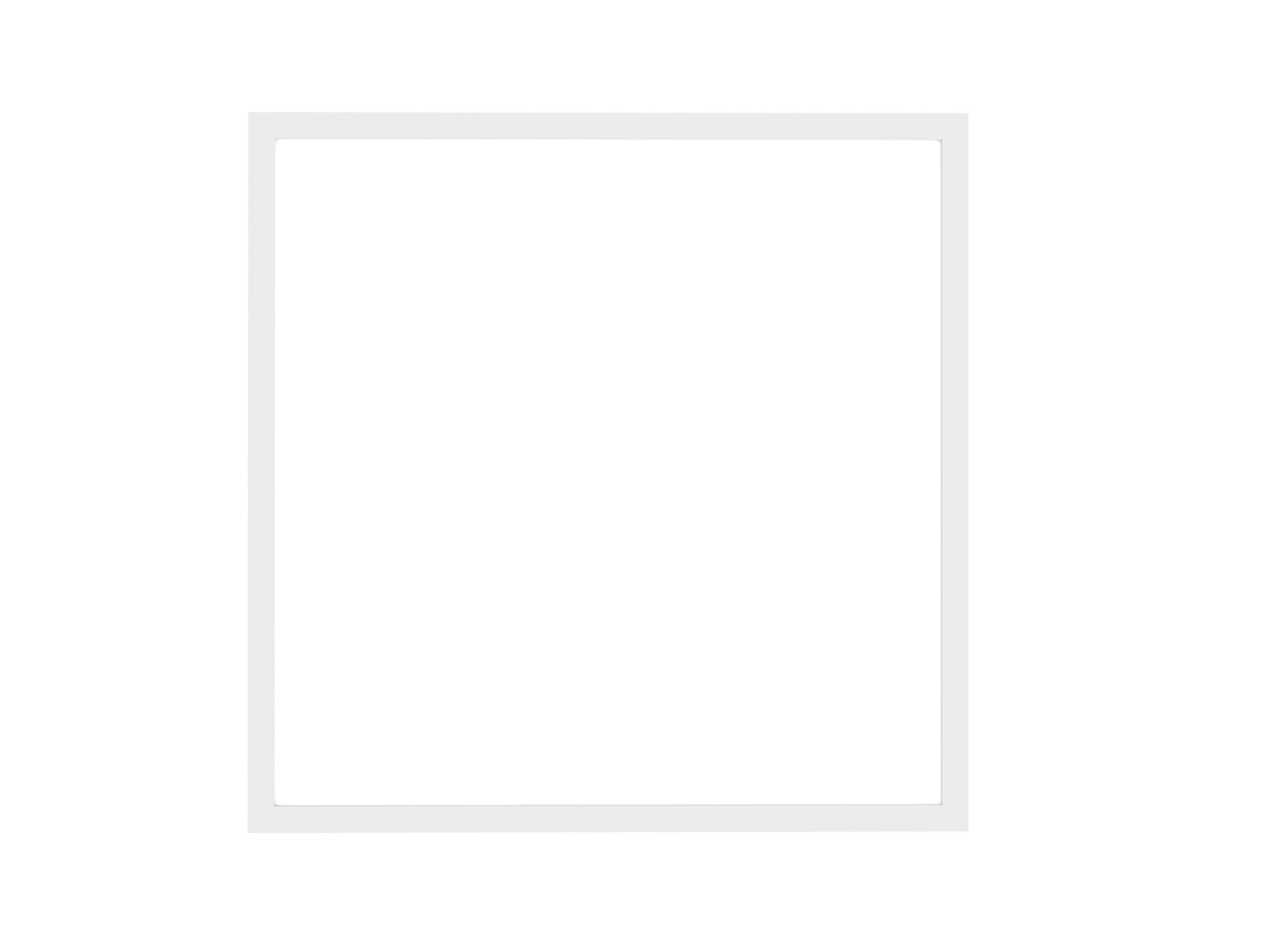

PL-CK LED panel is a direct lighting product with high lumen efficiency. It makes full use of all light and is more cost effective compared with side lighting LED panel light. Adopt optical lens to offer a uniform light effect.
With integrated iron plate,providing great thermal management.

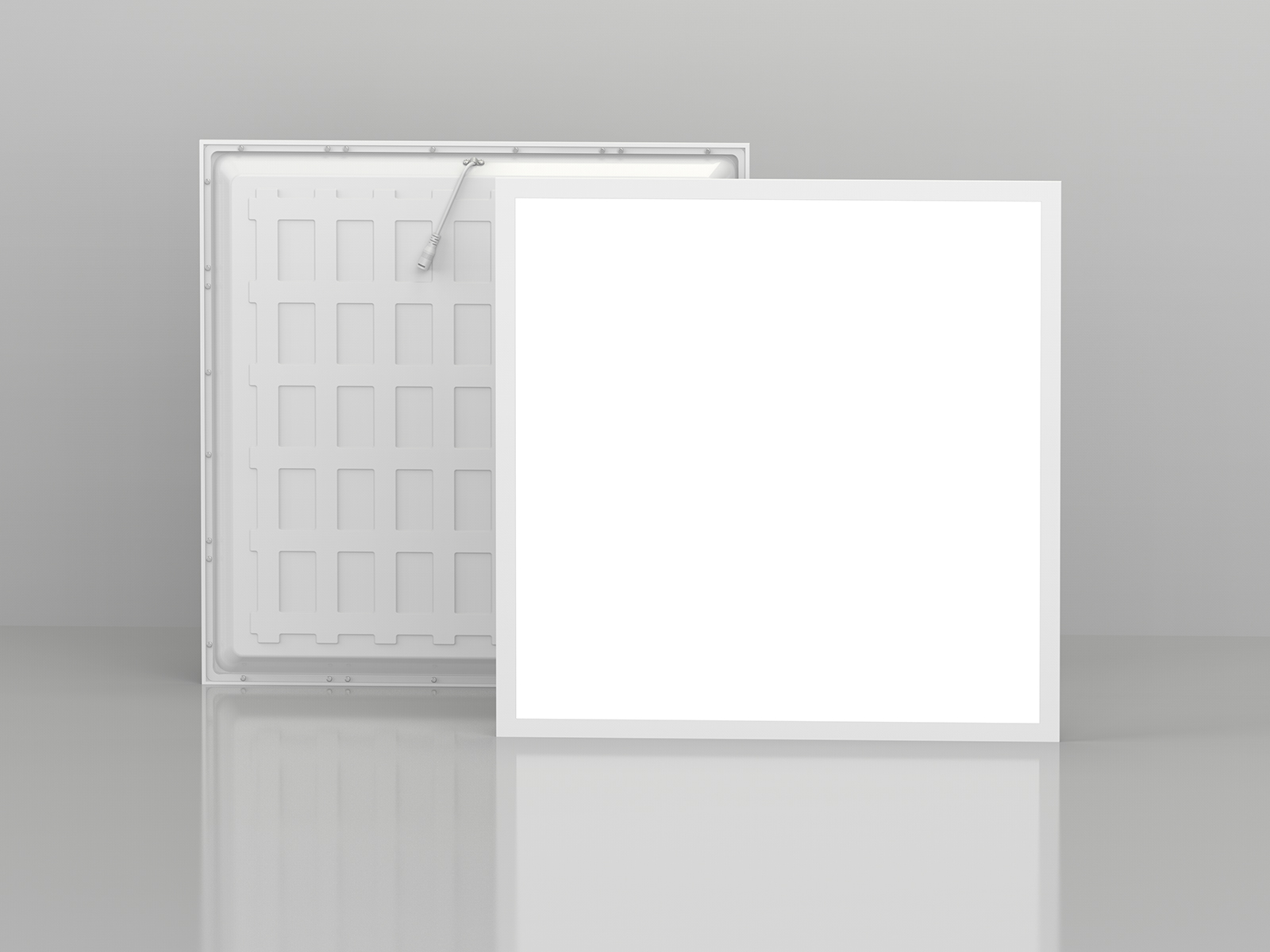

Uniform light effect with optic lens.
High lumen efficiency, 180lm/W.
Integrated iron plate design provides excellent thermal management.
Concise design offers high cost performance.
Built-out driver.

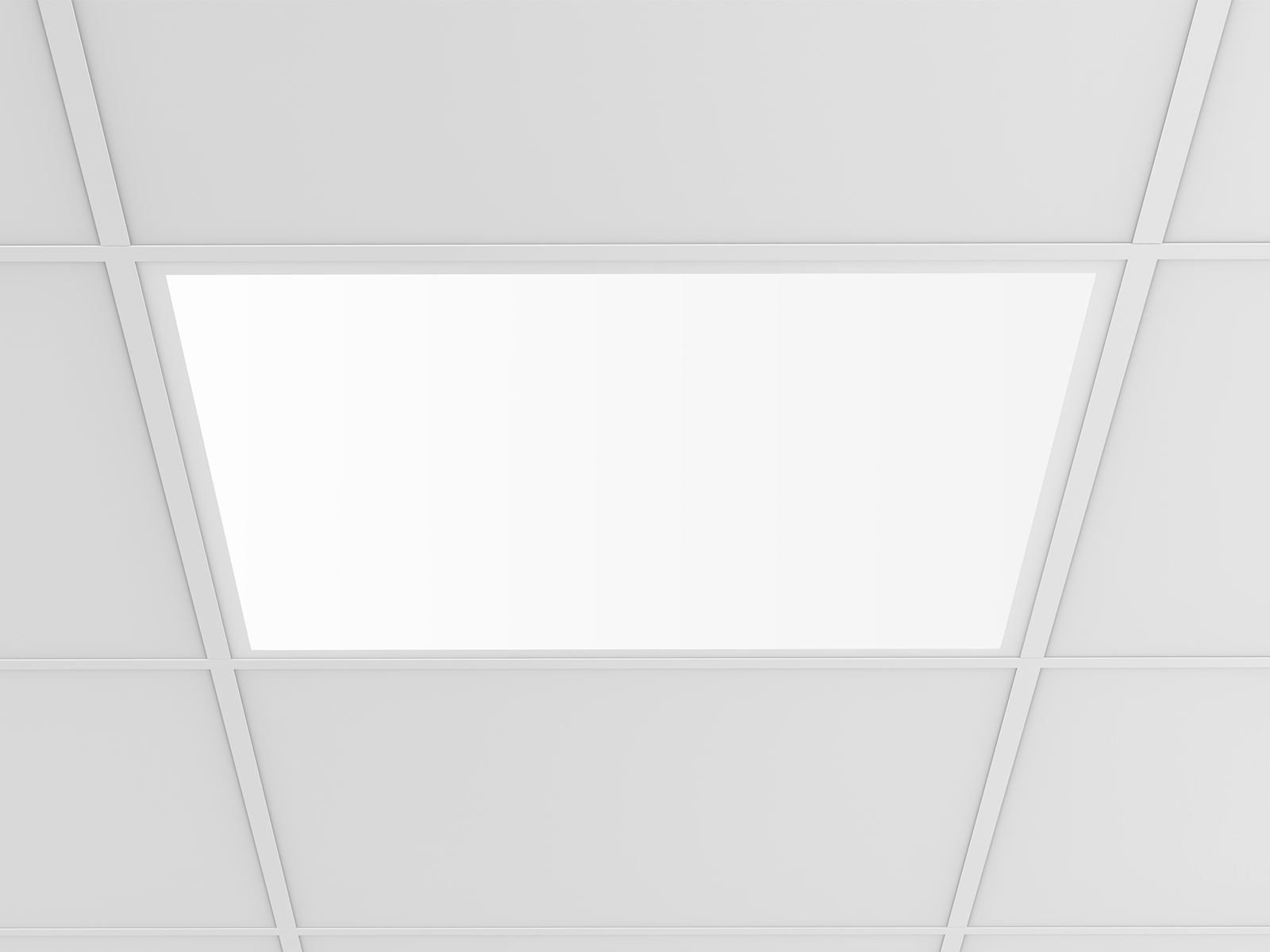

Installation: Surface mount, Pendant, Recessed.
Application Areas: Office & school lighting: office room, meeting room, class room etc. Commercial lighting: shopping mall, super market, retailer shops etc. Other situations: hospital, laboratory, dust-free workshop etc.

| Code No. | PL6060-20W-CK | PL6262-20W-CK | PL30120-20W-CK | PL60120-40W-CK |
|---|---|---|---|---|
| Dimension(mm) | 595*595*32 | 620*620*32 | 295*1195*32 | 595*1195*32 |
| Watt(W) | 20W | 40W | ||
| Rated Input Voltage(V) | AC220-240V | |||
| Input Voltage(V) | AC200-264V | |||
| LED Module Input | 33-38V DC 450mA CC | 33-38V DC 950mA CC | ||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||
| Non-DIM Luminous 1-CCT Flux (lm) ±5% | 3100-3900 | 6200-7800 | ||
| DIM Luminous 3-CCT Flux (lm) ±5% | 3000-3800 | 6000-7600 | ||
| CRI | 80 | |||
| Beam Angle (°) | 120° | |||
| LED Driver | Built-out | |||
| Dimming Option | Triac / 0-10V / DALI | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP40 | |||
| Product Finishing(Base) | White | |||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||
| Materials of Housing | Aluminum(Frame) | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 650℃ | |||
| Operating Temp. (℃ ) | -10℃ ~40℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | Surface mount/ Pendant/ Recessed | |||
