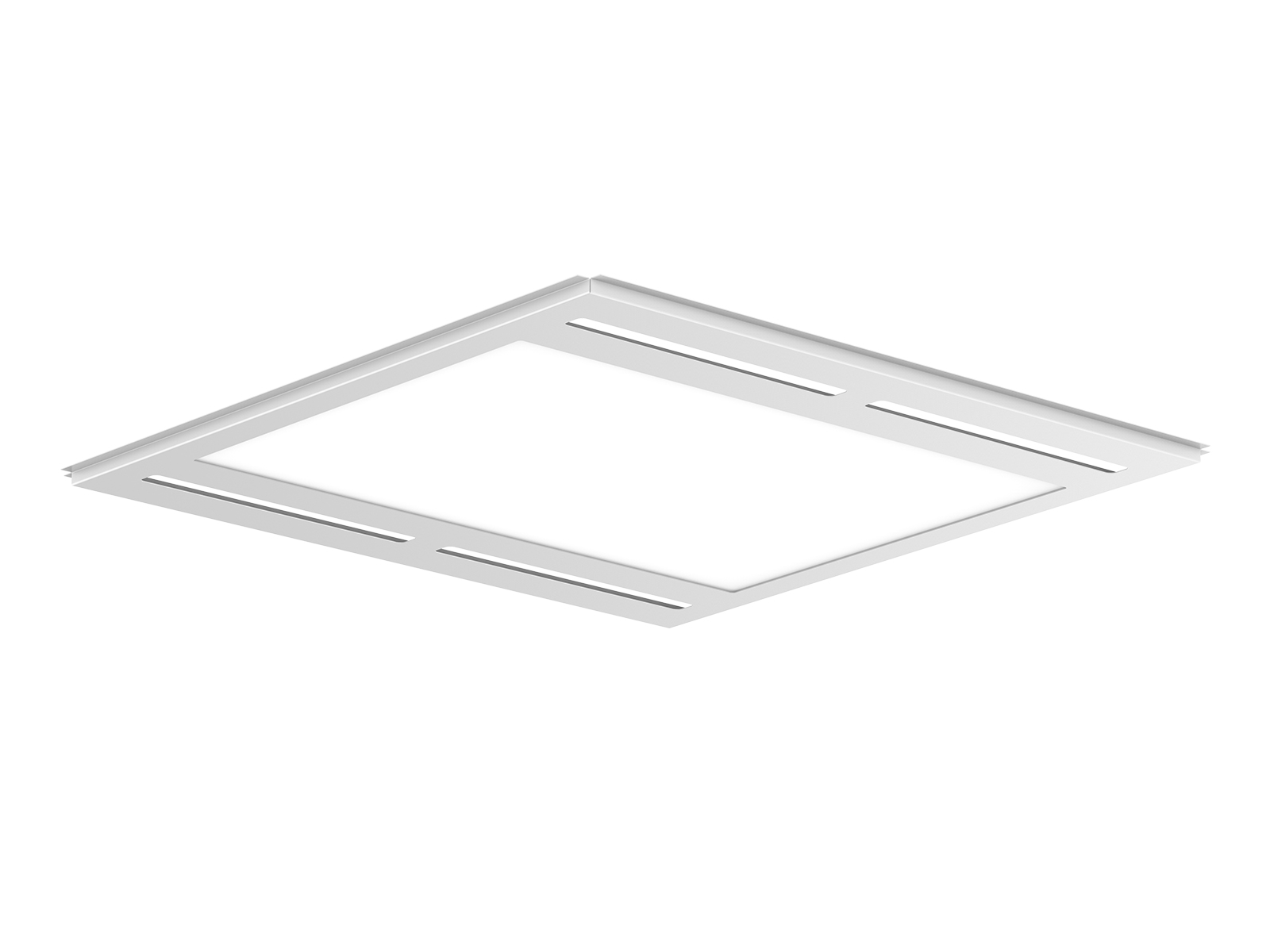

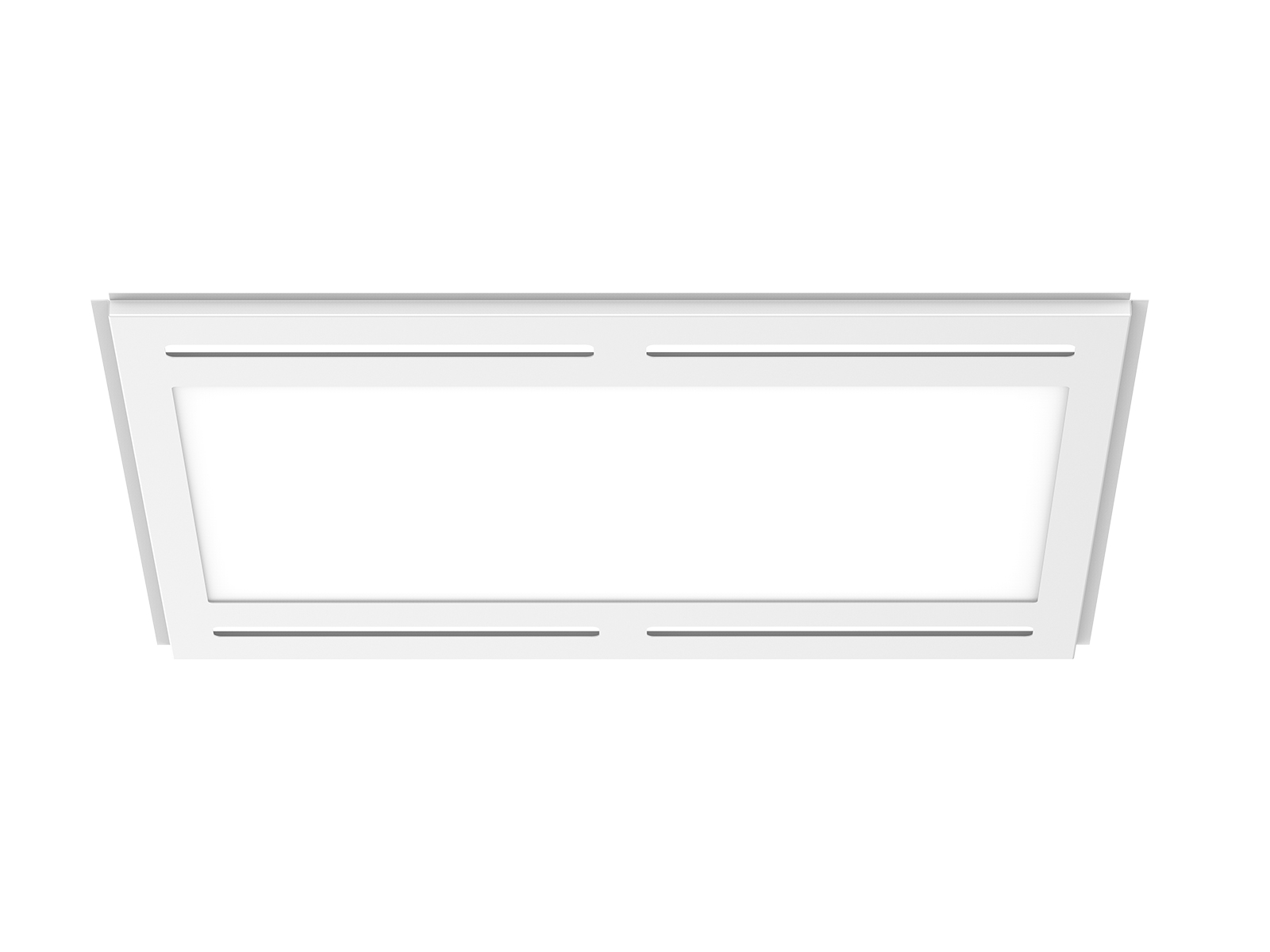

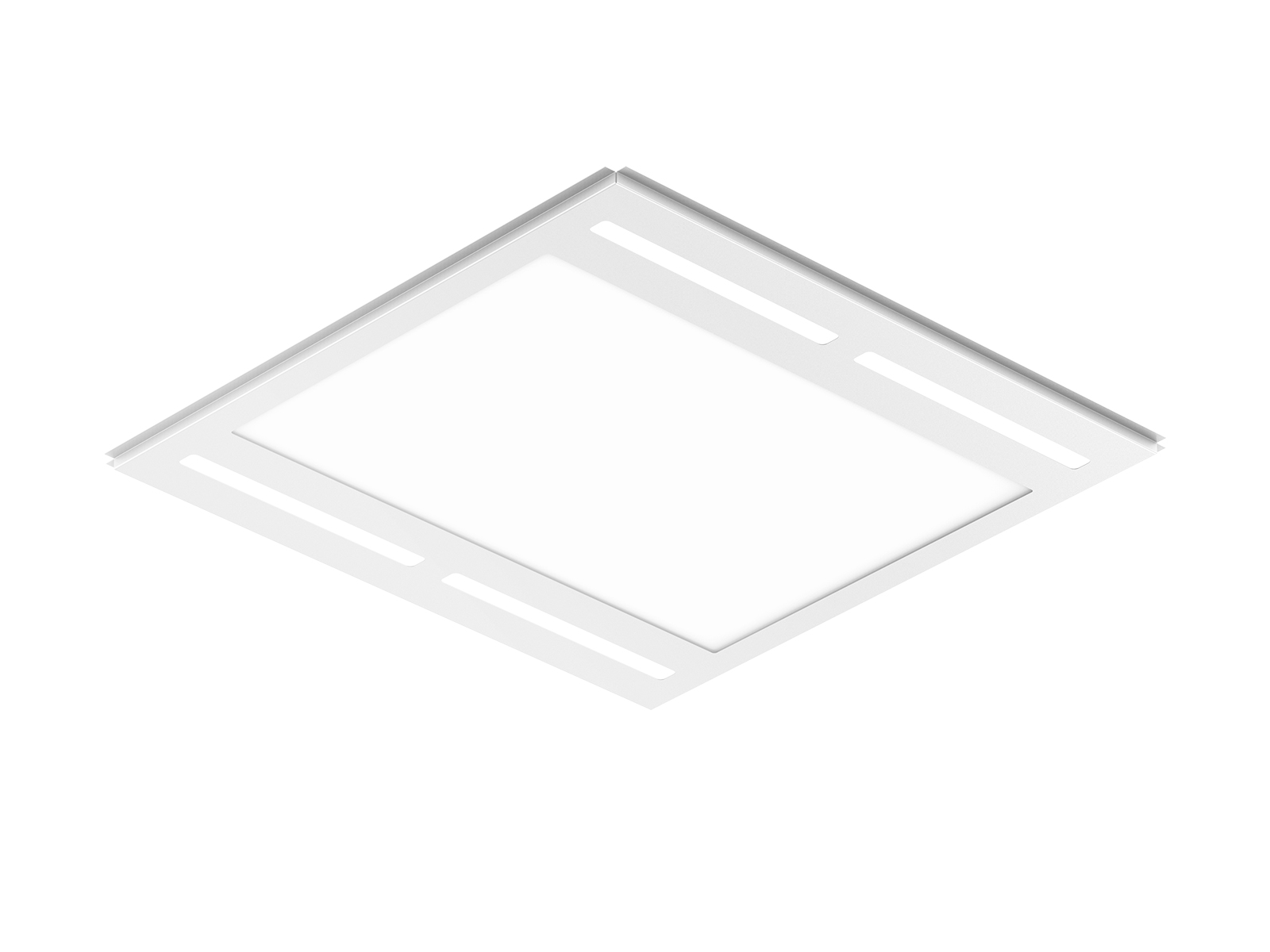

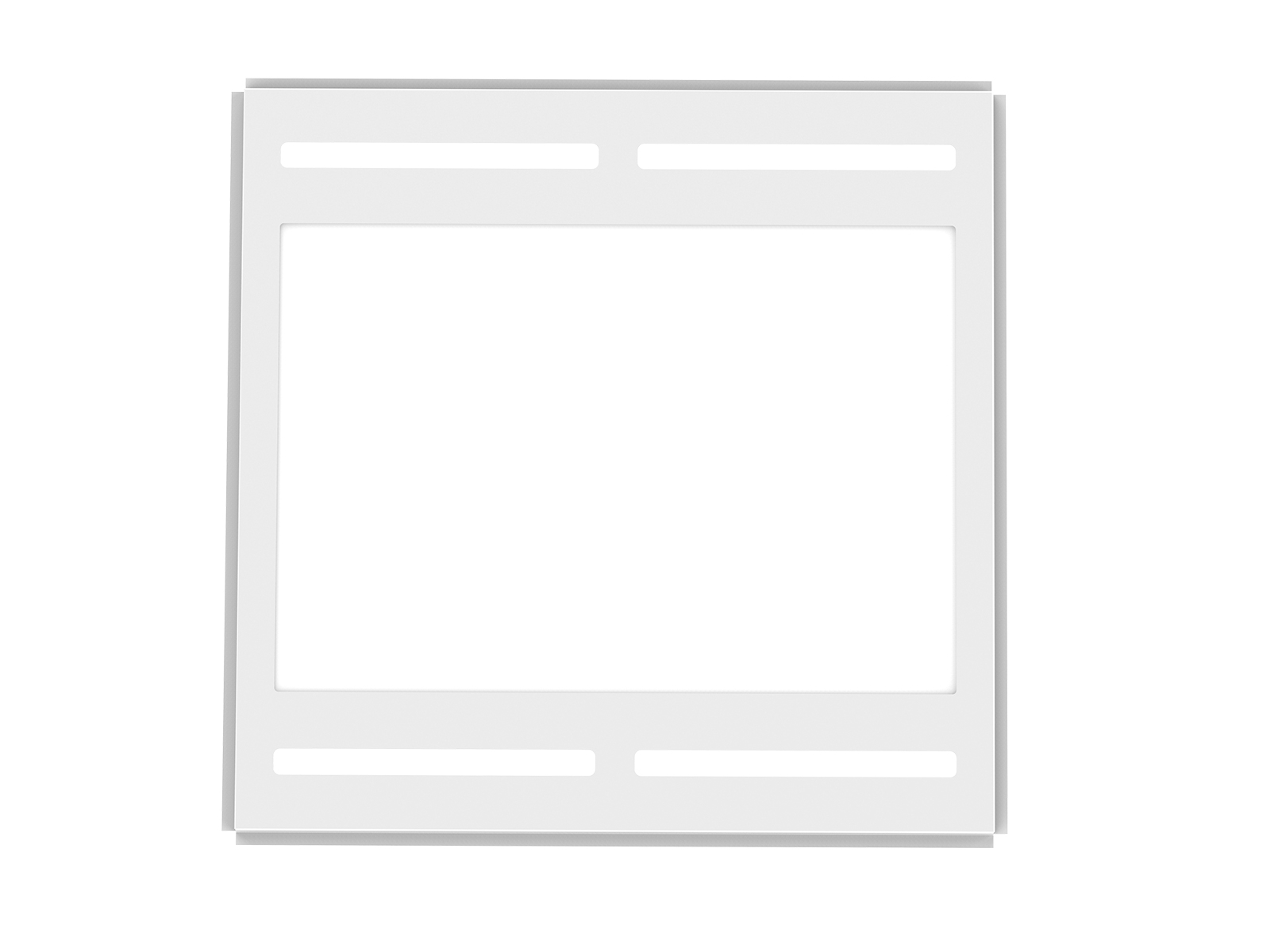

PL-BC panel light consist of metal frame and LED panel, LED panel adopts prismatic diffuser which produce uniform light and high lumen output; The metal frame with air slot design to allow the air to circulate; Separated panel module ensures the easy installation and maintenance.
Integrated Panel LED Light Features:
| Code | PL6060-40W-BC W | ||
| Watt(W) | 40W | ||
| Dimension(mm) | 595*595*11 | ||
| Rated Input Voltage(V) | AC230V | ||
| Input Voltage(V) | AC200-240V | ||
| LED | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K | ||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 3825~4165 |
| DIM | 3765~4095 | ||
| CRI | ≥80 | ||
| Beam Angle (°) | 100° | ||
| UGR | <19 | ||
| LED Driver | Built-out | ||
| DIM | Yes | ||
| Protection | Class Class Ⅱ | ||
| IP Rating | IP40 | ||
| Finishing color | White RAL 9016 | ||
| Material | PS / SPCC | ||
| Lifetime (hr) | 40,000h | ||
| Glow wire test (°C) | 650℃ | ||
| Operating Temp.(°C) | -20℃ ~45℃ | ||
| Storage Temp.(°C) | -20℃ ~65℃ | ||
| Installation | Recessed | ||
| Brand Driver option | – | ||
