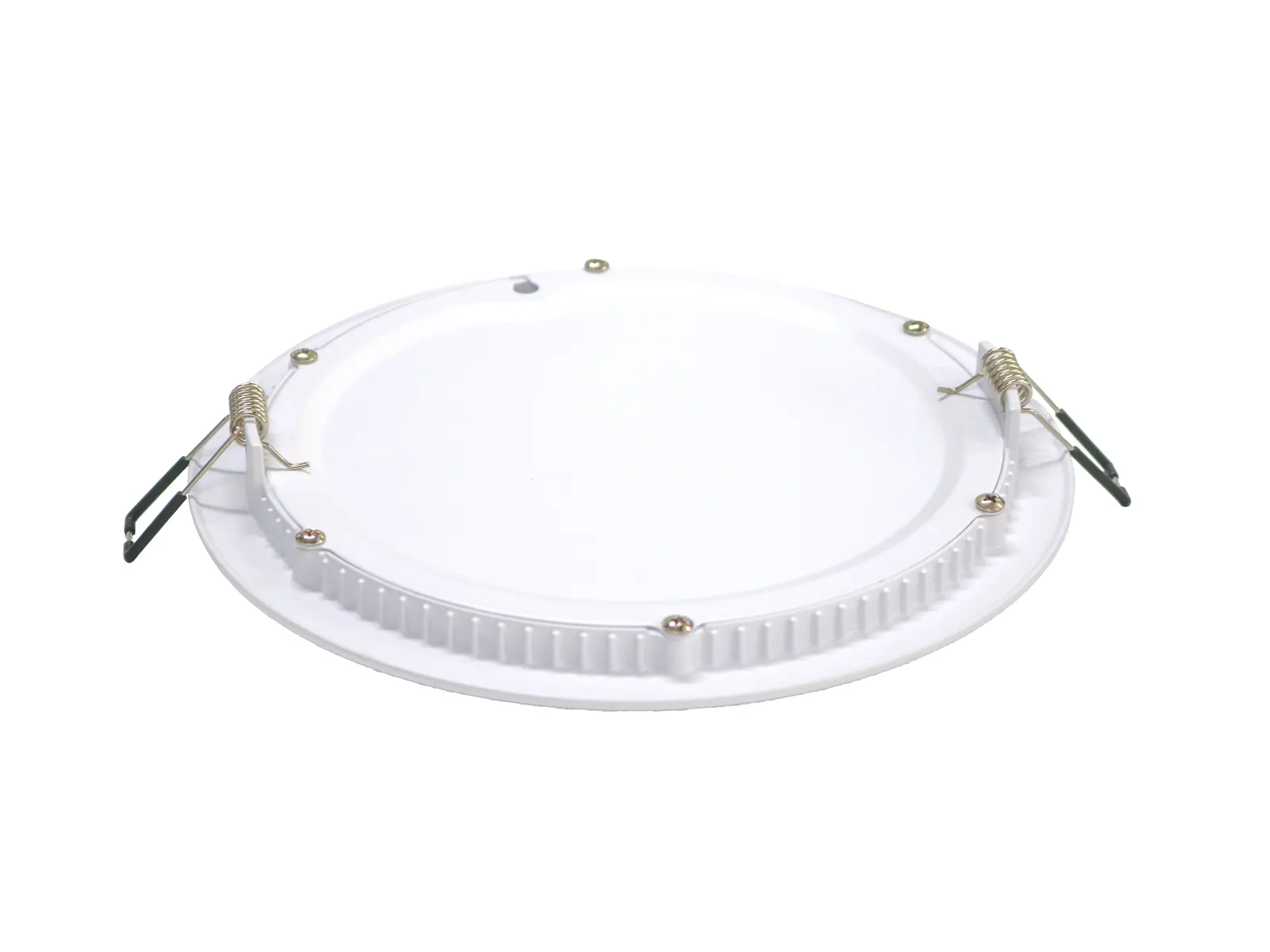

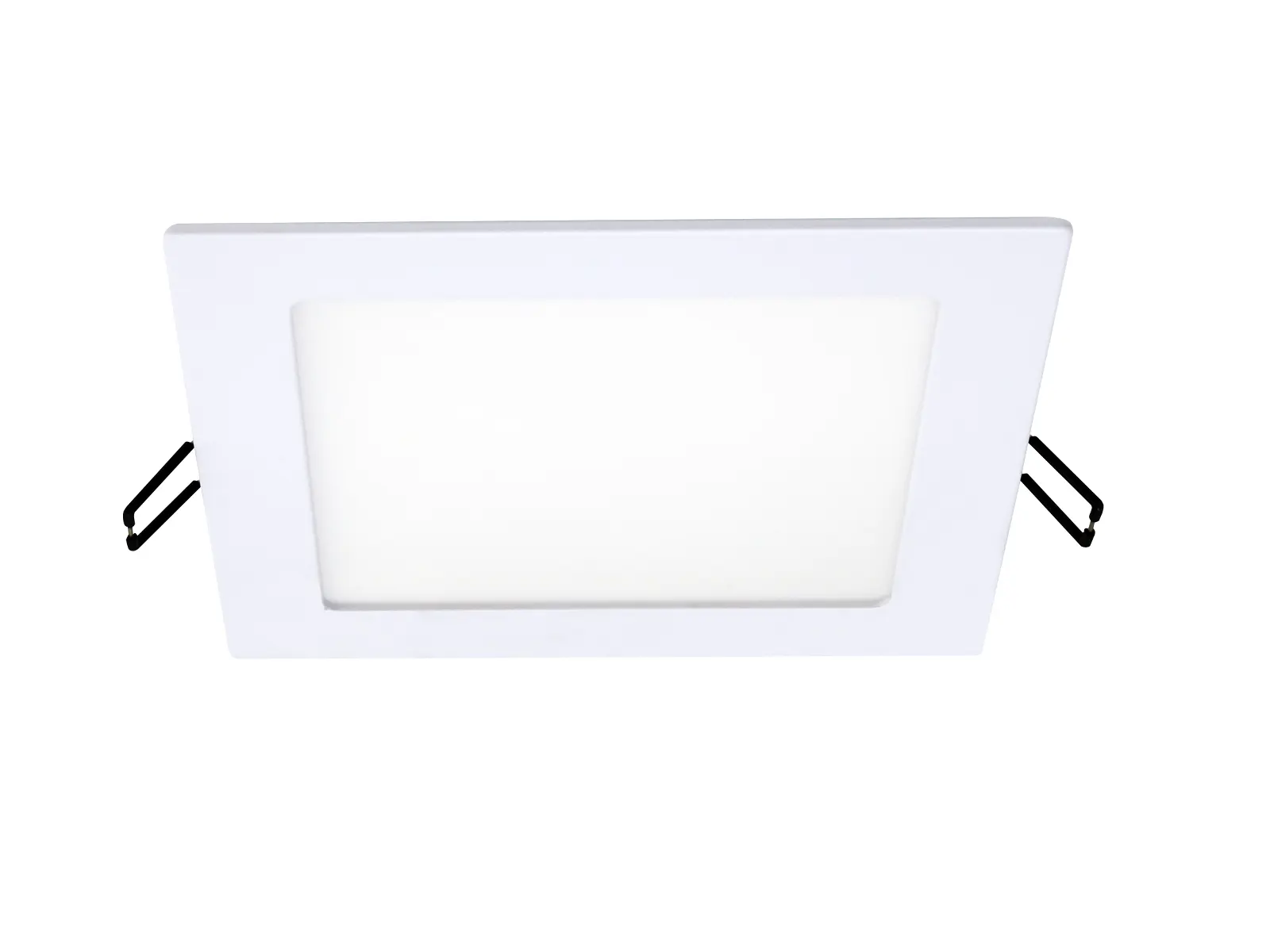

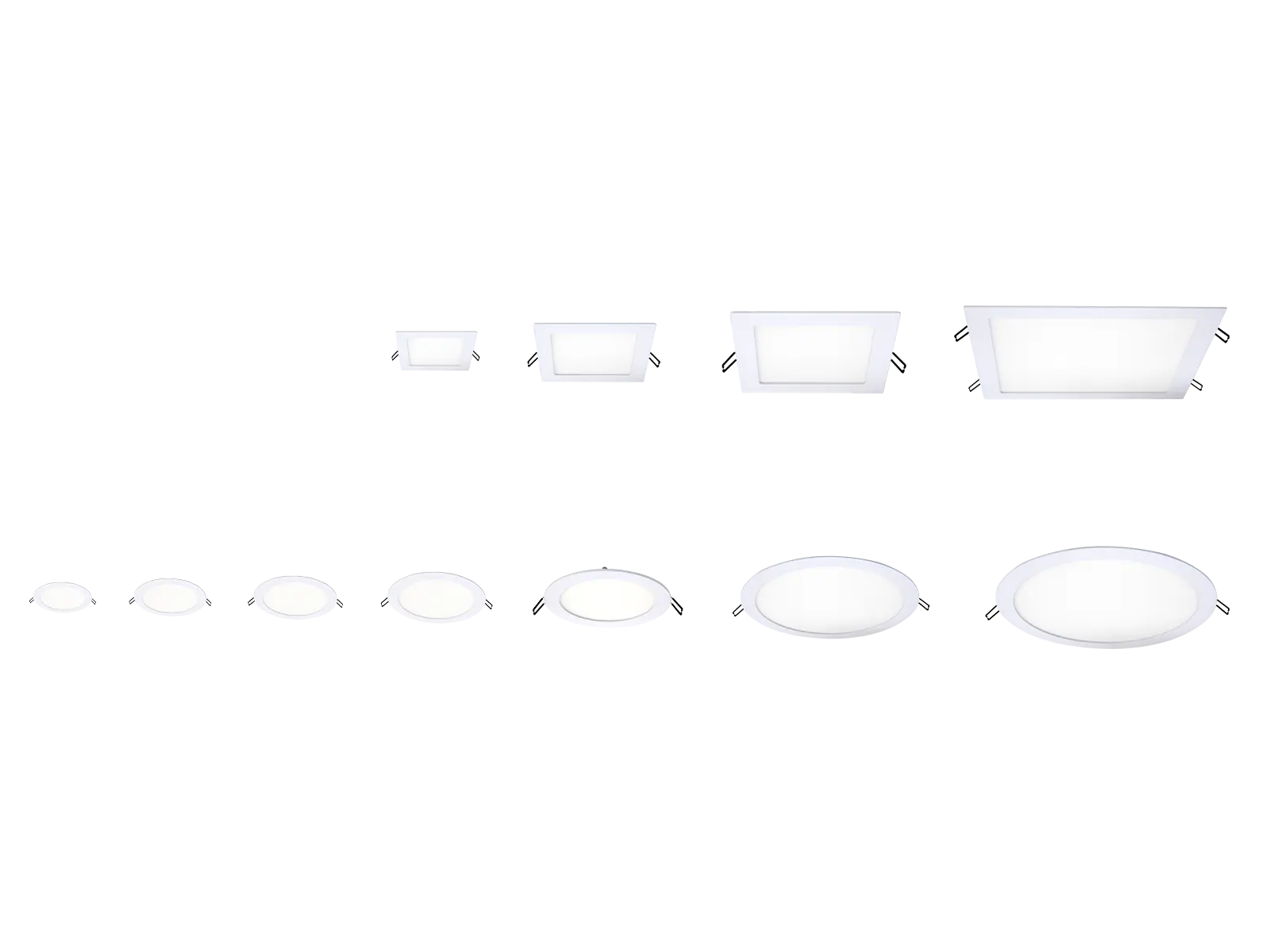

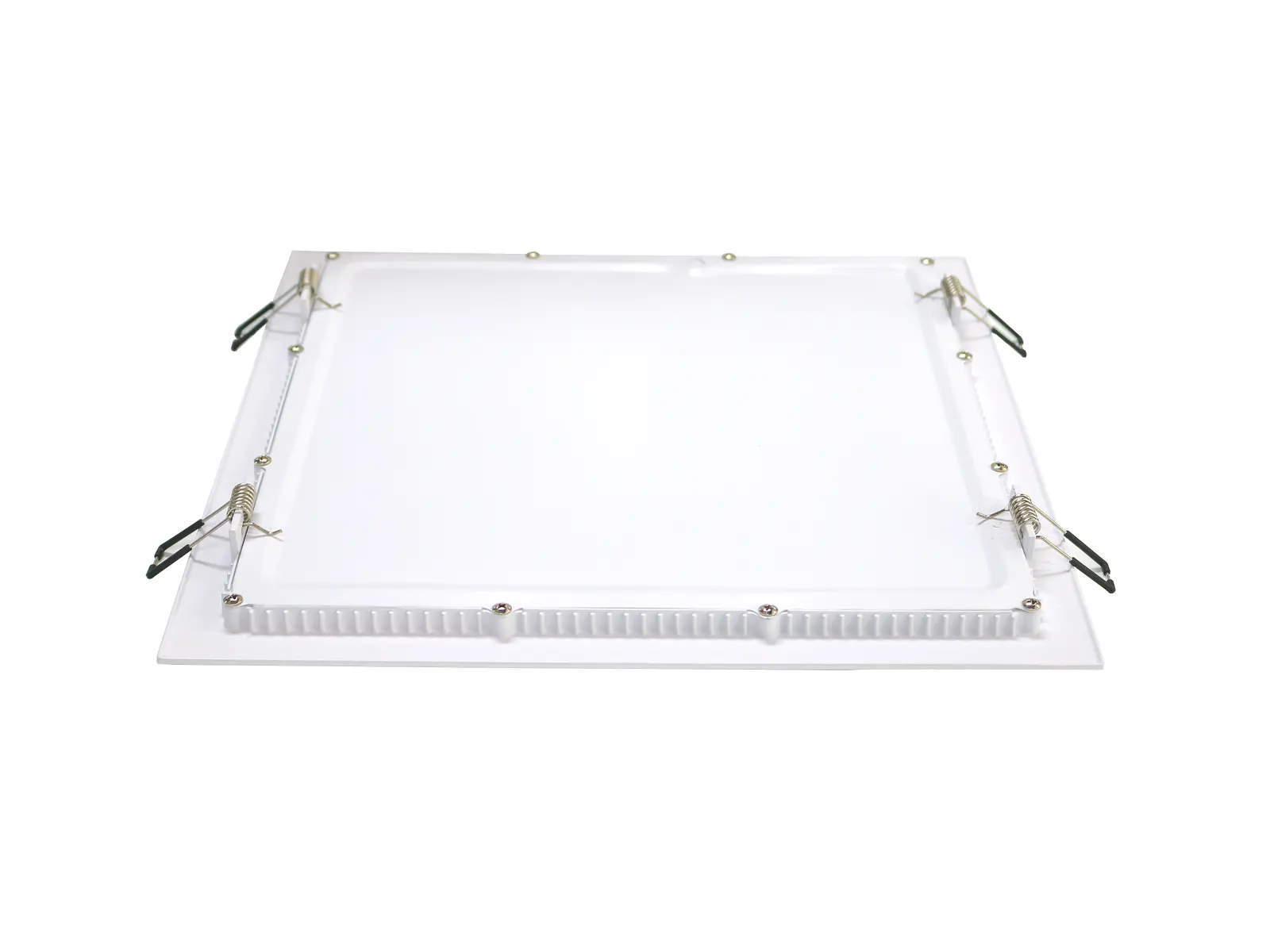

This small panel light has square and round shapes, with various sizes options. The back cover is made of SPCC powder-coated steel with good thermal conductivity. It adopts milky diffuser which provides uniform and soft illumination, the light fixture is long-life span, eco-friendly, and energy-efficient.
Applications: Office & school lighting: office room, meeting room, class room etc. Commercial lighting: shopping mall, super market, retailer shops etc.
| Code No | PL35 90 3W | PL35 120 7W | PL35 150 9W | PL35 170 12W | PL35 195 15W | PL35 225 18W | PL35 240 20W | PL35 300 24W | PL35 1212 7W | PL35 1717 12W | PL35 2222 18W | PL35 3030 24W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø90*21 | Ø120*21 | Ø150*21 | Ø170*21 | Ø195*21 | Ø225*21 | Ø240*21 | Ø300*21 | 120*120*21 | 170*170*21 | 225*225*21 | 300*300*21 | ||
| Cutout (mm) | Ø72-76 | Ø106-110 | Ø131-136 | Ø154-159 | Ø173-178 | Ø203-208 | Ø222-227 | Ø278-283 | 103(+4)*103(+4) | 152(+4)*152(+4) | 201(+5)*201(+5) | 273(+5)*273(+5) | ||
| Watt(W) | 3W | 7W | 9W | 12W | 15W | 18W | 20W | 24W | 7W | 12W | 18W | 24W | ||
| Rated Input Voltage(V) | AC220-240V | |||||||||||||
| Input Voltage(V) | AC198-264V | |||||||||||||
| LED Module Input | 30-36V | 30-36V | 33-38V | 33-38V | 33-38V | 33-38V | 33-38V | 33-38V | 30-36V | 33-38V | 33-38V | 33-38V | ||
| Light Source | SMD2835 | |||||||||||||
| SDCM | < 6 | |||||||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K 3-CCT: 3000K+4000K+5700K | |||||||||||||
| CCT Selection DIP Switch | YES | |||||||||||||
| Non-DIM | 205-255lm | 490-610lm | 740-900lm | 920-1000lm | 1020-1480lm | 1550-1760lm | 1650-2100lm | 2350-2600lm | 520-530lm | 920-1060lm | 1550-1770lm | 2250-2480lm | ||
| 1-CCT | ||||||||||||||
| DIM | __ | |||||||||||||
| Luminous Flux (lm) ±5% | Non-DIM | 205-265lm | 460-615lm | 675-900lm | 870-1050lm | 1050-1530lm | 1400-1800lm | 1610-1980lm | 2050-2500lm | 510-580lm | 890-1130lm | 1540-1850lm | 2200-2700lm | |
| CRI80 | DIM | 3-CCT | __ | |||||||||||
| CRI | ≥80 | |||||||||||||
| Beam Angle (°) | 120° | |||||||||||||
| LED Driver | Driver built-out | |||||||||||||
| Electrical Class | Class Ⅱ | |||||||||||||
| Ingress Protection (IP Rating) | IP20 | |||||||||||||
| Impact Resistance (IK Rating) | IK04 | |||||||||||||
| Product Finishing(Base) | White | |||||||||||||
| Materials of Optics | PS(Diffuser)+PMMA(LGP) | |||||||||||||
| Materials of Housing | Aluminium+SPCC | |||||||||||||
| Lifetime (hr) | 50000h | |||||||||||||
| Glow wire test (℃ ) | 650℃ | |||||||||||||
| Operating Temp. (℃ ) | -10-40℃ | |||||||||||||
| Storage Temp. . (℃ ) | -20-50℃ | |||||||||||||
| Installation | Recessed | |||||||||||||
