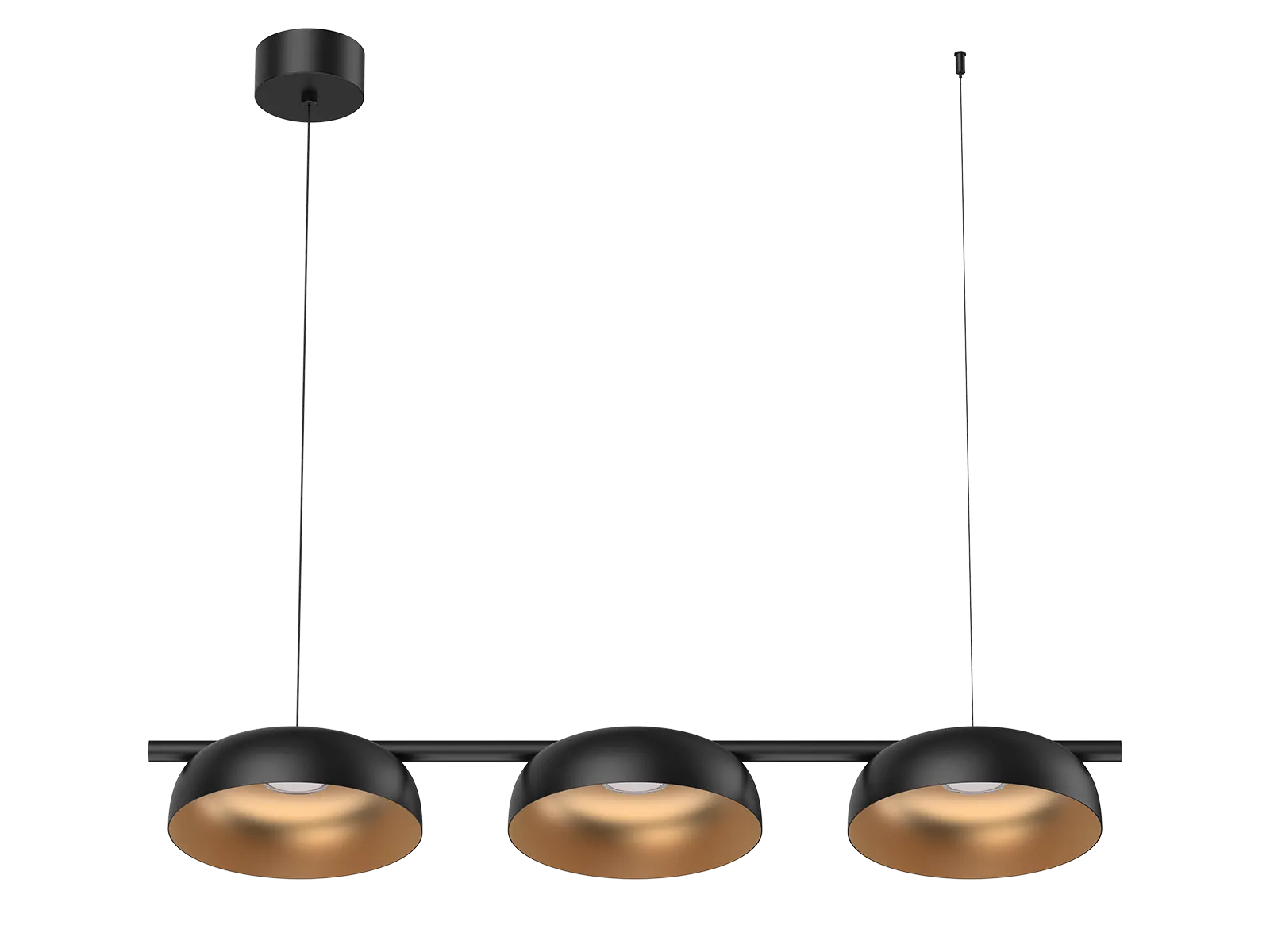

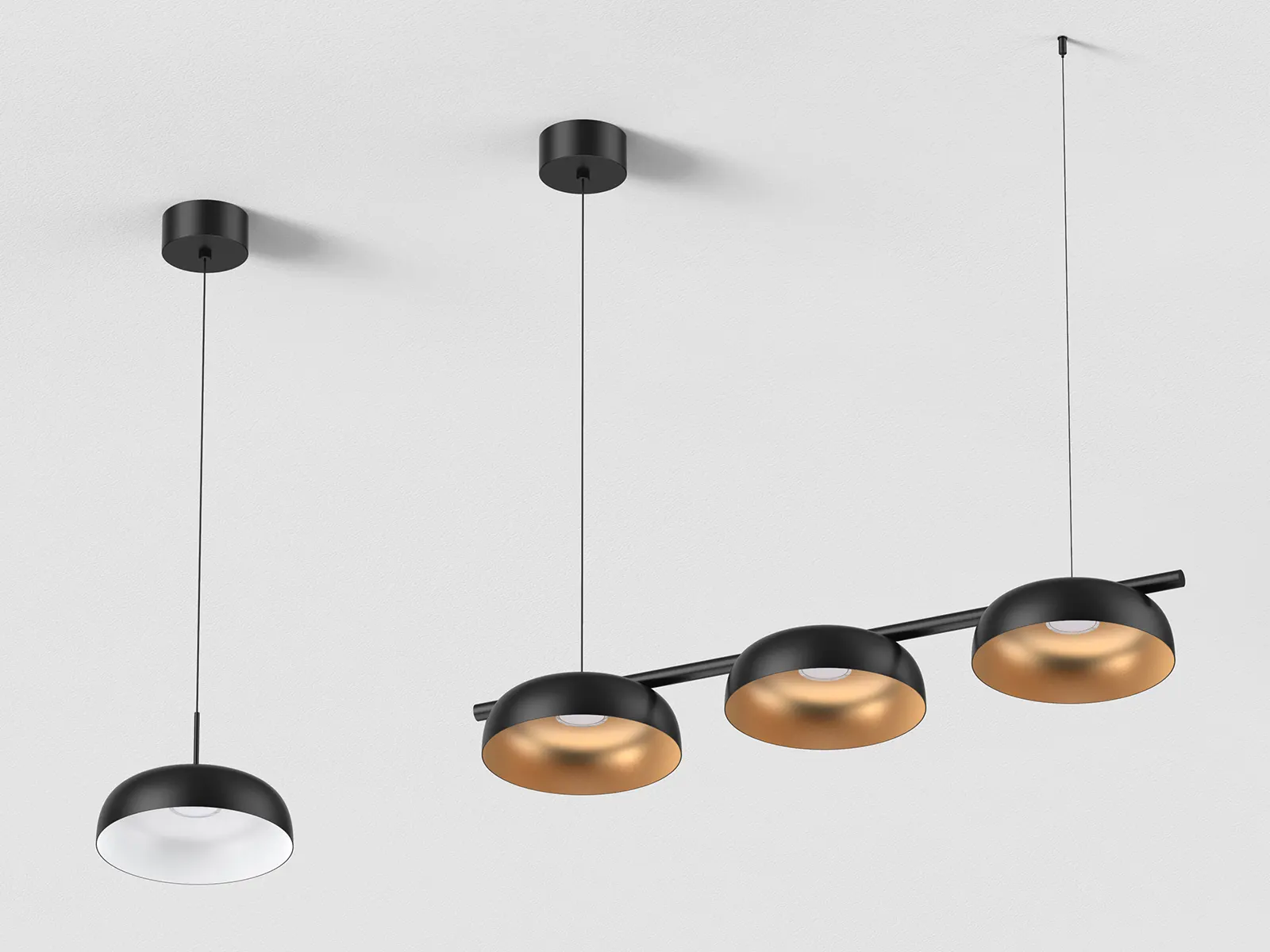

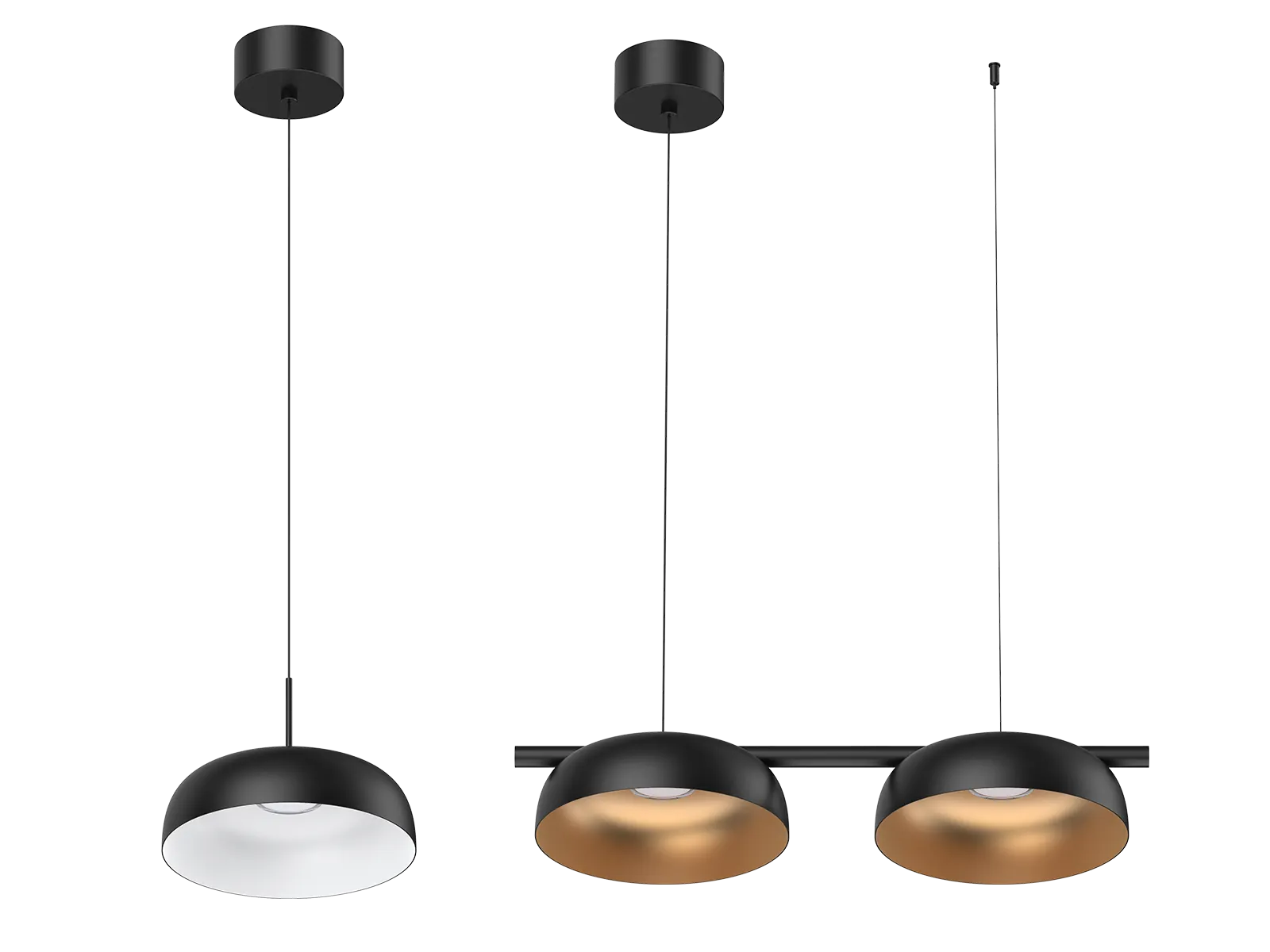

This decorative pendant light is a novel design for complete disassembly, it’s replaceable for led module part and lampshade part so that to extend the whole lamps lifespan. To offer an exquisite feeling, it adopts #180 powder spraying. The lampshade has two kinds of color option: Outer black with inner white, Outer black with inner golden. It has one head/two heads/three heads option for different decorative space, CCT and different dimmable way offers more possibility for it.
Applications: It's widely used in dining table, restaurant, bar, cafe etc.
ACC-PD46-12-BK-51
| Code | PD46-8W | PD46-2X8W | PD46-3X8W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø300*1161.5 | Ø300*1177*750 | Ø300*1177*1150 | ||
| Watt(W) | 8W | 2X8W | 3X8W | ||
| Rated Input Voltage | AC220~240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| LED CCT | 1-CCT: 3000K/4000K/5700K || 3-CCT: 3000K+4000K+5500K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | DIM | 720-820 | 1500-1660 | 2315-2670 |
| DALI | 780-875 | 1480-1680 | 2445-2820 | ||
| 3-CCT | DIM | 725-830 | 1450-1650 | 2295-2645 | |
| DALI | 785-900 | 1640-1700 | 2440-2810 | ||
| CRI | CRI80 | ||||
| Beam Angle(°) | 120° | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | Triac / DALI | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | Black RAL9005 | ||||
| Optics Material | PMMA, PC | ||||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 100,000h | ||||
| Glow wire test(°C) | PC850°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Pendant | ||||
ACC-PD46-12-BK-52
| Code | PD46-8W | PD46-2X8W | PD46-3X8W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø300*1161.5 | Ø300*1177*750 | Ø300*1177*1150 | ||
| Watt(W) | 8W | 2X8W | 3X8W | ||
| Rated Input Voltage | AC220~240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD2835 | ||||
| LED CCT | 1-CCT: 2850K/3700K/4850K || 3-CCT: 2850K+3700K+4850K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | DIM | 610-700 | 1265-1360 | 1940-2215 |
| DALI | 670-740 | 1280-1380 | 2050-2345 | ||
| 3-CCT | DIM | 610-680 | 1230-1370 | 2015-2215 | |
| DALI | 680-750 | 1270-1420 | 2080-2335 | ||
| CRI | CRI80 | ||||
| Beam Angle(°) | 120° | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | Triac / DALI | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | Black RAL9005 | ||||
| Optics Material | PMMA, PC | ||||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 100,000h | ||||
| Glow wire test(°C) | PC850°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Pendant | ||||
