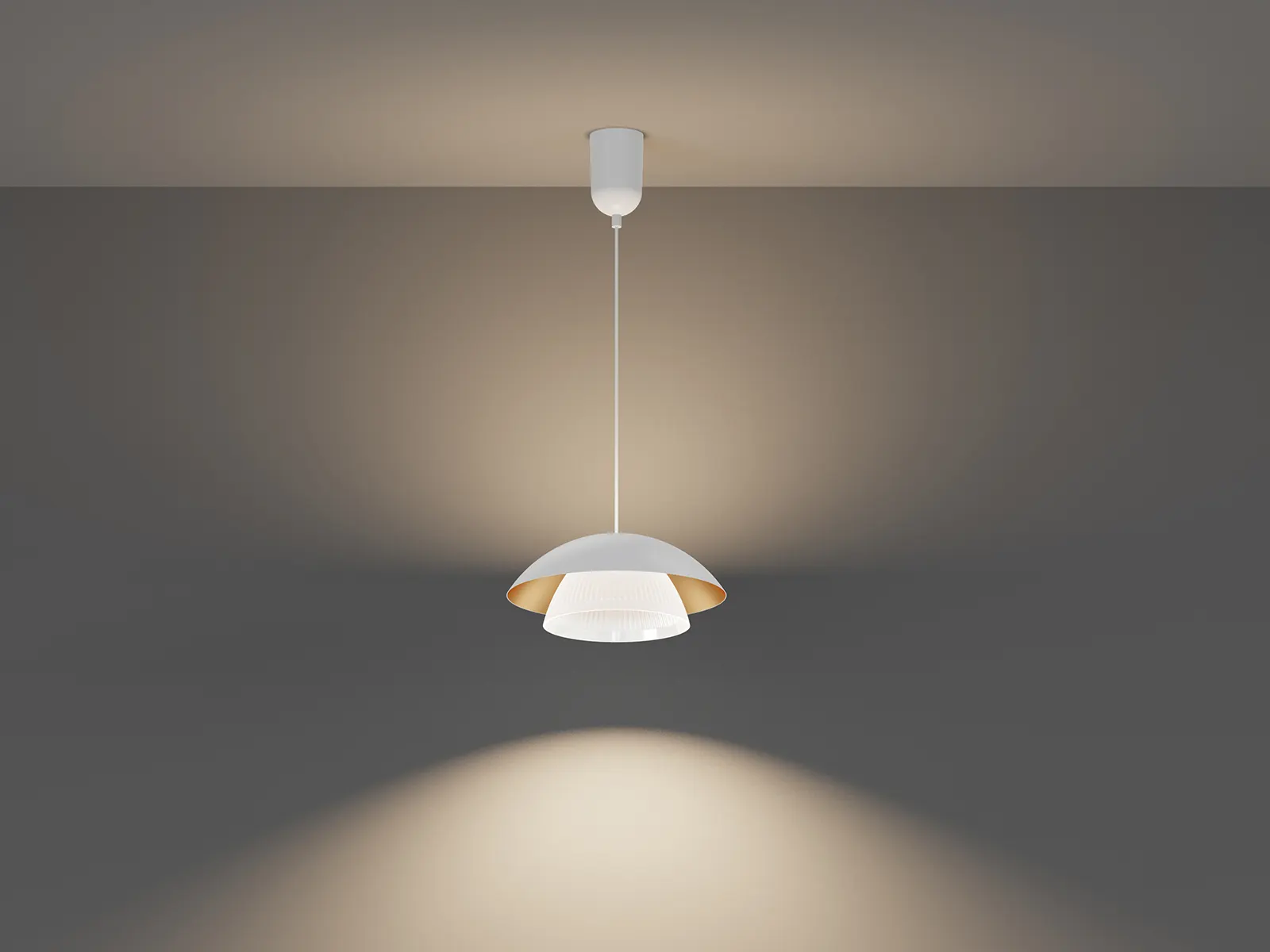

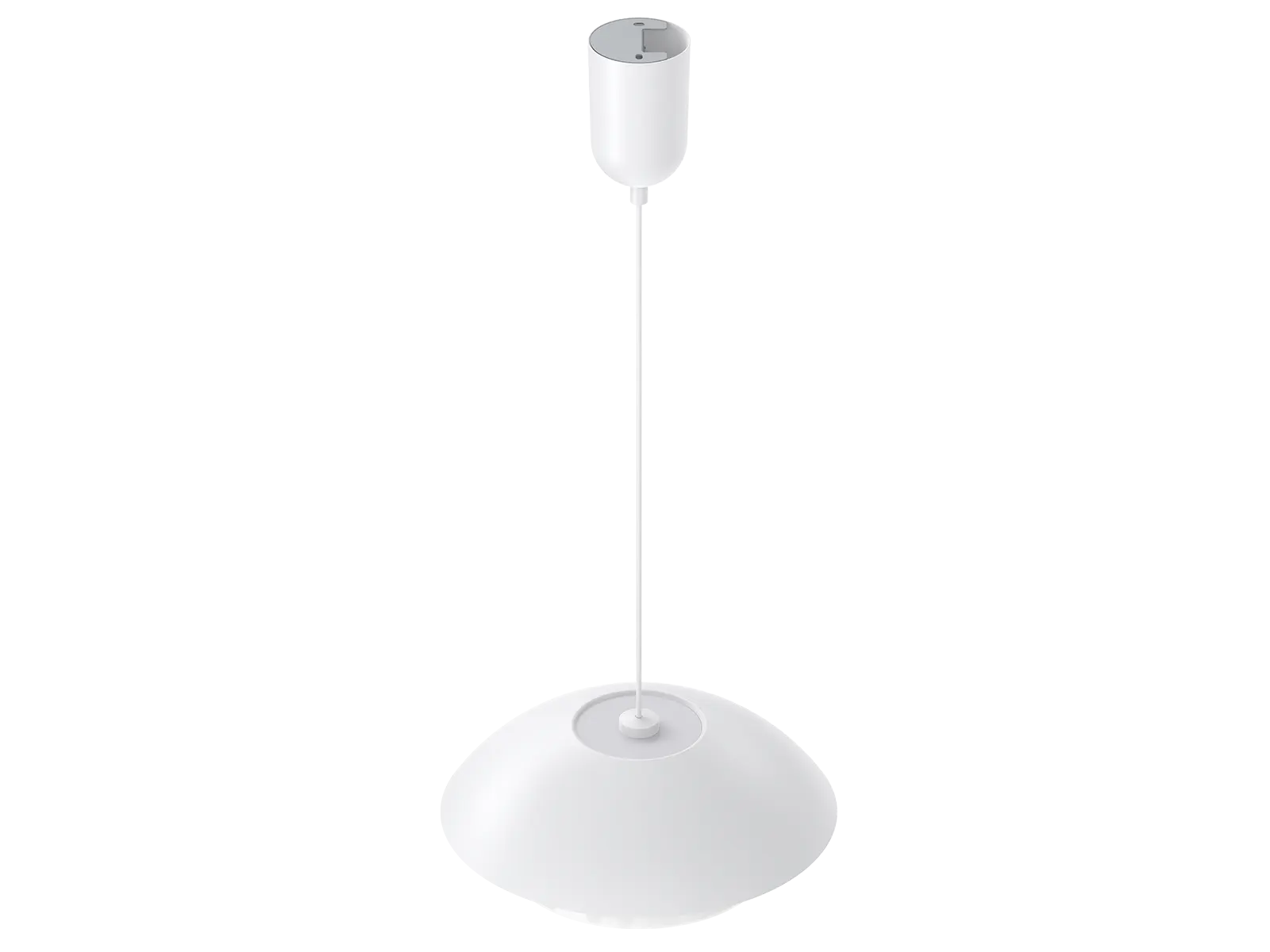

PD44 is a pendant lamp with with direct& indirect lighting,has a sense of hierarchy and it has excellent anti-glare effect to make people more comfortable and cozy. While satisfying the lighting requirements, it also has a decorative effect on the space; High-end and atmospheric appearance with different color to create different luminous effects. Easy assembly, no visible screws after installation.
Applications: It is widely used in kitchen, living room, dining room, bar, office,cafe etc.
| Code | PD44-12W | PD44-12W-D | PD44-15W | PD44-15W-D | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø300*118 | |||||||||
| Watt(W) | 12W(Direct light 8W, Indirect light 4W) | 15W(Direct light 10W, Indirect light 5W) | ||||||||
| Rated Input Voltage | AC220-240V | |||||||||
| Input Voltage | AC198-264V | |||||||||
| LED Module Input | DC30-40V | |||||||||
| Light Source | SMD | |||||||||
| LED CCT(K) | 3000K | 4000K | 3000K | 4000K | 3000K | 4000K | 3000K | 4000K | ||
| Luminaire CCT ±5%(CRI80) | 2800K | 3700K | 2750K | 3800K | 2800K | 3700K | 2750K | 3700K | ||
| Luminaire CCT ±5%(CRI90) | 2750K | 3550K | 2650K | 3550K | 2750K | 3550K | 2650K | 3700K | ||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 1200 | 1200 | - | - | 1500 | 1600 | - | - |
| DIM | - | - | 1150 | 1350 | - | - | 1500 | 1500 | ||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 1150 | 1300 | - | - | 1500 | 1650 | - | - |
| DIM | - | - | 1250 | 1350 | - | - | 1500 | 1600 | ||
| CRI | CRI80/CRI90 | |||||||||
| Beam Angle (°) | Indirect 120°, Direct 80° | |||||||||
| UGR | UGR<19 | |||||||||
| LED Driver | Built-in, Flicker Free | |||||||||
| Dimming Option | Triac | |||||||||
| Electrical Class | Class I | |||||||||
| Ingress Protection(IP Rating) | IP20 | |||||||||
| Impact Resistance(IK Rating) | IK06 | |||||||||
| Product Finishing | Outer black RAL9005 with inner golden RAL1011, Outer white RAL9016 with inner golden RAL1011 | |||||||||
| Optics Material | PC | |||||||||
| Housing Material | Metal | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 750°C | |||||||||
| Operating Temp.(°C) | -20°C~40°C | |||||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||||
| Installation | Pendant | |||||||||
