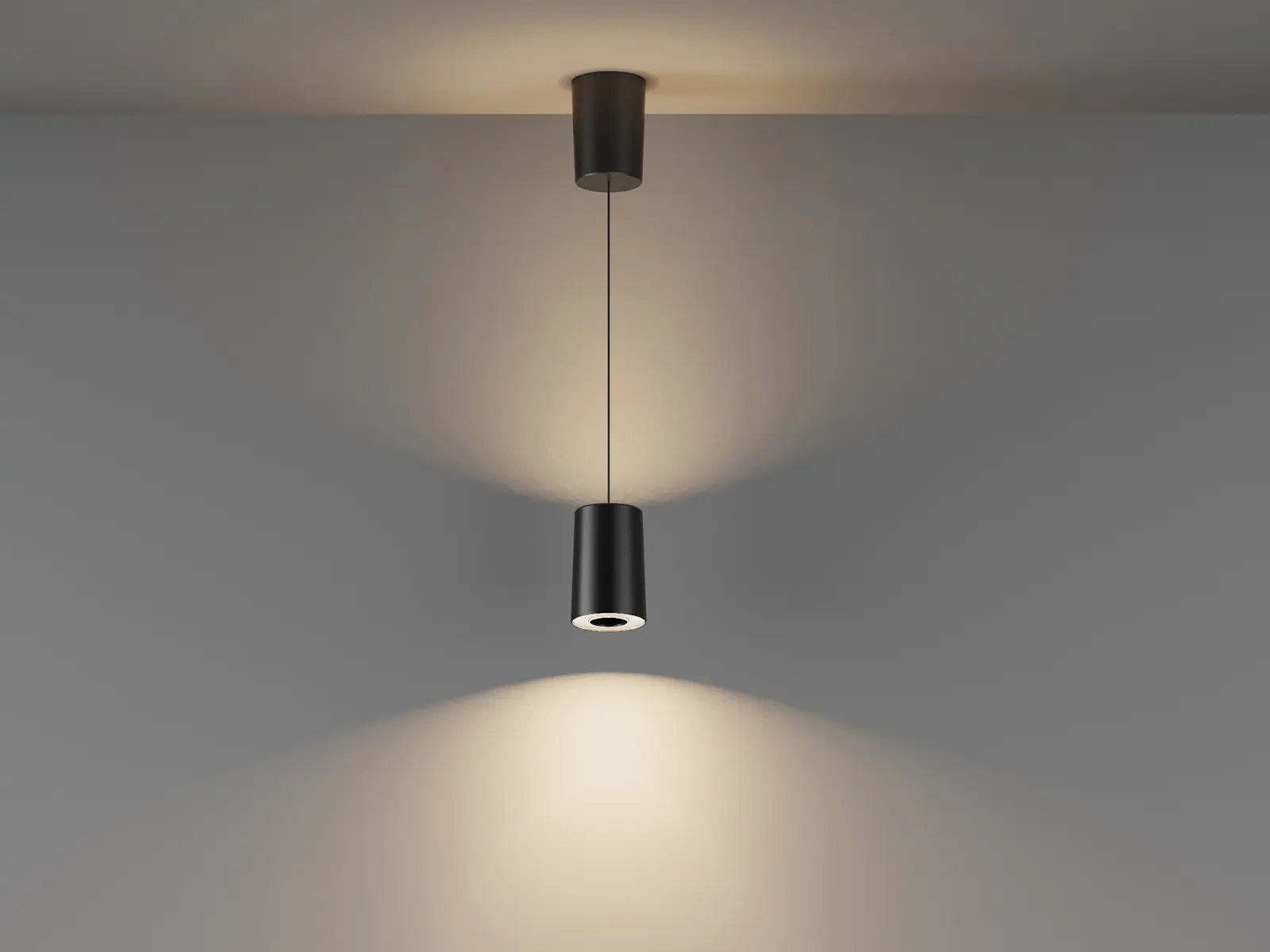

This is an adjustable LED pendant light featuring a high-efficiency SMD light source and an integrated isolation power supply. It has a hover function that allows easy height adjustment by gently pulling or lifting the light body. The lamp shape with wider at the top and narrower at the bottom, creates a symmetrical shape with the ceiling plate. Prism diffuser provides softer illumination. The top cover is a touch plate which enables dimming and color temperature adjustment, a short tap controls on/ off, while a long press controls stepless dimming from 20% to 100% and 1800K to 3000K. At the minimum setting of 20%, it serves as a 3W night light at 1800K, enhancing its modern appeal for various lifestyles and settings.
Applications: It's widely used in dining room, kitchen, balcony, bar table, gifts shop, cafe etc.
| Code | PD229A-100-15W-T | |
|---|---|---|
| Dimension(mm) | Ø100*1500 | |
| Watt(W) | Direct light: 9W, Indirect light: 6W | |
| Rated Input Voltage | AC220-240V | |
| Input Voltage | AC198-264V | |
| Light Source | SMD | |
| SDCM | SDCM<6 | |
| CCT(K) | 1800K~3000K | |
| Luminous Flux (lm) ±5% CRI90 | Non-DIM | - |
| DIM | 1W(1800K): 15 15W(3000K): 1120 | |
| CRI | CRI90 | |
| Beam Angle (°) | Direct light: 80°, Indirect light: 60° | |
| LED Driver | Built-in, Flicker Free | |
| Dimming Option | 10-100% manual adjustable | |
| Sensor | No | |
| Emergency Kits | No | |
| Electrical Class | Class I | |
| Ingress Protection(IP Rating) | IP20 | |
| Impact Resistance(IK Rating) | IK03 | |
| Product Finishing | Black RAL9005 | |
| Optics Material | PC | |
| Housing Material | Die-Casting Aluminium | |
| Lifetime(hr) | 50,000h | |
| Glow wire test(°C) | 750°C | |
| Operating Temp.(°C) | -20°C~45°C | |
| Storage Temp.(°C) | -20°C~65°C | |
| Installation | Pendant | |
