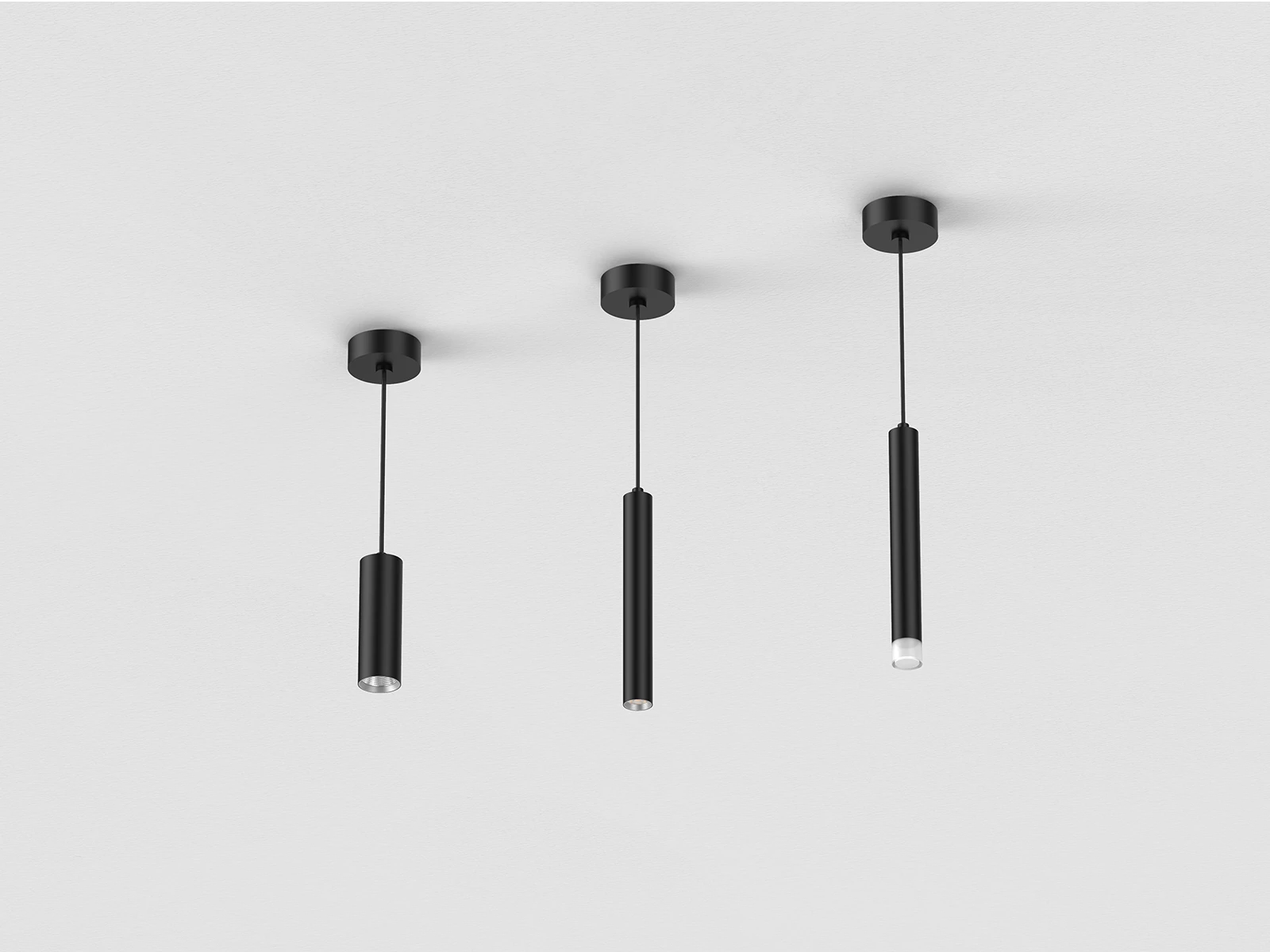

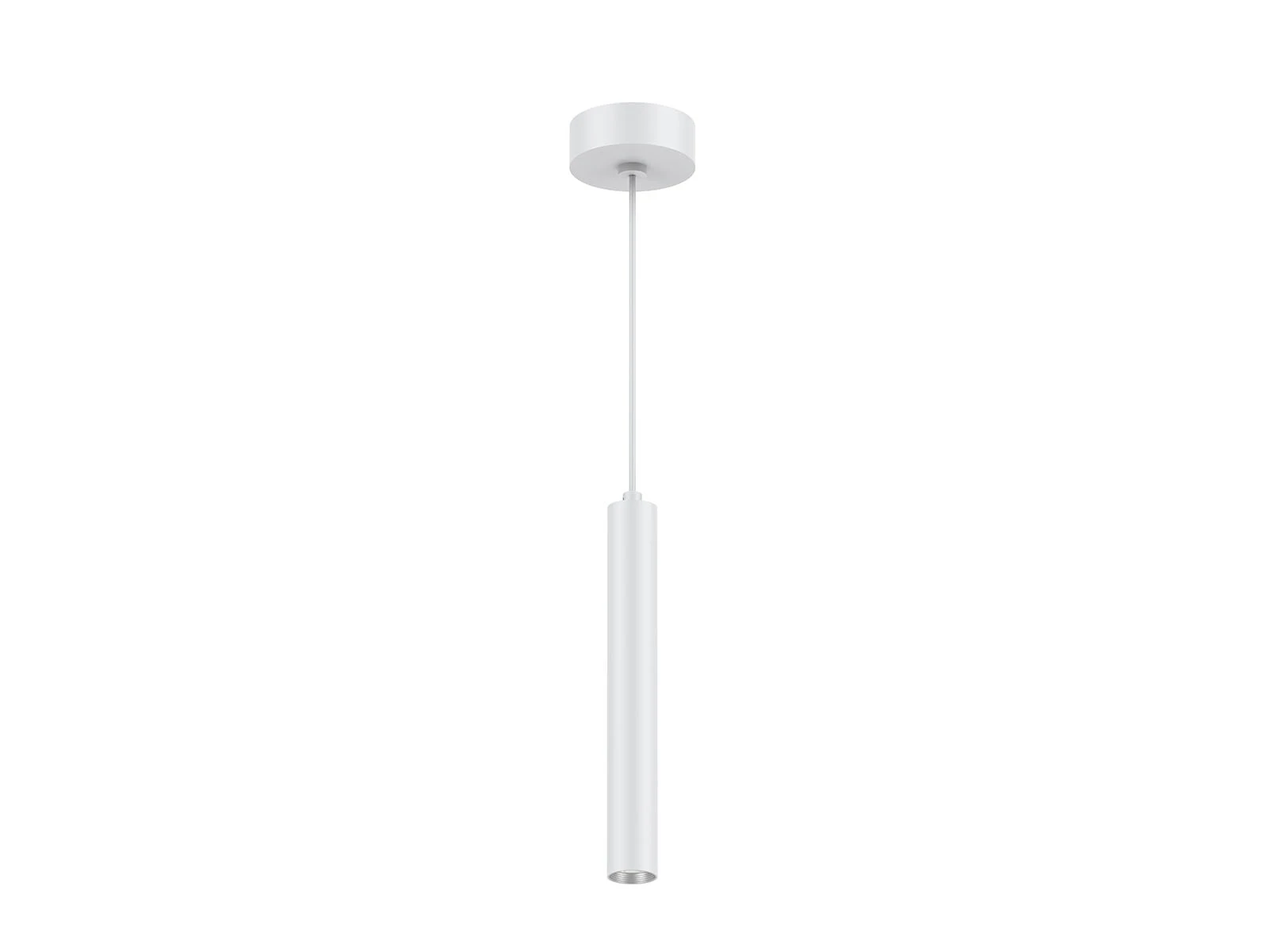

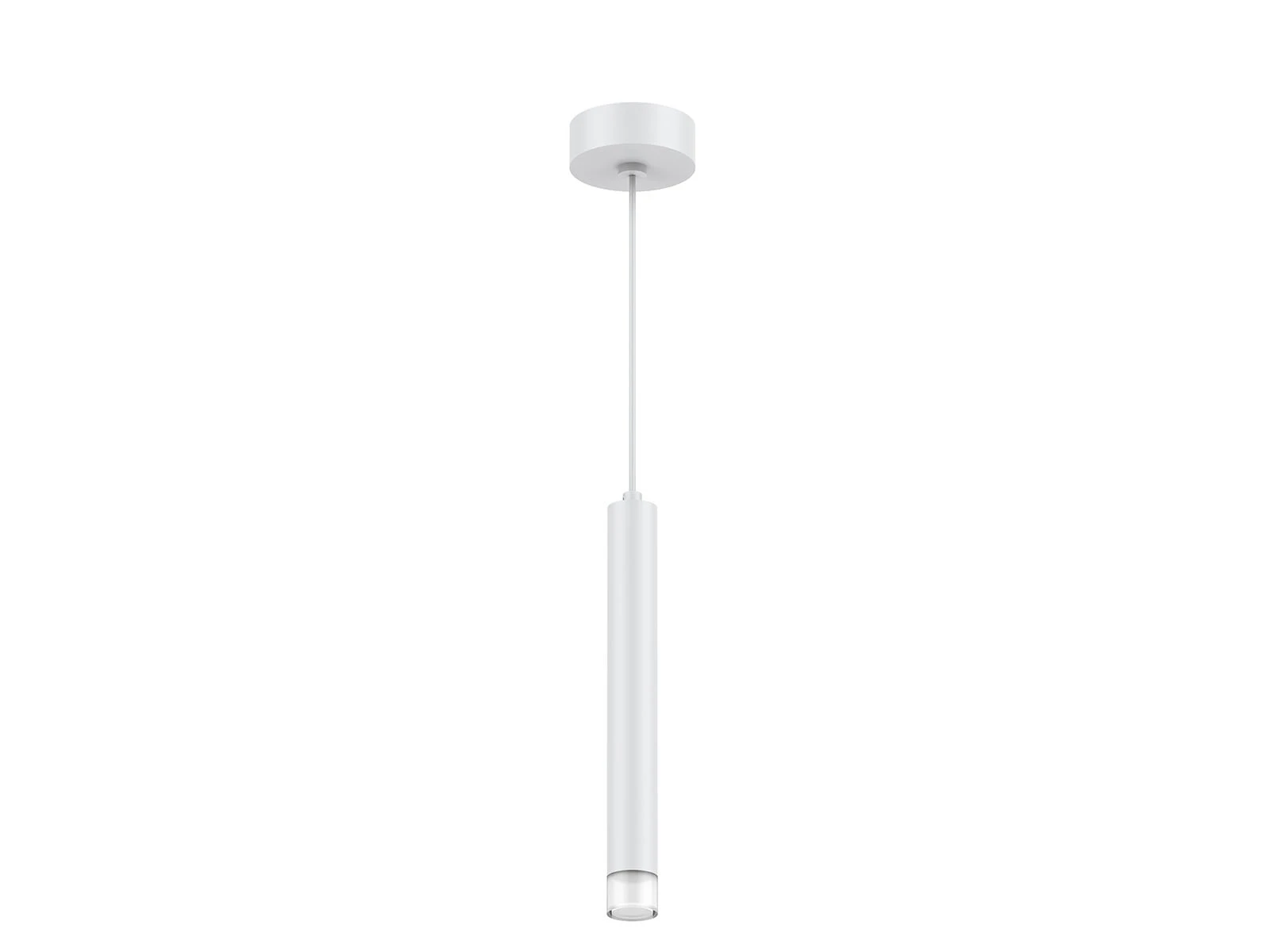

PD12 whole lamp adopts straightforward design with stylish appearance, easy to install, simple and generous, paying more attention to leisure and comfort. It gives space a clear and lively feelings. Different colors of surface ring are optional, which could create diversified light atomosphere according to different environment.
Application Areas: Applicable for residential lighting in bedroom, living room, corridor etc, also suitable for commercial lighting in office, hotel, restaurant etc.
| Code | PD12-5W | PD12-5W | PD12-10W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø39*300 | Ø39*500 | Ø58*180 | ||
| Cutout(mm) | - | ||||
| Watt(W) | 5W | 10W | |||
| Rated Input Voltage | AC198-264V | ||||
| Input Voltage | AC220-240V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | COB | ||||
| SDCM | <5 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K | ||||
| CCT Selection DIP Switch | NO | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 500-540 | 500-540 | 810-1000 |
| DIM | |||||
| Beam Angle (°) | 24°/36°/60° | 15°/24°/36°/60° | |||
| CRI | 80 | ||||
| UGR | <19 | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | NO | ||||
| Sensor | - | ||||
| Emergency Kits | - | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK03 | ||||
| Product Finishing | White RAL9016/Black RAL9005 | ||||
| Optics Material | PMMA (Lens) | PC (Reflector) | |||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 650°C | ||||
| Operating Temp(°C) | -20°C~45°C | ||||
| Storage Temp(°C) | -20°C~60°C | ||||
| Installation | Pendant | ||||
