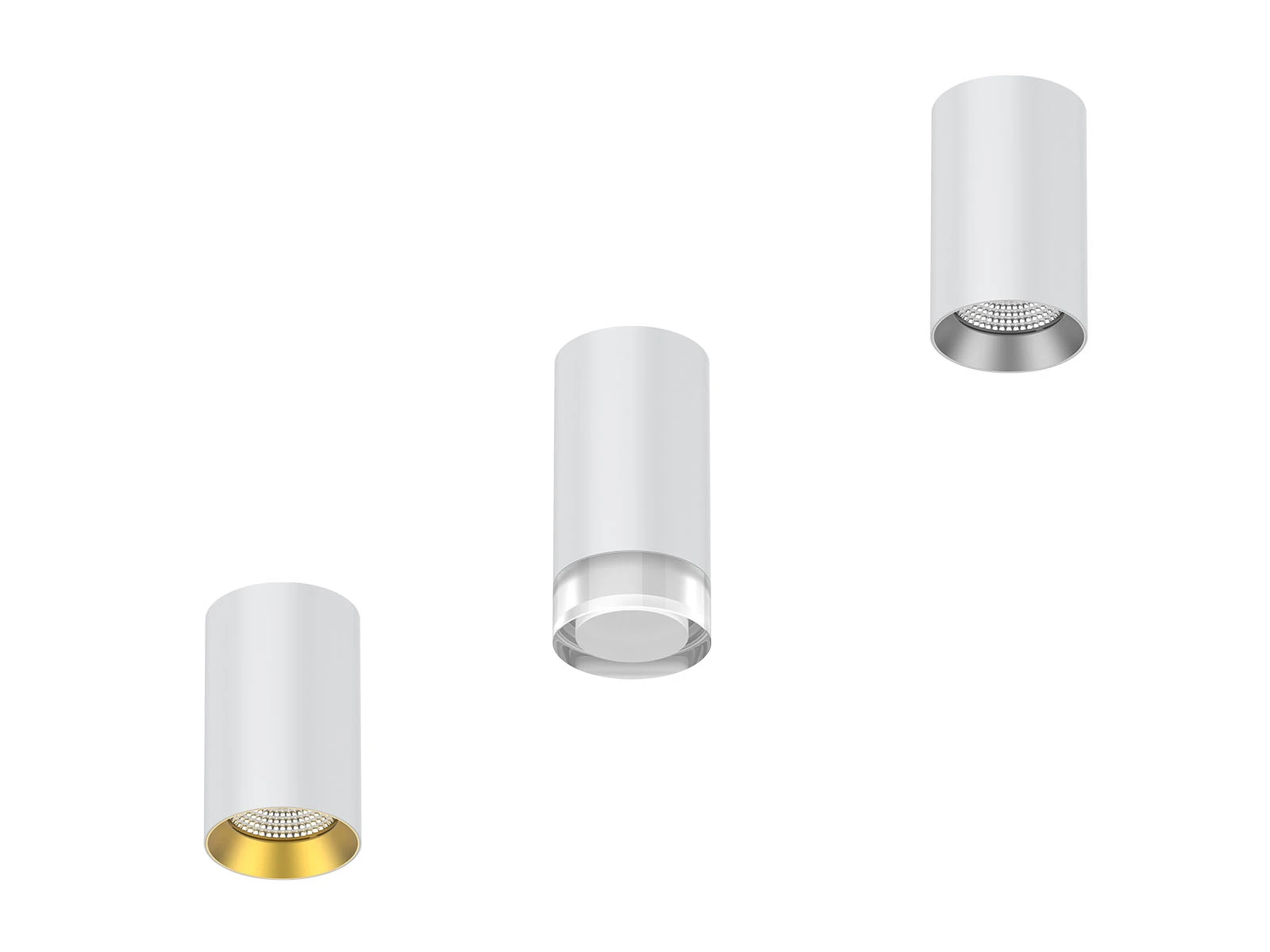

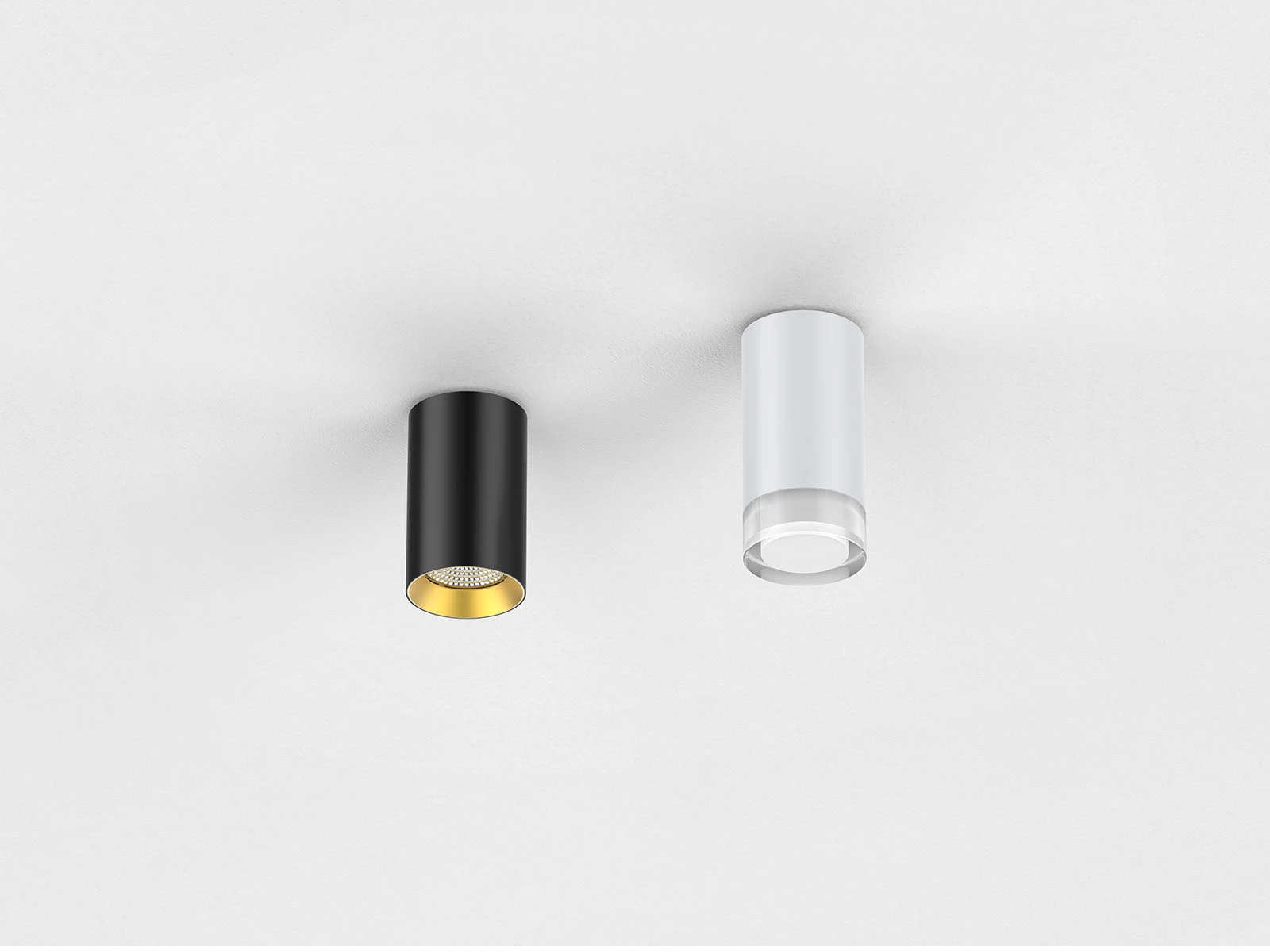

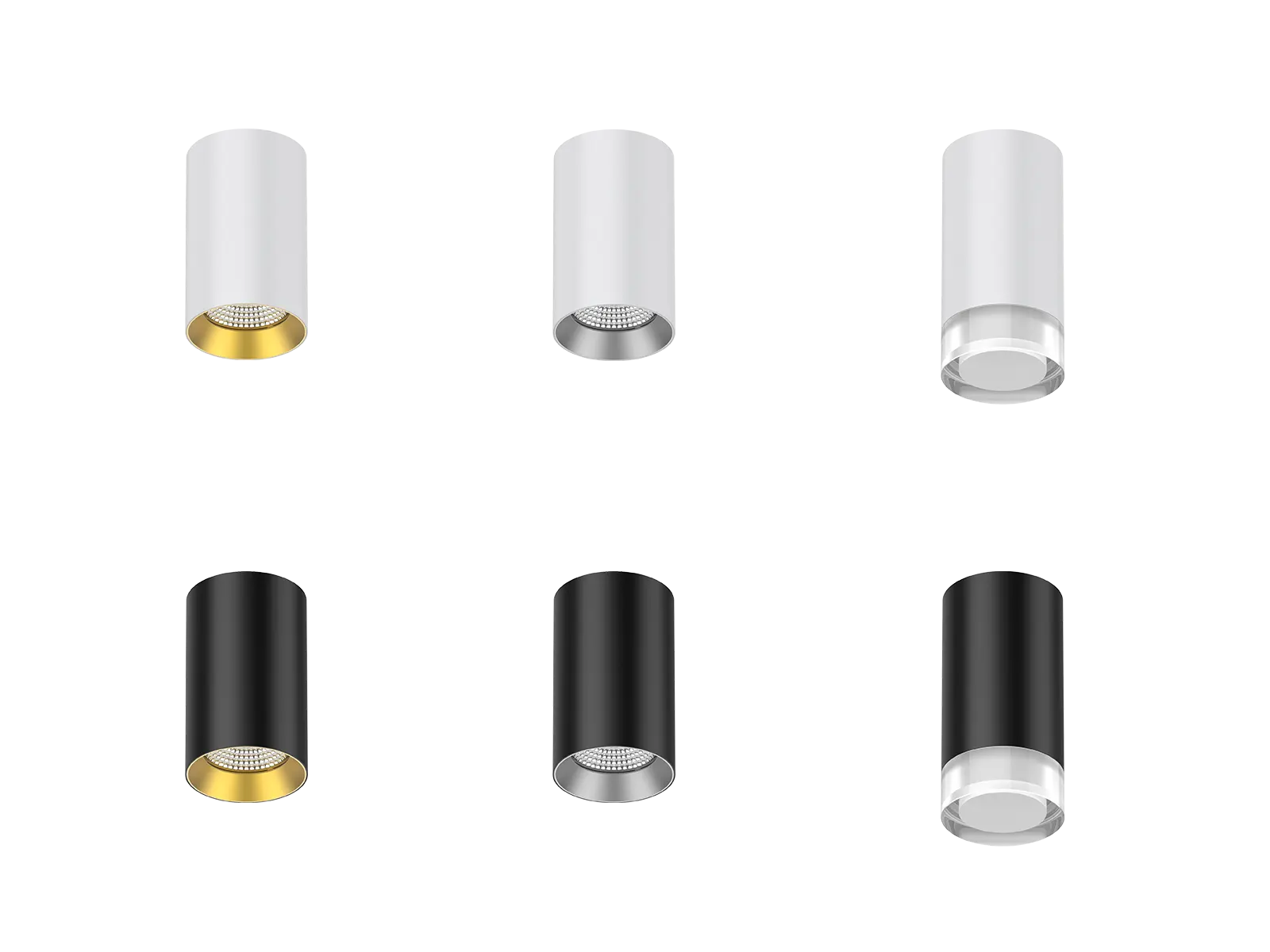

This surface mounted cylinder light is designed to enhance any space with its sleek and modern aesthetic. It has white finish and black finish, the front trim can be replaced to gold/silver color which adds a touch of contemporary elegance to any room. AL6063 aluminium housing has a great heat dissipation effect which ensures a long lifespan. different color trim can be accessory. For lighting effect, it can be used as accent lighting to illuminate areas of interest or as task lighting for focused activities. function: on/off, Triac dimmable, DALI dimmabie.
Applications: Applicable for residential lighting in bedroom, living room, corridor etc, also suitable for commercial lighting in office, hotel, restaurant etc.
| CODE | PD02D-10W | PD02D-18W | PD02D-25W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 80*130 | 80*160 | 113*160 | ||
| Watt(W) | 10W | 18W | 25W | ||
| Input Voltage | AC220-240V | ||||
| Light Source | COB | ||||
| CCT(K) | 1-CCT: 2700K / 3000K / 4000K/5000K | ||||
| CCT Selection DIP Switch | - | ||||
| Luminous Flux (lm) ±5% | Non-DIM | 935-1290 | 1560-2175 | 2290-2985 | |
| CRI80 | 1-CCT | DIM | 885-1225 | 1480-2065 | 2170-2835 |
| DALI | 895-1235 | 1585-2115 | 2280-2985 | ||
| Beam Angle(°) | 15°/24°/36° | 15°/24°/36° | 15°/24°/36° | ||
| Dimming Option | Triac, DALI-2 | ||||
| Product weight(Kg) | N.W/PC | 0.38 | 0.55 | 0.81 | |
| G.W/PC | 0.42 | 0.6 | 0.88 | ||
| Package weight(Kg) | N.W/CTN | 9.12 | 13.2 | 19.44 | |
| G.W/CTN | 10.6 | 14.97 | 21.99 | ||
| Qty/CTN (PCS) | 24 | 24 | 24 | ||
| Carton Size(cm) | 36.5*28*31 | 36.5*28*36 | 49.5*37.5*36 | ||
| 20GP(pcs) | 21000 | 18000 | 10080 | ||
| 40HQ(pcs) | 49344 | 43176 | 23184 | ||
| CODE | PD02D-10W | PD02D-18W | PD02D-25W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 80*162 | 80*192 | 113*192 | ||
| Watt(W) | 10W | 18W | 25W | ||
| Input Voltage | AC220-240V | ||||
| Light Source | COB | ||||
| CCT(K) | 1-CCT: 2700K / 3000K / 4000K/5000K | ||||
| Luminous Flux (lm) ±5% | Non-DIM | 845-1100 | 1390-1850 | 1960-2540 | |
| CRI80 | 1-CCT | DIM | 800-1045 | 1315-1755 | 1855-2415 |
| DALI | 810-1070 | 1350-1800 | 1960-2530 | ||
| Beam Angle(°) | 45° | 45° | 45° | ||
| Dimming Option | Triac, DALI-2 | ||||
| Product weight(Kg) | N.W/PC | 0.53 | 0.7 | 1.13 | |
| G.W/PC | 0.64 | 0.82 | 1.3 | ||
| Package weight(Kg) | N.W/CTN | 6.36 | 8.4 | 6.78 | |
| G.W/CTN | 8.21 | 10.47 | 8.28 | ||
| Qty/CTN (PCS) | 12 | 12 | 6 | ||
| Carton Size(cm) | 39*32*22.5 | 45.5*35*22.5 | 42.5*23.5*29.5 | ||
| 20GP(pcs) | 12480 | 9600 | 5418 | ||
| 40HQ(pcs) | 27588 | 21648 | 12384 | ||
