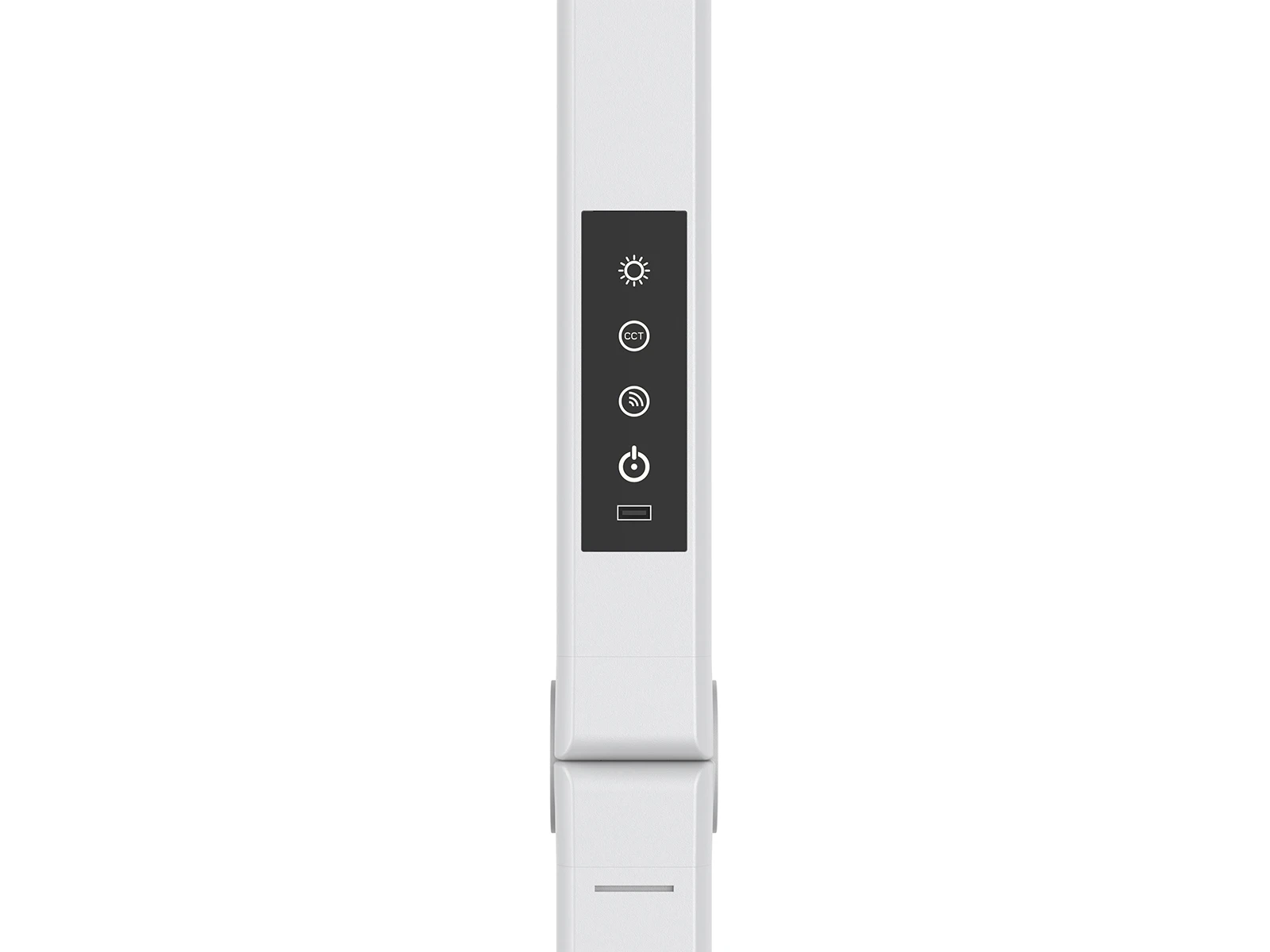

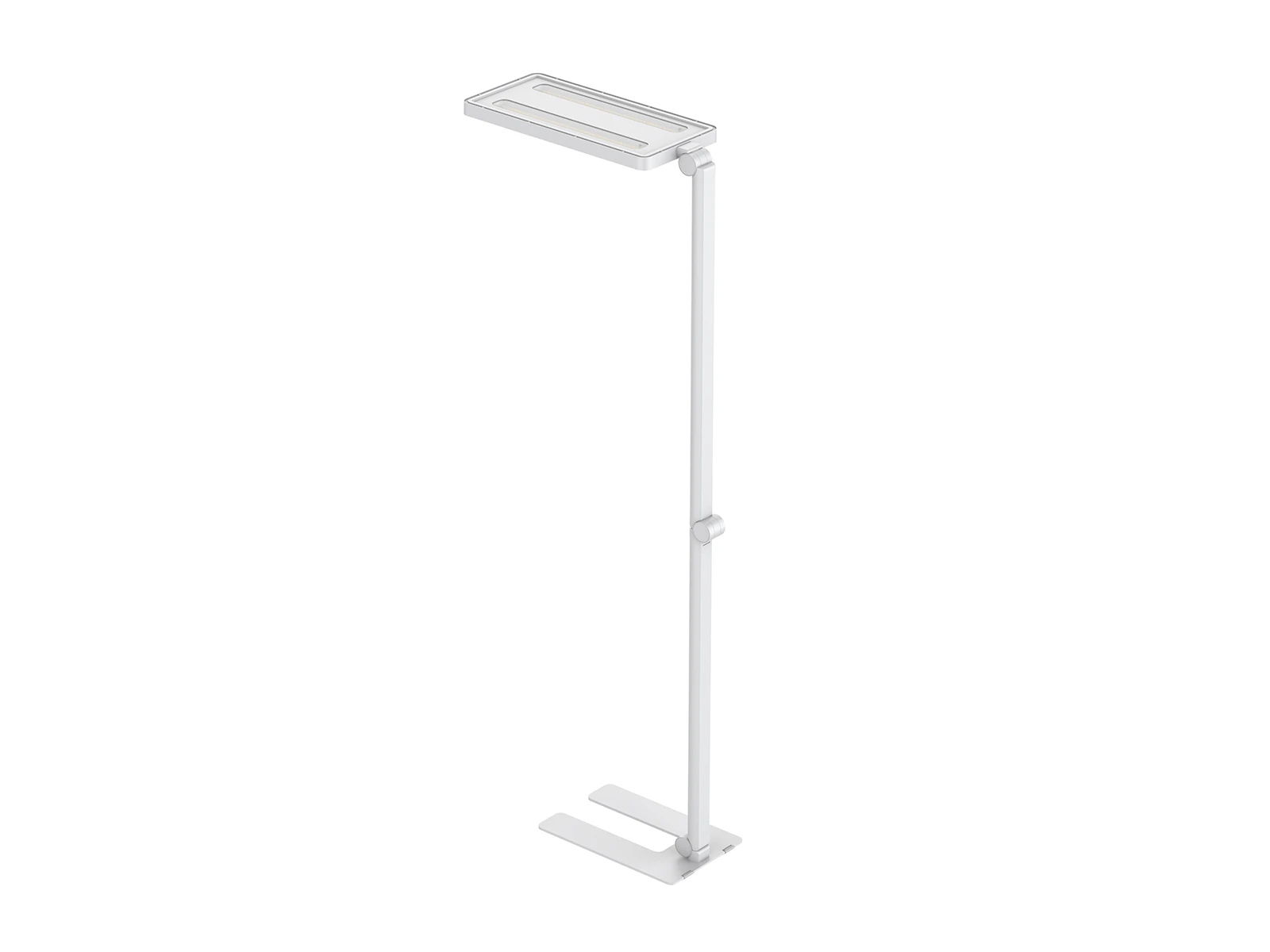

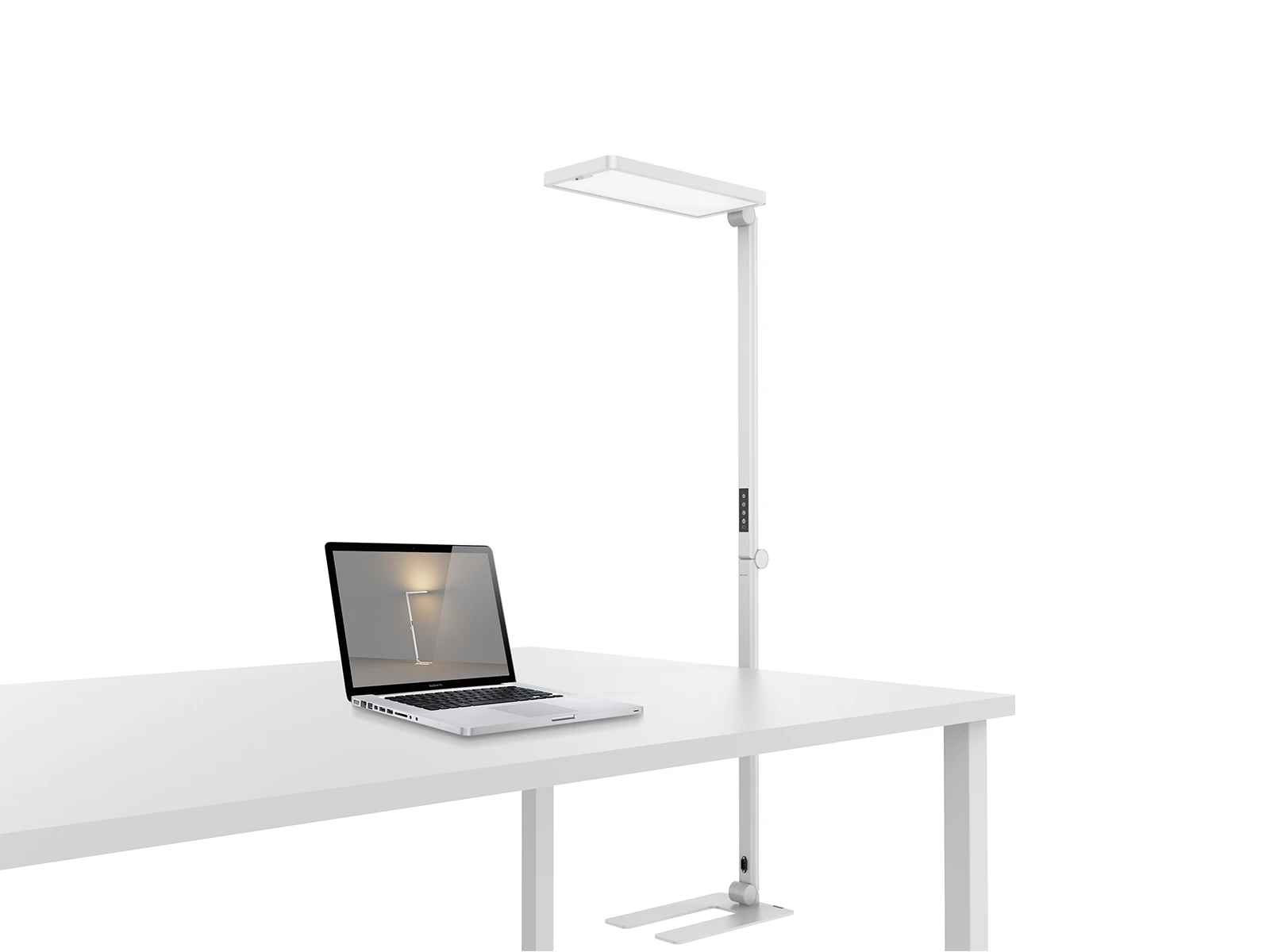

This is a folding freestanding lamp which includes three parts: flat lamp body, lamp pole and lamp base. With a precise optical design (UGR<17, up 70% & down 30% lighting), it has direct lighting and indirect lighting, which ensures a more uniform and more comfortable lighting effect. Lamp Pole with: Plug, touchable 0-10V dimmer, light sensor, PIR sensor module and USB connector. The configuration of the luminaire is triggered by pressing a button and then it’s fully automatic, the lighting control modules are interchangeable, which is very suitable for modern office environments. There has a wheel under the base to support easier movement or transportation.
Application Areas: It is specially designed for general lighting applications in office, meeting room,studio, study room etc.
| Code | OL12-80W-S1T | OL12-100W-S1T | ||
|---|---|---|---|---|
| Dimension(mm) | L2100*W726*H320 | L2100*W726*H320 | ||
| Watt(W) | 80W | 100W | ||
| USB Output | 1 Groups USB 5V 2000mA | |||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | SMD | |||
| SDCM | SDCM<6 | |||
| CCT(K) | 3000K-4000K | |||
| CCT Selection DIP Switch | Touch | |||
| Luminous Flux (lm) ±5% CRI90 | 2-CCT | DIM | 9440-9600 | 11800-12000 |
| CRI | 90 | |||
| Beam Angle(°) | UP 80°/ Down 120° | |||
| UGR | UGR<17 | |||
| LED Driver | Driver built-in | |||
| Dimming Option | Touch | |||
| Sensor | PIR sensor / Daylight sensor | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | IP20 | |||
| Impact Resistance(IK Rating) | IK06 | |||
| Product Finishing | White RAL9016/Black RAL9005 | |||
| Optics Material | PMMA | |||
| Housing Material | AL6063 | |||
| Lifetime(hr) | 50,000H | |||
| Glow wire test(°C) | 650°C | |||
| Operating Temp(°C) | -10°C~40°C | |||
| Storage Temp(°C) | -20°C~60°C | |||
| Installation | Pedestal mounted | |||
