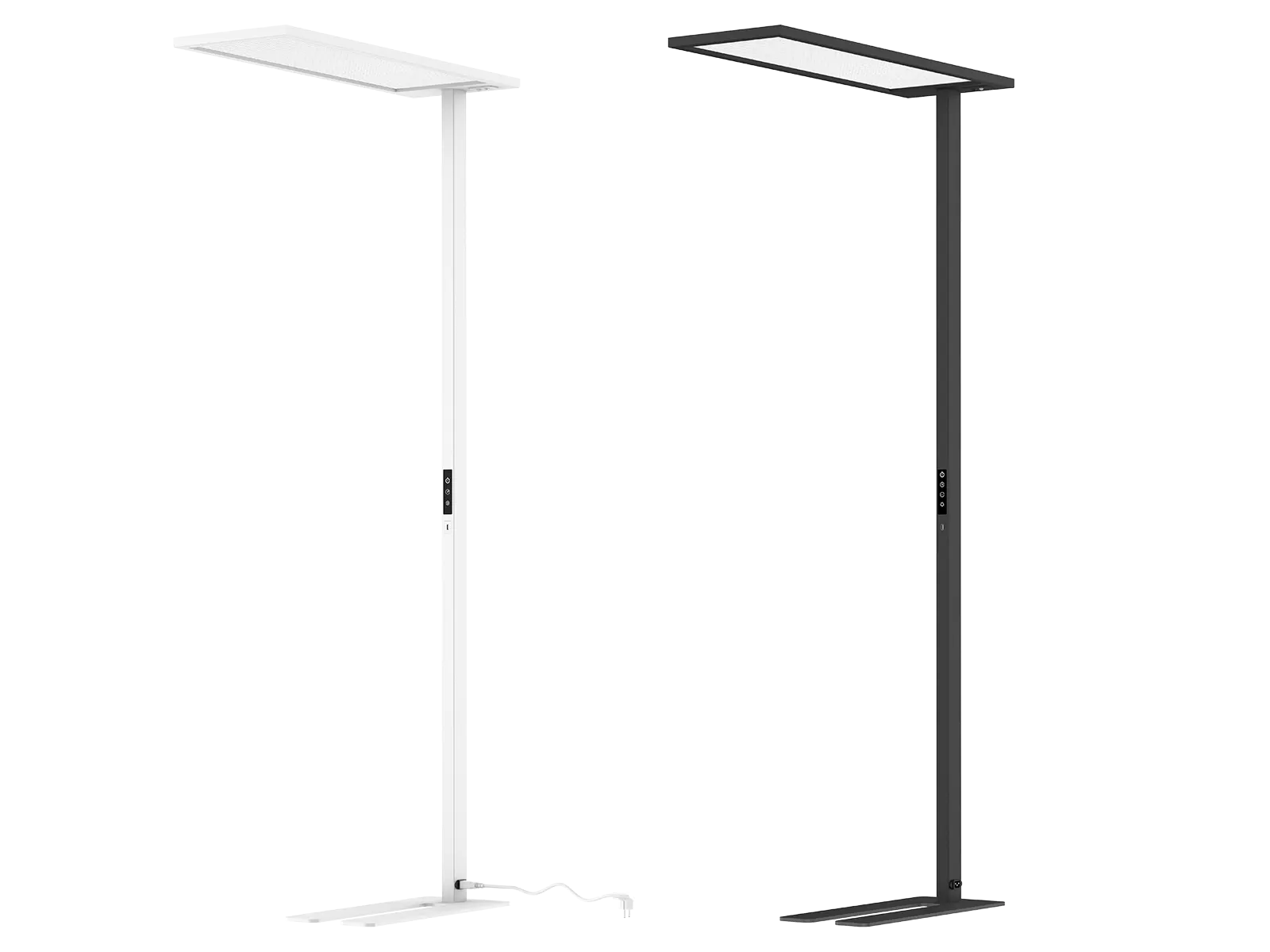

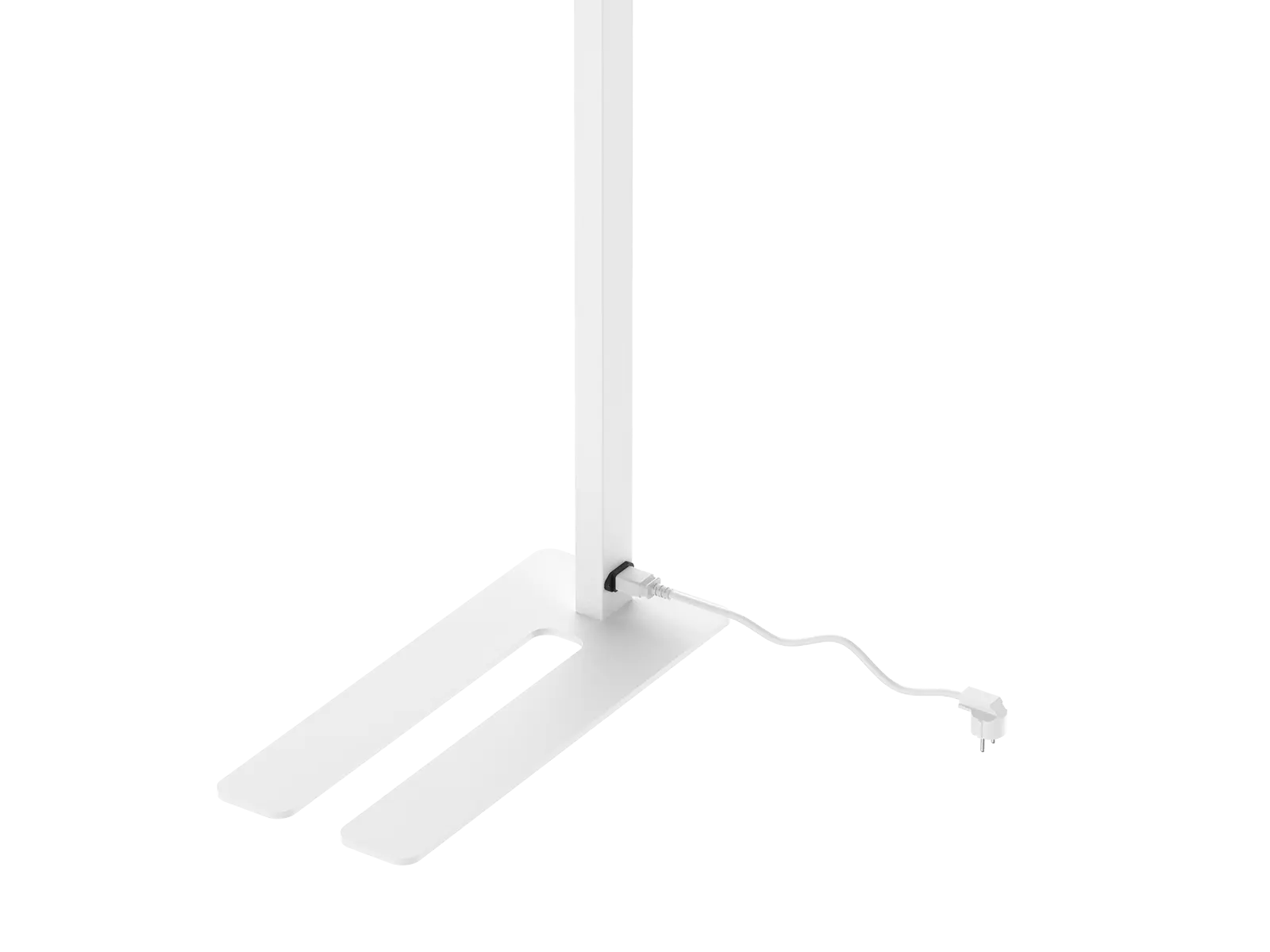

This OL07 freestanding lamp is composed of three parts: flat lamp body, lamp pole and lamp base.
With a precise optical design (UGR<16, up 75% & down 25% lighting), it has direct lighting and indirect

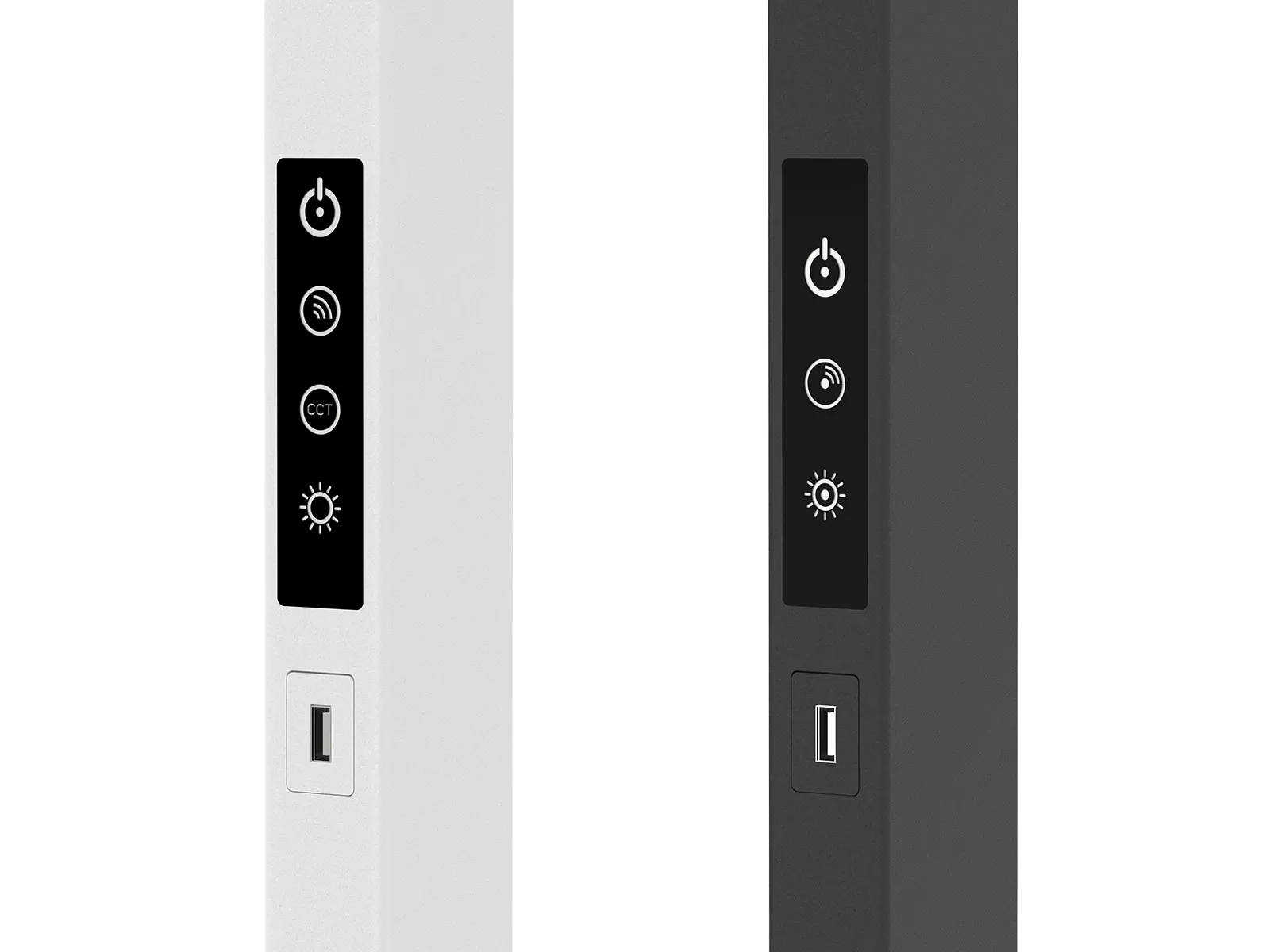

lighting, which ensures a more uniform and more comfortable lighting effect. Lamp Pole with: Plug,
touchable 0-10V dimmer, light sensor, PIR sensor module and USB connector. The configuration of the
luminaire is triggered by pressing a button and then it’s fully automatic, the lighting control modules are
interchangeable, which is very suitable for modern office environments.
1. Easy for assembly and maintenance.
2. Precise optical design: Direct and indirect lighting, UGR<16, up 75% & down 25% lighting.
3. High lumen efficiency, 115lm/W.
4. Lighting sensor and PIR sensor mode interchangeable.
5. USB charging function available.
6. Plug and play, convenient for different position.
7. Touchable 0-10V dimming way.
Application Areas： It is specially designed for general lighting applications in office, meeting room, hotel etc.
| Code No. | OL07A-100W-DOS |
|---|---|
| Dimension(mm) | 1925*920*300 |
| Watt(W) | 100W |
| Rated Input Voltage(V) | AC230V |
| Input Voltage(V) | AC220-240V |
| Light Source | SMD2835 |
| SDCM | <6 |
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K |
| DIM 1-CCT Luminous Flux (lm) ±5% | 9800-12000lm |
| CRI | ≥80 |
| Beam Angle (°) | 120° |
| UGR | <16 |
| LED Driver | Driver built-in |
| Dimming Option | 0-10V |
| Sensor | PIR sensor / Daylight sensor |
| Electrical Class | Class I |
| Ingress Protection (IP Rating) | IP20 |
| Product Finishing(Base) | White RAL9016 |
| Optics Material | PMMA/PC |
| Housing Material | Aluminum |
| Lifetime (hr) | 50,000h@25°C |
| Glow wire test (℃ ) | 750°C |
| Operating Temp. (℃ ) | -10℃ ~30℃ |
| Storage Temp. (℃ ) | -20℃ ~60℃ |
| Installation | Pedestal mounted |
