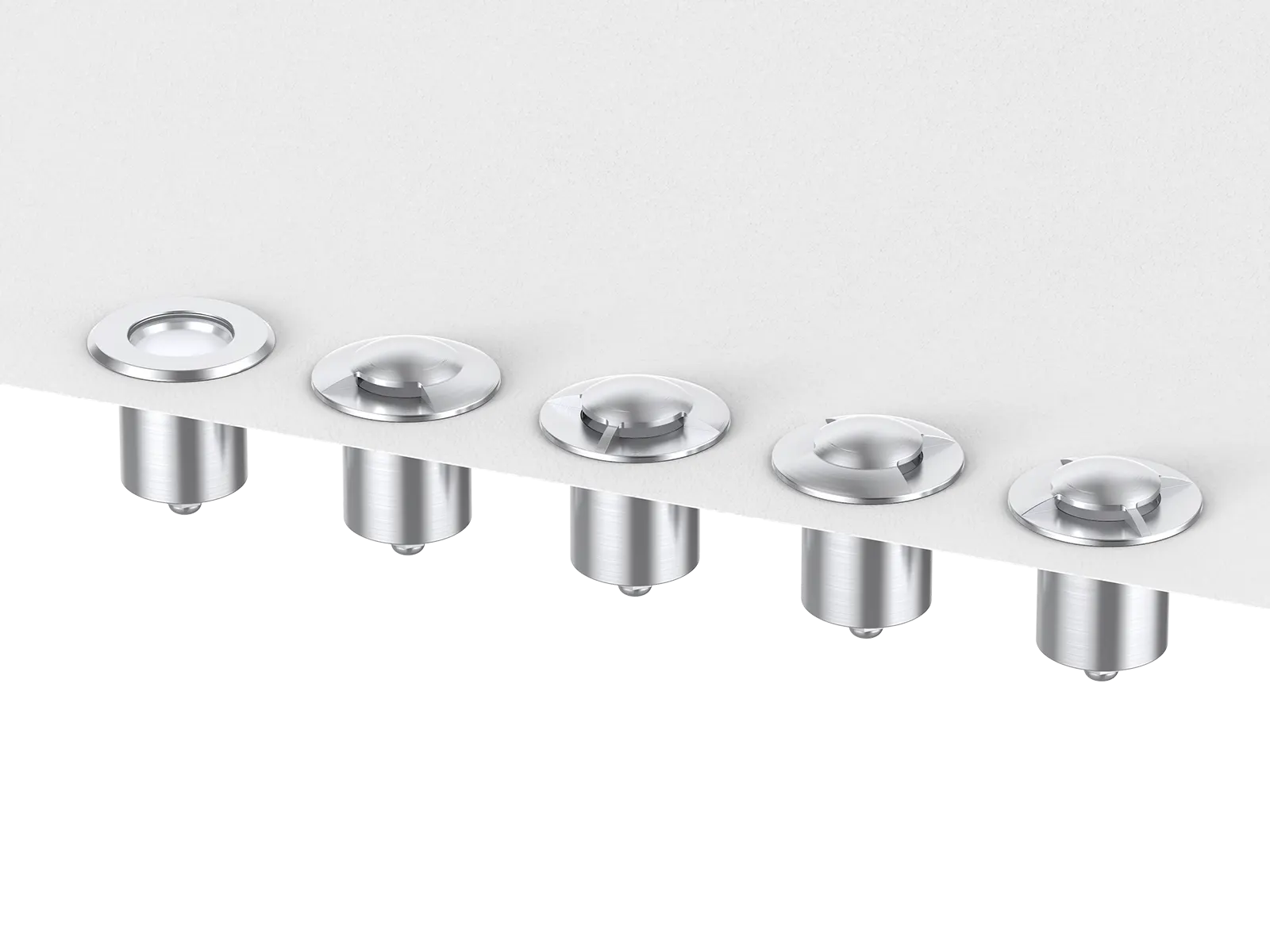

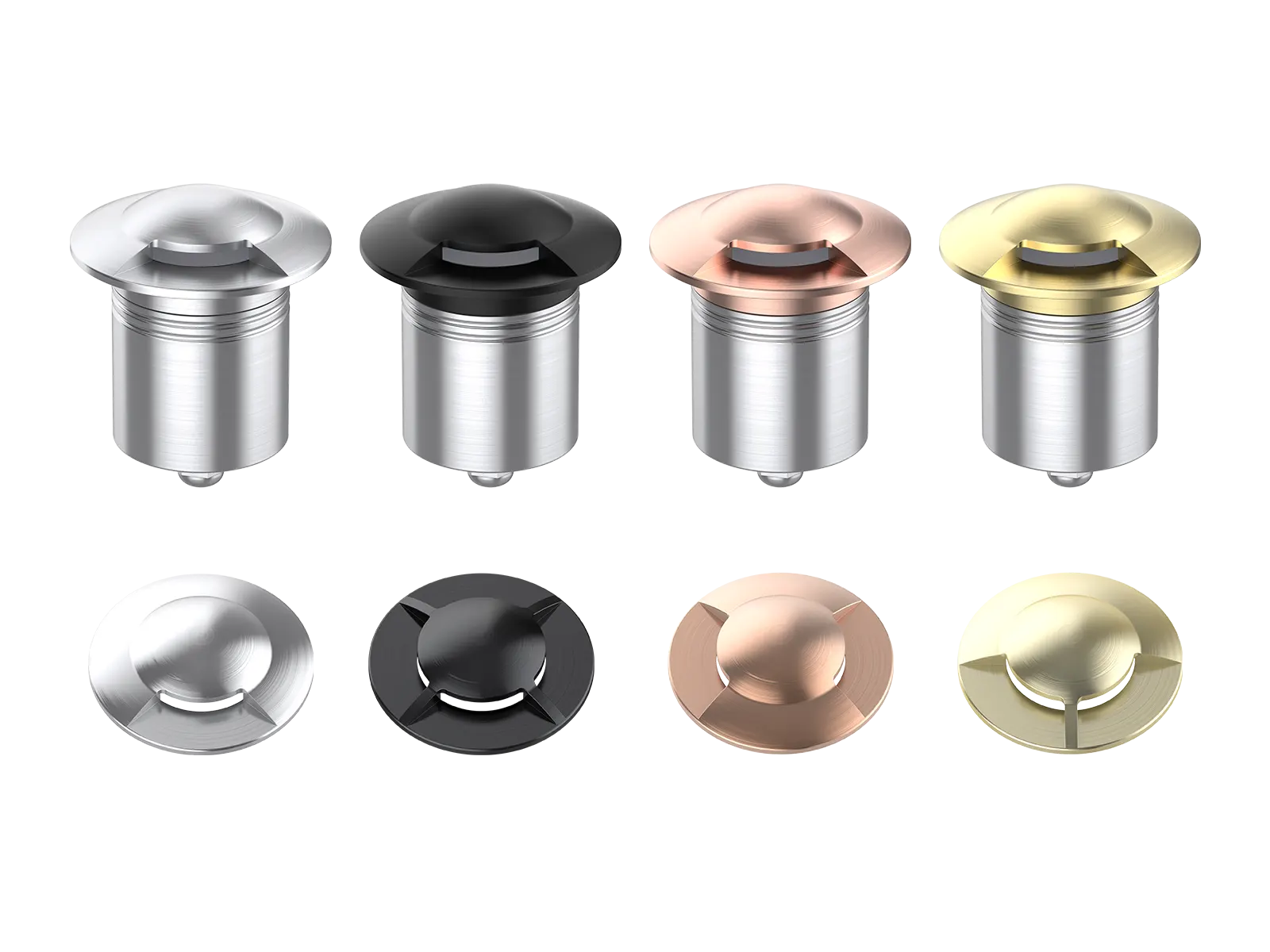

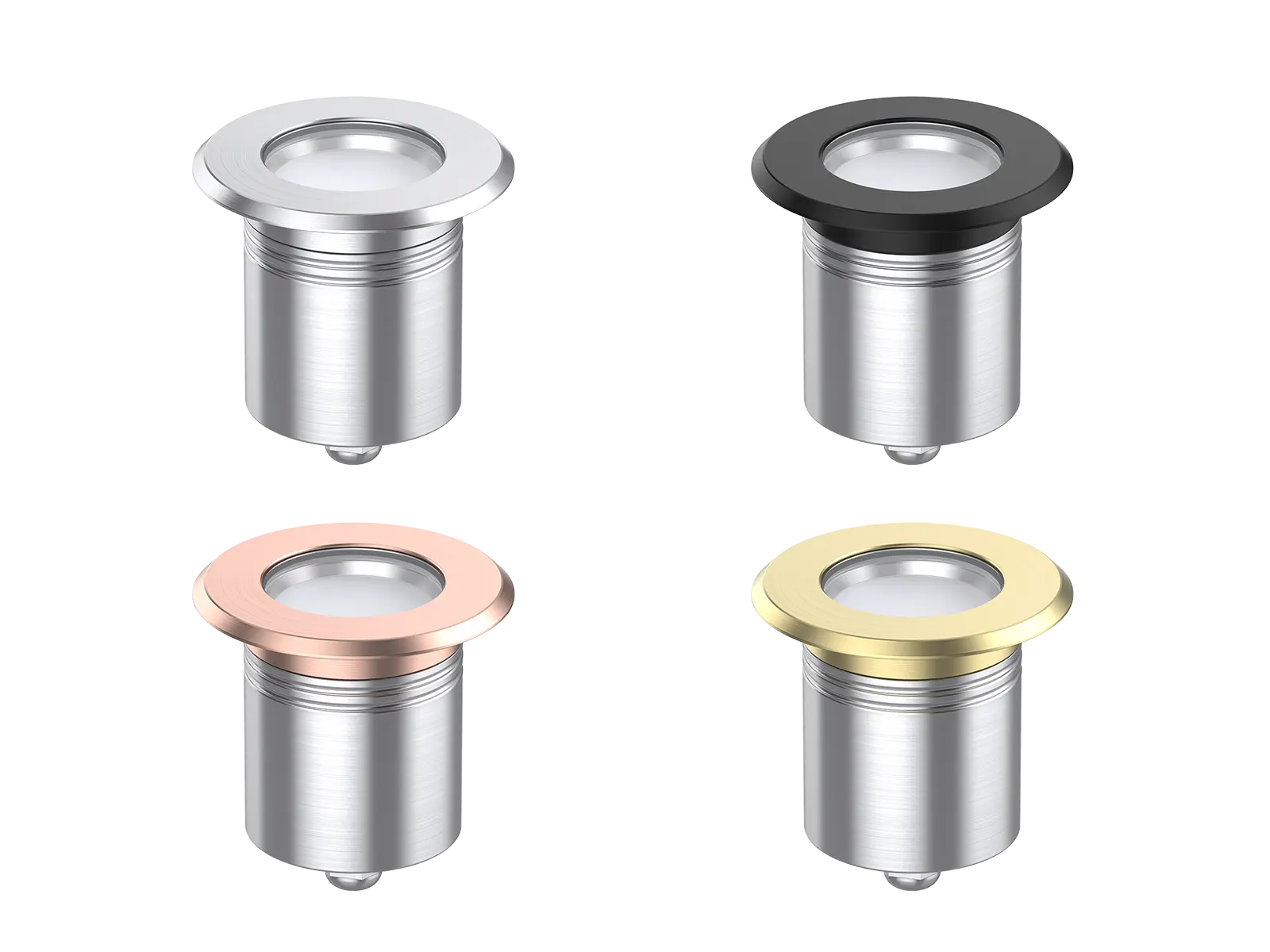

NL19-92 is a IP65 underground light, DC12V low voltage is safe and reliable, the lamp body is made of 316 stainless steel material, offering excellent anti-corrosion performance, making it suitable for outdoor and coastal areas; diameter:92mm, cutout:87mm; including NL19A-92 with flat ring and NL19B-92 four-sided light output, NL19C-92 opposite two-sided light output, NL19D-92 adjacent two-sided light output on the same side, and NL19E-92 single-sided light output;Standard trim color: Stainless steel brushed finish, bronze color / brass color / Black optional, with DIP switches to adjust power and to adjust CCT.
Applications: It is suitable for general lighting applications in homes, hotels, shops, gardens, and coastal areas; widely used in areas such as decks, corridors, sidewalks, courtyards, etc.
| Code | NL19A-92-5W-A2 | NL19B-92-5W-A2 | NL19C-92-5W-A2 | NL19D-92-5W-A2 | NL19E-92-5W-A2 | ||
|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø92*78 | Ø92*95 | Ø92*95 | Ø92*95 | Ø92*95 | ||
| Cutout(mm) | Ø87 | ||||||
| Watt(W) | 5W Max.(5W/3W) | ||||||
| Rated Input Voltage | DC12V | ||||||
| Input Voltage | DC12V | ||||||
| LED Module Input | - | ||||||
| Light Source | SMD | ||||||
| SDCM | SDCM<6 | ||||||
| CCT(K) | 3CCT: 3000K+4000K+5700K | ||||||
| CCT Selection | By DIP Switch | ||||||
| Luminous Flux (lm) ±5% | 3-CCT | Non-DIM | 5W: 280-290 | 5W: 55-60 | 5W: 28-29 | 5W: 28-29 | 5W: 14-15 |
| CRI90 | 3W: 183-190 | 3W: 36-37 | 3W: 18-19 | 3W: 18-19 | 3W: 9-10 | ||
| CRI | CRI90 | ||||||
| Beam Angle(°) | 100° | - | |||||
| UGR | - | ||||||
| LED Driver | Built-in, Flicker Free | ||||||
| Dimming Option | NO | ||||||
| Sensor | NO | ||||||
| Emergency Kits | NO | ||||||
| Electrical Class | Class III | ||||||
| Ingress Protection(IP Rating) | IP65 | ||||||
| Impact Resistance(IK Rating) | IK08 | IK10 | |||||
| Product Finishing | SUS316 | ||||||
| Optics Material | PC | ||||||
| Housing Material | SUS316 | ||||||
| Lifetime(hr) | 50,000h | ||||||
| Glow wire test(°C) | 750°C | ||||||
| Operating Temp.(°C) | -20°C ~45°C | ||||||
| Storage Temp.(°C) | -20°C ~65°C | ||||||
| Installation | Underground mounted | ||||||
