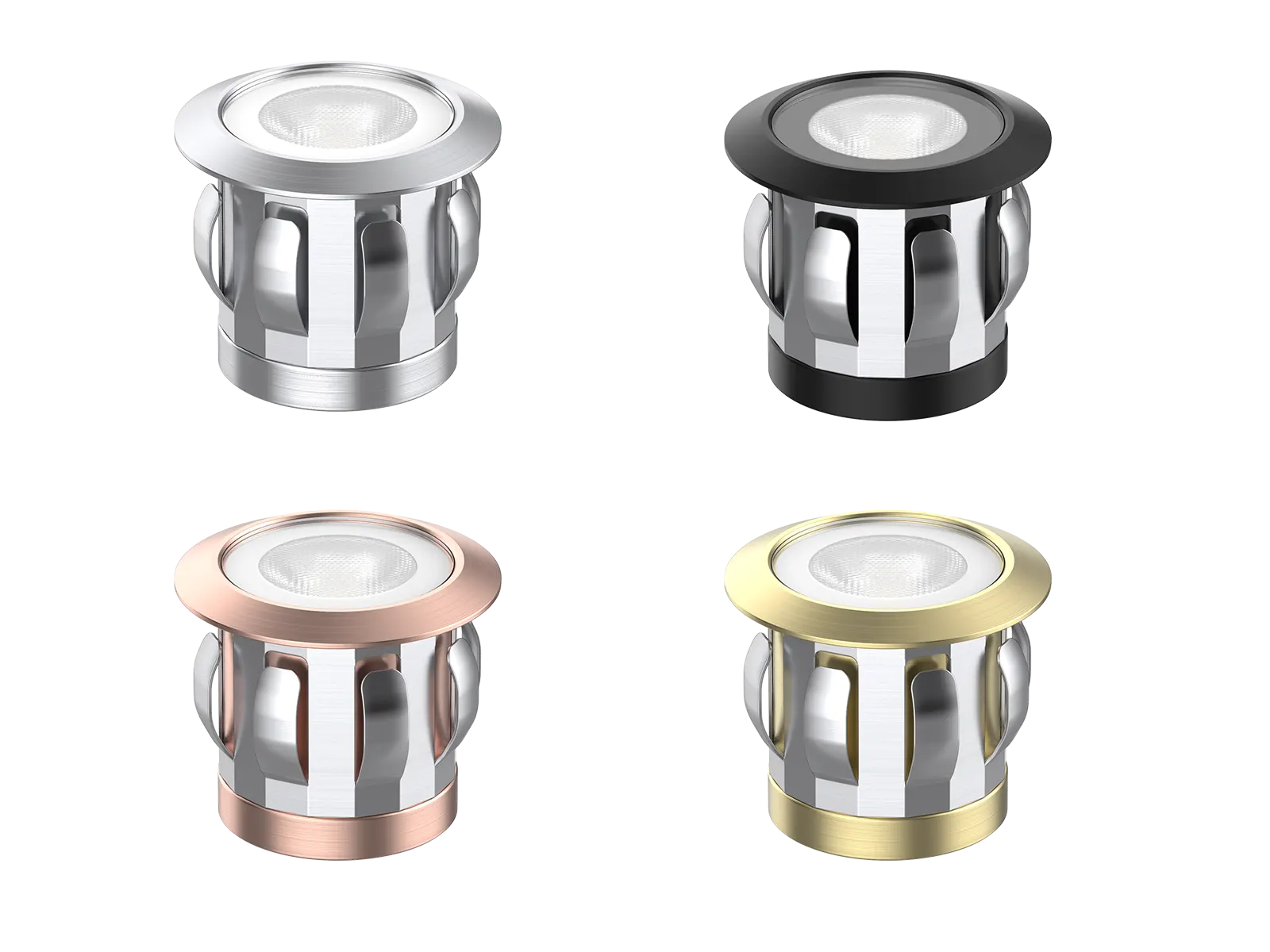

NL19-35 is a IP67 underground light, DC12V low voltage is safe and reliable, the lamp body is made of 316 stainless steel material, offering excellent anti-corrosion performance, making it suitable for outdoor and coastal areas; diameter:35mm, cutout:28mm;Standard color: Stainless steel brushed finish, bronze color / brass color / Black optional, Two optics optional: Lens with 24degree beam angle, diffuser with 100degree beam angle; DC12V 6-way and 10-way distributor for options.
Applications: It is suitable for general lighting applications in homes, hotels, shops, gardens, and coastal areas; widely used in areas such as decks, corridors, sidewalks, courtyards, etc.
| Code | NL19-35-1W | NL19-35-1W*6 (6pcs/pack) | NL19-35-1W*10 (10pcs/pack) | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø35*29.5 | Ø35*29.5 | Ø35*29.5 | ||
| Cutout(mm) | Ø28 | ||||
| Watt(W) | 1W | 6*1W | 10*1W | ||
| Rated Input Voltage | DC12V | AC100-240V | |||
| Input Voltage | DC12V | AC100-240V | |||
| LED Module Input | 1 | 6 | 10 | ||
| Light Source | SMD | ||||
| SDCM | SDCM<6 | ||||
| CCT(K) | Lens (1CCT: 3000K/4000K) | ||||
| Diffuser (1CCT: 3000K/4000K / 2CCT: 3000K+4000K) | |||||
| CCT Selection | Lens: NO Switch / Diffuser: By DIP Switch | ||||
| Luminous Flux (lm) ±5% | 1-CCT | Lens | 85-100lm | 85-100lm*6 | 85-100lm *10 |
| CRI90 | Diffuser | 30-33lm | 30-33lm*6 | 30-33lm*10 | |
| 2-CCT | Diffuser | 30-33lm | 30-33lm*6 | 30-33lm*10 | |
| CRI | CRI90 | ||||
| Beam Angle(°) | Lens: 24° / Diffuser: 100° | ||||
| UGR | - | ||||
| LED Driver | Built-out, Flicker Free | ||||
| Dimming Option | NO | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class III | Class II | |||
| Ingress Protection(IP Rating) | IP67 | ||||
| Impact Resistance(IK Rating) | IK04 | ||||
| Product Finishing | SUS316 | ||||
| Optics Material | PC | ||||
| Housing Material | SUS316 | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Underground mounted | ||||
