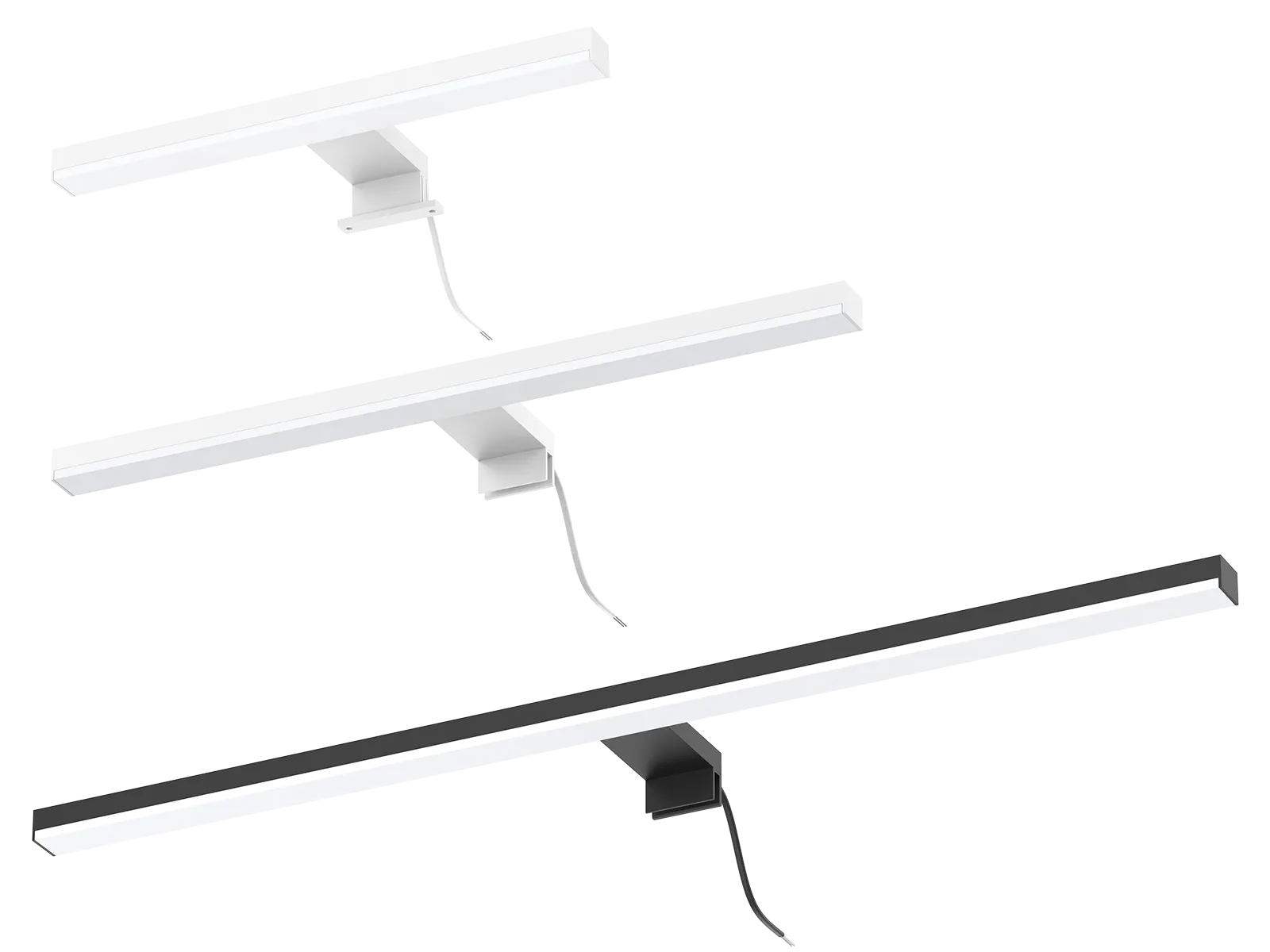

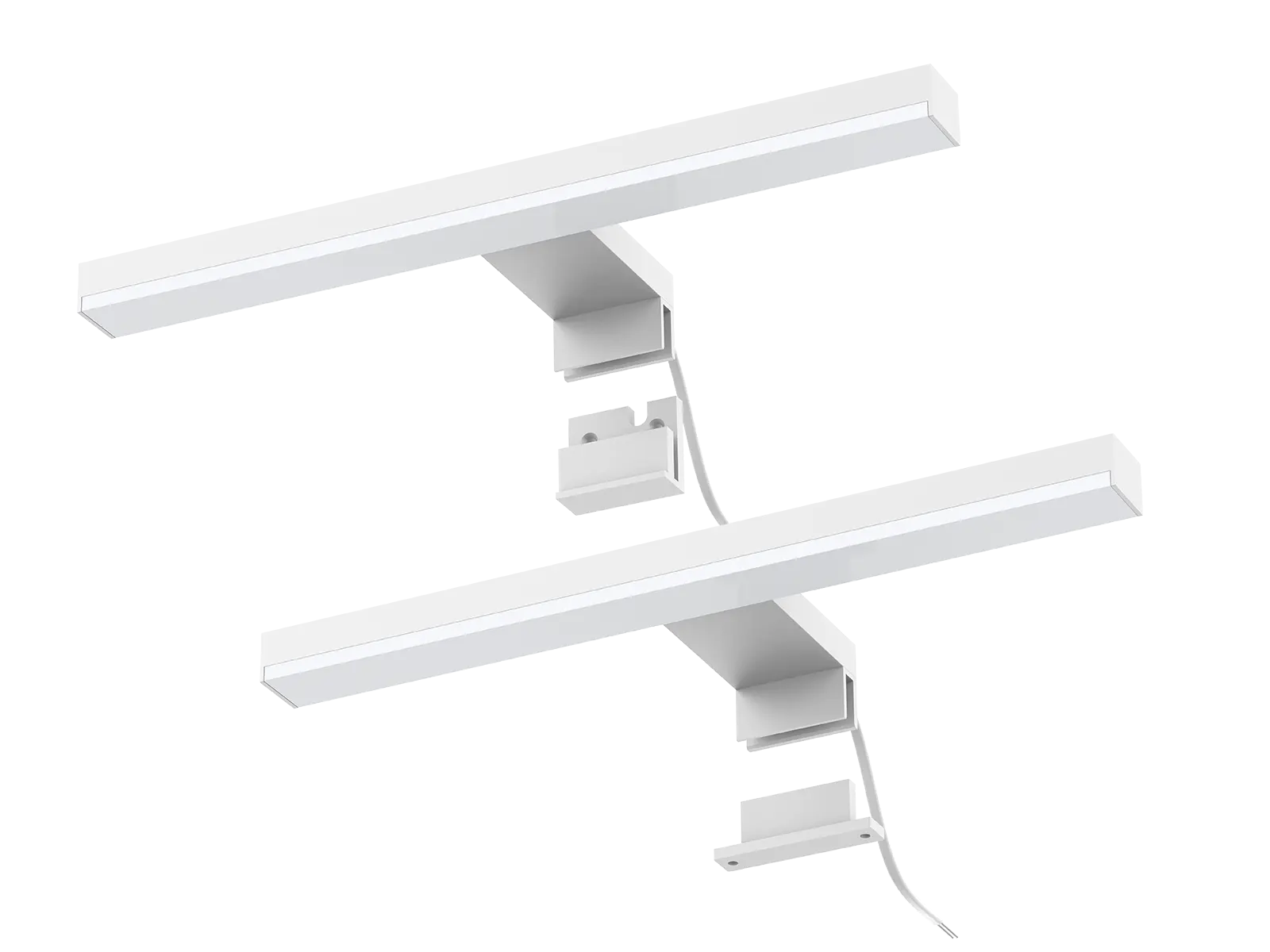

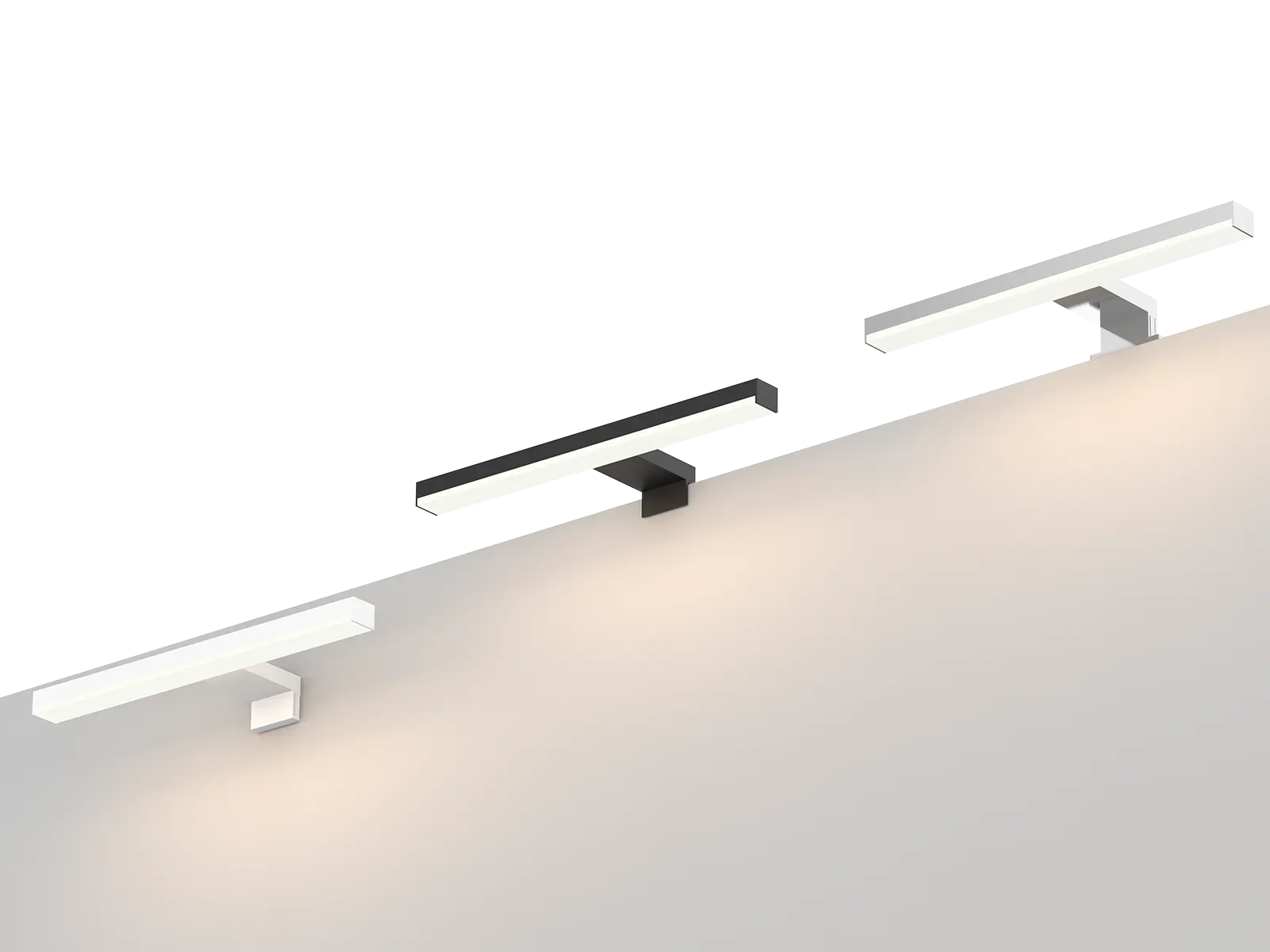

The super slim led mirror light adopts ultra-thin led driver which makes the overall appearance more harmonious. The led diffuser is design with PC material with a fine sandy texture and lamp body with aluminium. It is suitable to be used for vertical mirror, top of various cabinet or wall and other install application.
Applications: It is widely used in bathroom and dressing table of restaurant, hotel, shopping mall and so on.
| Code | ML53-400-6W-D | ML53-600-9W-D | ML53-900-12W-D | ||
|---|---|---|---|---|---|
| Dimension(mm) | 400*129*41 | 600*129*41 | 900*129*41 | ||
| Watt(W) | 6W | 9W | 12W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | SDCM<6 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5700K || 2-CCT: 3000K+4000K | ||||
| CCT Selection | By DIP Switch | ||||
| White | 620-660 | 1015-1080 | 1415-1510 | ||
| 1-CCT | Black | 500-560 | 810-890 | 1110-1230 | |
| DIM | Chrome | 580-630 | 910-990 | 1240-1370 | |
| Luminous Flux (lm) ±5% | White | 620-660 | 1015-1080 | 1415-1510 | |
| CRI80 | 2-CCT | Black | 500-560 | 810-890 | 1110-1230 |
| DIM | Chrome | 580-630 | 910-990 | 1240-1370 | |
| CRI | 80 | ||||
| Beam Angle(°) | 120° | ||||
| UGR | - | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | Triac | ||||
| Sensor | - | ||||
| Emergency Kits | - | ||||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP54 | ||||
| Impact Resistance(IK Rating) | - | ||||
| Product Finishing | White RAL9016/Black RAL9005/Chrome | ||||
| Optics Material | PC | ||||
| Housing Material | Aluminium+PC | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C ~45°C | ||||
| Storage Temp.(°C) | -20°C ~60°C | ||||
| Installation | Wall Mount | ||||
