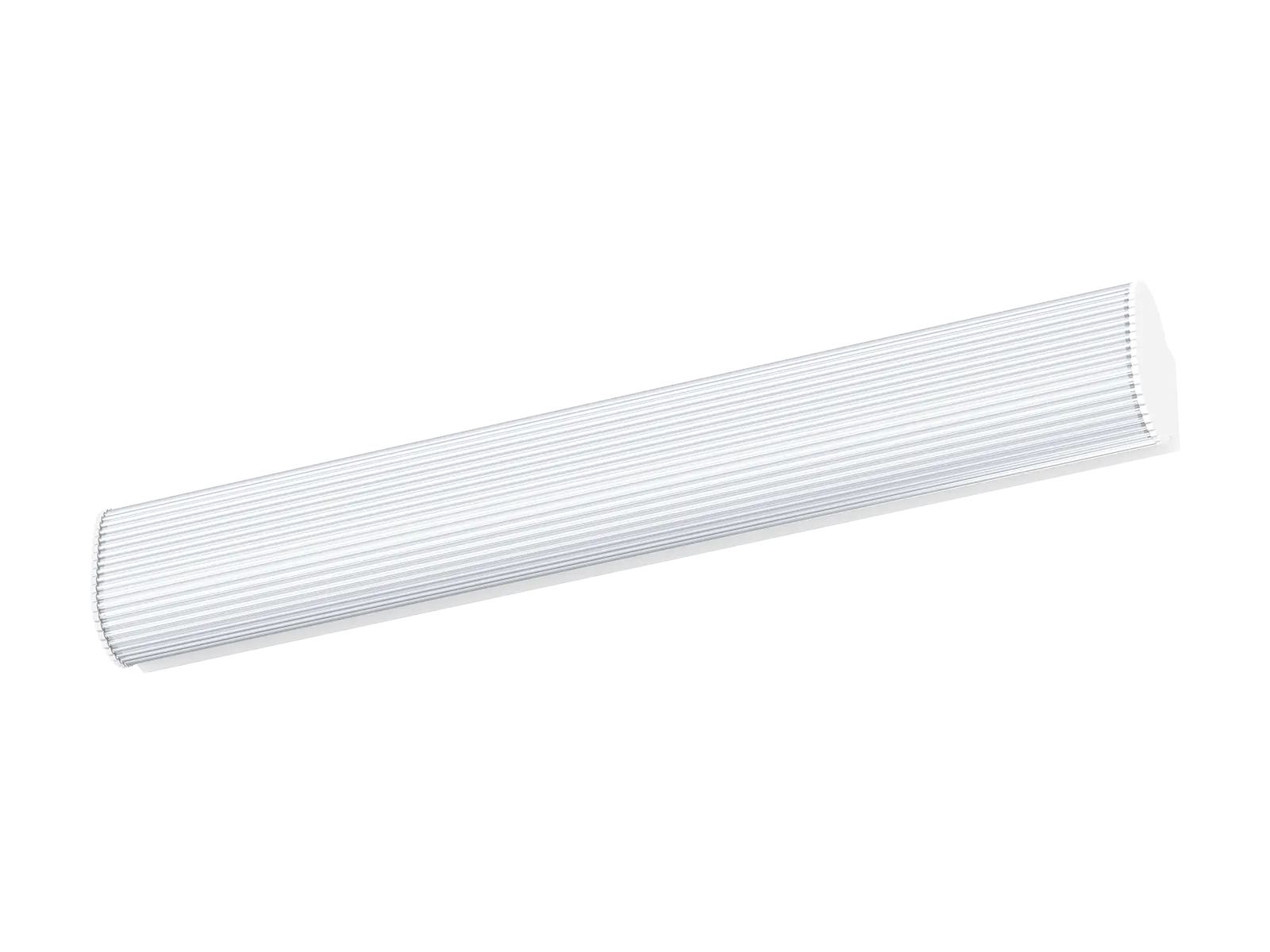

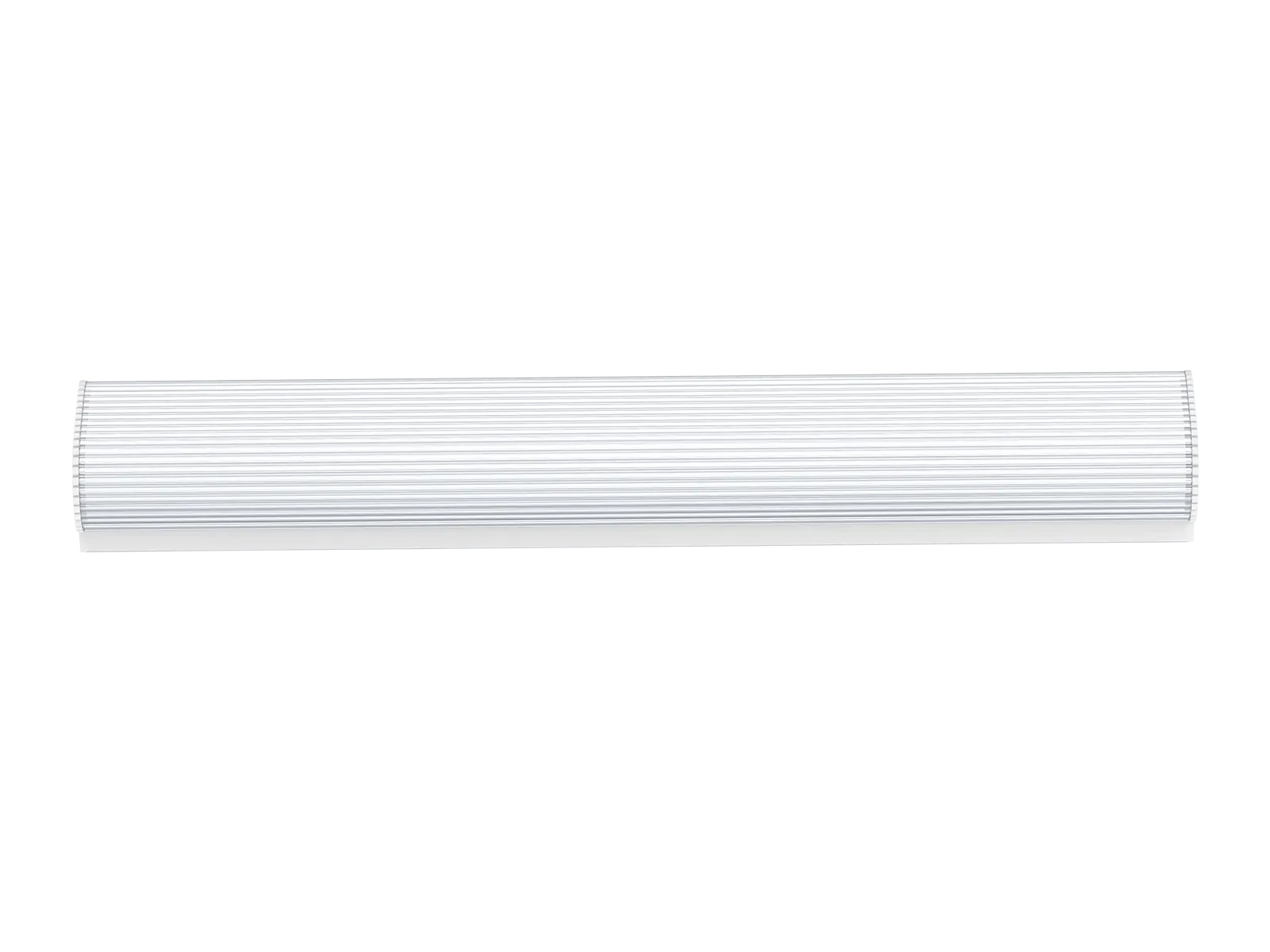

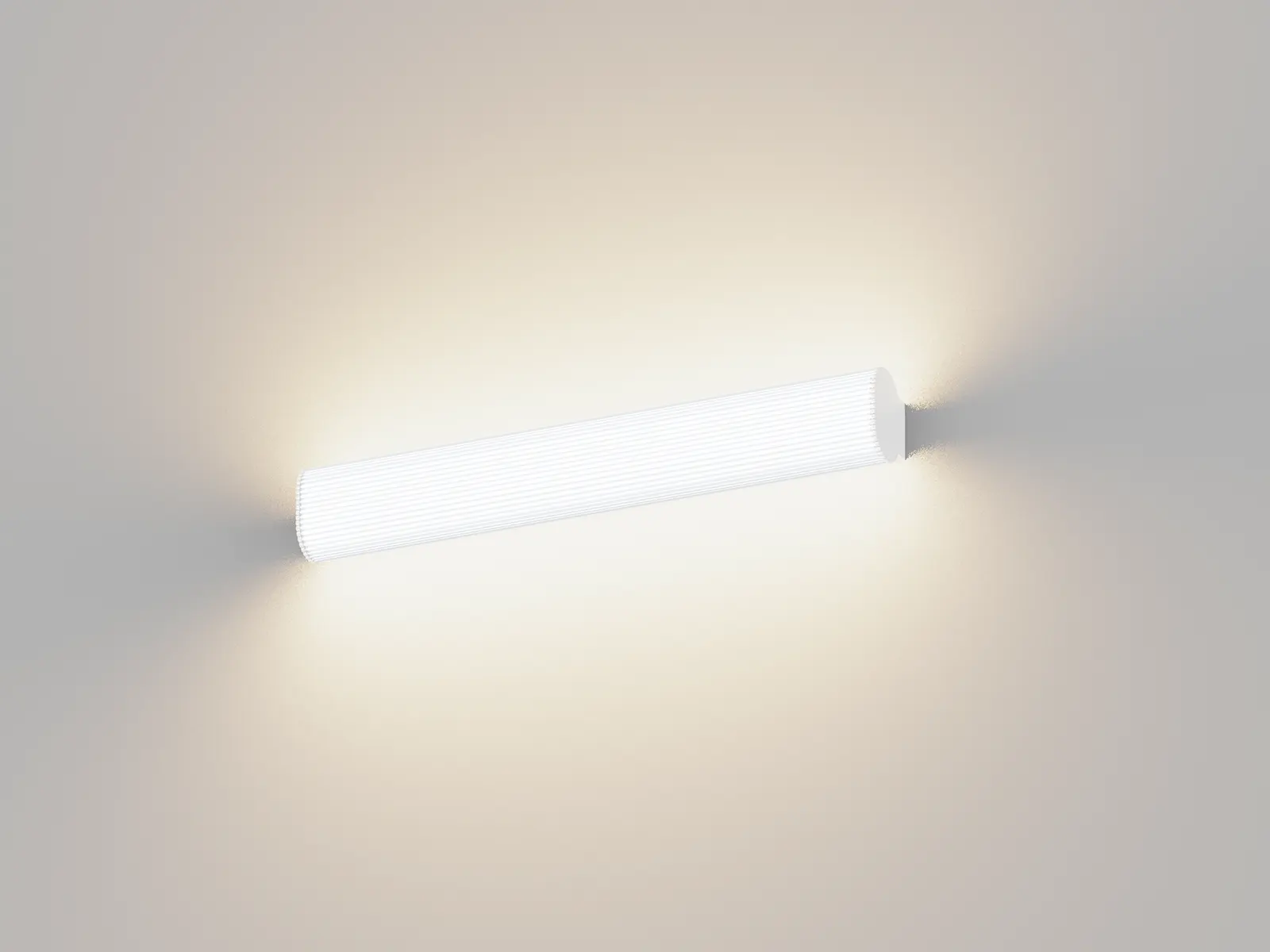

The led mirror light adopts full PC material with wide beam angle and transparent wavy diffuser, which creates even and soft lighting effect. It is IP54 for both horizontal and vertical installation with wattage changeable, CCT changeable and triac dim as standard meet various demand. Simple steps to install makes it convenient for installation.
Applications: It is widely used in bathroom, bedroom, corridor, stairwell, balcony and so on.
| Code | ML50-10W-D3C3 | ||
|---|---|---|---|
| Dimension(mm) | 445*69*54 | ||
| Cutout(mm) | - | ||
| Watt(W) | 10W Max.(8W/6W optional) | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | - | ||
| Light Source | SMD | ||
| SDCM | SDCM<6 | ||
| CCT(K) | 3-CCT:3000K+3500K+4000K | ||
| CCT Selection | By DIP Switch | ||
| Luminous Flux (lm) ±5% | 3-CCT | DIM | 10W: 1100-1200 |
| CRI80 | 8W: 850-900 | ||
| 6W: 650-700 | |||
| CRI | 80 | ||
| Beam Angle(°) | 170° | ||
| UGR | - | ||
| LED Driver | Built-in | ||
| Dimming Option | Triac dim | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP54 Wall mount | ||
| Impact Resistance(IK Rating) | IK04 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | Diffuser PC | ||
| Housing Material | PC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~40°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Wall mount | ||
