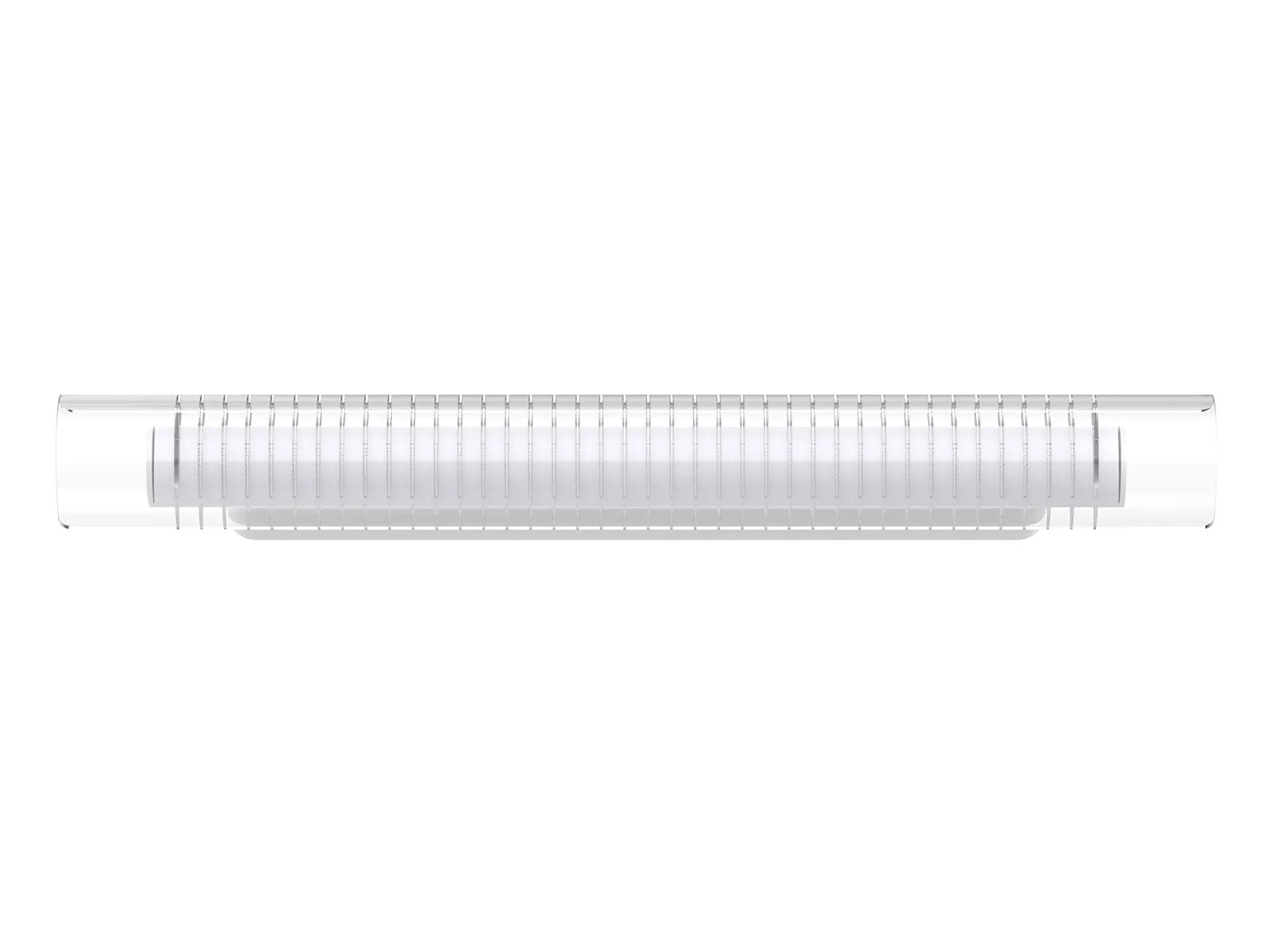

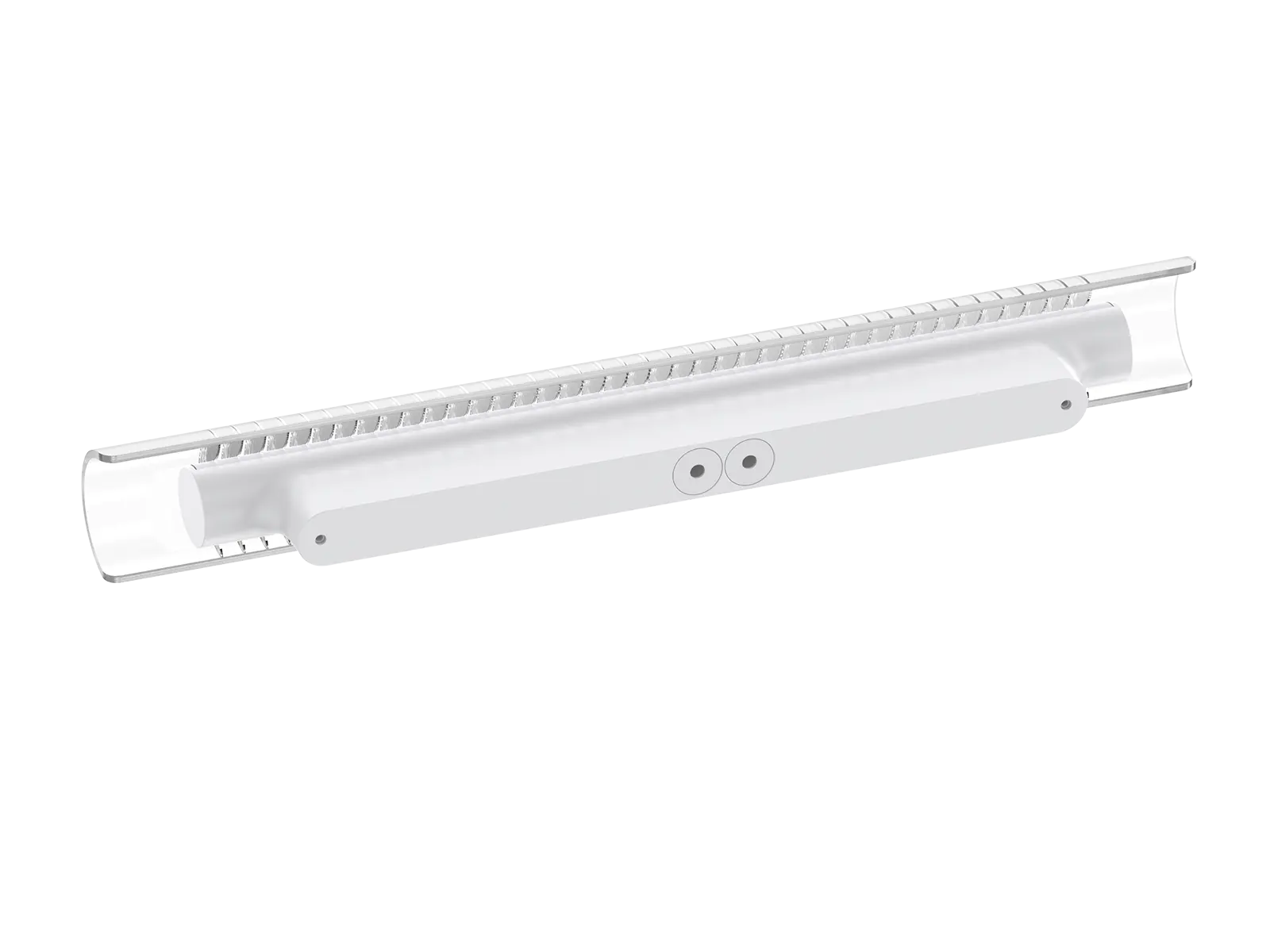

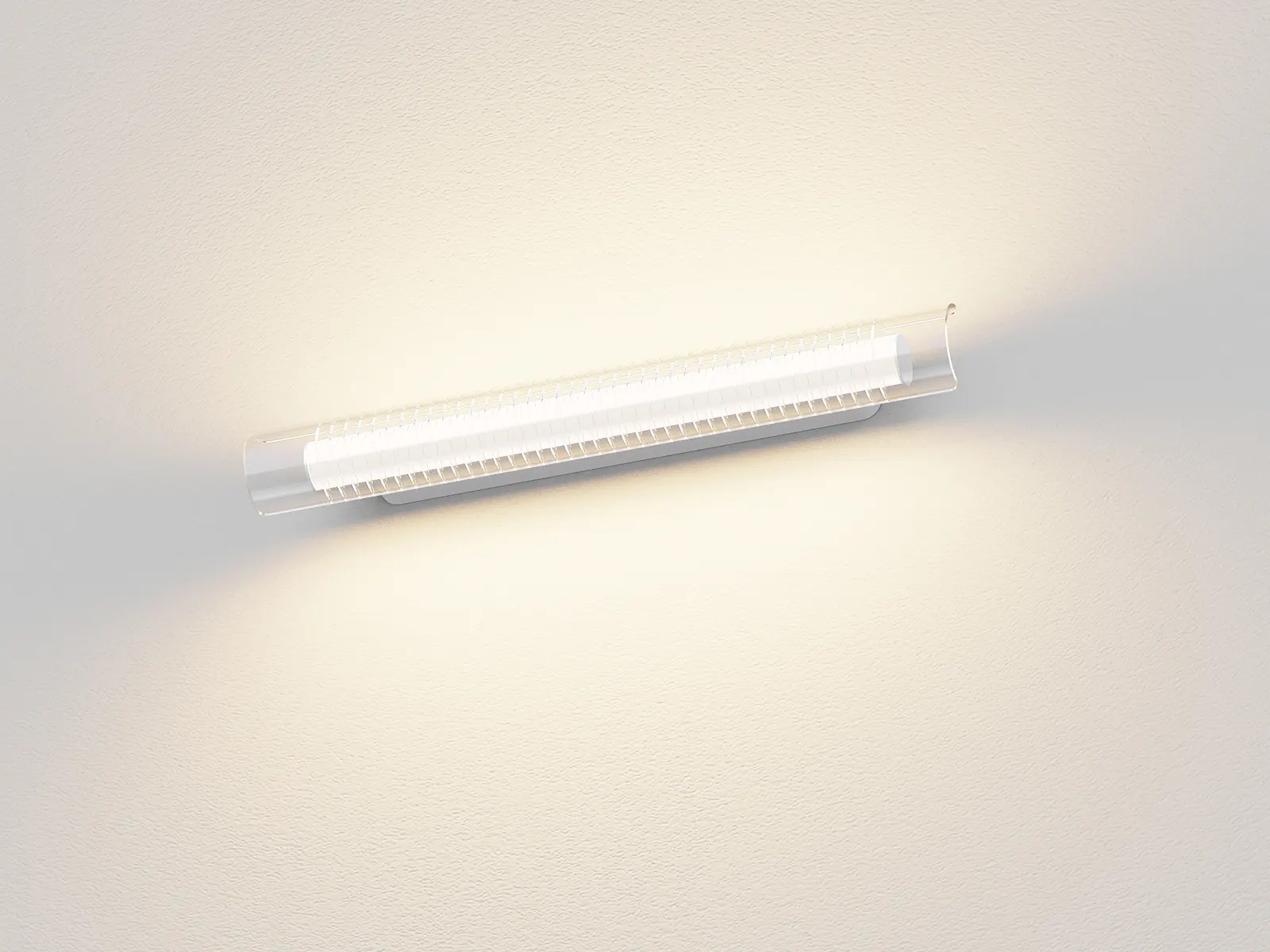

The mirror light is designed with special comb shaped and wide beam angle 140° makes even lighting performance . Its aluminum housing is benefit for heat dissipation and increase lifespan. The slim base is suitable for various application and easily install.
Applications: It is widely used in bathroom, showroom, living room, make-up room and so on.
| Code | ML49-7W-D3C3 | ||
|---|---|---|---|
| Dimension(mm) | 452*56*69 | ||
| Watt(W) | 7W Max.(6W/5W optional) | ||
| Rated Input Voltage | AC200-240V | ||
| Input Voltage | AC200-240V | ||
| Light Source | SMD | ||
| SDCM | SDCM<6 | ||
| CCT(K) | 3-CCT: 3000K+3500K+4000K | ||
| CCT Selection | By DIP Switch | ||
| Luminous Flux (lm) ±5% CRI80 | 3-CCT | DIM | 7W:700-750lm 6W:600-650lm 5W:500-550lm |
| CRI | CRI80 | ||
| Beam Angle(°) | 140° | ||
| LED Driver | Built-in, Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class I | ||
| Ingress Protection(IP Rating) | IP54 | ||
| Impact Resistance(IK Rating) | IK08 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | Diffuser PC | ||
| Housing Material | Die-Casting Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~40°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Wall mount | ||
