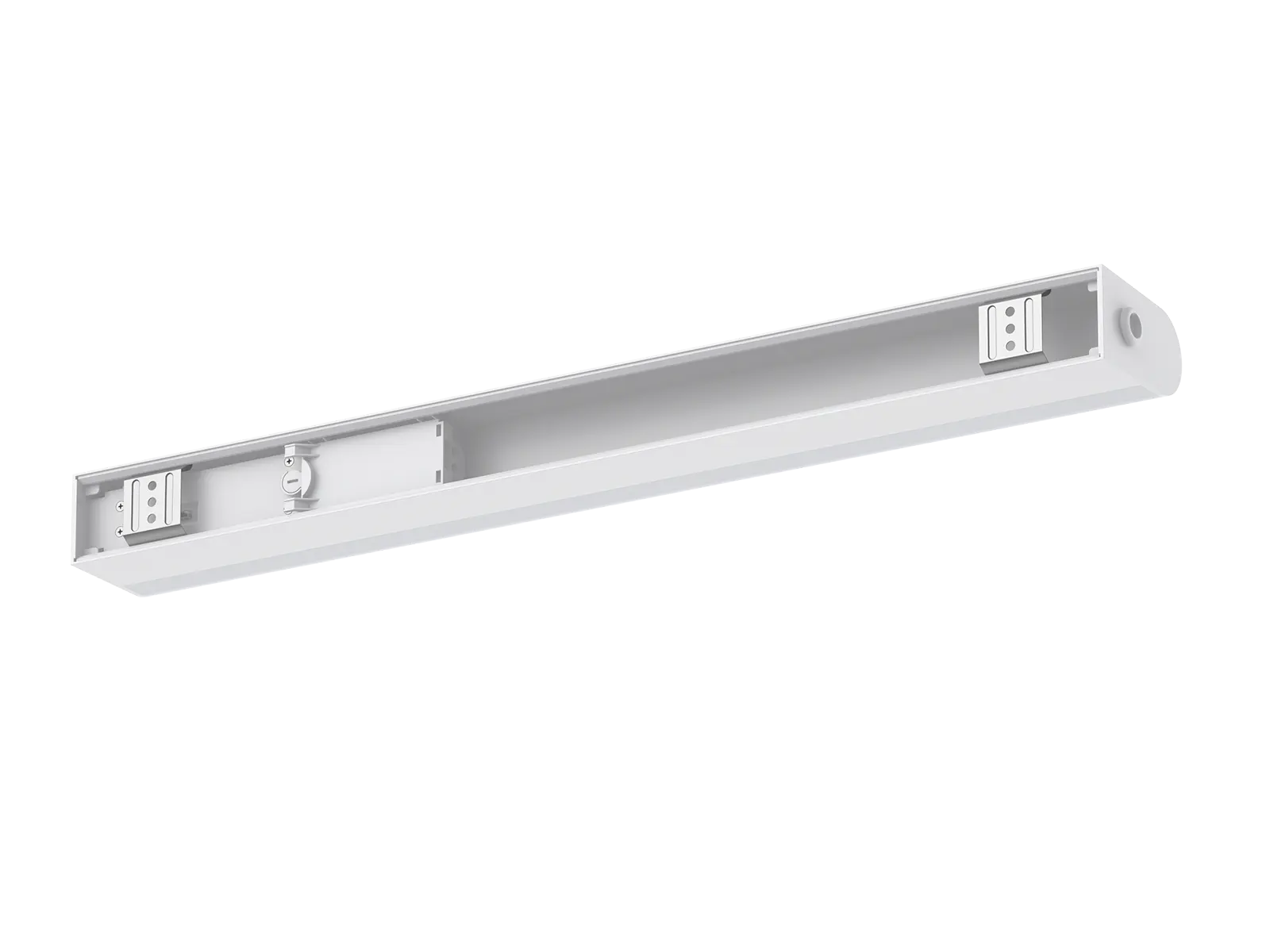

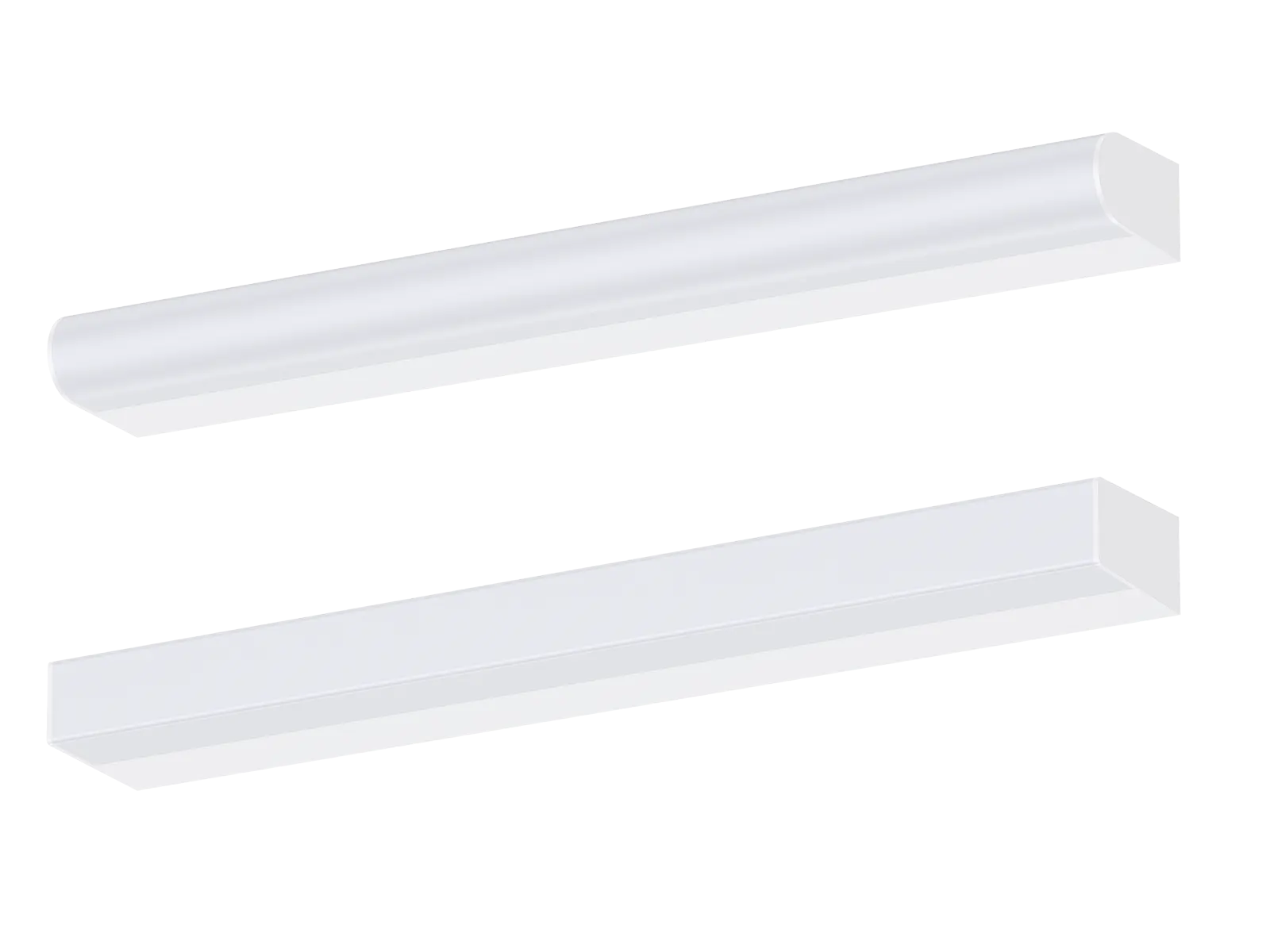

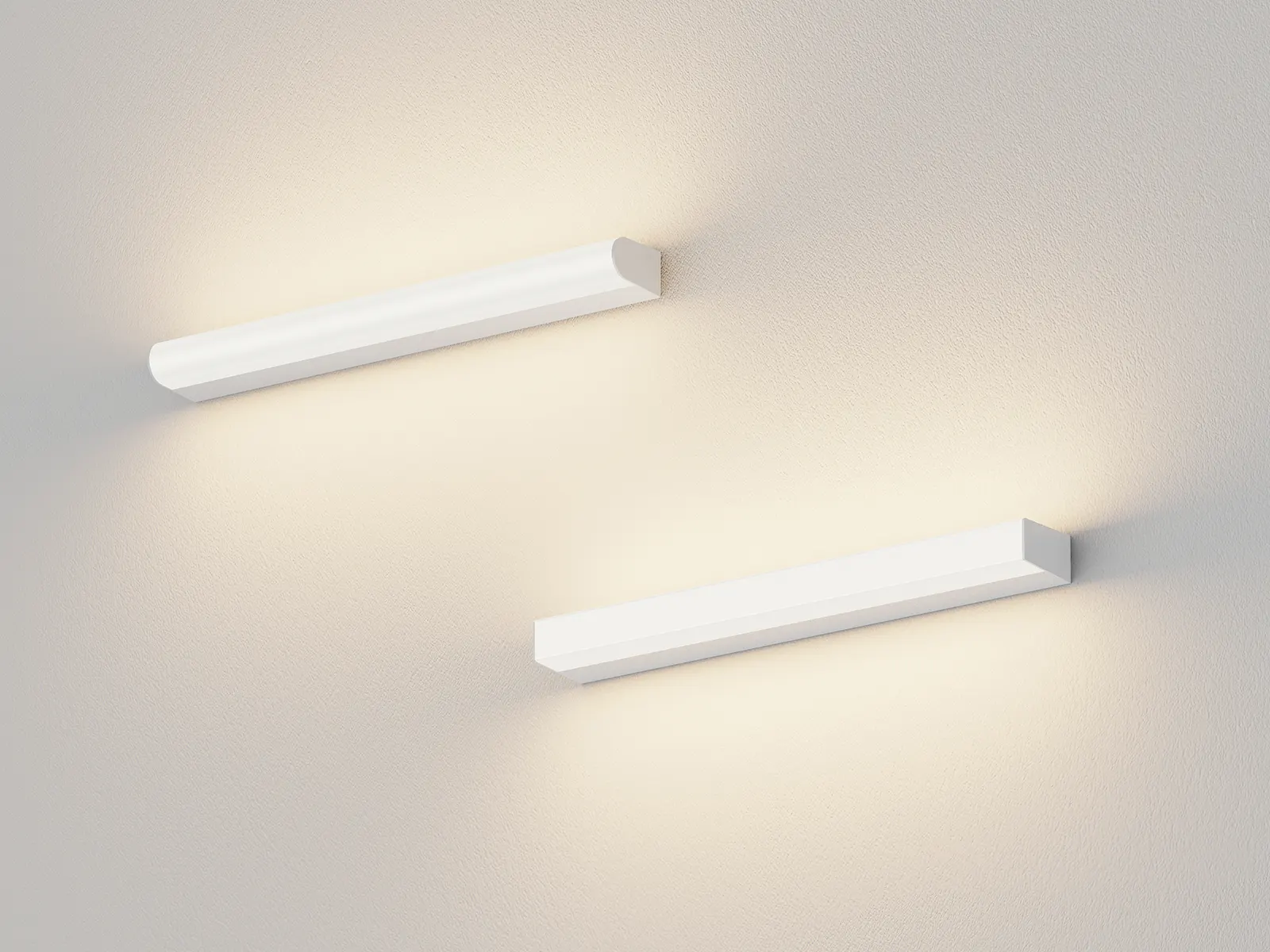

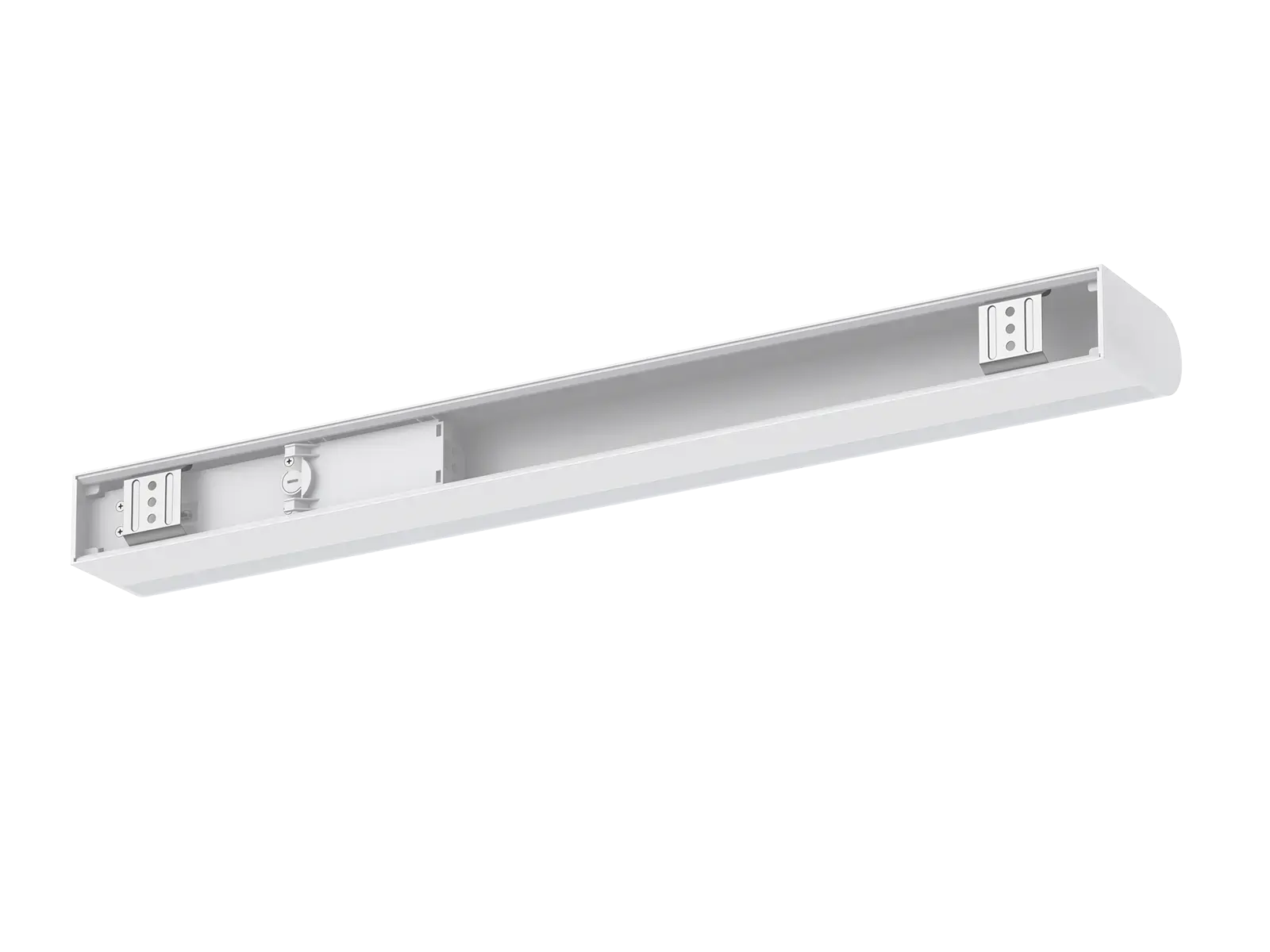

The led mirror light with big beam angle design and full PC material. It is supported loop in and loop out and wiring on back or side. Version A is round shape while version B is square shape. Shiny diffuser and matt diffuser is optional for whole series. With or without on/off switch version for selection. With neat appearance and easy installation way, it is a high cost--performance led light.
Applications: Bedroom, makeup room, dress-up room, bathroom and so on.
| Code | ML47A-450- 8W | ML47A-600- 10W | ML47A-450- 8W-Switch | ML47A-600- 10W-Switch | ML47B-450- 8W | ML47B-600- 10W | ML47B-450- 8W-Switch | ML47B-600- 10W-Switch | |
|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 451*50*85 | 601*50*85 | 456*50*85 | 606*50*85 | 451*50*85 | 601*50*85 | 456*50*85 | 606*50*85 | |
| Watt(W) | 8W | 10W | 8W | 10W | 8W | 10W | 8W | 10W | |
| Rated Input Voltage | AC220-240V | ||||||||
| Input Voltage | AC198-264V | ||||||||
| Light Source | SMD | ||||||||
| SDCM | SDCM<6 | ||||||||
| CCT(K) | 3-CCT: 3000K+4000K+5700K | ||||||||
| CCT Selection DIP Switch | YES | ||||||||
| Luminous Flux (lm) ±5% CRI80 | DIM (Matt diffuser) | 1000-1100 | 1250-1350 | 1000-1100 | 1250-1350 | 1000-1100 | 1250-1350 | 1000-1100 | 1250-1350 |
| DIM (Shiny diffuser) | 1050-1150 | 1300-1400 | 1050-1150 | 1300-1400 | 1050-1150 | 1300-1400 | 1050-1150 | 1300-1400 | |
| CRI | CRI 80 | ||||||||
| Beam Angle(°) | 210*110° | ||||||||
| LED Driver | Built-in, Flicker Free | ||||||||
| Dimming Option | Triac | ||||||||
| Electrical Class | Class II | ||||||||
| Ingress Protection(IP Rating) | IP54 | ||||||||
| Impact Resistance(IK Rating) | IK06 | ||||||||
| Product Finishing | White RAL9016 | ||||||||
| Optics Material | PC | ||||||||
| Housing Material | PC | ||||||||
| Lifetime(hr) | 50,000h | ||||||||
| Glow wire test(°C) | 750°C | ||||||||
| Operating Temp.(°C) | -20°C~45°C | ||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||
| Installation | Wall mount | ||||||||
