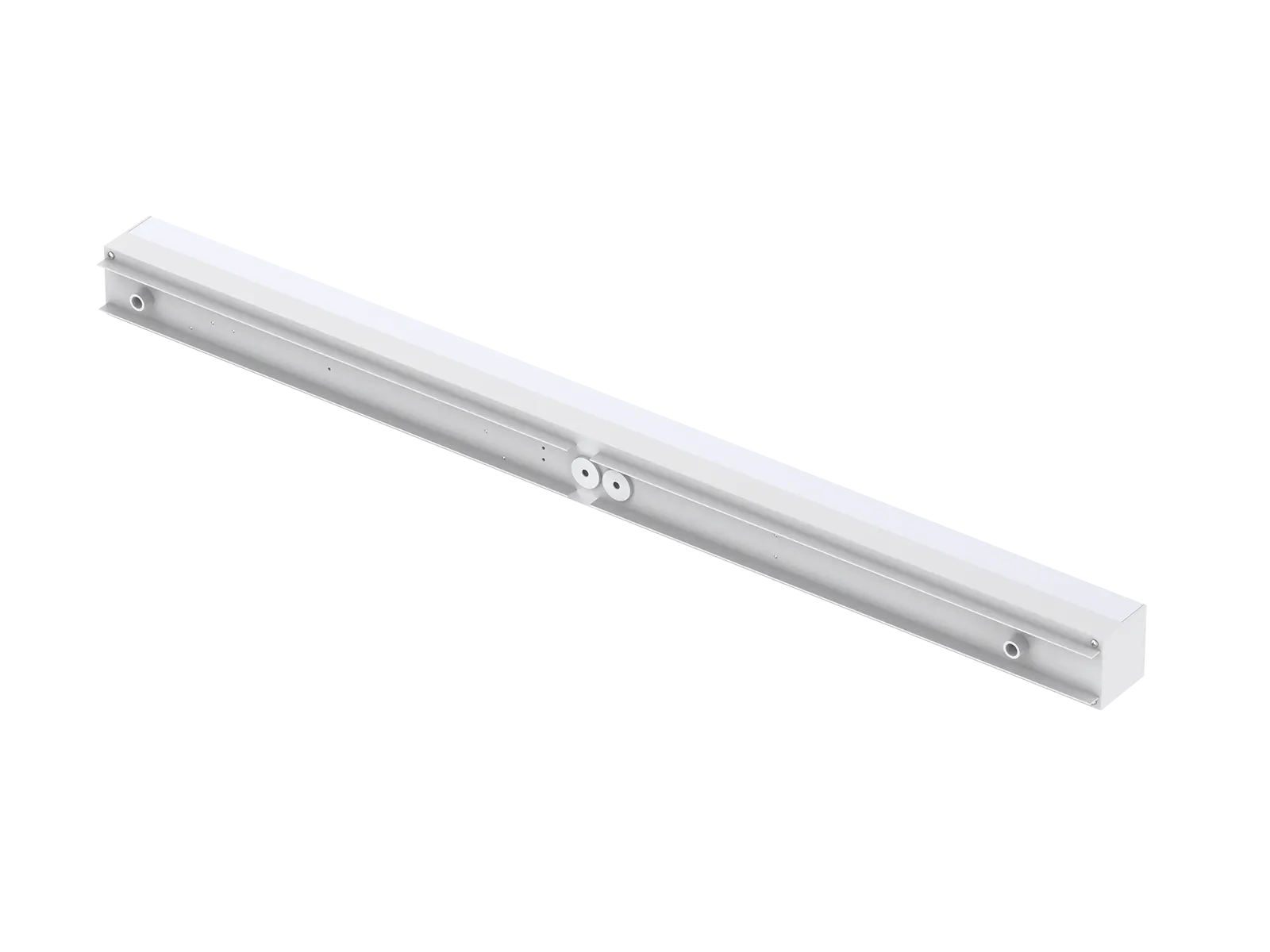

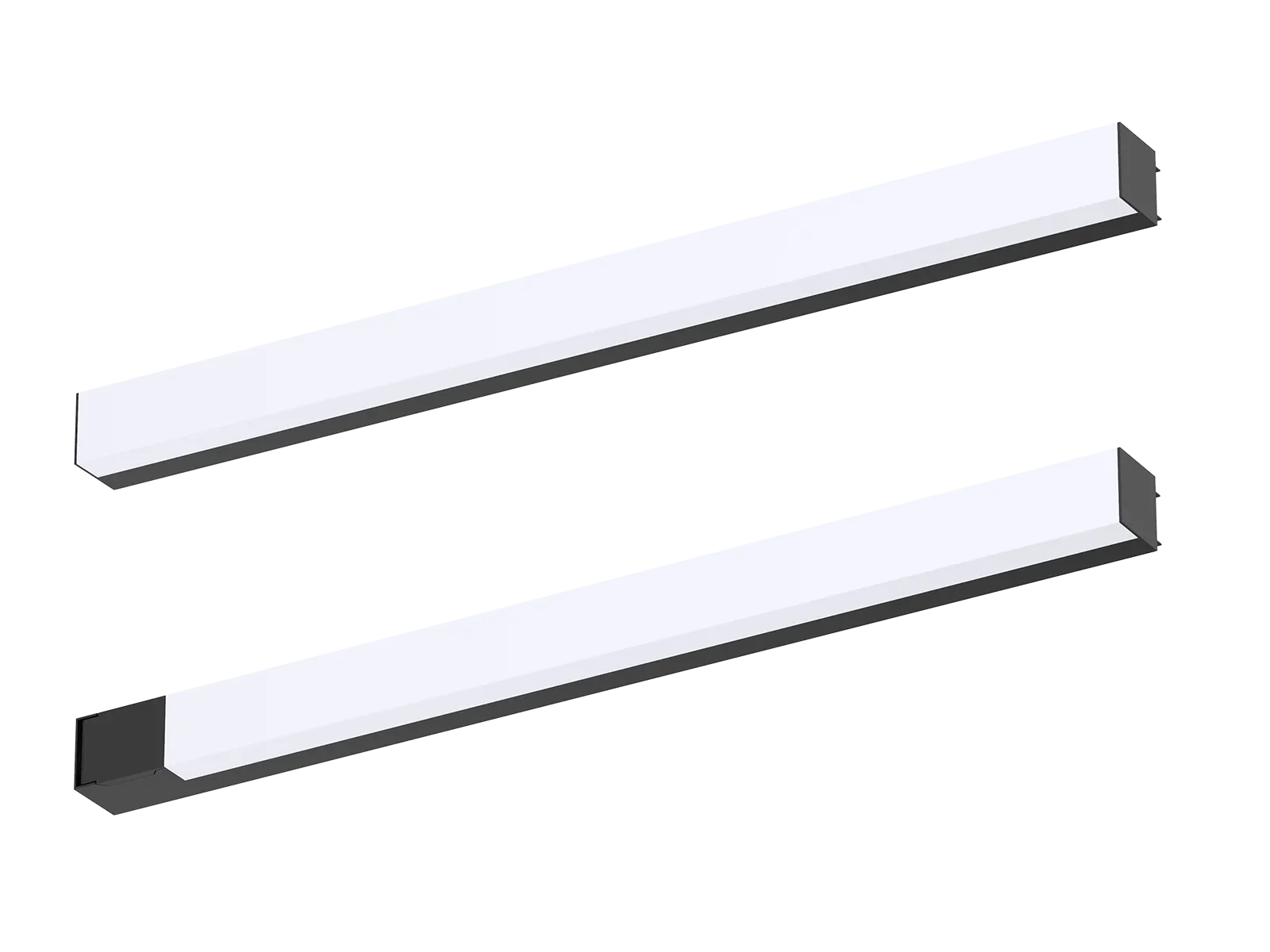

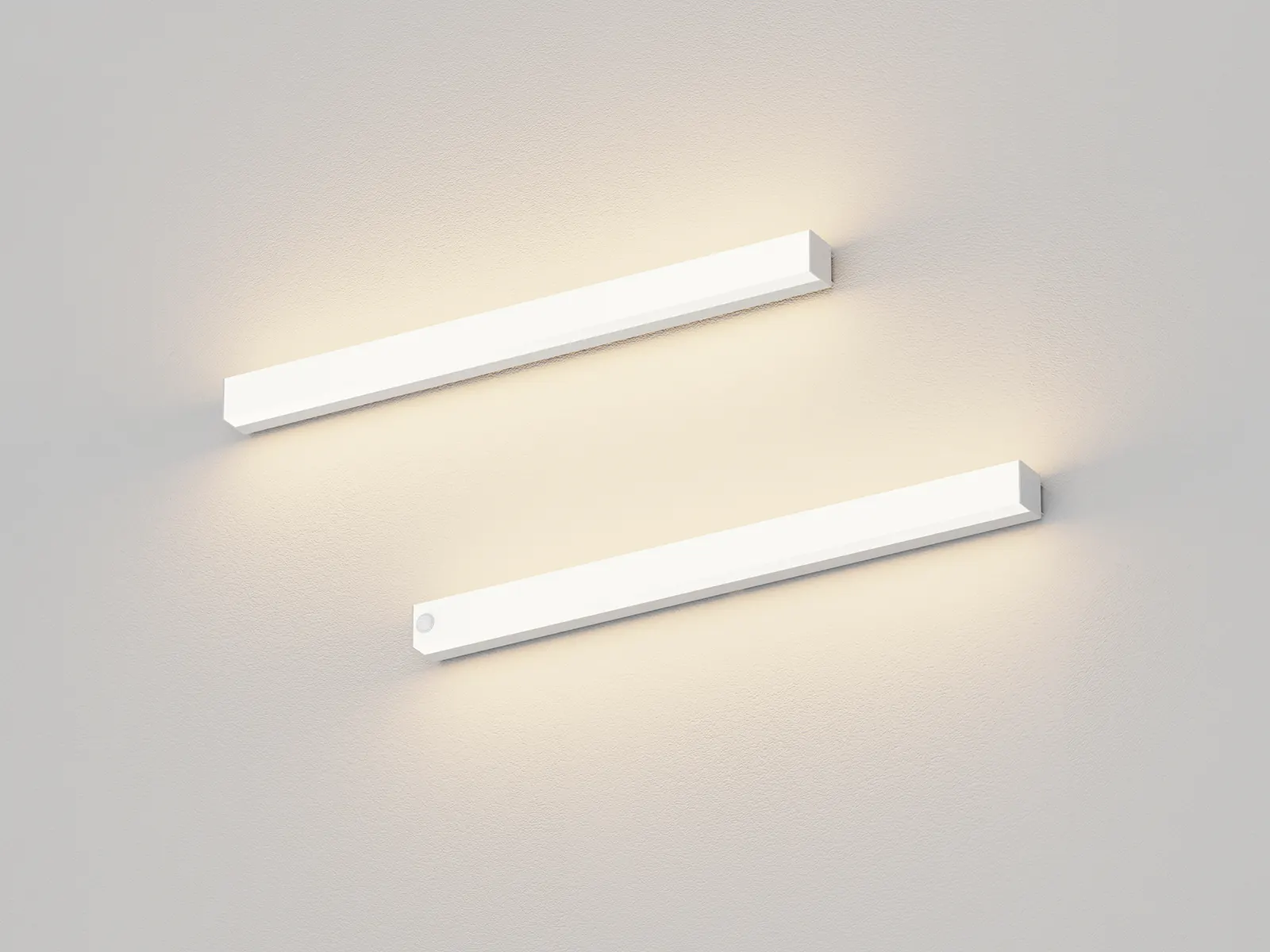

The led vanity light with multiple functions which is able to match with various demand. Sensor, traic dim, Dali dim, CCT interchangeable and wattage adjustable functions are available. It adopts high lumen efficiency led chip makes it achieve to 130lm/W max. The lamp body is designed with aluminum material which makes the heat dissipation performance well. Version A without socket while version B with socket. It supports side or back wiring way.
Applications: Application: Hotel, bedroom, make-up room, washroom as so on.
| Code | ML45A-600-10W | ML45A-900-15W | ML45A-1200-20W | ML45A-600-10W-DA | ML45A-900-15W-DA | ML45A-1200-20W-DA | ML45B-600-10W | ML45B-900-15W | ML45B-1200-20W | ML45B-600-10W-DA | ML45B-900-15W-DA | ML45B-1200-20W-DA | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 600*66*60 | 900*66*60 | 1200*66*60 | 600*66*60 | 900*66*60 | 1200*66*60 | 600*66*60 | 900-66*60 | 1200*66*60 | 600*66*60 | 900-66*60 | 1200*66*60 | ||
| Watt(W) | 10W Max. | 15W Max. | 20W Max. | 10W | 15W Max. | 20W Max. | 10W Max. | 15W Max. | 20W Max. | 10W | 15W Max. | 20W Max. | ||
| (8W/6W optional) | (13W/12W/10W optional) | (18W/17W/15W | (13W/12W/10W | (18W/17W/15W | (8W/6W optional) | (13W/12W/10W optional) | (18W/17W/15W | (13W/12W/10W | (18W/17W/15W | |||||
| optional) | optional) | optional) | optional) | optional) | optional) | |||||||||
| Rated Input Voltage | AC220-240V | AC220-240V | ||||||||||||
| Input Voltage | AC198-264V | AC198-264V | ||||||||||||
| LED Module Input | - | - | ||||||||||||
| Light Source | SMD2835 | SMD2835 | ||||||||||||
| SDCM | SDCM<6 | SDCM<6 | ||||||||||||
| CCT(K) | 2-CCT: 3000K+4000K | 2-CCT: 3000K+4000K | ||||||||||||
| CCT Selection | By DIP Switch | By DIP Switch | ||||||||||||
| 10W:1090-1150 | 15W:1850-1960 | 20W: 2400-2520 | 10W:1090-1150 | 15W:1850-1960 | 20W: 2400-2520 | |||||||||
| Non-DIM | 8W:900-950 | 13W:1550-1640 | 18W:2160-2270 | - | - | - | 8W:900-950 | 13W:1550-1640 | 18W:2160-2270 | - | - | - | ||
| 6W:640-680 | 12W:1400-1480 | 17W: 2020-2130 | 6W:640-680 | 12W:1400-1480 | 17W: 2020-2130 | |||||||||
| Luminous Flux (lm) ±5% | 2-CCT | 10W:1220-1300 | 15W:1900-2000 | 10W:1220-1300 | 15W:1900-2000 | |||||||||
| CRI80 | 10W:1090-1150 | 15W:1940-2040 | 20W:2400-2520 | 10W:1090-1150 | 15W:1940-2040 | 20W:2400-2520 | ||||||||
| DIM | 8W:900-950 | 13W:1650-1740 | 18W: 2070-2180 | - | - | - | 8W:900-950 | 13W:1650-1740 | 18W: 2070-2180 | - | - | - | ||
| 6W:640-680 | 12W: 1400-1480 | 17W:1900-2020 | 6W:640-680 | 12W: 1400-1480 | 17W:1900-2020 | |||||||||
| 10W:1220-1300 | 15W:1780-1870 | 10W:1220-1300 | 15W:1780-1870 | |||||||||||
| 1150-1210 | 15W:1850-1960 | 20W: 2400-2520 | 1150-1210 | 15W:1850-1960 | 20W: 2400-2520 | |||||||||
| DALI | - | - | - | 13W:1600-1690 | 18W: 2070-2180 | - | - | - | 13W:1600-1690 | 18W: 2070-2180 | ||||
| 12W:1400-1480 | 17W:1990-2110 | 12W:1400-1480 | 17W:1990-2110 | |||||||||||
| 10W:1270-1350 | 15W:1850-1950 | 10W:1270-1350 | 15W:1850-1950 | |||||||||||
| CRI | 80 | 80 | ||||||||||||
| Beam Angle(°) | 120° | 120° | ||||||||||||
| LED Driver | Built-in, Flicker Free | Built-in, Flicker Free | ||||||||||||
| Dimming Option | Triac | DALl-2+push Dim | Triac | DALl-2+push Dim | ||||||||||
| Sensor | PIR sensor/Daylight sensor(for non-dim only) | NO | PIR sensor/Daylight sensor(for non-dim only) | NO | ||||||||||
| Emergency Kits | NO | NO | ||||||||||||
| Electrical Class | Class II | Class I | ||||||||||||
| Ingress Protection(IP Rating) | Wall mount IP44 | Wall mount IP44 | ||||||||||||
| Impact Resistance(IK Rating) | IK03 | IK03 | ||||||||||||
| Product Finishing | White RAL9016 | White RAL9016 | ||||||||||||
| Optics Material | PC | PC | ||||||||||||
| Housing Material | Aluminium+PC | Aluminium+PC | ||||||||||||
| Lifetime(hr) | 50,000h | 50,000h | ||||||||||||
| Glow wire test(°C) | 750°C | 750°C | ||||||||||||
| Operating Temp.(°C) | -20°C~45°C | -20°C~45°C | ||||||||||||
| Storage Temp.(°C) | -20°C~65°C | -20°C~65°C | ||||||||||||
| Installation | Wall Mount | Wall Mount | ||||||||||||
