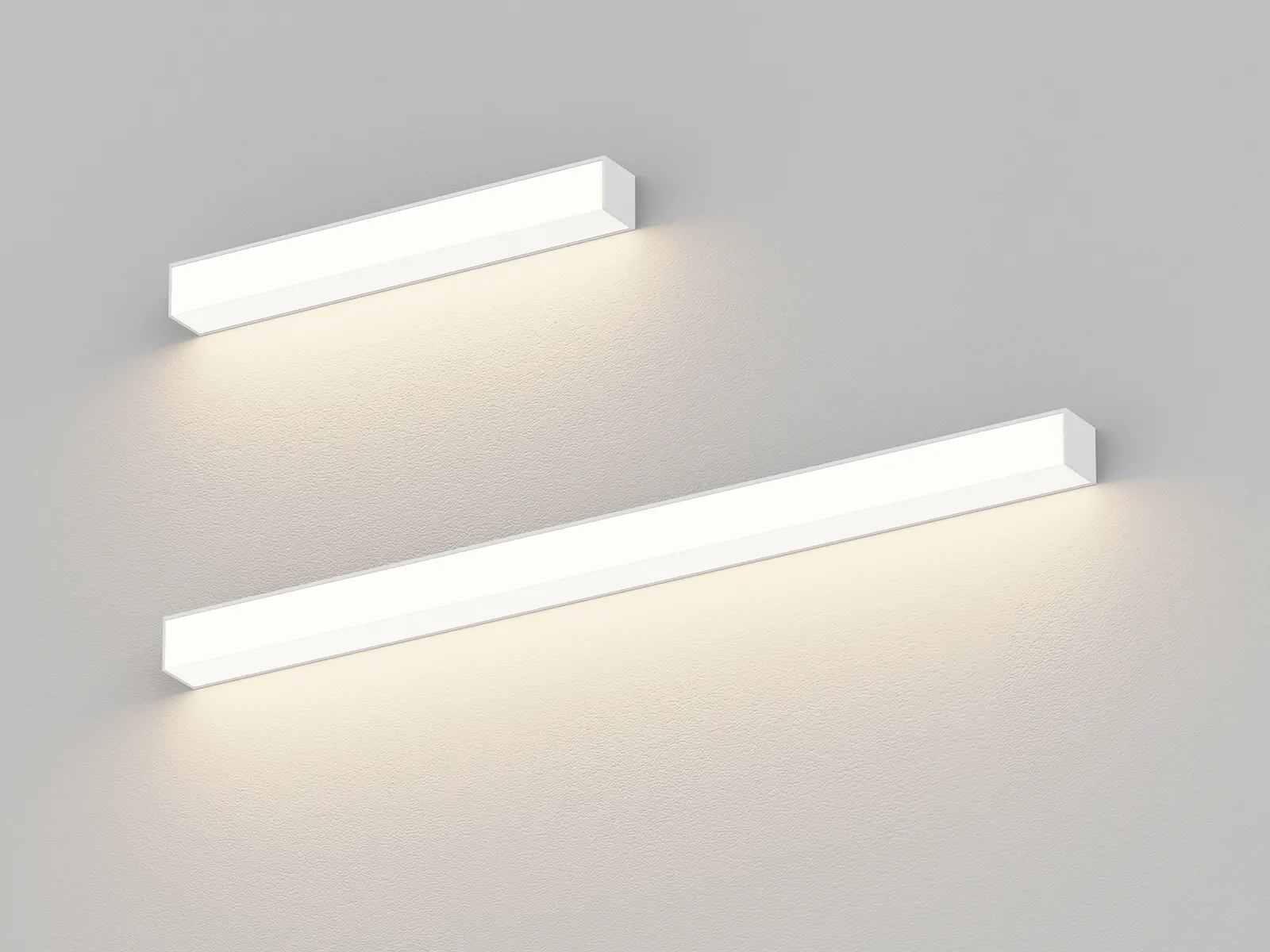

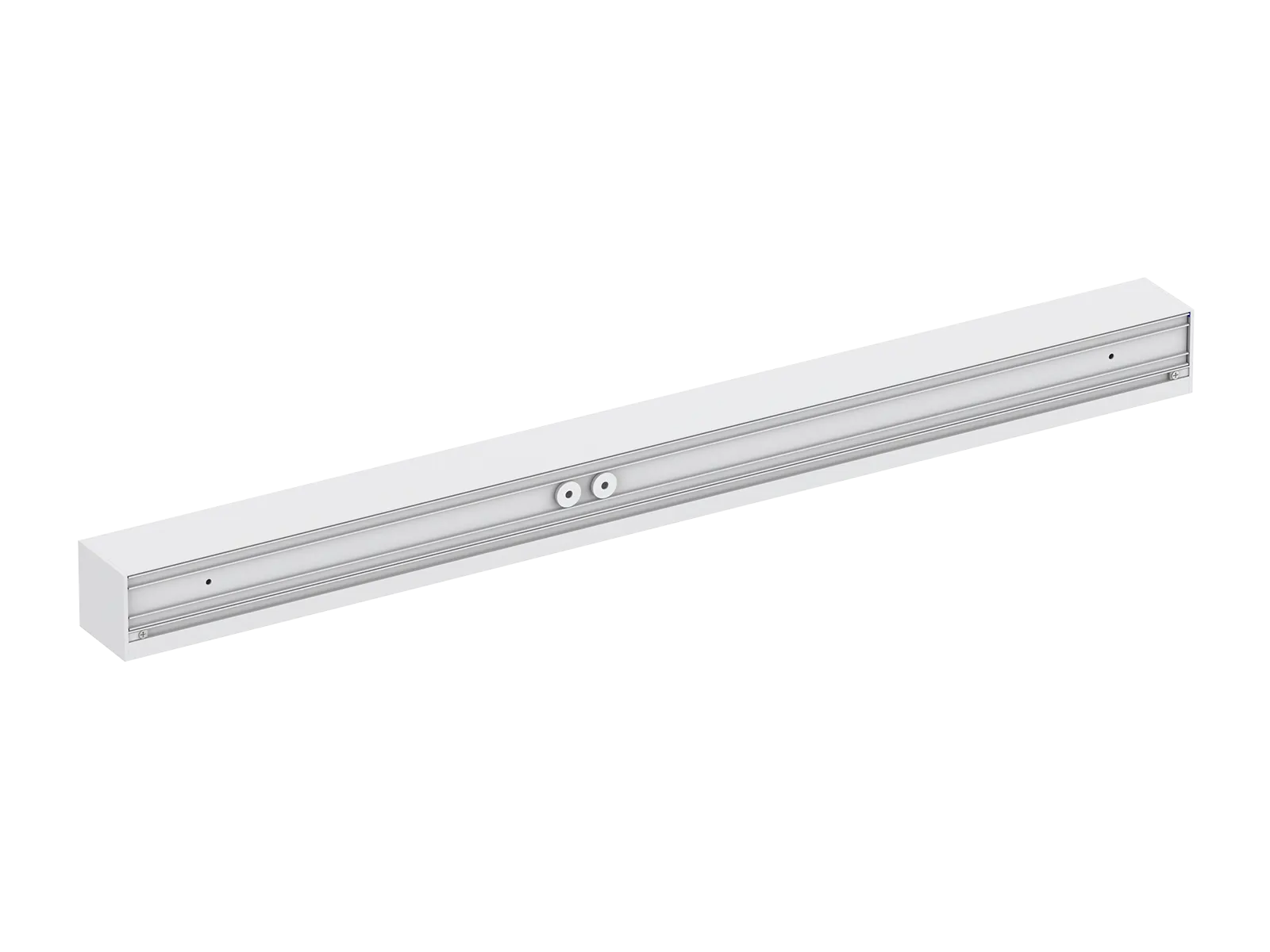

The led mirror light whole series is flicker free, which adopts AL6063 and ADC12 material with PC diffuser. It is suitable for corner installation with double side lighting way. Modular design for led driver and luminaire body makes it easy to maintenance. CCT changeable and Dali dim is optional. With impact design and appearance, it is easy to install and invisible any screws on surface after installation.
Applications: Hotels, living rooms, bathrooms and other areas.

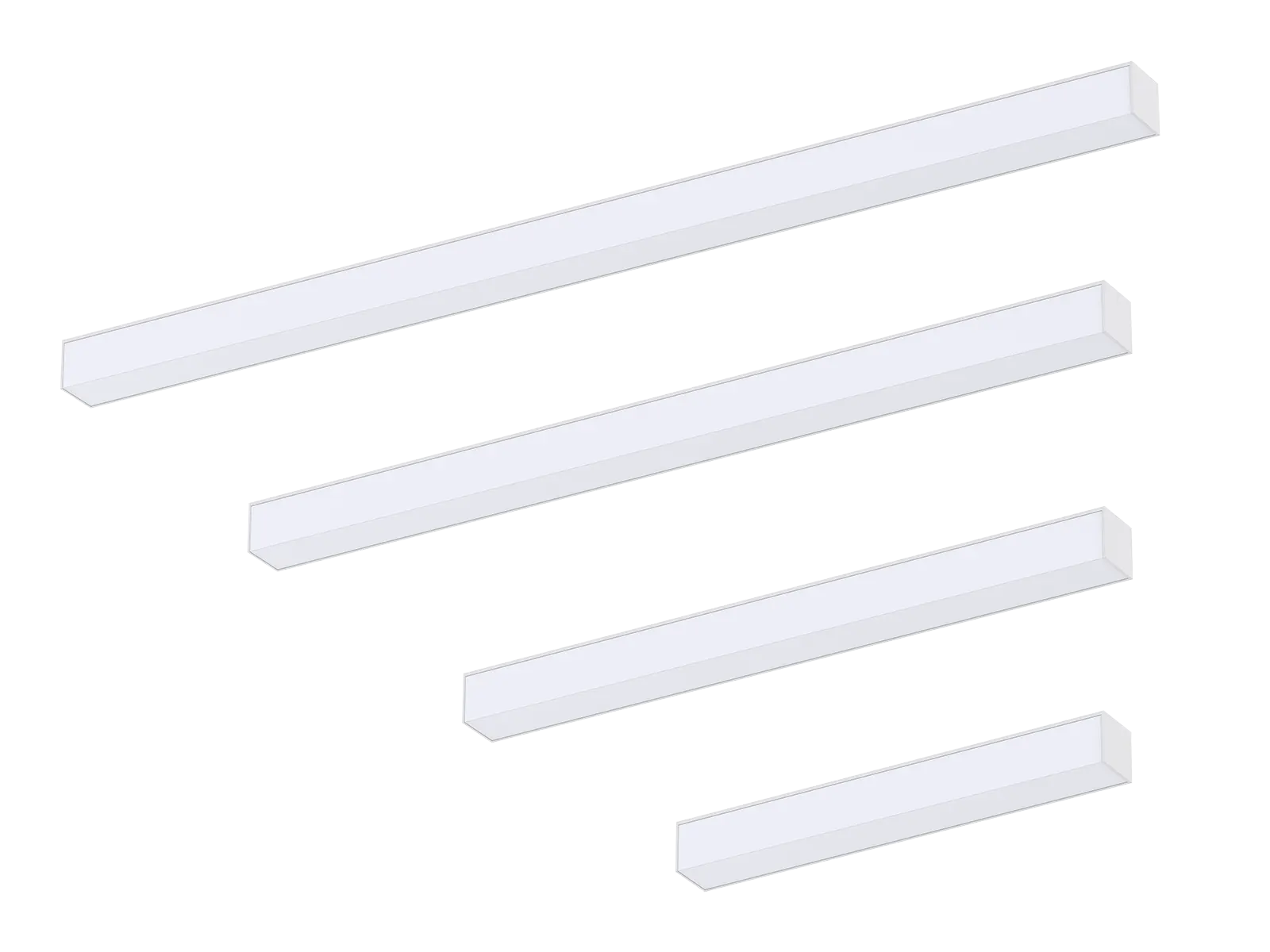

| Code | ML28-600-15W | ML28-900-20W | ML28-1200-30W | ML28-1500-35W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | 600*68*68 | 900*68*68 | 1200*68*68 | 1500*68*68 | ||
| Watt(W) | 15W | 20W | 30W | 35W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198V-264V | |||||
| Light Source | SMD | |||||
| SDCM | 6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT: 3000K+ 4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 1700-1900 | 2250-2600 | 3400-3700 | 3900-4400 |
| DALI | 1650-1850 | 2200-2550 | 3300-3620 | 3800-4300 | ||
| 2-CCT | Non-DIM | 1700-1900 | 2250-2600 | 3400-3700 | 3900-4400 | |
| DALI | 1650-1850 | 2200-2550 | 3300-3620 | 3800-4300 | ||
| CRI | 80 | |||||
| Beam Angle(°) | 150° | |||||
| LED Driver | Driver built-in | |||||
| Dimming Option | DALI | |||||
| Sensor | NO | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP44 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||
| Product Finishing | White RAL9016 | |||||
| Optics Material | PC | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp(°C) | -20°C~45°C | |||||
| Storage Temp(°C) | -20°C~65°C | |||||
| Installation | Wall mount | |||||
