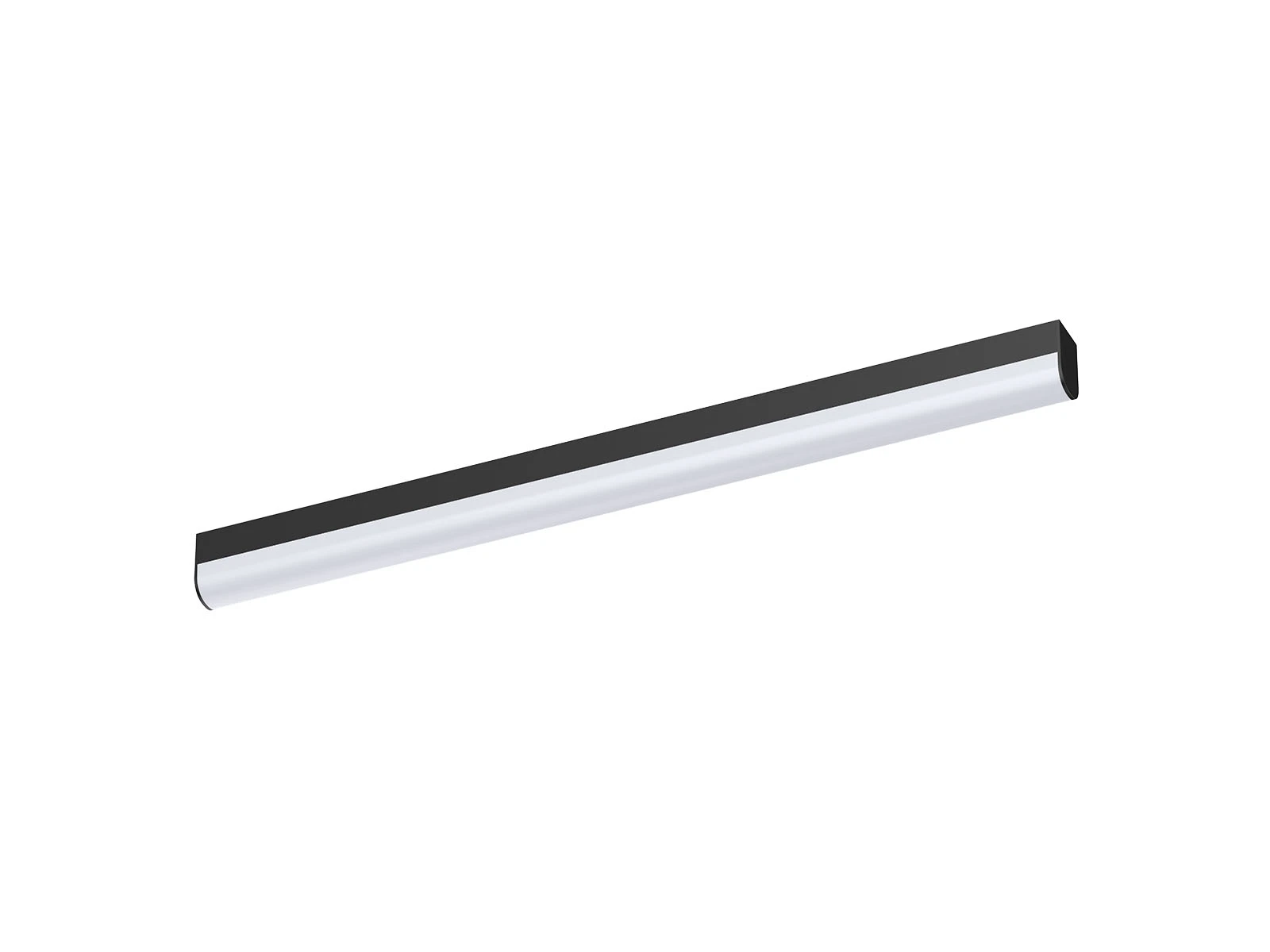

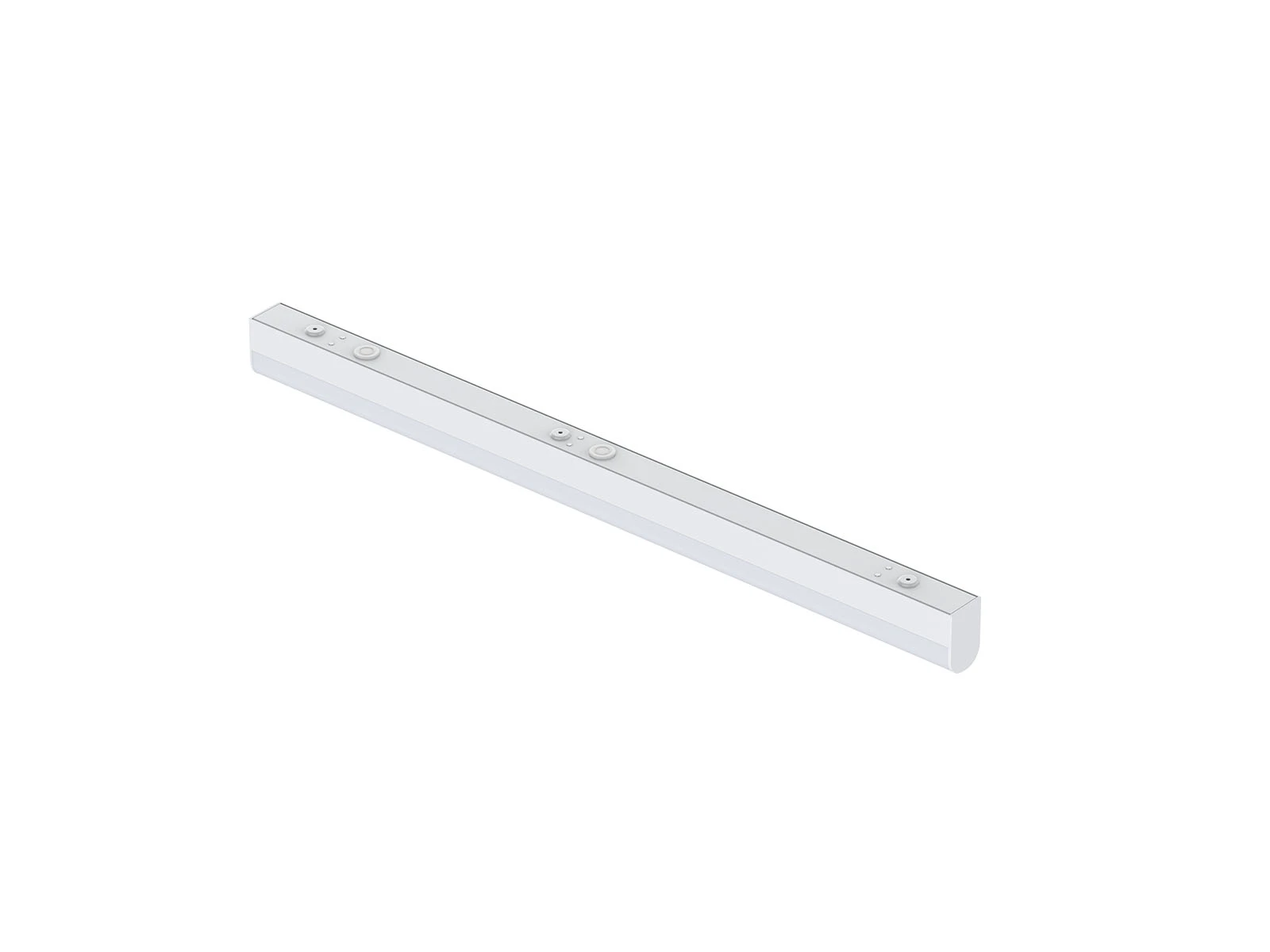

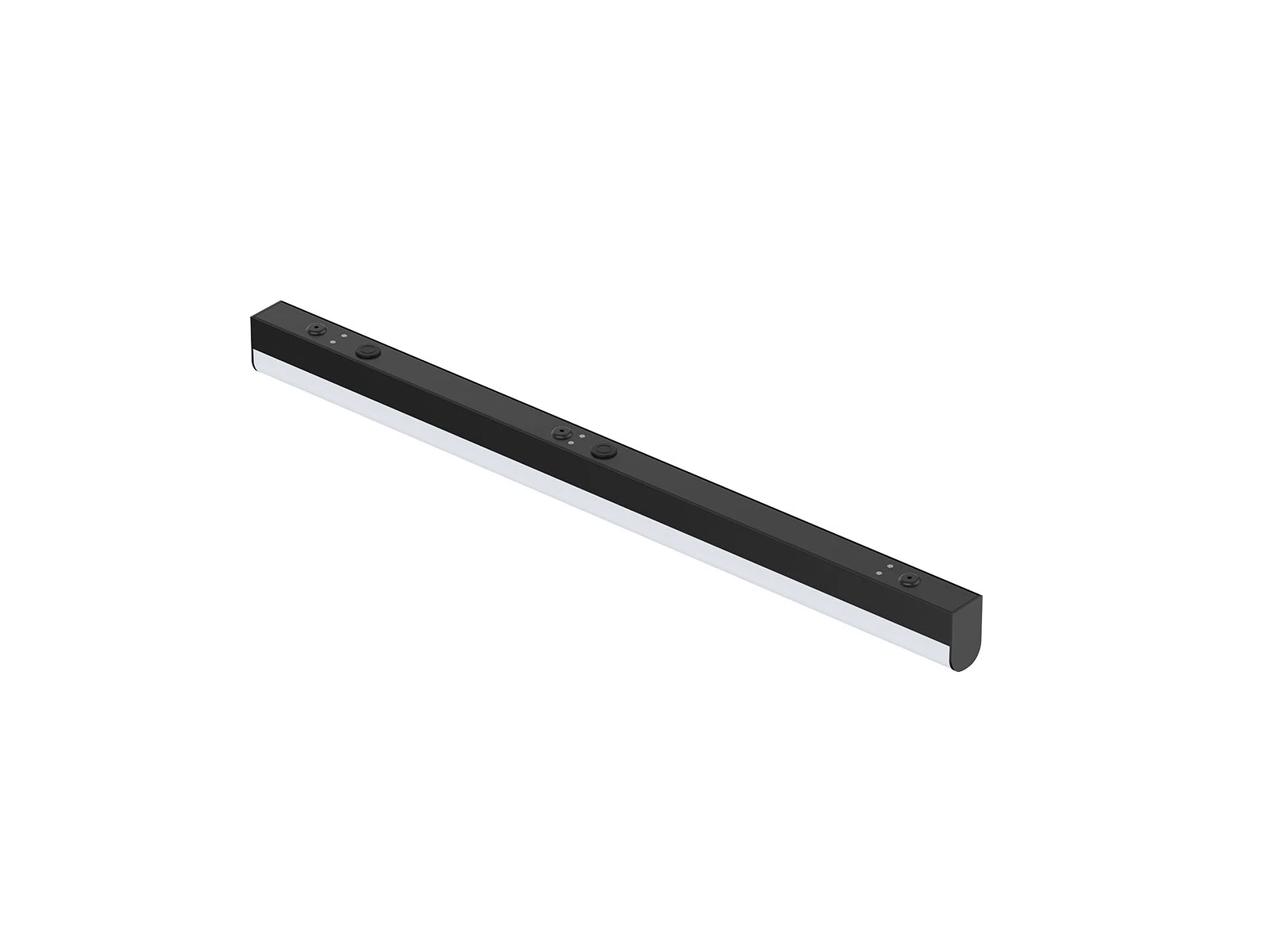

The LED light is IP40 and designed without screw on surface, which housing is processed by aluminum extrusion. It adopts SMD2835 high lumen led chip and high light transmittance led diffuser. Big beam angle makes the lighting distribution soft and even. Whole series includes 600mm/ 900mm/ 1200mm in length for option and different function includes single CCT, CCT interchangeable and Dali dim. Clips snap design makes it quick install and the installation way is including surface mount, wall mount and suspension.
APPLICATIONS: Widely used in bathroom, dressing room, make-up room, hotel and so on.
| CODE | ML27C-600-12W | ML27C-900-20W | ML27C-1200-32W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 600*72*46 | 900*72*46 | 1200*72*46 | ||
| Watt(W) | 12W | 20W | 32W | ||
| Input Voltage | AC220-240V | ||||
| Light Source | SMD | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 1520-1620 | 2500-2650 | 4050-4350 |
| DALI | - | 2500-2650 | 4050-4350 | ||
| 3-CCT | Non-DIM | 1520-1620 | 2500-2650 | 4050-4350 | |
| DALI | - | 2500-2650 | 4050-4350 | ||
| Beam Angle(°) | 160°×110° | ||||
| Dimming Option | NO | DALI | |||
| Product weight(Kg) | N.W/PC | 1.0 | 1.3 | 1.6 | |
| G.W/PC | 1.3 | 1.75 | 2.15 | ||
| Package weight(Kg) | N.W/CTN | 6.0 | 7.8 | 9.6 | |
| G.W/CTN | 8.6 | 11.3 | 14 | ||
| Qty/CTN(PCS) | 6 | 6 | 6 | ||
| Carton Size(CM) | 66.5*25.5*22 | 96.5*25.5*22 | 126.5*25.5*22 | ||
| 20GP(pcs) | 4440 | 3120 | 2280 | ||
| 40HQ(pcs) | 9834 | 6864 | 5280 | ||
