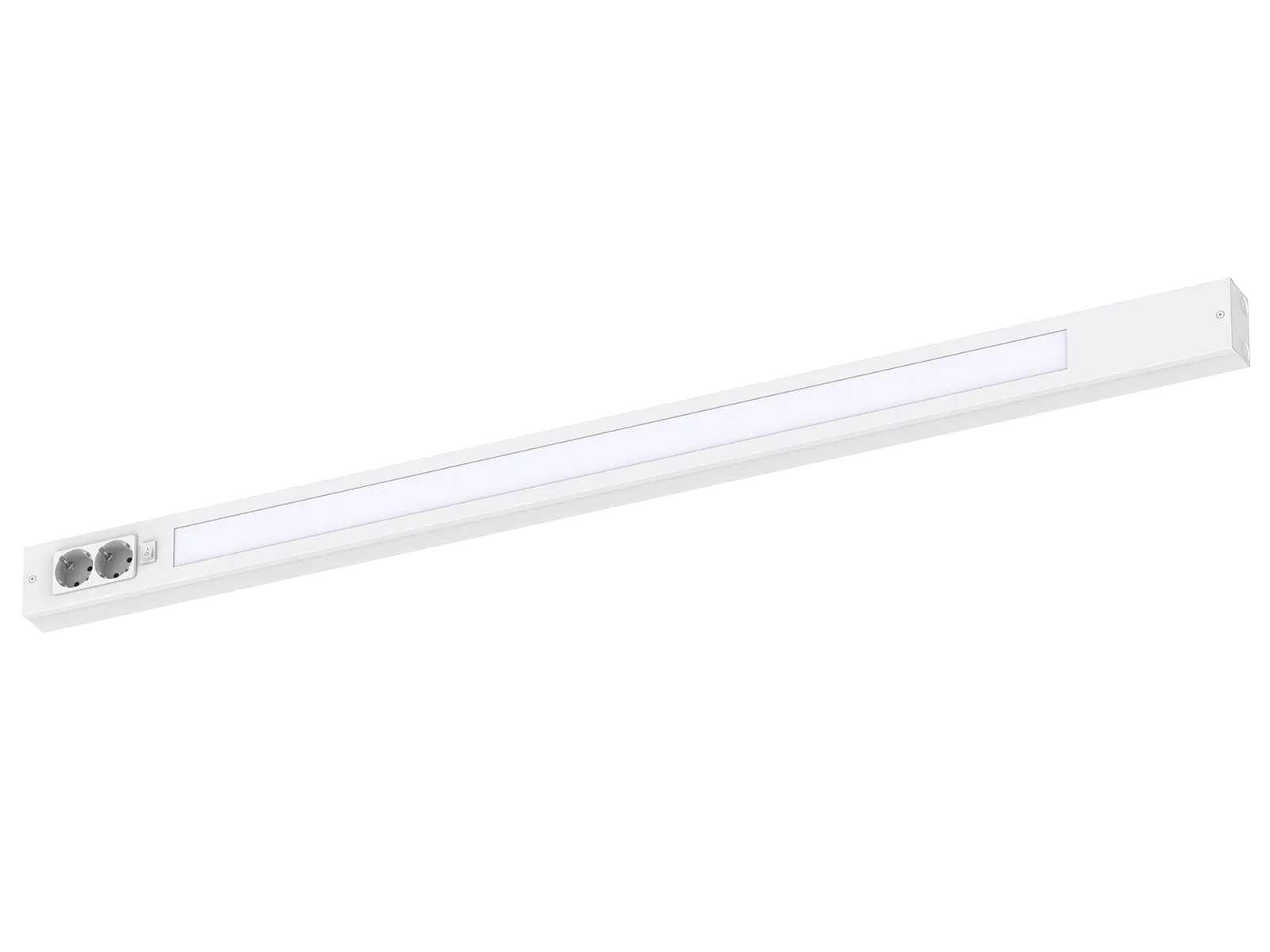

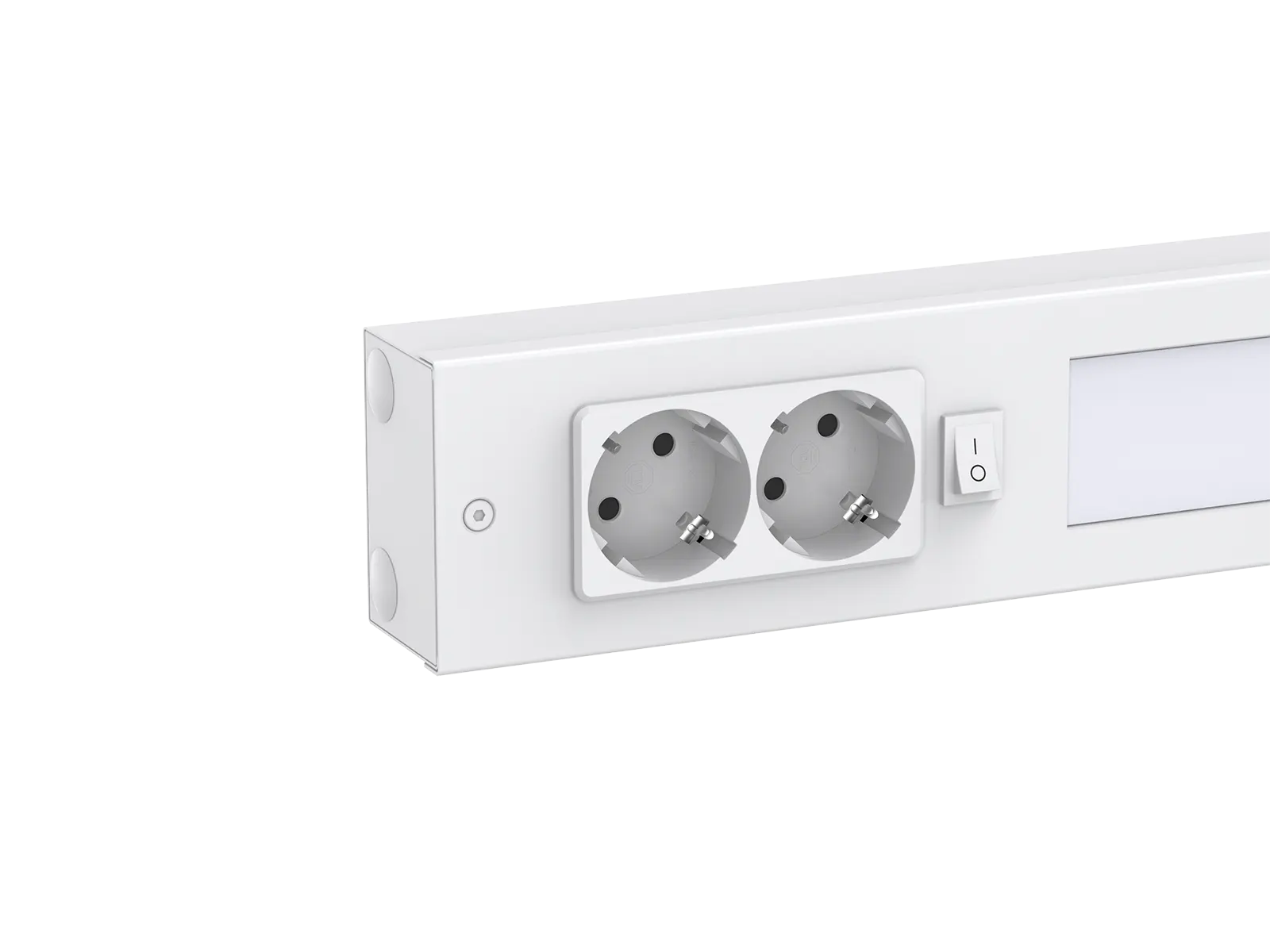

The kitchen led light KL11B adopts SPCC as lamp body plus PC as diffuser. It’s designed with switch on lamp body and 2 European sockets which 16A max. Both back and side wiring are available. With high efficiency led chip and multiple functions meets different demands.
Applications: It is widely used in kitchen, bar, cupboard, wardrobe etc
| Code | KL11B-600-8W | KL11B-920-12W | KL11B-1200-20W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 600*72*43 | 920*72*43 | 1200*72*43 | ||
| Watt(W) | 8W | 12W | 20W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198V-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | 6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K||2-CCT:3000K+ 4000K | ||||
| CCT Selection DIP Switch | YES | ||||
| 1-CCT | Non-DIM | 920-980 | 1500-1620 | 2400-2600 | |
| Luminous Flux (lm) ±5% | DIM/DALI | 920-980 | 1500-1620 | 2400-2600 | |
| CRI80 | 2-CCT | Non-DIM | 920-980 | 1500-1620 | 2400-2600 |
| DIM/DALI | 920-980 | 1500-1620 | 2400-2600 | ||
| CRI | CRI90 | ||||
| Beam Angle(°) | 100° | ||||
| UGR | - | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | Triac / DALl-2+pushDlM | ||||
| Sensor | - | ||||
| Emergency Kits | - | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PC | ||||
| Housing Material | Metal | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Wall mount | ||||
