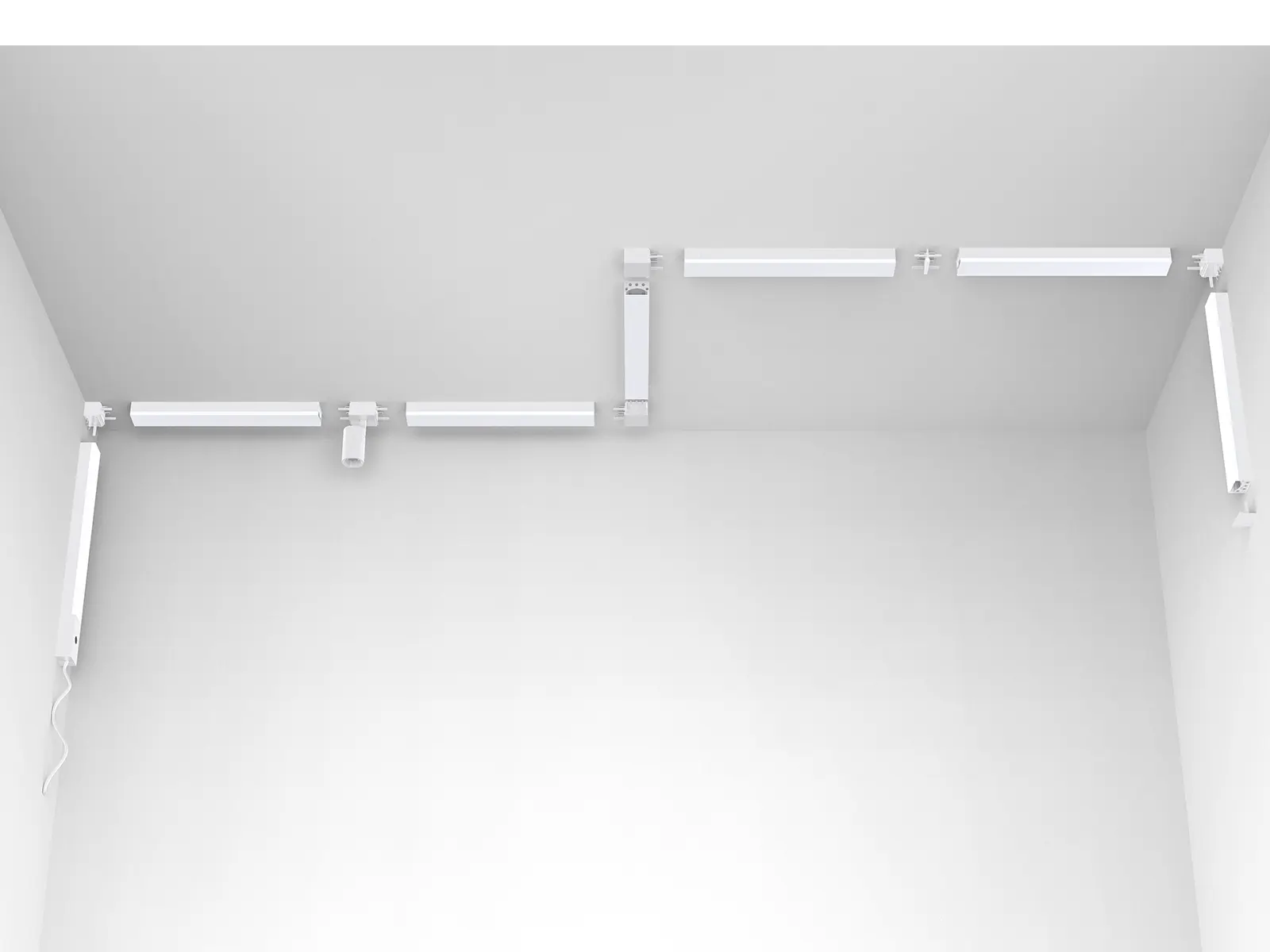

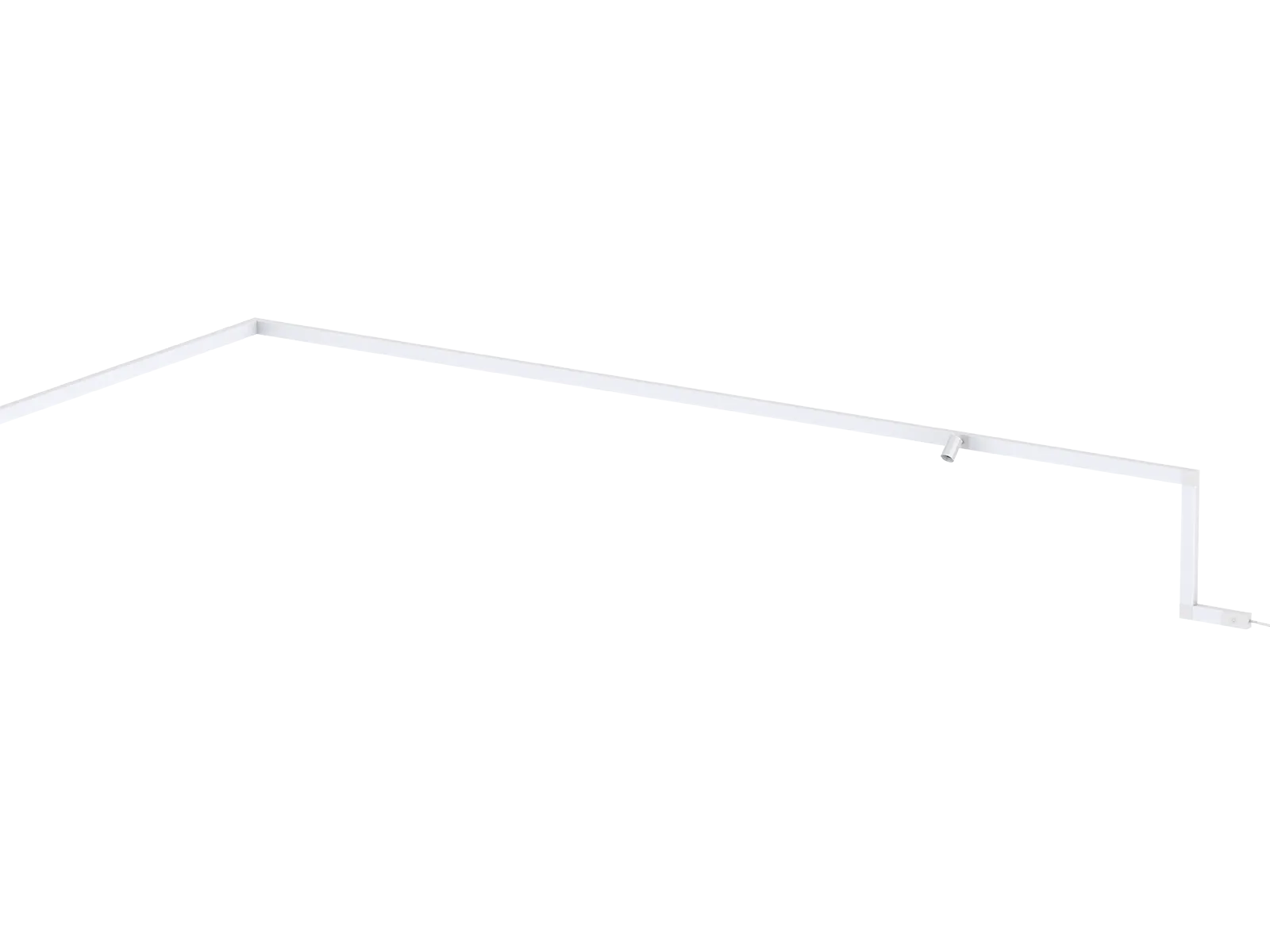

This is a modular cabinet light with safe and low voltage DC24V common anode dual output. There are two versions for whole series: Hand-wave sensor switch and touch switch. U-shape diffuser design makes the light more uniform. It includes several splicing methods: straight connection, left corner, right corner, vertical splicing and spotlight module, which is suitable for more splicing situations and demands. It is able to be seamless splicing and no splicing dark area. The snap-on installation is convenient and efficient.
Applications: It is widely used in kitchen, bar, cabinet, wardrobe, corner etc.

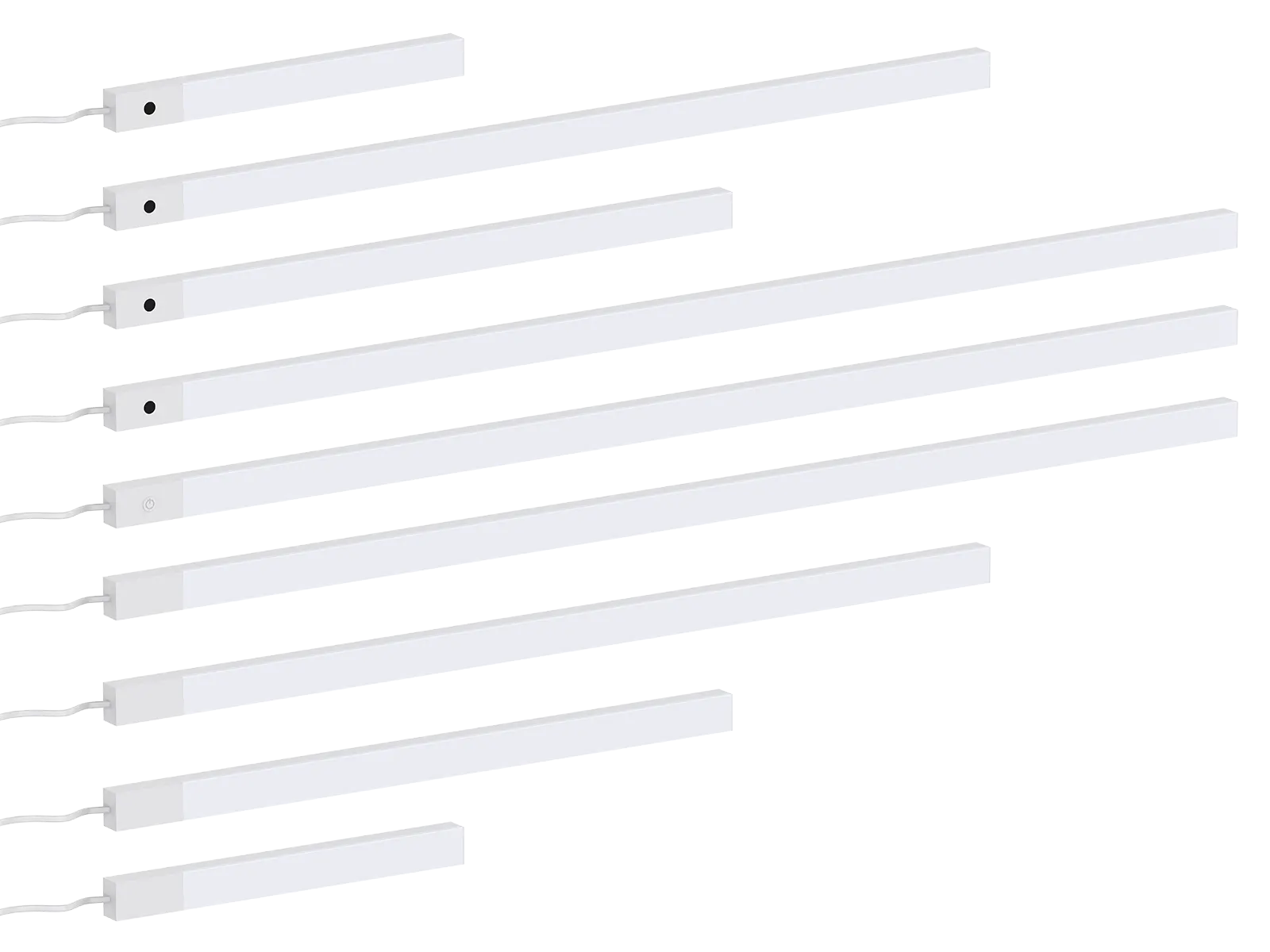

| CODE | KL10-300-5W | KL10-600-11W | KL10-900-16W | KL10-1200-21W | ACC-KL10-WT-4W (Spot) | |
|---|---|---|---|---|---|---|
| Dimension(mm) | 300*36*24 | 600*36*24 | 900*36*24 | 1200*36*24 | 78*36*100.5 | |
| Watt(W) | 5W | 11W | 16W | 21W | 4W | |
| Input Voltage | DC24V | |||||
| LED Module Input | DC24V | |||||
| Light Source | SMD | |||||
| CCT(K) | 1-CCT : 3000K / 4000K | |||||
| Luminous Flux (lm) ±5% CRI80 | Non-DIM | 520-550 | 1120-1180 | 1670-1760 | 2190-2310 | 350-370 |
| DIM | - | |||||
| Beam Angle(°) | 110° | 110° | 110° | 110° | 30° | |
| Product weight(Kg) | N.W/PC | 0.235 | 0.385 | 0.525 | 0.685 | 0.13 |
| G.W/PC | 0.295 | 0.475 | 0.645 | 0.825 | 0.175 | |
| Package weight(Kg) | N.W/CTN | 8.46 | 9.24 | 9.45 | 8.22 | 4.68 |
| G.W/CTN | 11.29 | 12.07 | 12.35 | 10.64 | 6.72 | |
| Qty/CTN (PCS) | 36 | 24 | 18 | 12 | 36 | |
| Carton Size(cm) | 56*32*23.5 | 86*22*23.5 | 116*17*23.5 | 146*17*16.5 | 29*24*33 | |
| 20GP(pcs) | 22680 | 13824 | 10530 | 8112 | 38016 | |
| 40HQ(pcs) | 51840 | 32160 | 23400 | 18720 | 90720 | |
