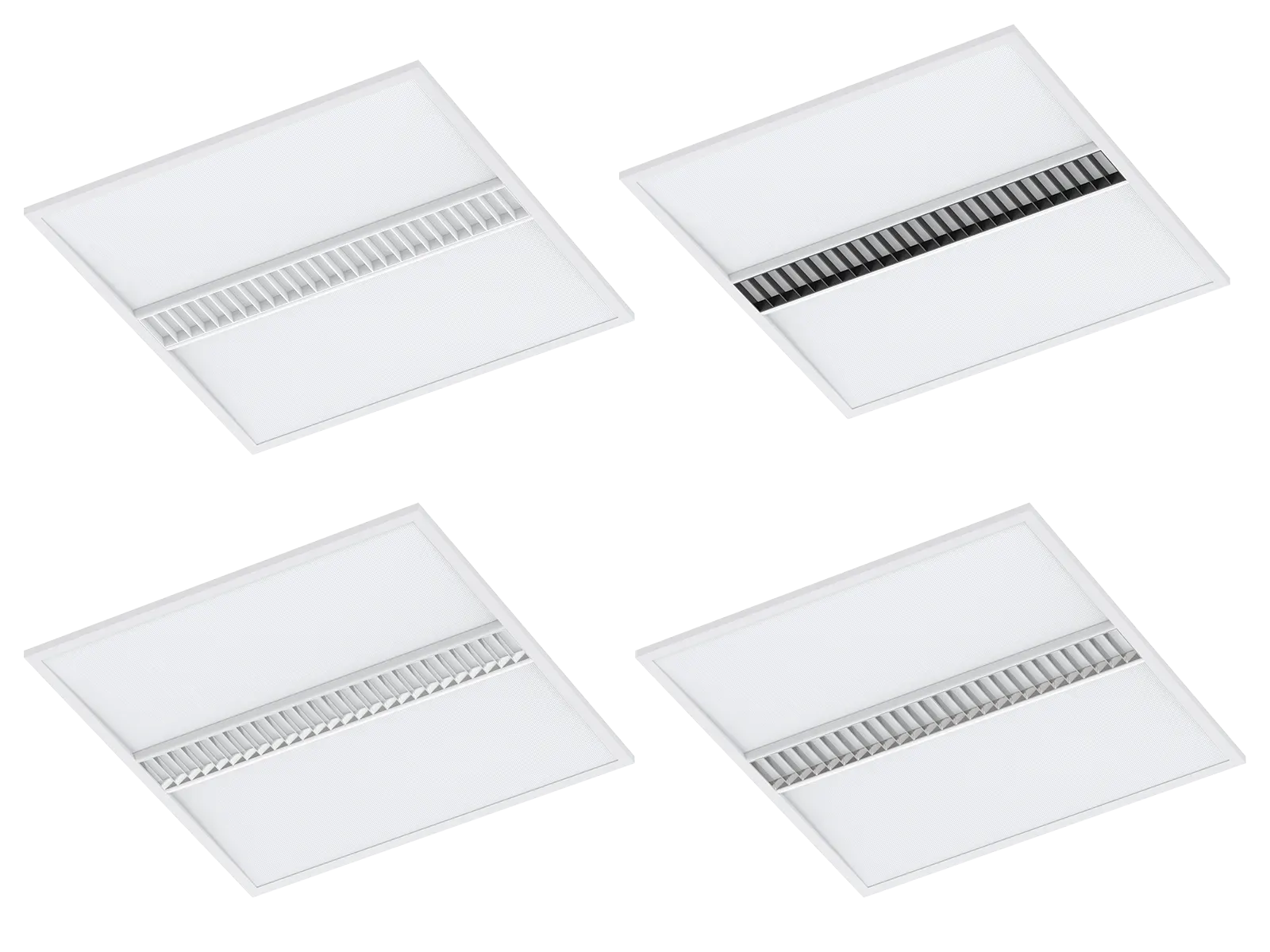

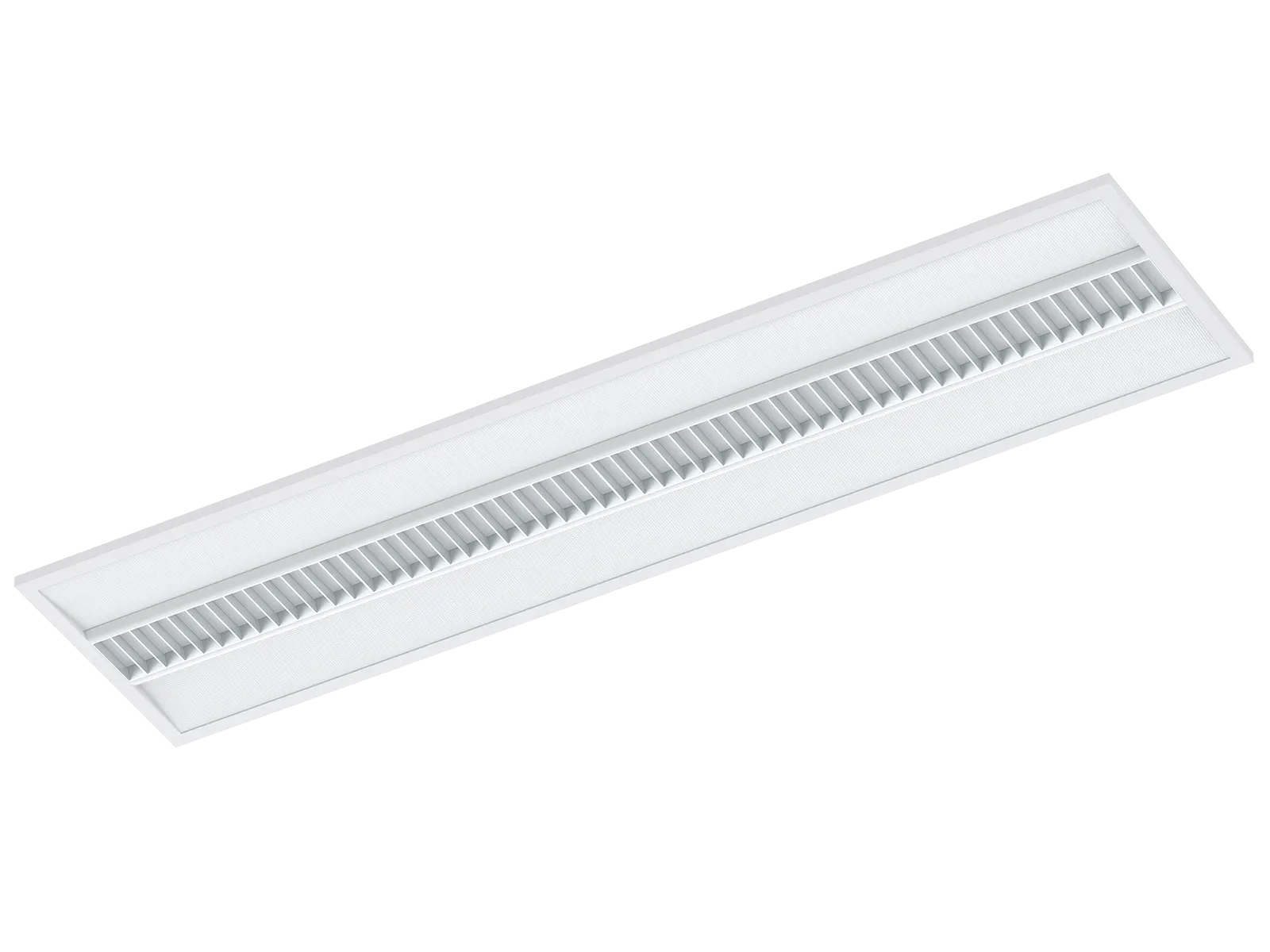

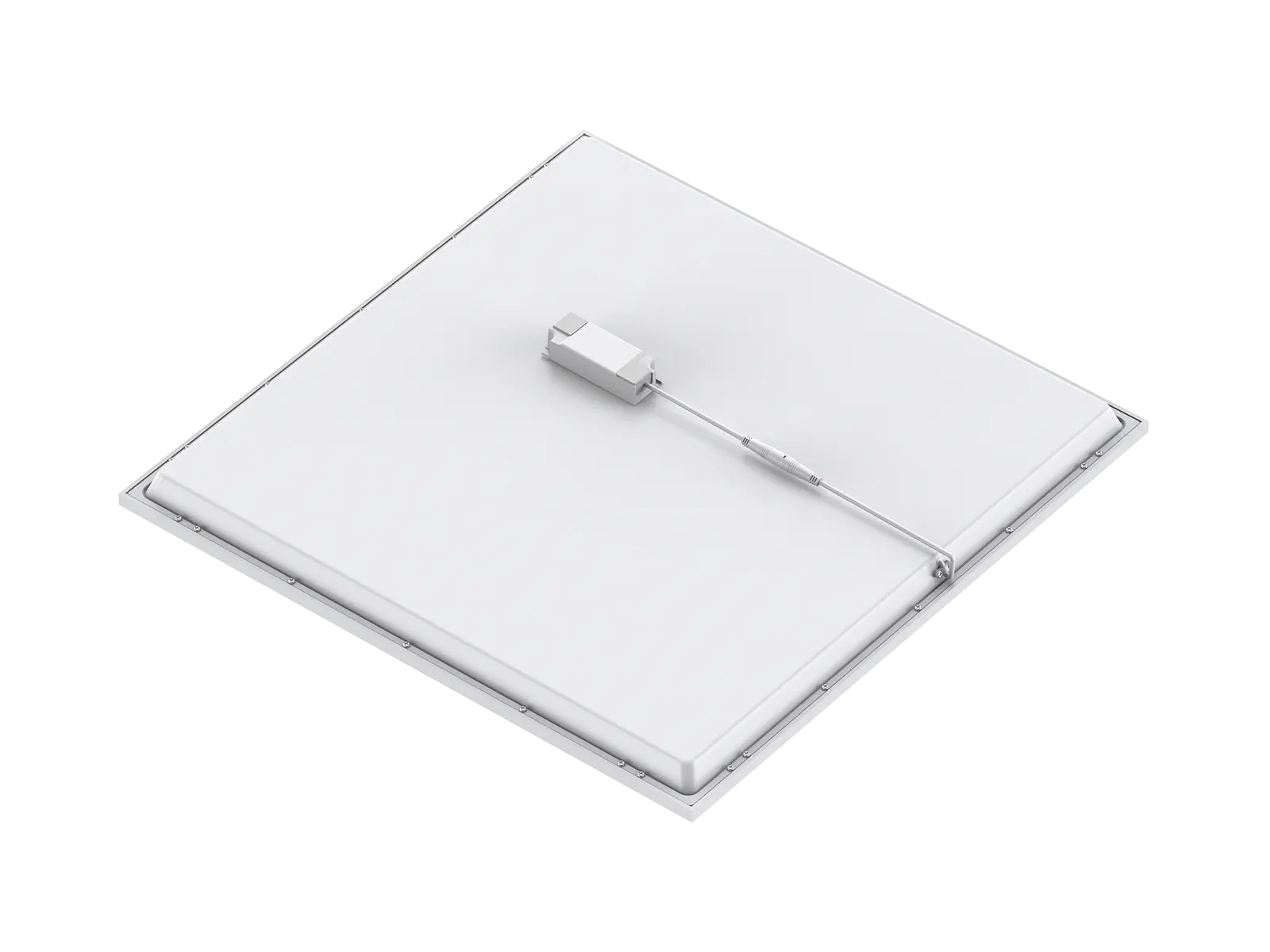

The GL200 is a luminaire that uses traditional louvers with light-emitting holes, anti-glare design UGR<19, blending classic retro style with functionality harmoniously. The product frame is made of aluminum alloy, the basl is mainly made of SPCC for the main structural material and heat dissipation structure, with a large heat dissipation area, high strength, and good texture. The lamp adopts high light efficiency SMD2835 led chip which allows the higher output and lower energy. The lampshade is made of PS anti-glare faceted cover, which effectively suppresses glare values, protect eyes and bring the comfortable lighting experience for people.
Applications: Office & school lighting: office room, meeting room, class room etc. Commercial lighting: shopping mall, super market, retailer shops etc. Other situations:hospital, laboratory, dust-free workshop etc.
(Matt silver/White grid)
| Code No. | GL200-6060-32W | GL200-30120-32W | ||
|---|---|---|---|---|
| Dimension(mm) | 595*595*36 | 1195*295*36 | ||
| Cutout (mm) | 580*580 | 1180*280 | ||
| Watt(W) | 32W | |||
| Rated Input Voltage(V) | AC/220-240V | |||
| Input Voltage(V) | AC/198-264V | |||
| LED Module Input | 33-38V | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||
| CCT Selection DIP Switch | N0 | |||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 3785-3810lm | 3770-3810lm |
| DIM | 3685-3710lm | 3670-3710lm | ||
| CRI | CRI80 | |||
| Beam Angle (°) | 80° | |||
| UGR | UGR＜19 | |||
| LED Driver | Driver built-out | |||
| Dimming Option | Triac/DALI/0-10V | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Impact Resistance (IK Rating) | IK02 | |||
| Product Finishing(Base) | White (Matt silver/hite grid) | |||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||
| Materials of Housing | SPCC+Aluminium | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 650℃ | |||
| Operating Temp. (℃ ) | -10~40℃ | |||
| Storage Temp. (℃ ) | -20~65℃ | |||
| Installation | Pendant / Recessed | |||
(Black grid)
| Code No. | GL200-6060-32W | GL200-30120-32W | ||
|---|---|---|---|---|
| Dimension(mm) | 595*595*36 | 1195*295*36 | ||
| Cutout (mm) | 580*580 | 1180*280 | ||
| Watt(W) | 32W | |||
| Rated Input Voltage(V) | AC/220-240V | |||
| Input Voltage(V) | AC/198-264V | |||
| LED Module Input | 33-38V | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||
| CCT Selection DIP Switch | N0 | |||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 3575-3595lm | 3440-3475lm |
| DIM | 3475-3595lm | 3340-3375lm | ||
| CRI | CRI80 | |||
| Beam Angle (°) | 80° | |||
| UGR | UGR＜19 | |||
| LED Driver | Driver built-out | |||
| Dimming Option | Triac/DALI/0-10V | |||
| Electrical Class | Class Ⅱ | |||
| Ingress Protection (IP Rating) | IP20 | |||
| Impact Resistance (IK Rating) | IK02 | |||
| Product Finishing(Base) | White ( Black grid) | |||
| Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||
| Materials of Housing | SPCC+Aluminium | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 650℃ | |||
| Operating Temp. (℃ ) | -10~40℃ | |||
| Storage Temp. (℃ ) | -20~65℃ | |||
| Installation | Pendant / Recessed | |||
