GL07 LED Troffer light

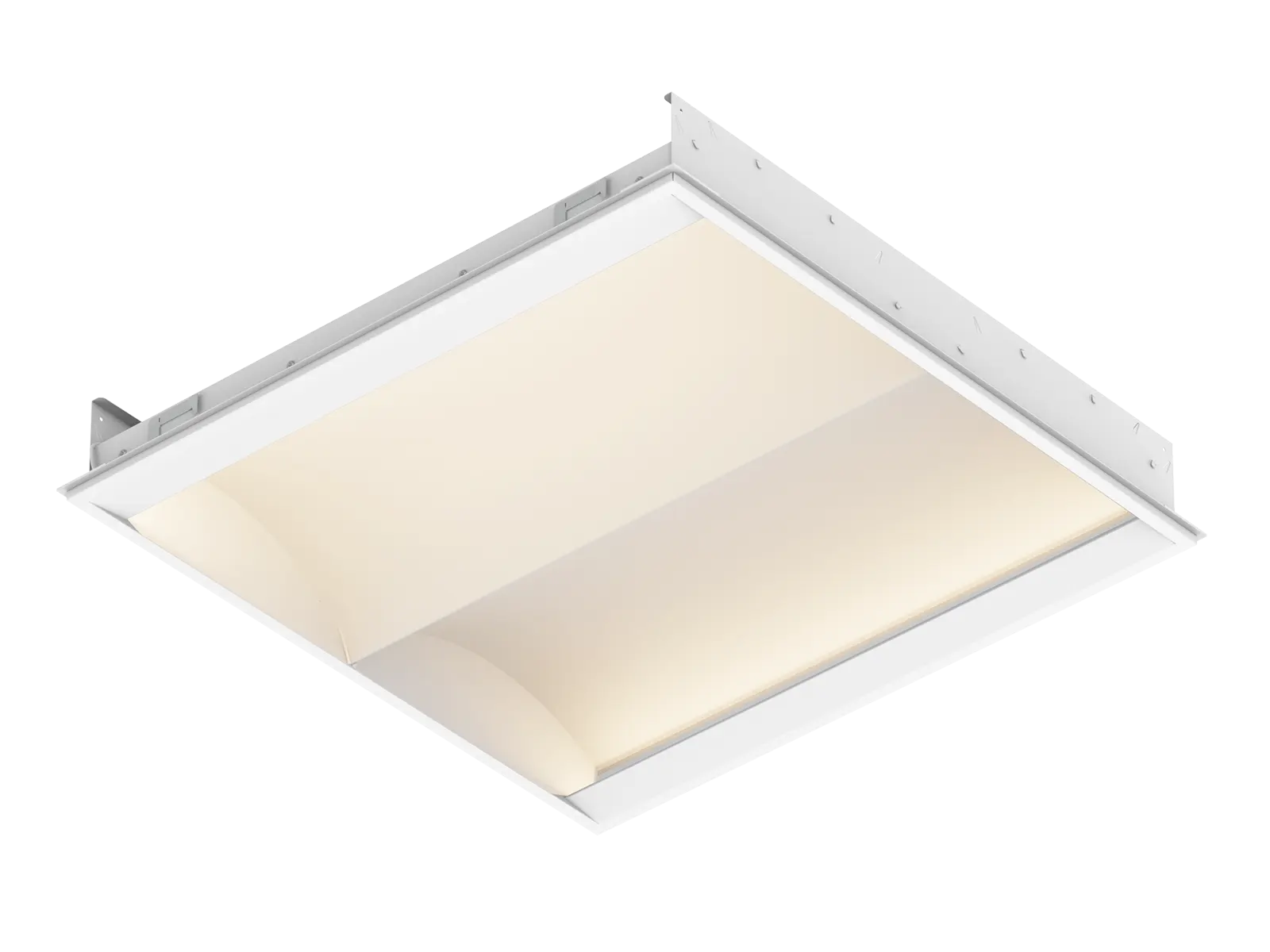

GL07 LED Troffer light 1

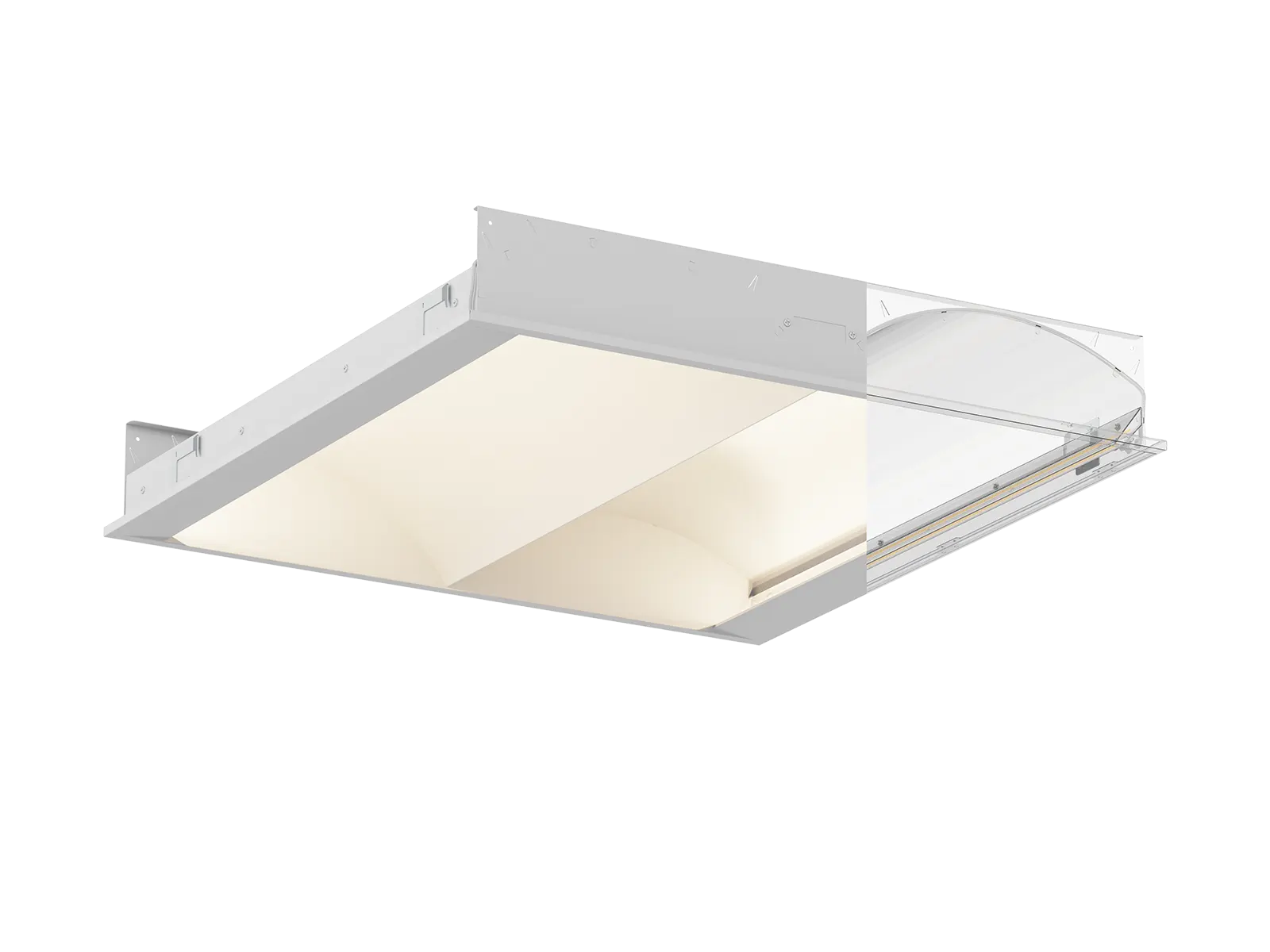

GL07 LED Troffer light 2

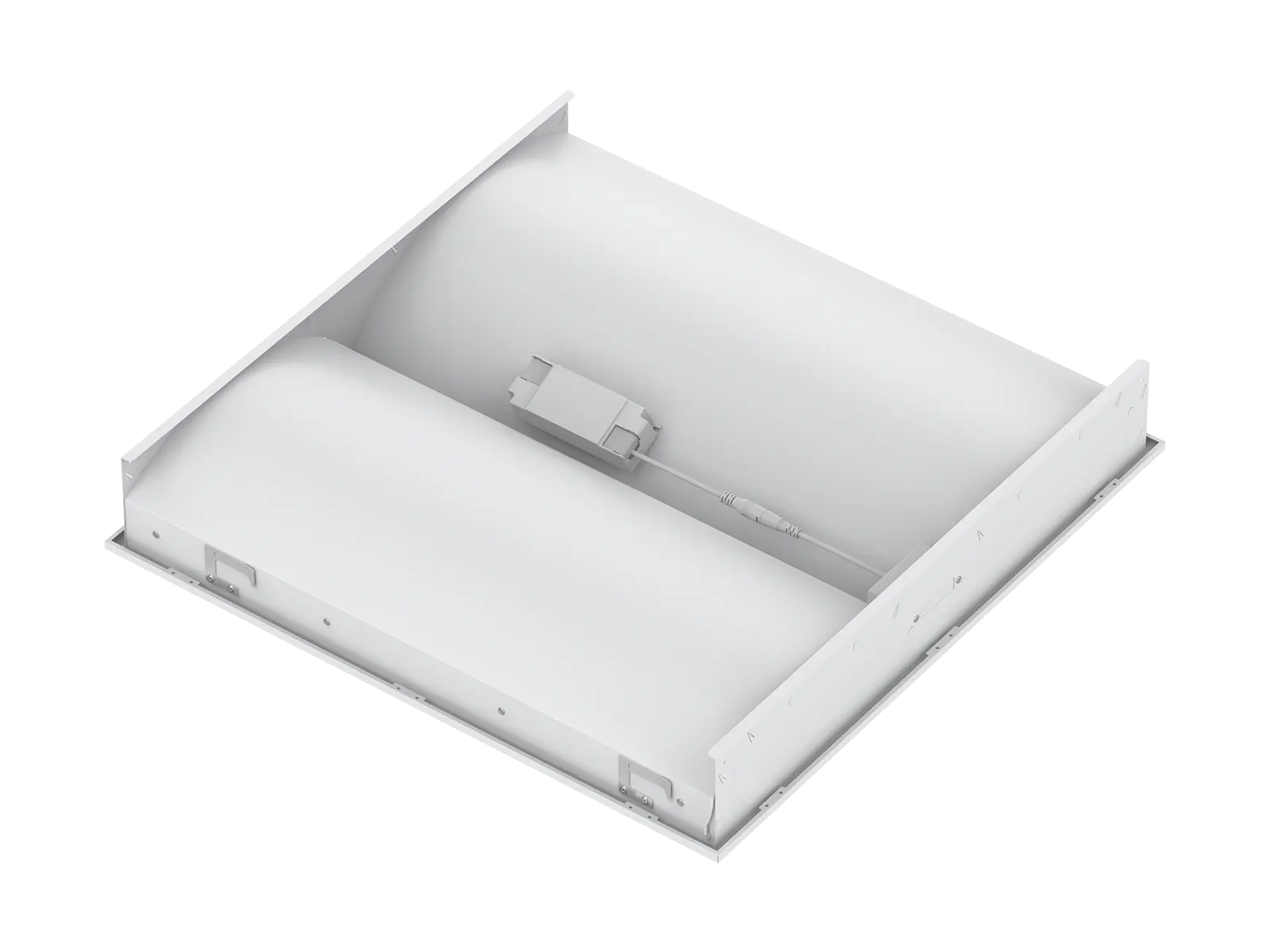

GL07 LED Troffer light 3
GL07 LED Troffer light
GL07 LED Troffer light 1
GL07 LED Troffer light 2
GL07 LED Troffer light 3

GL07 LED Troffer light

The GL07 LED Troffer light features a high-quality light source and a wide beam angle design. It utilizes a side secondary  reflection to achieve uniform light diffusion, effectively illuminating the entire light-emitting surface and providing users with a visual comfort experience of "seeing the light without seeing the light source." The lamp body is made from SPCC material, stamped into shape for enhanced overall strength, and the surface is treated with a matte powder coating for a solid and delicate texture. The light is soft, comfortable, and with  anti-glare design, avoiding direct eye strain, making it  particularly suitable for high-quality commercial and residential spaces.

  •  Side secondary reflection to achieve uniform light diffusion.
  •  High luminous efficacy of 115 LM/W.
  •  CCT switchable via DIP switch.
  •  Extra wide beam angle design of 130° .
  •  Dimming options: Triac / DALI / 0-10V dimming.
  •  Flicker-free external driver.
  •  Installation options: recessed / ceiling-mounted

Application Areas: Office Lighting: Offices, meeting rooms, classrooms, libraries, etc. Commercial Lighting: Shopping malls, supermarkets, hotels. Other Areas: Hospitals, cafeterias, theaters, banks, subway stations, etc.

Code No GL07 6060 30W GL07 6060 36W
Dimension(mm) 595*595*92
Watt(W) 30W 36W
Rated Input Voltage(V) AC220-240V
Input Voltage(V) AC198-264V
Light Source SMD
SDCM 6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT:3000K+ 4000K+5700K
CCT Selection DIP Switch YES
Luminous Flux (lm) ±5% CRI80 Non-DIM 1-CCT 3450-3600LM 4200-4300LM
DIM 3400-3550LM 4150-4250LM
Non-DIM 3-CCT 3400-3700LM 4150-4350LM
DIM 3350-3650LM 4100-4300LM
CRI CRI80
Beam Angle (°) 130°
LED Driver built-out
Dimming Option Triac/ DALI/ 0-10V/
Electrical Class Class Ⅱ
Ingress Protection (IP Rating) IP20
Impact Resistance (IK Rating) IK08
Product Finishing(Base) White RAL 9016
Materials of Optics PMMA
Materials of Housing SPCC(back plate)
Lifetime (hr) 50000h
Glow wire test ( ) 650°C
Operating Temp. ( ) -10℃~45℃
Storage Temp. ( ) -20°C~50°C
Installation Pendant / Recessed
