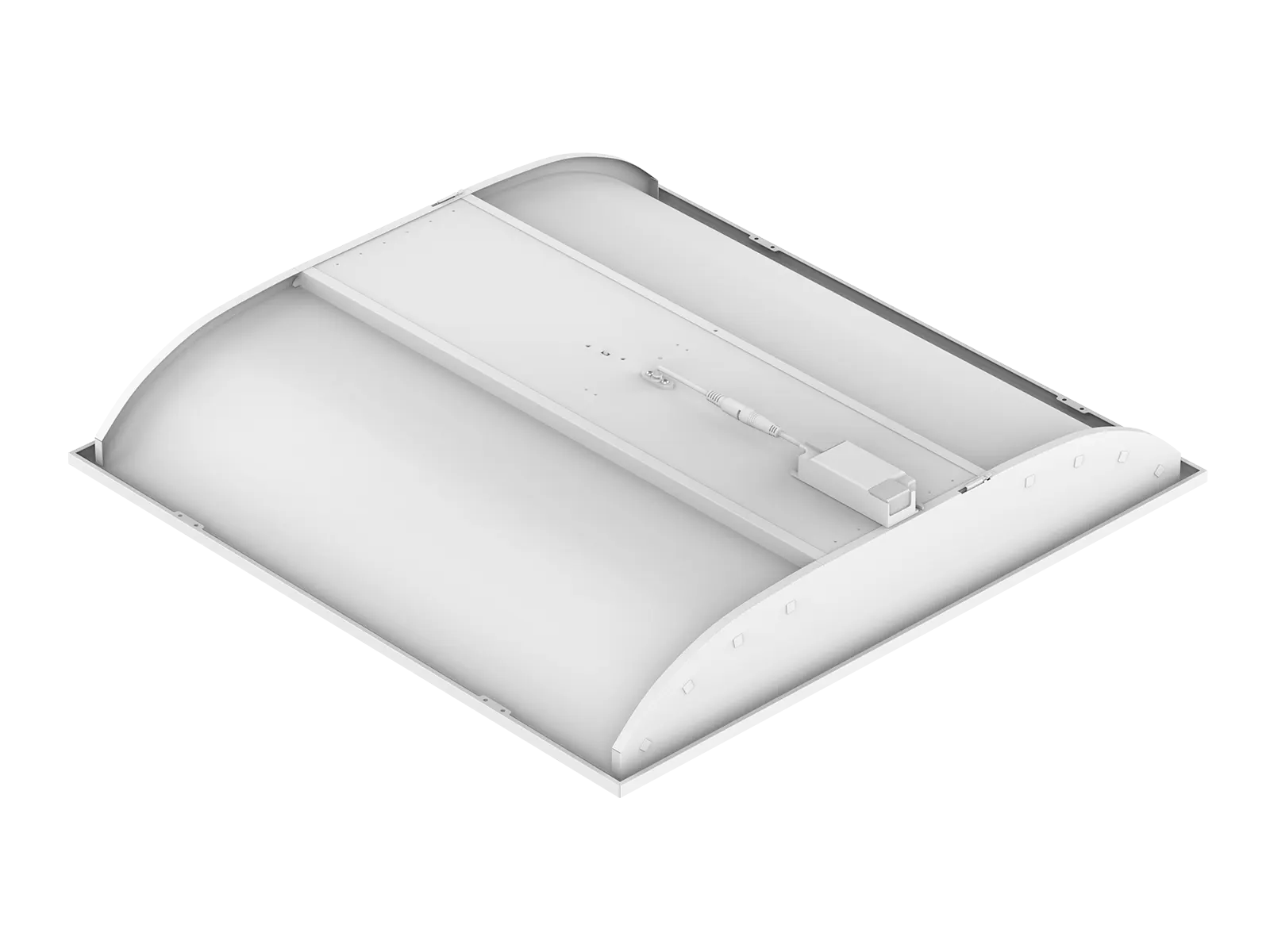

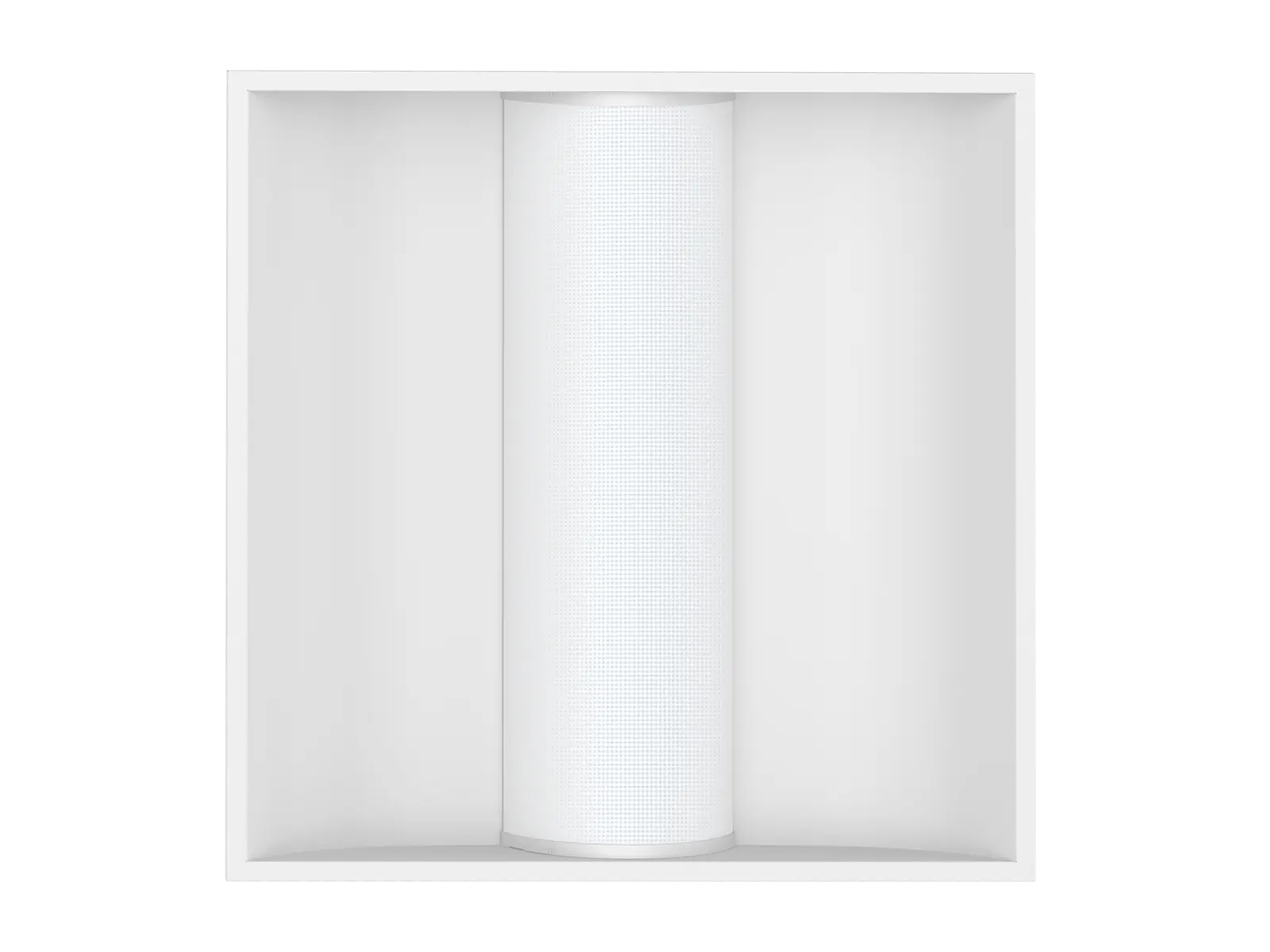

GL06 is a modular design lighting fixture that aligns with market trends. The modular design of the light source makes it easier for customers to maintain after use. The product is primarily constructed from SPCC, providing a robust structure and heat dissipation features, with a large heat dissipation area, high strength, and good texture. It utilizes high-efficiency LED chips, allowing the fixture to output higher lumens while consuming less energy. The product's lampshade is made of PC anti-glare prismatic material, effectively reducing glare and ensuring greater comfort for the eyes, while also complying with the UK TPA fire resistance standards.

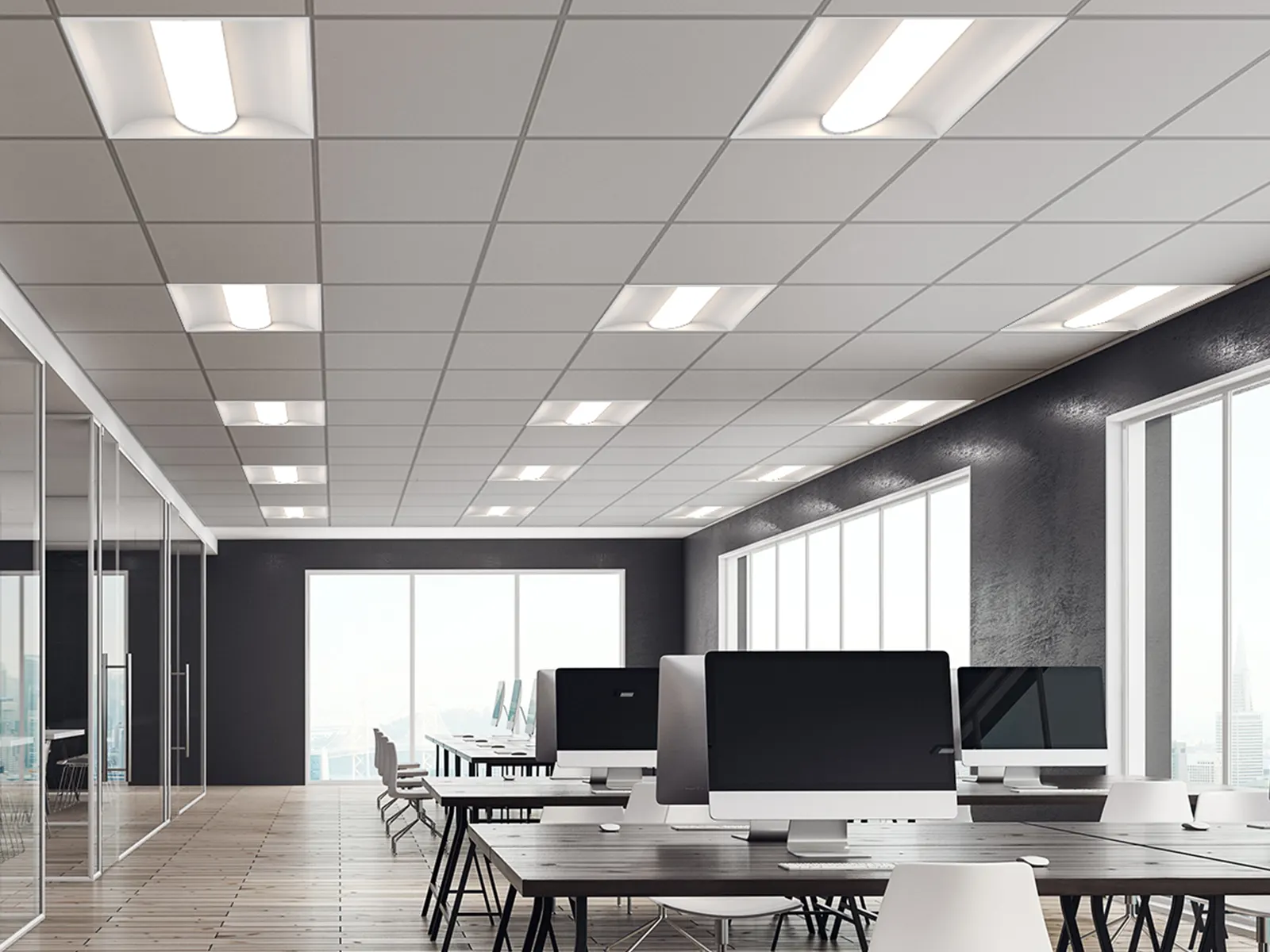

Applications: It can be used in office room, meeting room, classroom,hotel, shopping mall,supermarket, station etc.
| Code No. | GL06-6060-30W | ||
|---|---|---|---|
| Dimension(mm) | 595*595*91 | ||
| Cutout (mm) | 580*580 | ||
| Watt(W) | 30W | ||
| Rated Input Voltage(V) | AC220-240V | ||
| Input Voltage(V) | AC198-264V | ||
| LED Module Input | DC33-38V | ||
| Light Source | SMD2835 | ||
| SDCM | <6 | ||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K 3-CCT: 3000K+4000K+5700K | ||
| CCT Selection DIP Switch | YES | ||
| Luminous Flux (Im) ±5% | Non-DIM | 1-CCT | 3600-3850Im |
| DIM | - | ||
| Non-DIM | 3-CCT | 3450-3900Im | |
| DIM | - | ||
| CRI | ≥80 | ||
| Beam Angle (*) | 70° | ||
| UGR | <19 | ||
| LED Driver | Built-out | ||
| Electrical Class | Class II | ||
| Ingress Protection (IP Rating) | IP20 | ||
| Impact Resistance (IK Rating) | IK06 | ||
| Product Finishing(Base) | White RAL9016 | ||
| Materials of Optics | PC | ||
| Materials of Housing | SPCC | ||
| Lifetime (hr) | 50,000h | ||
| Glow wire test ("℃ ) | 850℃ | ||
| Operating Temp. ('℃) | -20°℃~45°℃ | ||
| Storage Temp. ('℃) | -20℃~60°℃ | ||
| Installation | Recessed | ||
