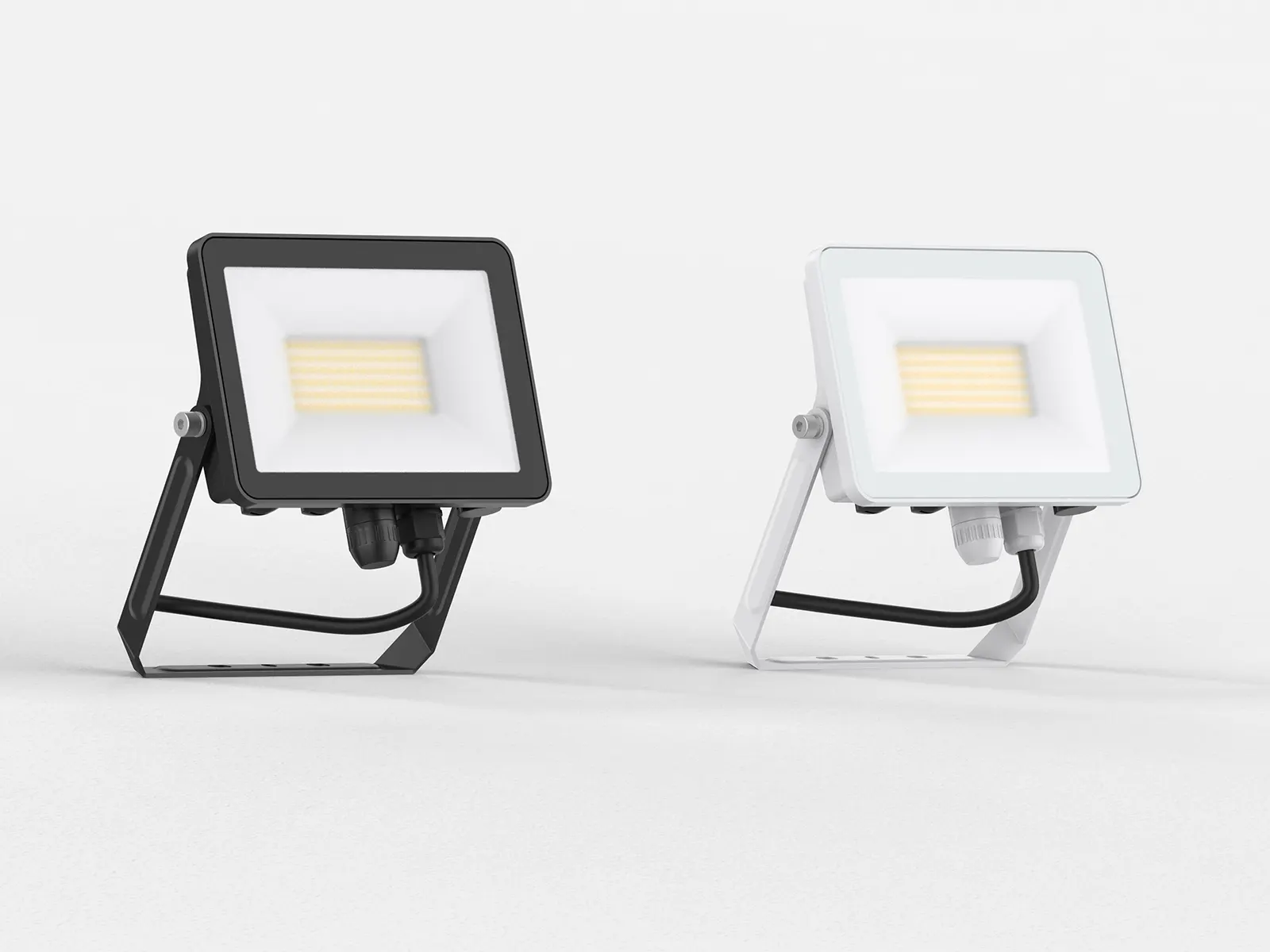

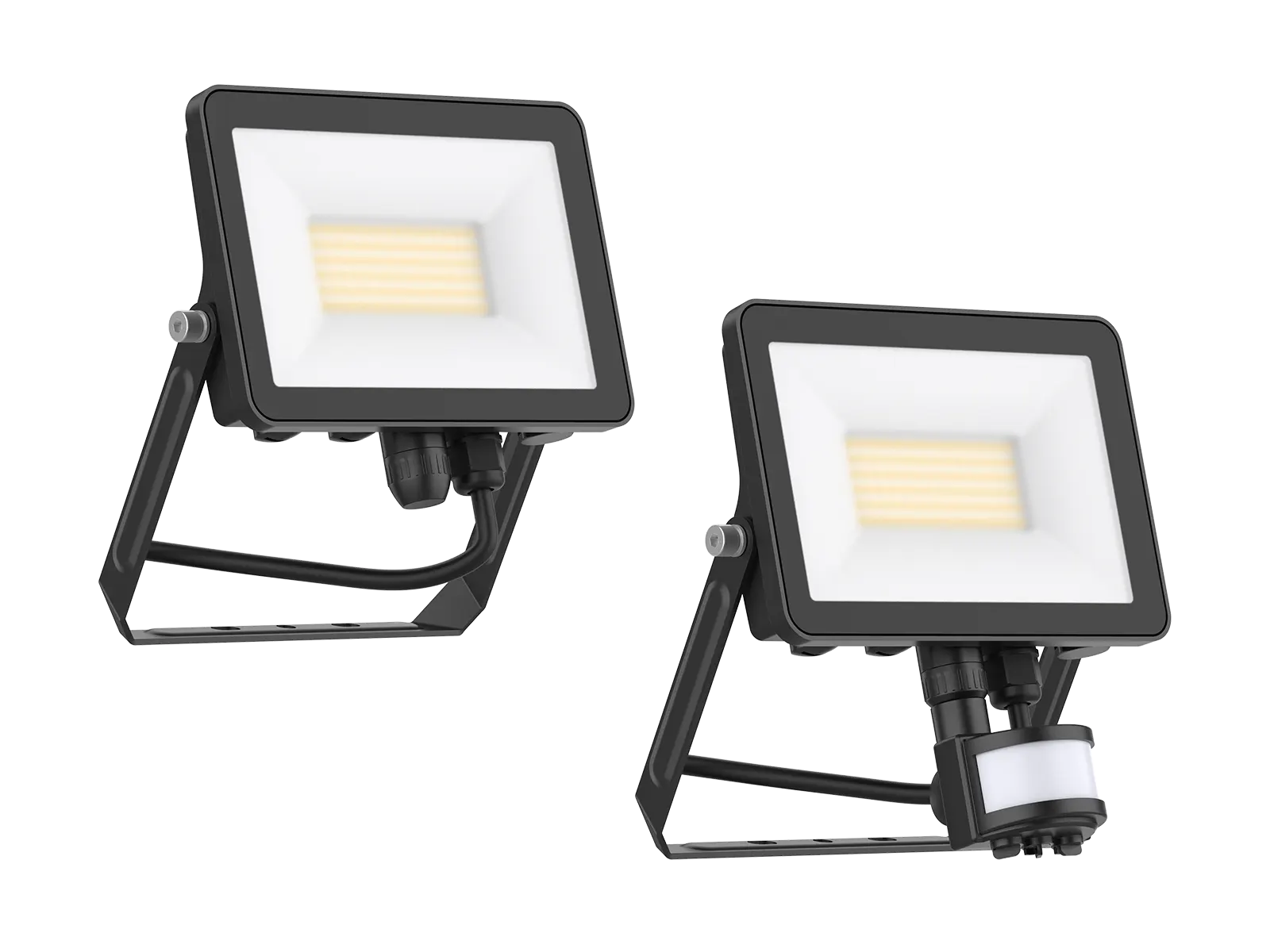

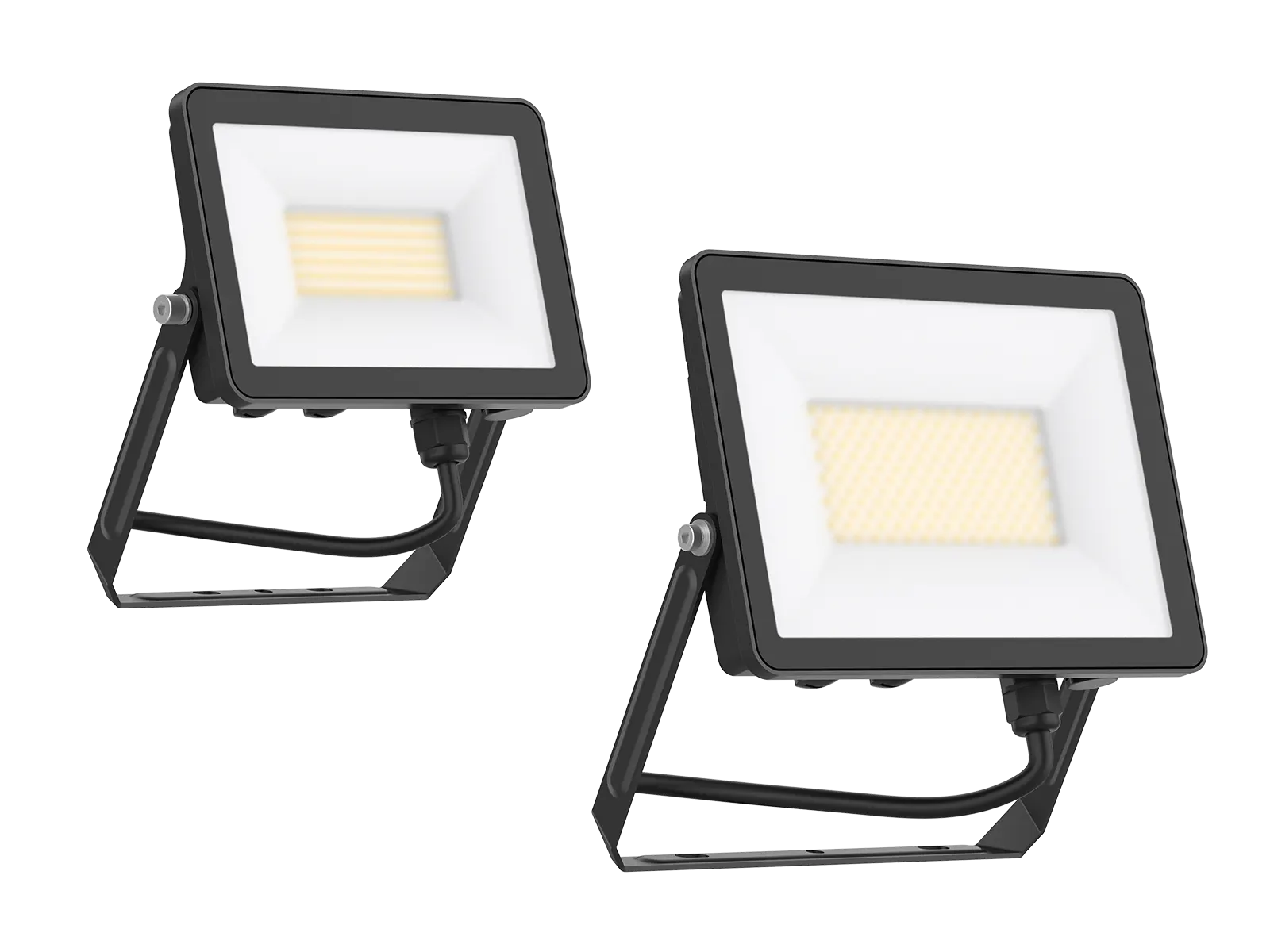

The simple and elegant appearance IP65 led floodlight’s housing is with die-casting aluminium which makes its heat dissipation excellent. Version A is on/ off normal type without sensor interface while version B is sensor modular design with PIR sensor interface. IP54 and IP65 PIR sensor are available for version B. Wattage changeable and CCT interchangeable is available.
Applications: It is designed for general lighting applications in courtyard, park, garden, lawn etc.
| Code | FL14A-10W | FL14A/B-30W | FL14A/B-50W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 95*70 | 160*110 | 200*145 | ||
| Watt(W) | 10W | 30W Max. (30W/20W/15W optional) | 50W Max. (50W/40W/30W optional) | ||
| Rated Input Voltage | AC198-264V | ||||
| Input Voltage | AC220-240V | ||||
| Light Source | 2835 | ||||
| SDCM | SDCM<6 | ||||
| CCT(K) | 1-CCT: 3000K / 4000K, 3-CCT: 3000K+4000K+5700K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 880-1100 | 30W: 3000-3350 20W:2200-2500 15W: 1700-2000 | 50W: 5150-5850 40W: 4300-4650 30W: 3300-3600 |
| 3-CCT | Non-DIM | 880-1100 | 30W: 3000-3500 20W: 2200-2600 15W: 1700-2000 | 50W: 5150-6000 40W: 4300-4800 30W: 3300-3750 | |
| CRI | 80 | ||||
| Beam Angle(°) | 100° | ||||
| LED Driver | Built-in, Flickering | ||||
| Dimming Option | NO | ||||
| Sensor | PIR sensor | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | Black RAL9005 / White RAL9016 | ||||
| Optics Material | PC / Glass | ||||
| Housing Material | Die-Casting Aluminium/Metal | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp(°C) | 50°C | ||||
| Storage Temp(°C) | -25~50°C | ||||
| Installation | Wall mount / Ground mount | ||||
