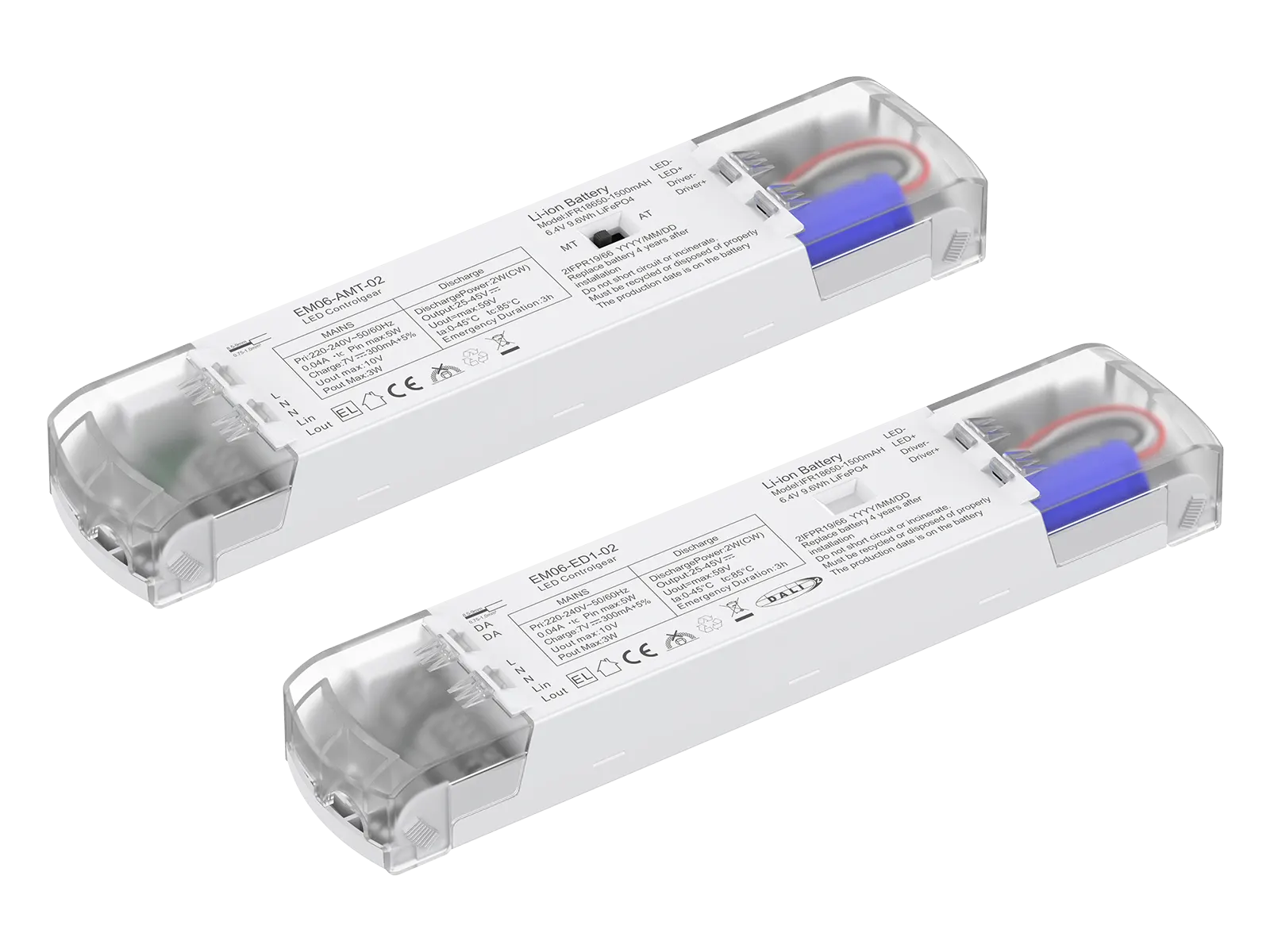

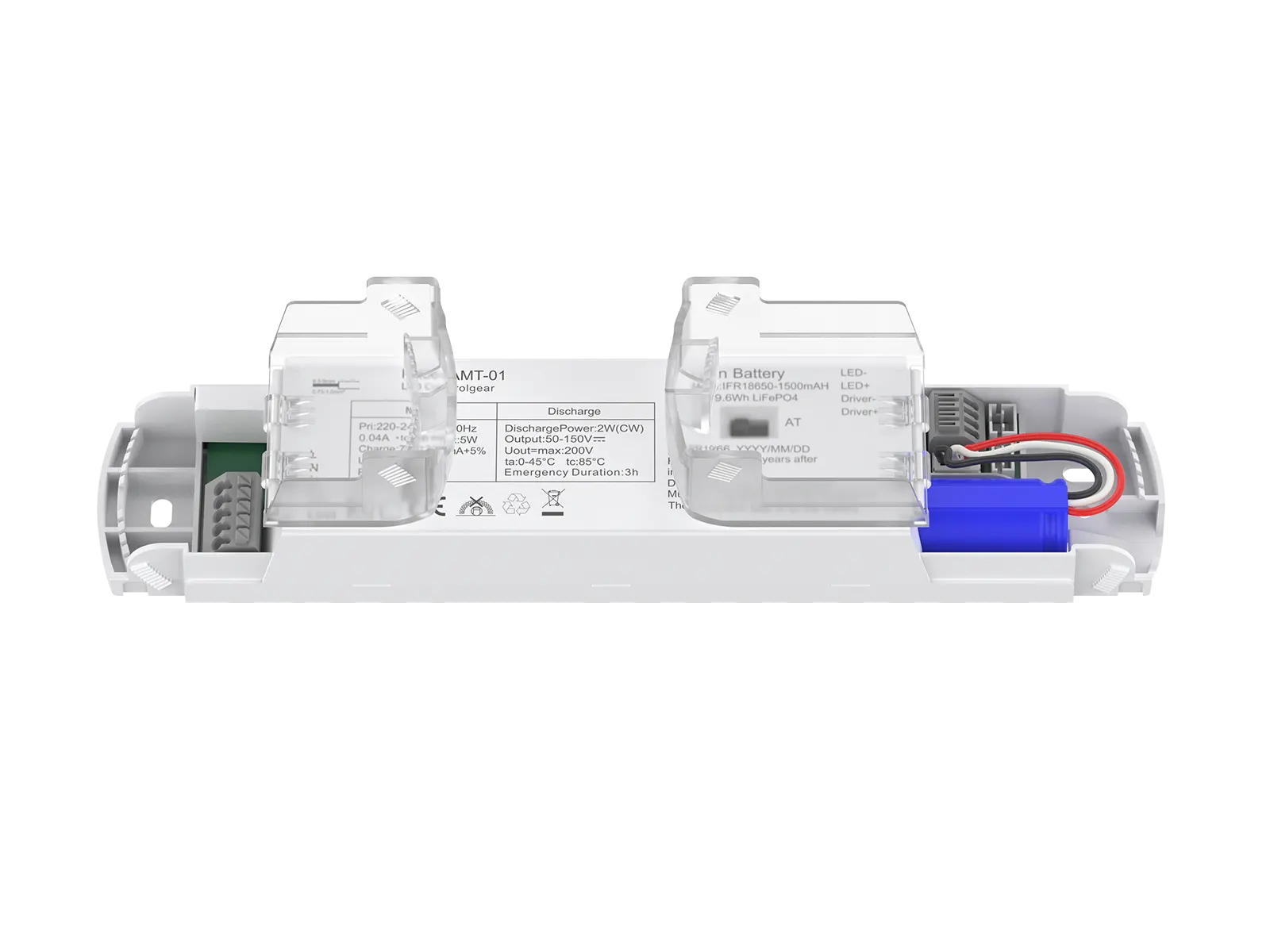

EM06-AMT series is an emergency driver with high compatibility, which can match isolation or non- isolation and triac dimming lamps. Linear plastic shell design, MT for manual test, AT for auto-test; MT: test switch + green indicator light. There is a DIP switch to interchangeable manual testing or auto-test version.

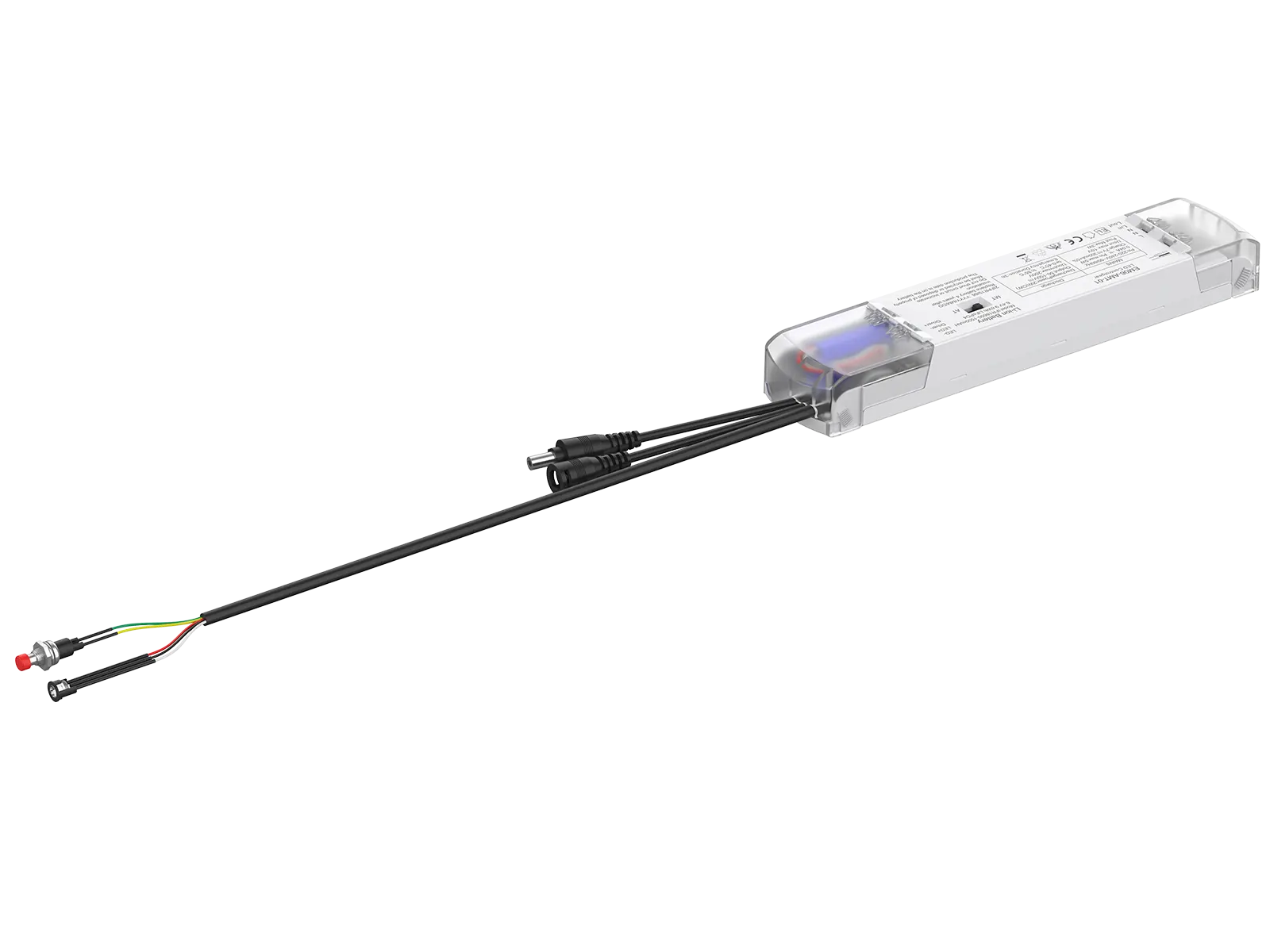

Manual testing version (MT): Test switch + green indicator light. The green light will be ON status if emergency function is under working, and it will be OFF status when there is a fault, the fault reason cannot be judged by the indicator light. When the maintainer test, press the test switch to be emergency status, and release it to return to the normal light-on state.
Auto-test version (AT): Green indicator light and red indicator light. The green light will be on status if emergency function is under working, the red light will flash when there is a fault, and the fault reason can be judged by the red light flash frequency. Plus the test switch, it will be equipped with a manual test function. If the maintainer needs do manually test, the emergency duration will be different based on different pressing frequency to the switch, the fault reason can be judged by the red indicator light flashing frequency.
Applications: Widely used for led batten, panel lights, downlights, strip lights, spotlights, etc
| Model | EM06-AMT-01 | EM06-AMT-02 | |
|---|---|---|---|
| Function | Emergency | ||
| Input | Input power | 3.5W | |
| Discharge power | 2W(CW) | ||
| Input Voltage | AC200-264V | ||
| Rated Input Voltage(V) | AC220-240V | ||
| Frequency | 50/60HZ | ||
| Input Current | ≤0.0.4A | ||
| Rated Input Current | ≤0.0.5A | ||
| Power Factor(typ) | 0.5 | ||
| Total harmonic distortion(THD) | - | ||
| Efficiency(typ) | ≥80% | ||
| Inrush current(Typ.) | 10.9A/278us | ||
| Leakage current | <0.7mA@AC230V | ||
| No load wattage | <1W@230V | ||
| Output | Output Voltage range | DC50-150V | DC25-45V |
| Line Regulation | ±5% | ||
| Open circuit voltage(max) | 200V | 59V | |
| Setup time(note1) | <500ms @230V | ||
| Flickering Index(IEEEStd 1789) | <1%(LOW Risk) | ||
| IEC-PST/CIE(SVM) | ≤1/≤0.4 | ||
| Protection | Short circuit protection | Constant current limiting, recovers automatically after fault condition is removed PASS | |
| Over voltage protection | Shut down o/p voltage, re-power on to recover | ||
| Over temperature protection | Auto Recovery, returning to normal after over temperature is removed. | ||
| Environment | Maximum case temperature tc | 85°C | |
| Operating temperature | -0…+45 °C | ||
| Storage temperature/humidity | -25…+85 °C; 5-95% RH | ||
| Relative humidity | 5…85% | ||
| Environmental rating | Indoor | ||
| IP rating | IP20 | ||
| Life time | >50,000H @25°C | ||
| SAFFTY&EMC | Safety standards | EN IEC61347,EN 61000,EN 61547,EN 62493 | |
| Withstand voltage | I/P-O/P:3.75KVAC | ||
| Isolation Resistance | I/P-FG: 500VDC, ≥4M Ω | ||
| surge | IEC/EN61000-4-5(L-N:1KV ) | ||
| Ring Wave | - | ||
| EMC EMISSION | BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3 | ||
| EMC IMMUNITY | BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547 | ||
| Battery | Battery | 6.4V1500mAh (LifepO4) | |
| Lifetime | Over 2000 cycles | ||
| Battery duration | >3hrs | ||
| Charge Period | <24hrs | ||
| Emergency switching time | ≤ 1S | ||
| Emergency Operating Tenp.(°C) | 0°C-25°C | ||
| Other | Dimension | L224.5*W45.6*H26.3mm | |
| Weight | 206g | 223g | |
